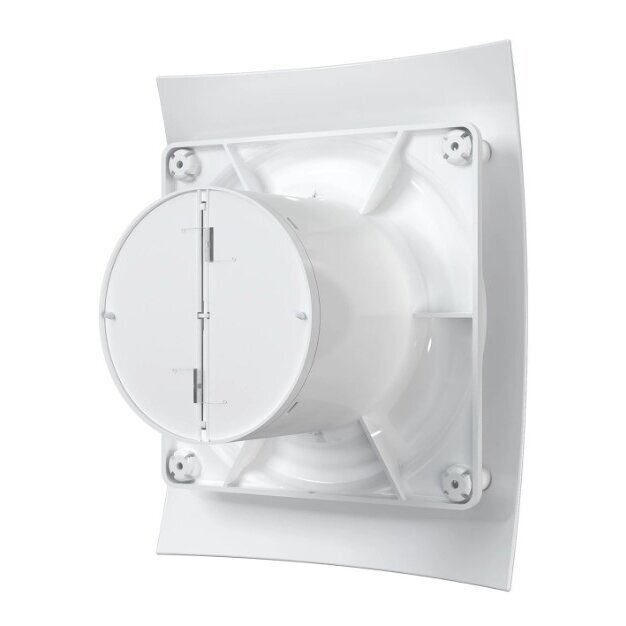

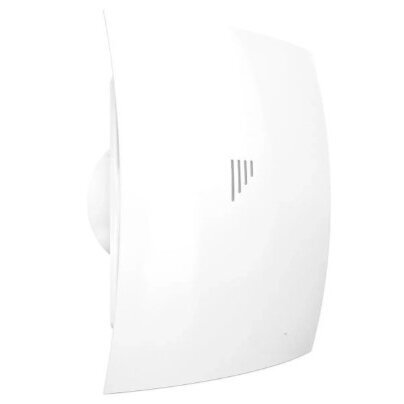

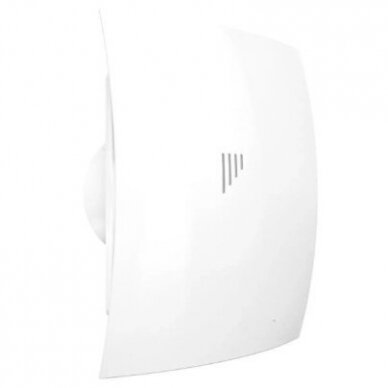

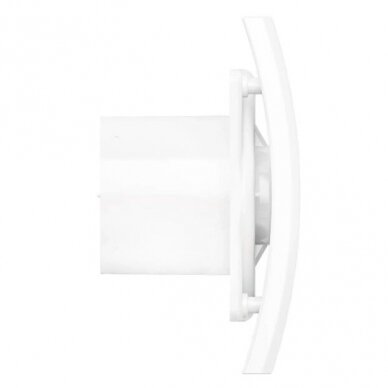

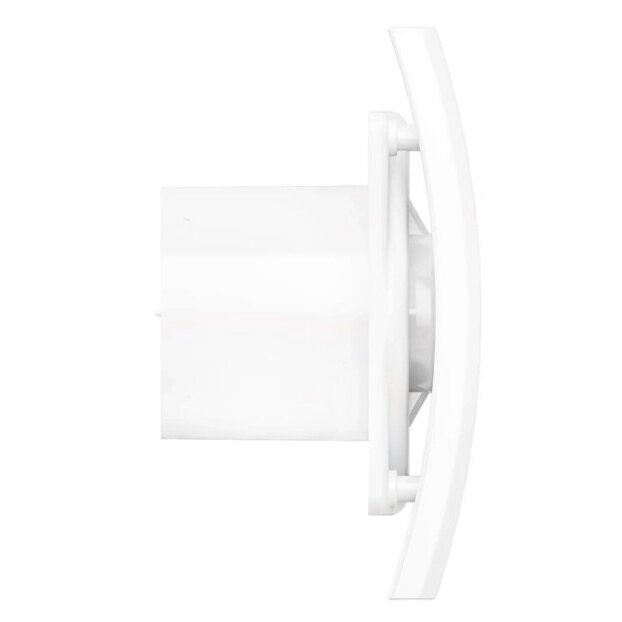

Fan with back-draught shutter | with controller | D100 | 230V | 220x175x123mm | IP24 | plastic | white | BR4SHRM
Code: 04121Price 30.13 € VAT incl.( 24.90 € VAT excl. )• The fan is used for continuous or periodic ventilation of bathrooms, showers, kitchens, and other domestic rooms.
• Equipped with a back-draught shutter that prevents unpleasant odors from entering the shaft.
• Features high performance and low noise levels.
• The ball bearing motor requires no additional maintenance and allows the fan to be installed in both vertical and horizontal positions (after removing the back-draught shutter).Modern stylish design
Easily removable panel
Low noise
Ball bearing motor
Silent back-draught shutter
Overheating protection
Screw mounting
The device turns on and off depending on the light and humidity levels or only on the humidity level in the air, with a 6-mode controller.-
Technical Data:
Material: ABS plastic
Color: White
Protection degree: IP24
Height: 220 mm
Width: 175 mm
Overall depth: 124 mm
Mounting height: 135 mm
Mounting width: 135 mm
Mounting diameter: 98 mm
Outer diameter: 98 mm
Voltage: 230V
Working mechanism: Axial
Ventilation principle: Extraction
Control: Mechanical
Power consumption: 16 W
Performance: 90 m³/h
Pressure: 30 Pa
Noise level: 25 dB(A)
Frame thickness: 44 mm
Flange depth: 74 mm
Closed shutter depth: 6 mm
Warranty: 5 yearsAdvantages:
Durable motor: Ensures a longer service life (up to 40,000 hours), reducing wear and increasing reliability.
Lower energy consumption: Reduced energy usage, helping to save energy in the long term.
Low noise level: Quiet operation due to the special design, ideal for use in environments where noise must be kept to a minimum.
Back-draught shutter protection: Ensures efficient back-draught control without additional noise.
Easy maintenance: Removable front panel allows easy access to internal parts for cleaning or maintenance.
Universal installation: Suitable for wall and ceiling mounting.
Integrated control: The device turns on and off depending on the light and humidity levels.
Disadvantages:Back-draught shutter removed when mounting on the ceiling: When mounting on the ceiling, the back-draught shutter must be removed.
Large size: Some users may find the fan too large if a more compact solution is needed for small spaces.Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.ManufacturerThis product is marked with the CE label, which confirms that it complies with all applicable European Union directives and regulations. CE marking is not just a formality – it is an important indicator of quality and safety, ensuring that the product has been properly assessed, tested, and can be safely used throughout the EU market.
CE certification means that the product has been evaluated according to the main criteria:
Safety requirements – ensures that the product does not pose a risk to the user or the environment
Electromagnetic compatibility (EMC) – the device does not interfere with other equipment and is resistant to external disturbances
Environmental standards – complies with current ecological and material usage requirements
Operational reliability – the product is suitable for long-term use according to its intended purposeCE marking allows this product to:
be legally supplied and used in all European Union countries
ensure a high level of quality and safety
be used in residential, commercial, and industrial environmentsThe CE mark is a declaration of the manufacturer’s responsibility, confirming that the product complies with all applicable standards and has been assessed according to EU legislation.
What does this mean for you as a buyer?
Safe use in everyday activities
Reliable performance and reduced risk of failure
Compliance with EU standards and requirements
Suitability for professional solutions
