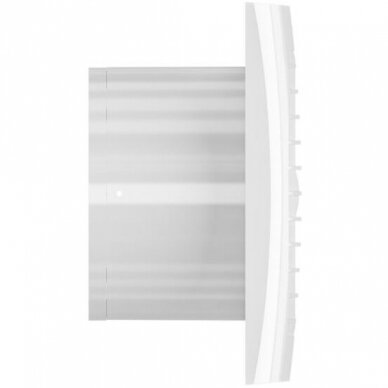

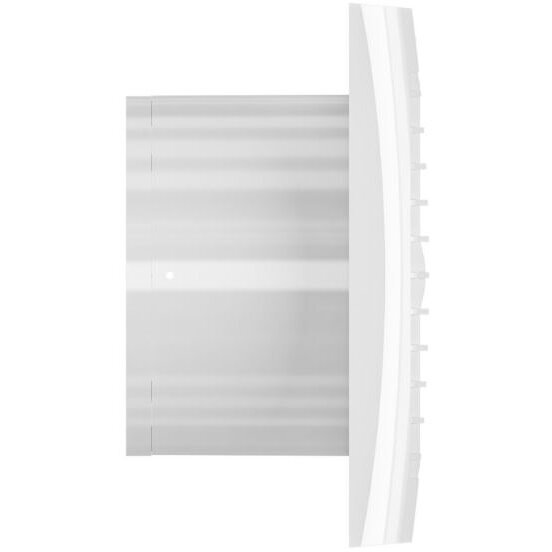

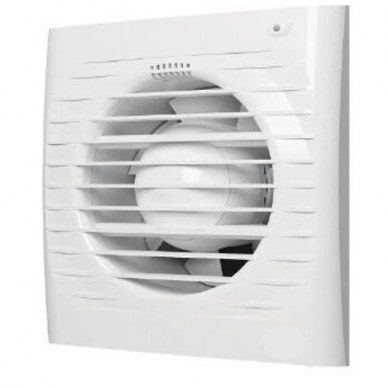

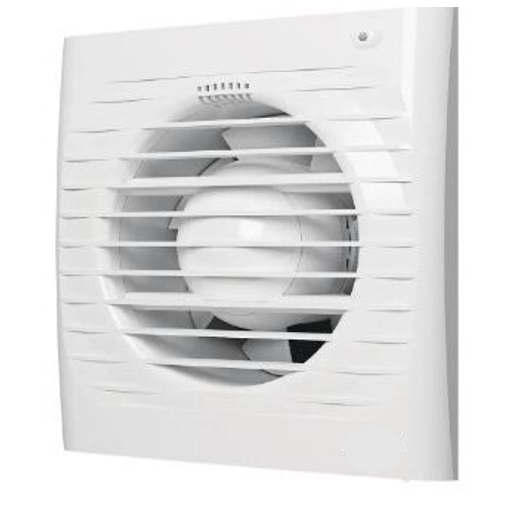

Fan with backdraft damper | D100 | with timer | 150x150x82mm | plastic | white

Technical specifications
Model: Axial fan with timer and back‑draft damper
Airflow: 97 m³/h
Noise level: 35 dB(A)
Pressure: 28 Pa
Diameter: Ø100 mm
Dimensions (W×H×D): 150 × 150 × 82 mm
Power supply: 220 V
Power consumption: 14 W
Material: Durable UV‑resistant ABS plastic
Weight: 0.5 kg
Protection class: IP24 (moisture protection)
Mounting: Wall mounting (self‑tapping screws included)
Warranty: 5 years

Key features

Back‑draft damper: prevents odors or cold air from returning back into the room.

Electronic timer: adjustable from 15 s up to 45 min – allows fan to run even after light is switched off.

LED indicator: blue LED shows fan operation.

Overheat protection: automatic shut‑off when motor temperature exceeds +115 °C – +125 °C.

Quiet operation: just 35 dB(A), ideal for bathrooms and bedrooms.

Insect screen: protects from mosquitoes and other unwanted outdoor intrusions.

Durability: sleeve bearing ensures long service life with no additional maintenance.

Applications

Bathrooms (especially without windows)

Toilets

Kitchens (with moderate steam load)

Storerooms, boiler rooms, and laundry rooms
Fan can be turned on with the light or by a separate switch, and the timer ensures extra ventilation even after leaving the room. Suitable for both new construction and renovation.

Pros

Built‑in timer – convenient use without extra automation.

Back‑draft damper – extra protection against smells.

Compact and aesthetic design (white color fits most interiors).

LED indicator – provides visual feedback about operation.

IP24 protection – suitable for damp rooms.

5‑year warranty – manufacturer’s confidence in quality.

Cons

No humidity or motion sensor – additional automation must be installed separately if needed.

Better suited for smaller rooms – limited airflow (97 m³/h) may be insufficient for large kitchens or shared spaces.

Not universal mounting – wall‑mount only, not ceiling.
