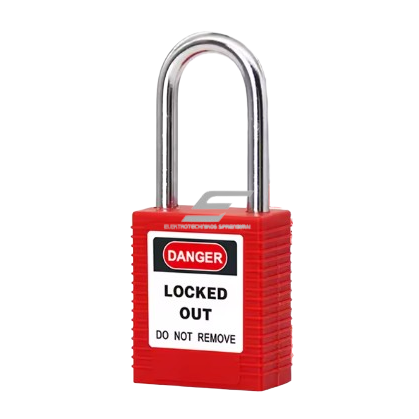

    LOTO safety padlock | long Ø6 mm shackle, 76 mm | chrome-plated steel | key retained when open | red | ES-BD-R8525

    Code: ES-BD-R8525
    Inquire about this item
    Price 6.10 € VAT incl.
    ( 5.04 € VAT excl. )
    Want another price? Suggest yours!

    Red LOTO safety padlock with a long 76 mm chrome-plated steel shackle (Ø6 mm), ABS body and key retaining. Supplied with 2 sets of warning labels.

  • Product description

    LOTO safety padlock | long Ø6 mm shackle, 76 mm | chrome-plated steel | key retained when open | red | ES-BD-R8525

    Personal LOTO safety padlock with a long 76 mm chrome-plated hardened steel shackle – for cases where the lockout point is deeper or thicker and a short shackle does not reach. ABS body; the key cannot be removed while the padlock is open. Supplied with 2 sets of warning labels for the owner’s details.

    Main idea:
    The long shackle makes it possible to lock valve lockouts, thick lockout hasps or several accessories at once. Nobody will switch the equipment on while your padlock hangs on it, and key retaining prevents the padlock from being left open.
    Shackle
    Ø6 mm, height 76 mm
    Shackle material
    chrome-plated hardened steel
    Key
    cannot be removed while the padlock is open
    Included
    2 sets of warning labels

    Operating principle

    The equipment is isolated with a power isolating device, and the padlock is hung on its lockout point, a valve lockout or a lockout hasp.

    The long 76 mm shackle reaches around thicker or deeper lockout points. The key can be removed only once the padlock is locked.

    A label with the worker’s name and department is stuck on the body – it is immediately clear whose padlock it is.

    What are the benefits of this LOTO padlock?
    Where a standard 38–39 mm shackle is too short, this padlock lets you lock out the equipment without additional adapters.

    Technical specifications

    Product type LOTO safety padlock with long shackle
    Code ES-BD-R8525
    Body material ABS engineering plastic
    Shackle material chrome-plated hardened steel
    Shackle diameter 6 mm
    Shackle height 76 mm

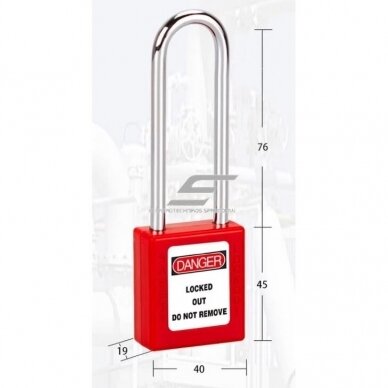

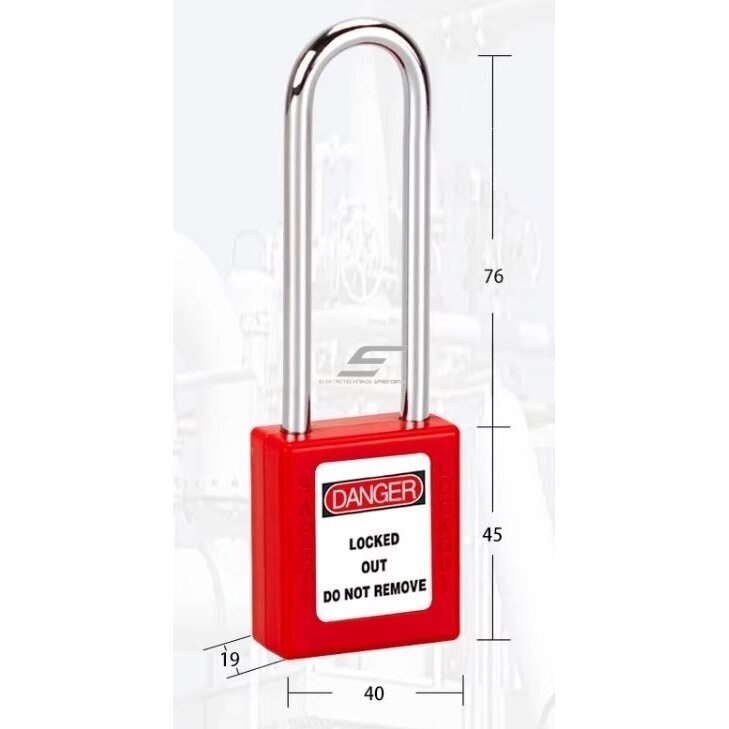

    Body dimensions 45 × 40 × 19 mm
    Overall height 121 mm
    Key retaining key cannot be removed while the padlock is open
    Resistance impact, UV radiation, corrosion, temperature changes
    Package contents padlock, key, 2 sets of warning labels
    Colour red

    Key functions

    • Long 76 mm shackle – locks thicker and harder-to-reach lockout points.
    • Key retaining – the key cannot be removed while the padlock is open.
    • Chrome-plated hardened steel – resistant to corrosion and mechanical wear.
    • ABS body – lightweight, impact- and UV-resistant.
    • Labels for owner details – name, department, date.
    • Red colour – clearly visible on the equipment.

    Where is it used?

    • Valve and damper lockouts
    • Thick lockout hasps
    • Large disconnectors and power switches
    • Lockout boxes for industrial plugs
    • Substation and switchgear equipment
    • Pump stations, boiler rooms, compressor rooms

    Use by need

    For the power engineer.
    Locks even thicker isolation points where a standard shackle does not reach.
    For the safety engineer.
    A personal padlock with labels for the worker’s details – clear accountability.
    For the maintenance supervisor.
    One padlock suits both valve lockouts and electrical equipment.

    Practical use

    If a gate valve with a thick lockout device has to be locked out, the long 76 mm shackle passes through the lockout hole where a standard padlock would not reach. The valve cannot be opened until the padlock is removed.

    Pros

    • Long 76 mm shackle
    • Key cannot be removed while open
    • Chrome-plated hardened steel
    • Labels for owner details
    • Resistant to impact, UV, corrosion

    Cons / limitations

    • The shackle is made of steel and conducts electricity – do not hang it near live parts
    • Designed for work safety, not for theft protection
    • In tight spaces the long shackle may get in the way – choose a padlock with a 39 mm shackle there

    Safety and installation notes

    • ⚡ Locked-out equipment does not mean there is no voltage – before touching, verify the absence of voltage.
    • Lock the power isolating device, not the control button.
    • When locking out valves, release the pressure from the system before starting work.
    • Fill in the label: name, department, date.
    • Keep the key with you, do not leave it at the workplace.
    The Lithuanian Rules for Safety When Operating Electrical Installations (item 80/81) require measures to ensure that disconnected equipment cannot be switched on automatically or by mistake (item 80). A personal LOTO safety padlock is a practical way to meet this requirement. The sign “Do not switch on! Work in progress” („Nejungti! Įrenginiuose dirbama“) is also hung on the device (item 81).

    Quick selection guide

    Shackle Ø6 mm | 76 mm
    Body 45×40×19 mm
    Chrome-plated steel
    Colour: red
    Suits when you need:
    • to lock valve lockouts and thick hasps
    • when a standard shackle is too short
    • personal padlocks with owner marking
    Check before use:
    • whether the Ø6 mm shackle fits the lockout hole
    • whether the long shackle will get in the way in a tight space
    • whether the label with details has been filled in
    Important reminder: A LOTO padlock does not replace verifying the absence of voltage, releasing pressure and other safety measures.

    FAQ

    What is the shackle length?
    The shackle height is 76 mm, diameter 6 mm.
    How does it differ from a standard LOTO padlock?
    The longer shackle makes it possible to lock thicker and harder-to-reach points.
    Can the key be removed when the padlock is open?
    No, the key can be removed only after the padlock is locked.
    What is included?
    Padlock, key and 2 sets of warning labels.
    Does it fit valve lockouts?
    Yes, if the lockout hole accepts a Ø6 mm shackle.
    Does the shackle conduct electricity?
    Yes, the shackle is made of steel, so the padlock is hung only on the lockout point.

    LOTO safety padlock | long Ø6 mm shackle, 76 mm | chrome-plated steel | key retained when open | red | ES-BD-R8525

    Red LOTO safety padlock with a long 76 mm chrome-plated steel shackle and key retaining – for valve lockouts, thick hasps and harder-to-reach isolation points.
