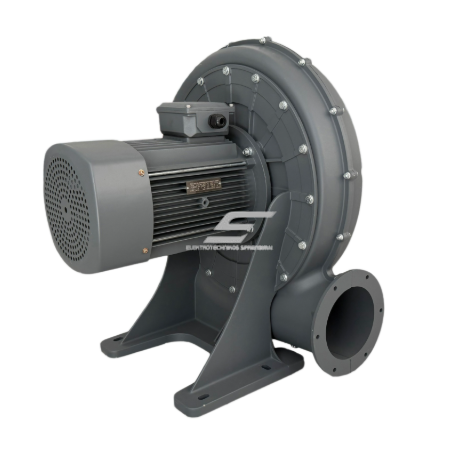

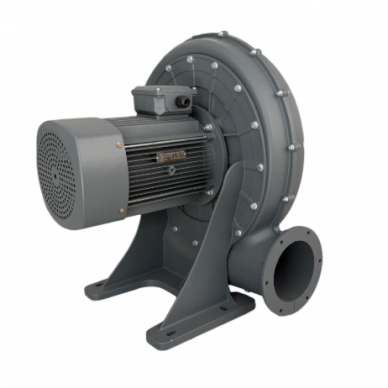

    New item   Industrial centrifugal turbo blower | 0.75 kW | 380 V | 1080 m³/h | 1300 Pa | aluminium housing | ES-YNTB 1

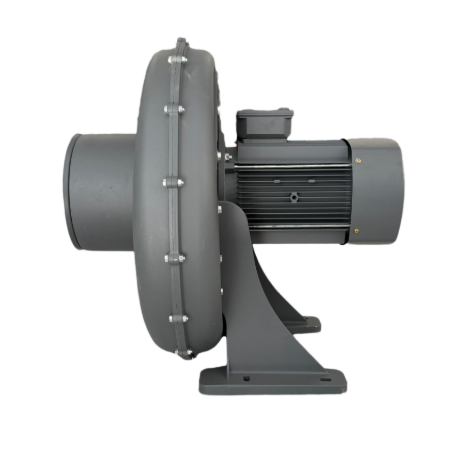

    New item   Industrial centrifugal turbo blower | 0.75 kW | 380 V | 1080 m³/h | 1300 Pa | aluminium housing | ES-YNTB 2

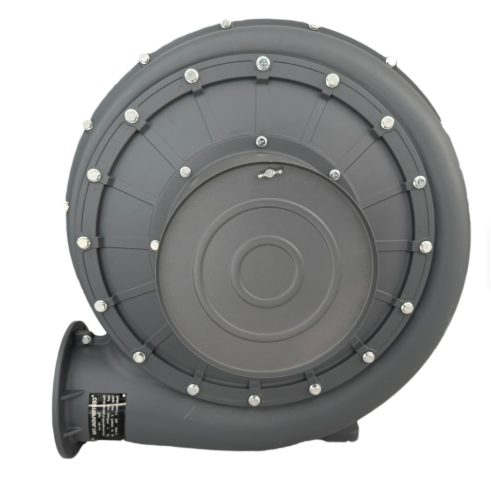

    New item   Industrial centrifugal turbo blower | 0.75 kW | 380 V | 1080 m³/h | 1300 Pa | aluminium housing | ES-YNTB 3

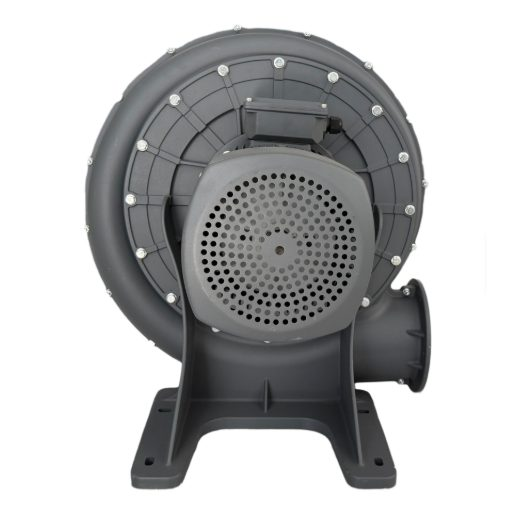

    New item   Industrial centrifugal turbo blower | 0.75 kW | 380 V | 1080 m³/h | 1300 Pa | aluminium housing | ES-YNTB 4

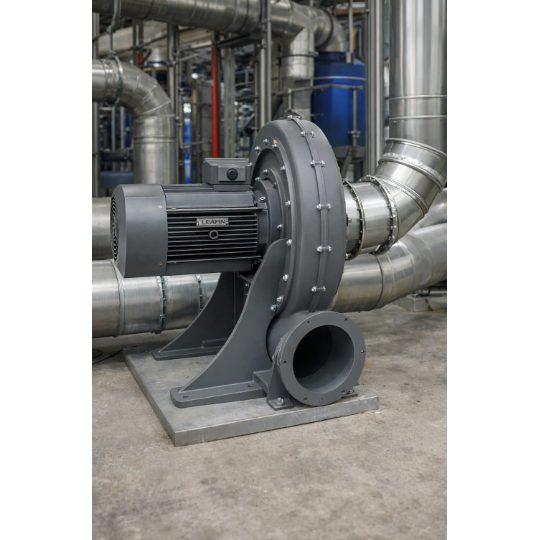

    New item   Industrial centrifugal turbo blower | 0.75 kW | 380 V | 1080 m³/h | 1300 Pa | aluminium housing | ES-YNTB 5

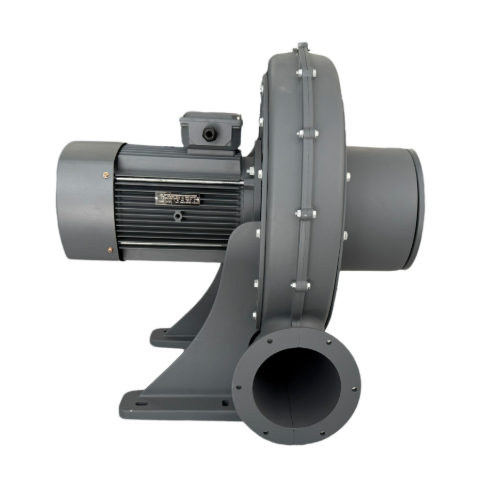

    Industrial centrifugal turbo blower | 0.75 kW | 380 V | 1080 m³/h | 1300 Pa | aluminium housing | ES-YNTB

    Code: ES-YNTB
    Inquire about this item
    Price 304.41 € VAT incl.
    ( 251.58 € VAT excl. )
    Want another price? Suggest yours!

    Industrial centrifugal turbo blower ES-YNTB (TB100-1): 0.75 kW, 380 V, 1080 m³/h, 1300 Pa.

  • Product description

    Industrial centrifugal turbo blower | 0.75 kW | 380 V | 1080 m³/h | 1300 Pa | aluminium housing | ES-YNTB

    Compact 0.75 kW centrifugal turbo blower TB100-1: up to 1080 m³/h and up to 1.3 kPa for industrial processes that need more pressure than a standard fan.

    Key point:
    Aluminium alloy housing, three-phase motor and high speed – for combustion air supply, dryers, pneumatic conveying and process ducts with high resistance.
    Airflow
    1080 m³/h
    Power / voltage
    0.75 kW / 380 V
    Pressure
    1300 Pa
    Speed
    2800–2900 rpm

    We will help you set up speed and automatic control

    We will advise how to adjust this fan's speed and how to switch or control it automatically according to room conditions – humidity, temperature or CO₂ concentration. We will select a suitable speed controller, thermostat, humidity or CO₂ sensor and explain how to connect them.

    Contact us: tel. +370 658 01033 or e-mail info@elsprendimai.eu

    In your e-mail, briefly describe the situation: room purpose and size, fan model and what you want to control – speed, humidity, temperature or CO₂.

    Wholesale quantities: special prices for larger orders. State the required quantity in your e-mail and we will send you an individual offer.

    Operating principle

    The impeller throws air at high speed into the scroll housing, so the blower builds several times more pressure than a standard duct fan. This allows air to be blown through narrow ducts, filters or combustion chambers.

    The motor runs at 2800–2900 rpm. Speed can be adjusted with a frequency inverter; at 60 Hz airflow and pressure rise to 22 m³/min and 2.1 kPa.

    Why choose this fan?
    High pressure in a small housing: 1080 m³/h and 1.3 kPa using only 0.75 kW.

    Technical specifications

    Product type Industrial centrifugal turbo blower
    Series TB100-1
    Code ES-YNTB
    Power supply 380 V, 3-phase (220 V version available)
    Power 0.75 kW
    Speed 2800–2900 rpm
    Airflow 18 m³/min (1080 m³/h) at 50 Hz; 22 m³/min at 60 Hz
    Pressure 1.3 kPa at 50 Hz; 2.1 kPa at 60 Hz
    Housing die-cast aluminium alloy, grey
    Impeller centrifugal, steel
    Mounting on feet, outlet direction selectable (B1, B2, B3)
    Country of origin China

    Main functions

    • High pressure – Up to 1.3 kPa (50 Hz).
    • Compact – Aluminium housing, low weight.
    • Outlet direction – B1, B2, B3 options.
    • Control – By frequency inverter.

    Where is it used?

    • Combustion air for burners and furnaces
    • Dryers and heating equipment
    • Pneumatic conveying of light materials
    • Cooling and air blowing in production
    • Aeration of small tanks

    Use by need

    For designers.
    A pressure source for a process system.
    For installers.
    Compact and easy to fix.
    For businesses.
    Low power – low running costs.

    Practical application

    The stated airflow is at zero resistance; airflow drops as pressure rises. Connect the motor via a motor protection breaker sized for its rated current.

    Pros

    • 1080 m³/h and 1.3 kPa
    • Only 0.75 kW
    • Aluminium housing
    • Inverter speed control

    Cons / limitations

    • Not for room ventilation
    • Not for explosive atmospheres
    • Larger flows need a bigger model

    Safety and installation notes

    • Connection must be made by a qualified specialist
    • Fit overload protection in the supply circuit
    • Mount the fan on a solid base
    • Disconnect power before maintenance
    • Keep inlet and outlet unobstructed

    Quick selection guide

    1080 m³/h
    0.75 kW / 380 V
    1300 Pa
    2800–2900 rpm
    Suitable when you need:
    • blow air through a narrow or long run
    • supply air to combustion or drying equipment
    • cool process equipment
    Check before use:
    • whether a 380 V three-phase supply is available
    • whether 1080 m³/h and 1.3 kPa are enough
    • which outlet direction is required
    Important reminder: A fan works best when its airflow and pressure match the system resistance.

    FAQ

    Are larger models available?
    Yes, the TB series goes up to 15 kW – we will quote based on the required airflow and pressure.
    Can the speed be adjusted?
    Yes, with a frequency inverter.
    Is it suitable for room ventilation?
    No, it is a high-pressure blower for process applications.

    ES-YNTB turbo blower TB100-1 0.75 kW

    Industrial centrifugal turbo blower ES-YNTB (TB100-1): 0.75 kW, 380 V, 1080 m³/h, 1300 Pa.

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
