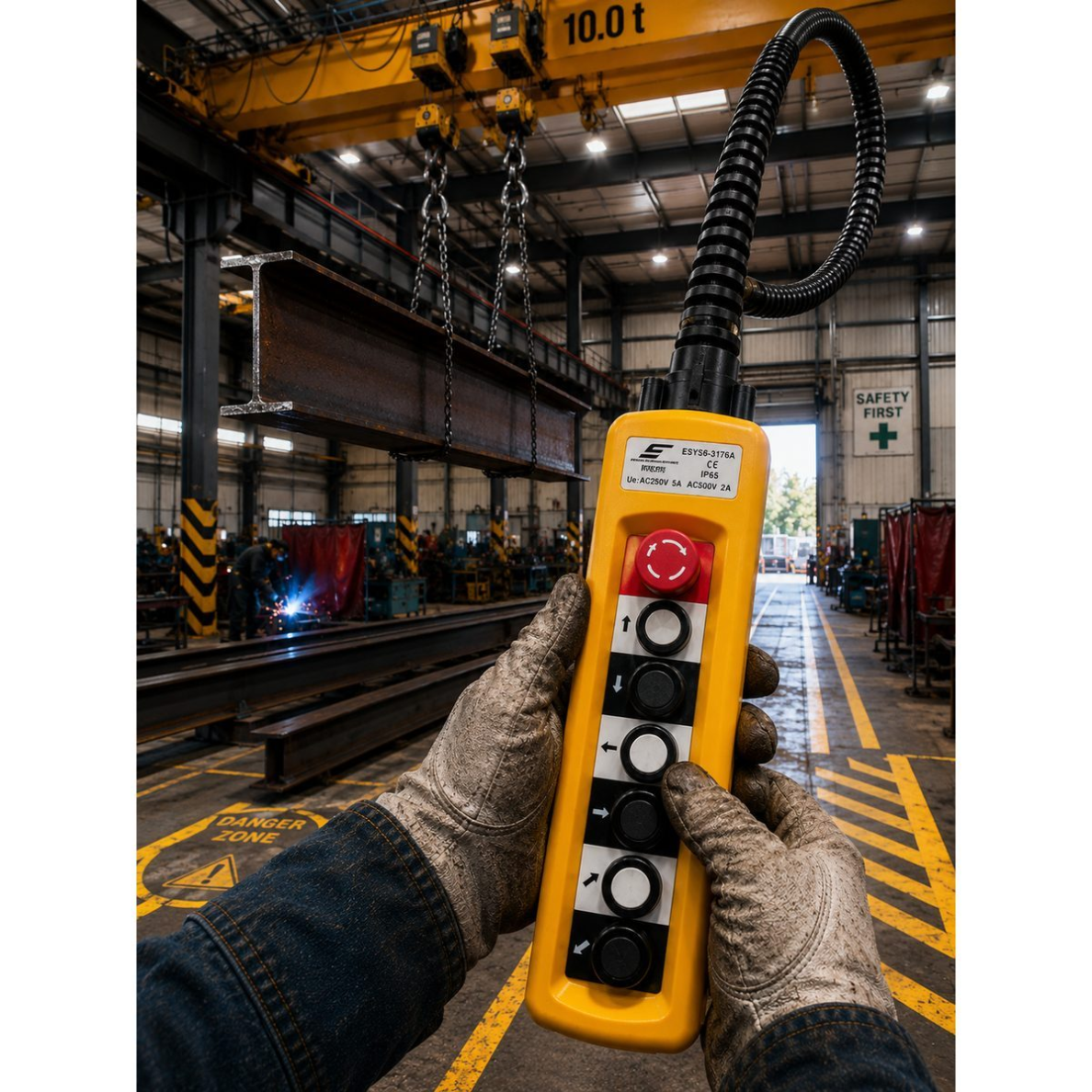

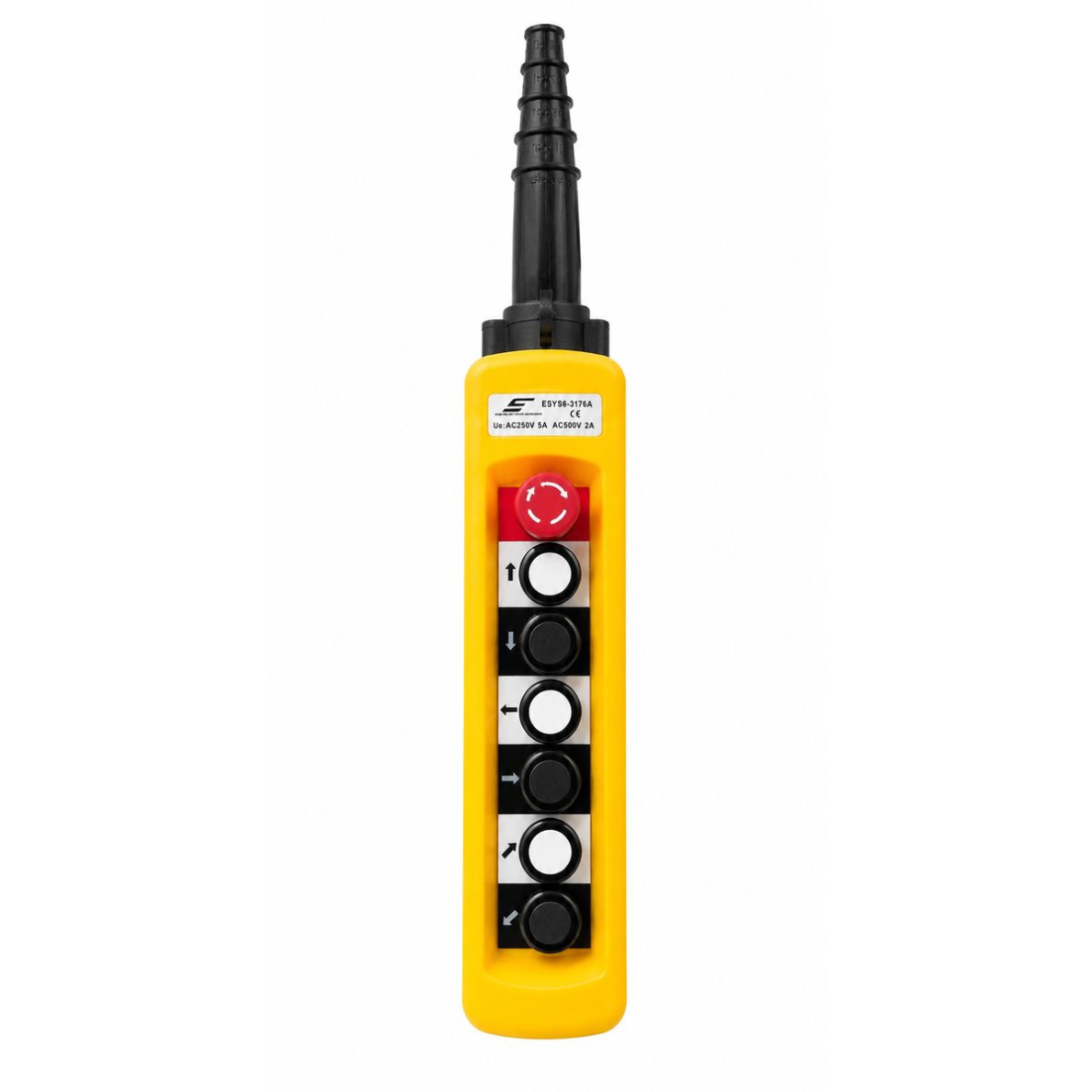

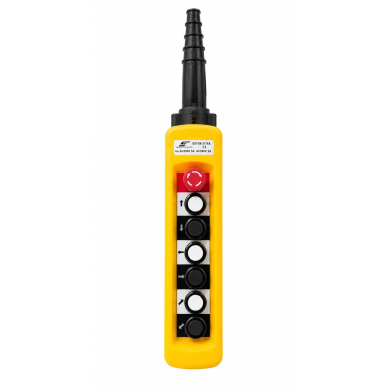

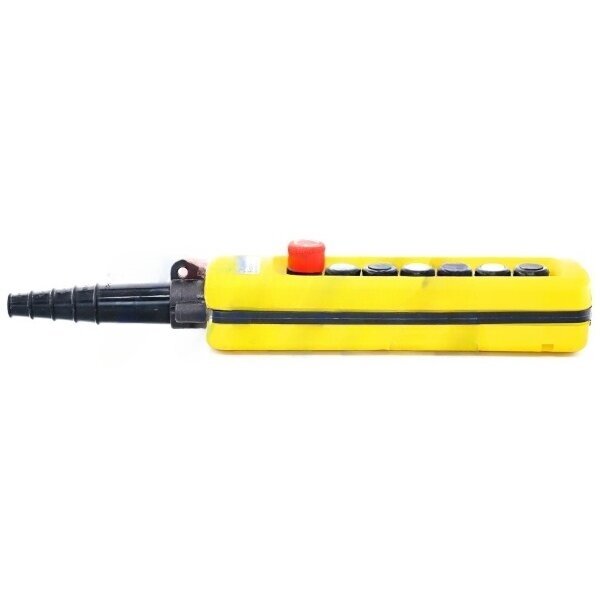

Industrial crane control panel | with 6 buttons | with rotary STOP button | 2-5A | 250-500V | IP56 | 1 speeds

Technical specifications

Product type: crane / hoist control pendant
Control: single speed
Emergency STOP: latching (twist release)
Rated voltage (Ui): 500V
Rated current (Ith): 10A
AC-15 category: 500V – 2A; 250V – 5A
Protection class: IP56 (protection against dust and water splashes)
Operating temperature: -25°C to +40°C
Mechanical durability: up to 1,000,000 cycles
Material: high-quality plastic
Certificates: ISO9001, CE, CCC

Functions

Emergency STOP button – immediate stop of the equipment
Latching mechanism – safe locking until manual release
Ergonomic control – comfortable for the operator
Durable construction – suitable for industrial environments
Long service life

Applications

Industry / operators: crane and hoist control; production lines; lifting and transport equipment; warehouse systems
Electricians: installation of new equipment; implementation of control systems; modernization of existing systems
Engineers / designers: design of automated systems; integration of safety solutions; development of industrial control systems
Other users: lifting equipment in workshops or farms; custom mechanisms requiring safety

Advantages

Integrated emergency STOP – maximum safety
IP56 – resistant to dust and moisture
Durable – up to 1 million presses
Certified (CE, ISO, CCC)
Universal use across various industries
Reliable operation in a wide temperature range

Disadvantages

Plastic housing (not metal – lower impact resistance)
Max. 5A – contactor required for higher loads
