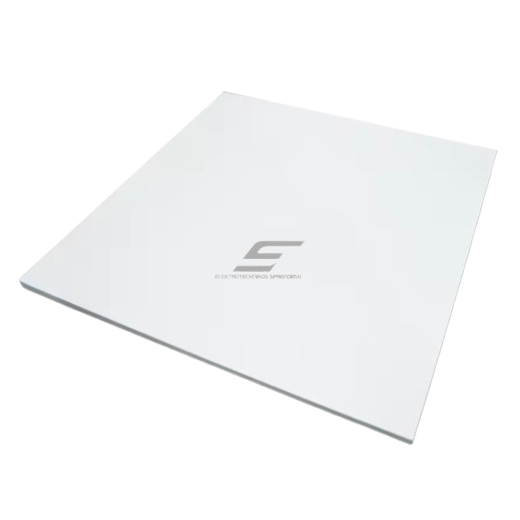

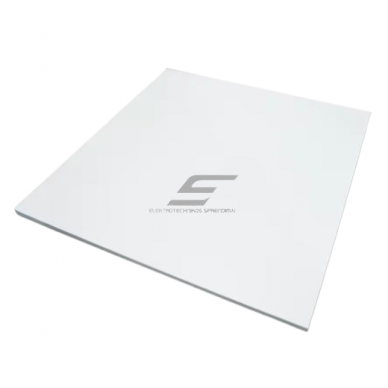

Infrared Heater | Panel | 360W | 110-240V | 595x595mm | IP45
Code: ES-NF360A modern, aesthetic, and efficient heating solution designed for both residential and commercial spaces. Using carbon crystal technology, heat is transmitted through far-infrared radiation, which warms people, surfaces, and objects rather than the air. The result is more natural warmth, lower energy consumption, and no dry, dusty air typical of traditional convection radiators.
-
Technical Specifications
Installation: Ceiling-mounted (wall mounting also possible)
Heating technology: Carbon Crystal
Radiation type: Far infrared rays
Radiation efficiency: >95%
Heat transfer efficiency: up to 98%
Power: 360 W (±10%)
Voltage: 220–240 V / 50 Hz; 110–120 V / 60 Hz
Surface temperature: 85–105 °C
Protection class: IP45
Dimensions: 595 × 595 mm

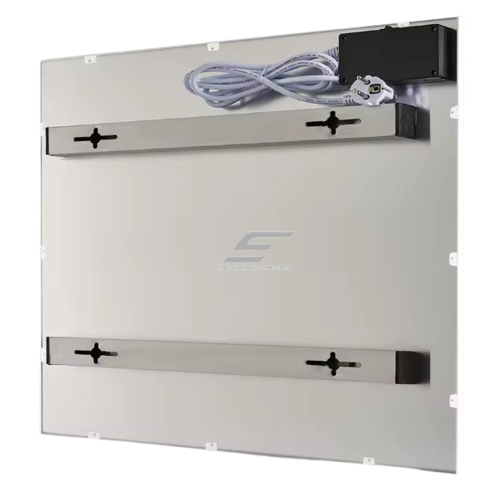

Rear panel: 1.5 mm aluminum plateAdditional Features
Adjustable thermostat
Overheating protection
Deodorization effect
Certificates: Tested in certified laboratories, complies with safety requirementsFunctions and Operating Principle
Infrared heating – heat is felt immediately, without long room warm-up
Zonal heating – heats only the areas where people are present
No convection – does not raise dust, produces no noise, does not dry the air
High energy efficiency – lower electricity costs

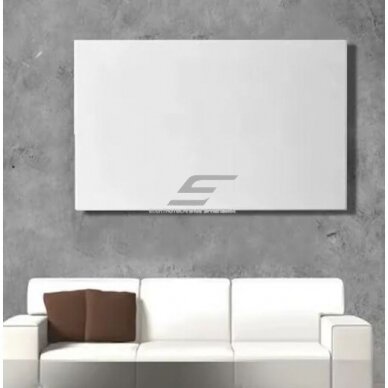

Minimalist design – discreet ceiling installation, fits modern interiorsApplications
For household use: Bathrooms, kitchens, living rooms. Additional or primary zonal heating. Comfortable, “sun-like” warmth.
For offices and commercial spaces: Individual offices, break rooms, conference and meeting rooms, reception areas.
For hotels, restaurants, resorts: Lobbies, foyers, outdoor dining and event areas, conference spaces. An alternative to gas (propane) heaters.
For engineers and electricians: Easy installation – only a power supply is required. Compatible with external thermostats. Durable construction, reliable materials. Low maintenance costs.
Advantages
Very high heat transfer efficiency (98%)
Up to 50% lower energy consumption
Modern frameless design
Does not take up space
Safe, with overheating protectionDisadvantages
More suitable for zonal heating than for full-building central heating
Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.The IP protection class indicates the device's resistance to environmental factors.

The first digit indicates protection against dust and solid objects.
The second digit indicates protection against moisture.First digit values:
X — Untested;
0 — No protection;
1 — Protected against solid objects larger than 50 mm;
2 — Protected against solid objects larger than 12.5 mm;
3 — Protected against solid objects larger than 1 mm;
4 — Protected against solid objects larger than 1 mm;
5 — Dust protected;
6 — Totally dustproof.
Second digit values:X — Untested;
0 — No protection;
1 — Protected against vertically falling water drops;
2 — Protected against water drops falling at a 15º angle;
3 — Protected against rain falling at a 60º angle;
4 — Protected against water splashes;
5 — Protected against water jets;
6 — Protected against large amounts of water;
7 — Protected against short-term immersion in water up to 1 meter deep;
8 — Protected against long-term immersion in water up to 3 meters deep.This product is marked with the CE label, which confirms that it complies with all applicable European Union directives and regulations. CE marking is not just a formality – it is an important indicator of quality and safety, ensuring that the product has been properly assessed, tested, and can be safely used throughout the EU market.
CE certification means that the product has been evaluated according to the main criteria:
Safety requirements – ensures that the product does not pose a risk to the user or the environment
Electromagnetic compatibility (EMC) – the device does not interfere with other equipment and is resistant to external disturbances
Environmental standards – complies with current ecological and material usage requirements
Operational reliability – the product is suitable for long-term use according to its intended purposeCE marking allows this product to:
be legally supplied and used in all European Union countries
ensure a high level of quality and safety
be used in residential, commercial, and industrial environmentsThe CE mark is a declaration of the manufacturer’s responsibility, confirming that the product complies with all applicable standards and has been assessed according to EU legislation.
What does this mean for you as a buyer?
Safe use in everyday activities
Reliable performance and reduced risk of failure
Compliance with EU standards and requirements
Suitability for professional solutions
