  •   Integrated optical SFP+ transceiver | for fast and stable data transmission | 1310 nm | LC connector | SMF | up to 10 km | Hot-plug support

    Integrated optical SFP+ transceiver | for fast and stable data transmission | 1310 nm | LC connector | SMF | up to 10 km | Hot-plug support

    Code: SM10GSA
    Inquire about this item
    Price 14.52 € VAT incl.
    ( 12.00 € VAT excl. )
    Want another price? Suggest yours!

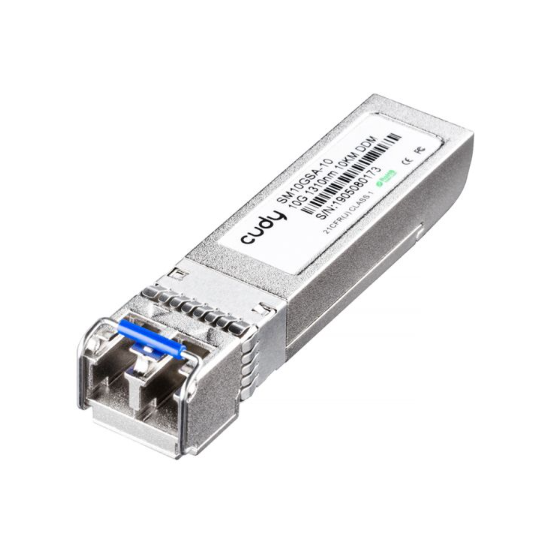

    An SFP+ standard optical transceiver designed for fast and stable data transmission over single-mode fiber up to a distance of 10 km. This module is well suited for advanced home users as well as IT engineers, network administrators, electricians, and industrial applications where reliable connectivity and a wide operating temperature range are required.

  • Product description

    Technical Specifications

    Type: Optical pluggable transceiver (SFP+)
    Model: CUDY SM10GSA-10
    Standard: SFP+ (MSA compliant)
    Wavelength: 1310 nm
    Connector: LC
    Optical fiber: Single-mode (SMF)
    Maximum transmission distance: up to 10 km
    Supported standards: IEEE 802.3; 10Base-T / 100Base-Tx
    Data transmission: 10/100Base-Tx Fast Ethernet via Cat5 cable
    Power supply: +3.3 V
    Design: Hot-pluggable SFP slot; compact RJ-45 connector assembly design
    Operating temperature: -40 °C to +85 °C
    Environmental compliance: RoHS, lead-free

    Functions

    Stable fiber optic connection up to 10 km
    Hot-plug – installation and replacement without powering down equipment
    Compatible with SFP Multi Source Agreement (MSA)
    Uses RX_LOS signal for link status indication
    TX_DISABLE support – allows module state control via network equipment
    Compact design – ideal for high-density network solutions
    Suitable for industrial environments due to wide temperature range

    Applications

    For home users: Extension of fiber optic links between buildings (house–garage, house–workshop), stable internet over long distances without interference, suitable for NAS, routers, or switches with SFP slots
    For electricians: Connection of industrial facilities, video surveillance systems, automation networks, long distances without electromagnetic interference, fast and secure installation thanks to SFP format
    For engineers / IT specialists: Interconnection of business networks, server rooms, and data centers, primary and backup links, reliable solution for L2/L3 network infrastructure

    Pros

    Long transmission distance – up to 10 km
    Single-mode fiber – high stability and low signal loss
    Wide operating temperature range
    Hot-plug support
    MSA and IEEE 802.3 compliance
    Compact and professional solution

    Cons

    Requires equipment with an SFP+ slot
    Designed for single-mode fiber only (not suitable for multimode)
    Maximum performance achieved only with high-quality optical cable

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
