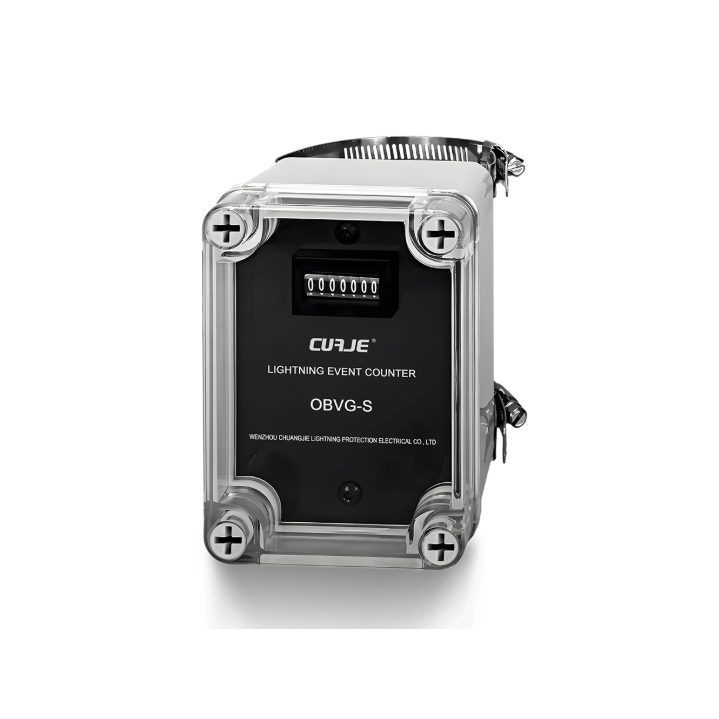

Lightning discharge counter | lightning protection impulse counter | 0–999999 | 3–100 kA | no power supply required | ABS housing | for outdoor installation

Technical specifications

Product type: lightning strike counter
Purpose: counting lightning discharges and impulse events
Counter type: mechanical counter
Counter range: 0–999999 impulses
Counting capacity: up to 999999 impulses
Minimum detectable impulse: 3 kA, 8/20 µs
Maximum detectable impulse: 100 kA, 10/350 µs
Power supply: not required
Data retention: up to 5 years
Housing: ABS plastic
Operating environment: outdoor conditions
Operating ambient temperature: from -20 °C to +65 °C
Installation: stainless steel clamp / steel mounting parts
Mounting: on the down conductor of the lightning protection system
External dimensions: 110 x 80 x 70 mm
Net weight: approx. 0.65 kg
Reset function: programmable

Functions

Lightning discharge counting – records activations of the lightning protection system and allows users to see how many times a lightning impulse has passed through the system.
Mechanical impulse counter – readings are visible directly on the device; no additional software or external display is required.
High counting capacity – the counter can count up to 999999 impulses, making it suitable for long-term monitoring of a lightning protection system.
Detection of impulses with different intensity – records impulses from 3 kA to 100 kA, therefore it can be used in various lightning protection systems.
Operates without a power supply – no batteries, mains power or additional power cable are required.
Suitable for outdoor conditions – the device is designed to operate within a temperature range from -20 °C to +65 °C.
Durable ABS housing – compact and resistant construction helps protect the counter from environmental impact.

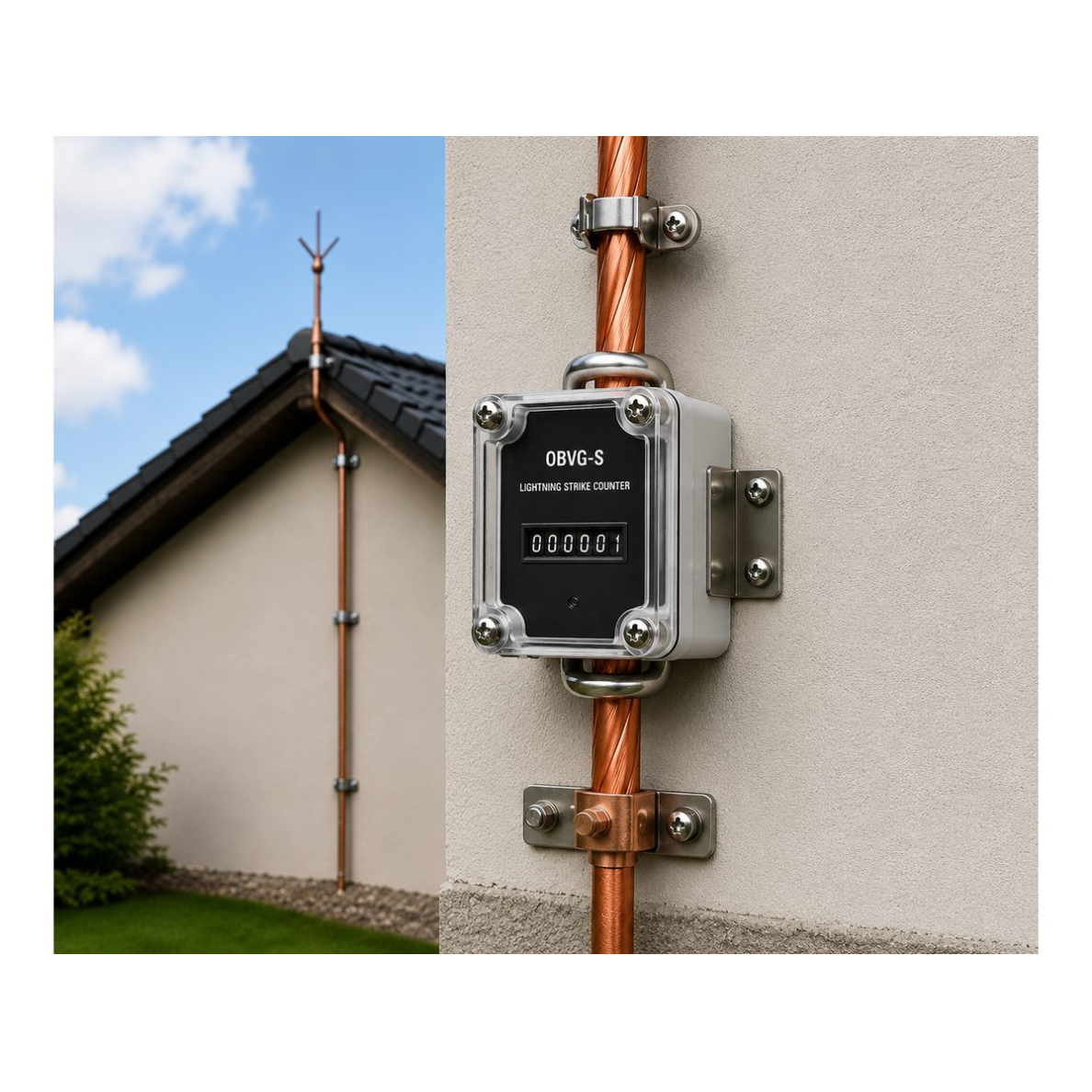

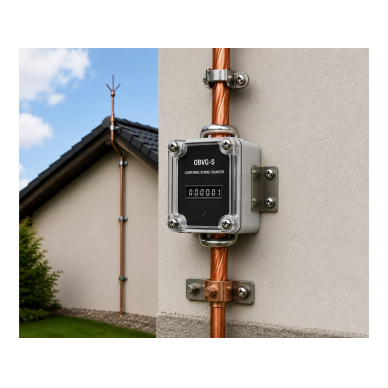

Simple installation – mounted on the down conductor using a stainless steel clamp.
Lightning protection condition monitoring – helps determine whether the lightning protection system, earthing system or surge protection devices need to be inspected after a lightning discharge.

Use

For household users: Suitable for private houses, homesteads, farm buildings or cottages equipped with a lightning protection system. The counter allows the owner to see whether the lightning rod has been affected by a lightning discharge. After a recorded activation, a specialist can be contacted for system inspection.

For electricians: Useful for installing and maintaining lightning protection systems. The counter allows the activation history of the system to be shown to the customer and helps plan maintenance.

For engineers / designers: Relevant when designing lightning protection solutions for sites where discharge registration is required. Suitable for industrial, energy, communication, solar power plant and commercial building projects.

For industrial companies: Suitable for factories, logistics centres, warehouses, production lines and other locations where a lightning discharge may affect electrical equipment, automation systems, controllers, server rooms or communication systems.

For solar power plants: Can be used in lightning protection systems of solar power plants to monitor whether structures, module zones or the earthing system have been affected by a lightning impulse.

For maintenance specialists: Helps quickly assess whether a site has been affected by lightning. This is useful during periodic inspections of lightning protection systems, earthing, SPD surge protection devices and electrical installations.

Advantages

Operates without an additional power supply
Mechanical counter – simple visual monitoring
Counting range up to 999999 impulses
Detects impulses from 3 kA to 100 kA
Wide operating temperature range from -20 °C to +65 °C
Suitable for various lightning protection systems

Disadvantages

No remote data transmission function
This is not a surge protection device – it only counts impulses
Proper installation on the lightning protection down conductor is required

FAQ

What is a lightning discharge counter used for?
It is used to count lightning discharges or impulse activations in a lightning protection system. The counter helps determine whether a site has been affected by lightning and whether additional system inspection is required.

Does the counter require a power supply?
No, this model does not require an additional power supply.

Where is this counter installed?
It is usually installed on the down conductor of the lightning protection system using a stainless steel clamp or steel mounting parts.

Is this counter suitable for outdoor use?
Yes, the device is specified as suitable for outdoor conditions. It operates within a temperature range from -20 °C to +65 °C. Since the IP rating is not provided, it is recommended to assess protection against direct water exposure, UV radiation and mechanical damage during installation.
