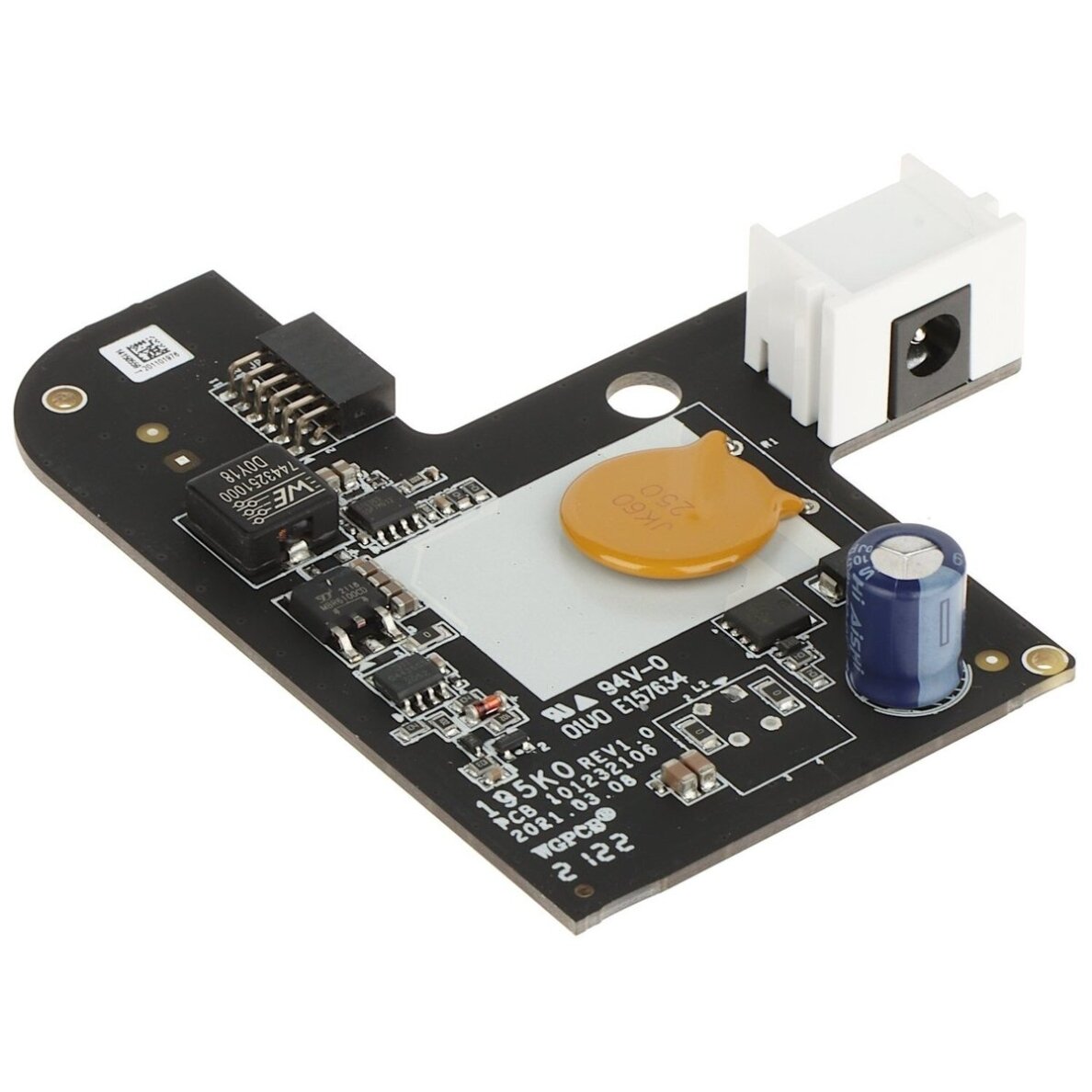

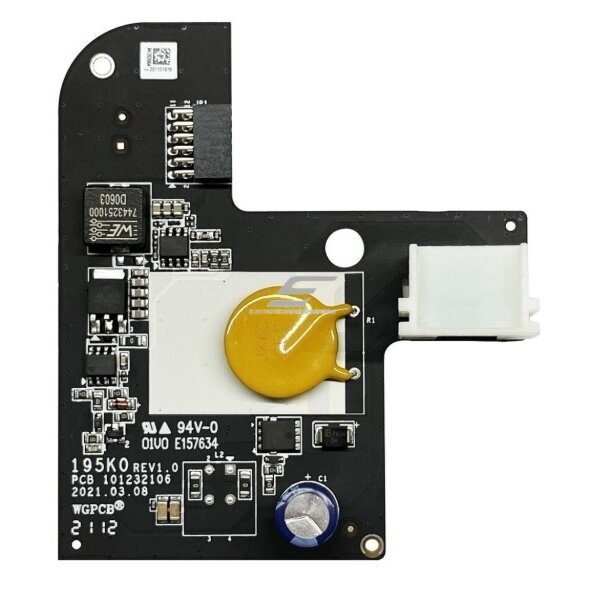

Low-voltage power supply PSU module for control panels | input 8-24VDC | 2A | Hikvision DS-PM1-D AX PRO

Technical Data:
Power Supply Voltage: 8–24 V DC
Input Current: Up to 2A
Output Current: Up to 2A
Output Voltage: 5.5 V DC
Operating Temperature: -10 °C to +55 °C
Operating Humidity: 10% – 90% (non-condensing)
Dimensions (W x H x D): 80 × 90 × 15 mm
Weight: 35 g
Applications:
Security systems without continuous power supply: Can be used with autonomous power sources.
Sites with an unstable electrical grid: An excellent solution for areas with inconsistent power supply.
Temporary security solutions: Suitable for mobile security systems, construction sites, and temporary storage facilities.
Solar-powered systems: Can be integrated into systems using alternative energy sources.
Features and Benefits:
Wide voltage range (8–24V DC): Allows connection to various low-voltage power sources.
Compatibility with AX PRO control panels: Ensures seamless integration into security systems.
Stable output (5.5V DC, up to 2A): Protects connected devices from voltage fluctuations.
Compact design (80×90×15 mm): Allows easy installation in various locations.
Resistance to temperature variations: Operates in temperatures from -10 °C to +55 °C, making it suitable for different environments.
Easy connectivity: Can be connected to batteries, solar power systems, and other low-voltage sources.
Disadvantages:
Dependency on an external power source: Although the module supports various power sources, their reliability must be ensured.
Limited output power: Suitable only for low-voltage devices (5.5V DC, 2A).
No internal battery: Operates only with an external power source.
The DS-PM1-D low-voltage power module is a reliable solution for connecting AX PRO control panels to alternative power sources. It ensures stable operation, is easy to install, and is adaptable to various environments where power supply is absent or unstable. This makes it an ideal choice for security system expansion projects, mobile surveillance systems, and remote locations.
