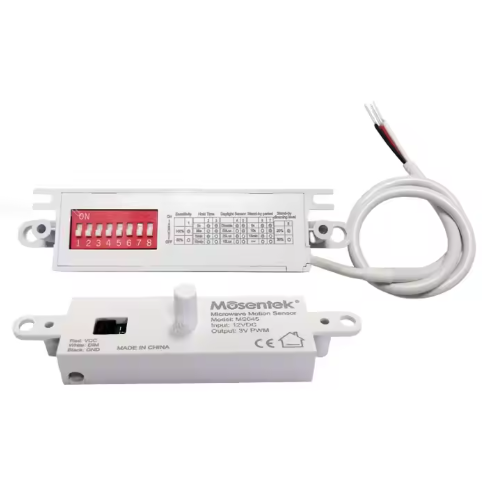

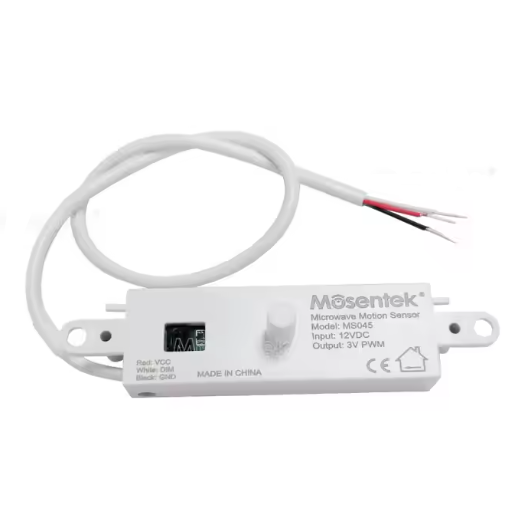

Microwave radar motion sensor | detector | dimmer | for lamps | 5.8GHz | 0.3mW | 12VDC | 6m | IP20

Technical Specifications
Power supply voltage: 12 V DC
Operating current: 22 mA
Output: PWM 3 levels (0–10 V selectable)
Microwave frequency: 5.8 GHz ±75 MHz (ISM band)
Microwave power: <0.3 mW
Sensitivity: 100% / 50%
Hold time: 5 s / 5 min / 10 min
Light threshold: Off / 50 lux / 25 lux / 10 lux
Standby period: 0 s / 10 s / 15 min / ∞
Standby light level: 20% / 30%

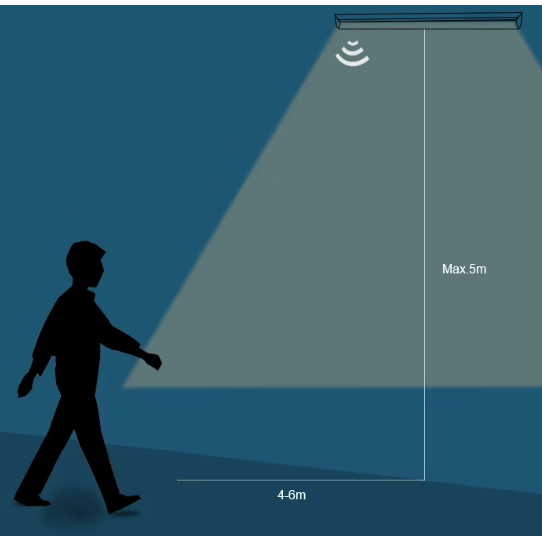

Mounting height: up to 5 m (ceiling mounting)
Detection range: radius up to 6 m (ceiling mounting)
Operating temperature: -35°C ~ +70°C
Protection class: IP20

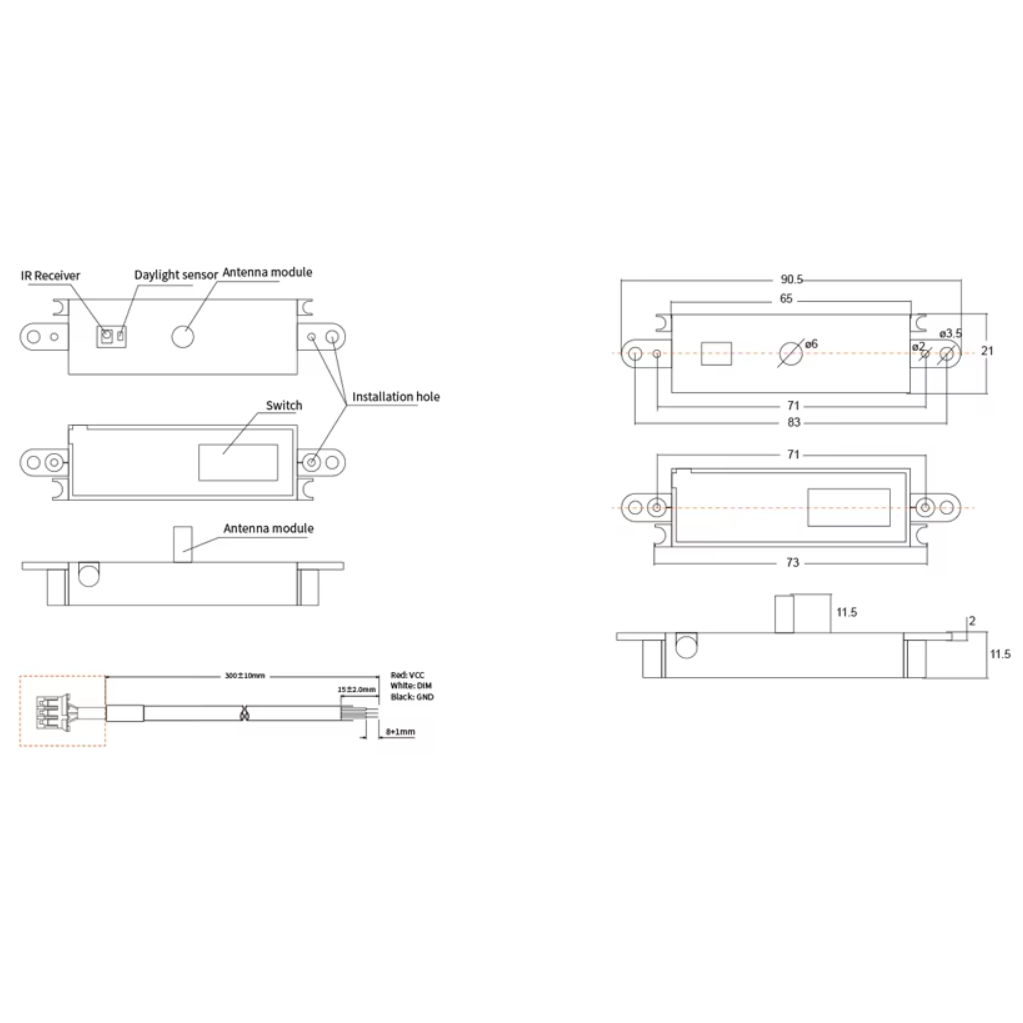

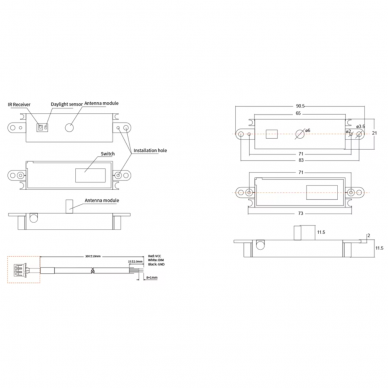

Dimensions: 90.5 × 21 × 11.5 mm
Warranty: 5 years

Main Features

Three-level dimming – optimal lighting control according to needs.

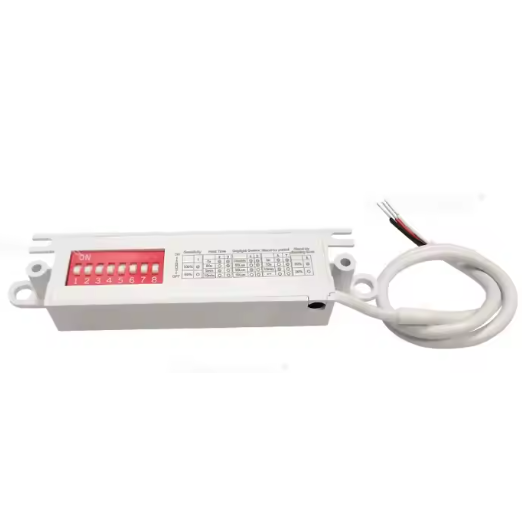

Dual programming – convenient configuration via DIP switches or remote control.

Automatic light activation only in insufficient ambient lighting.

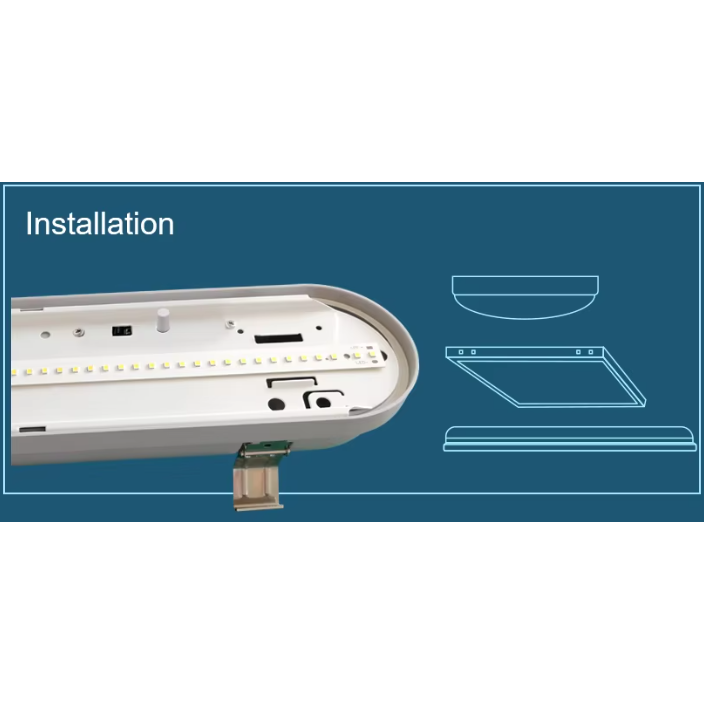

Ideal for installation in linear and “tri-proof” luminaires.

Compact housing – easy integration even in limited space.

Wide temperature range – suitable for extreme conditions.

Applications

Household user – garages, basement lighting, corridors, storage rooms, energy saving at home.

Engineer – for designing smart lighting systems, compatible with various control protocols and luminaires.

Electrician – quick and easy installation into new or existing linear and “tri-proof” luminaires, minimal adjustment time.

Advantages

Easy installation and programming

Durability (5-year warranty)

Low energy consumption

Option to select PWM or 0–10 V output

Accurate motion detection even through obstacles

Disadvantages

IP20 – not suitable for direct installation in damp areas without additional protection

Operating range depends on mounting height and environmental conditions
