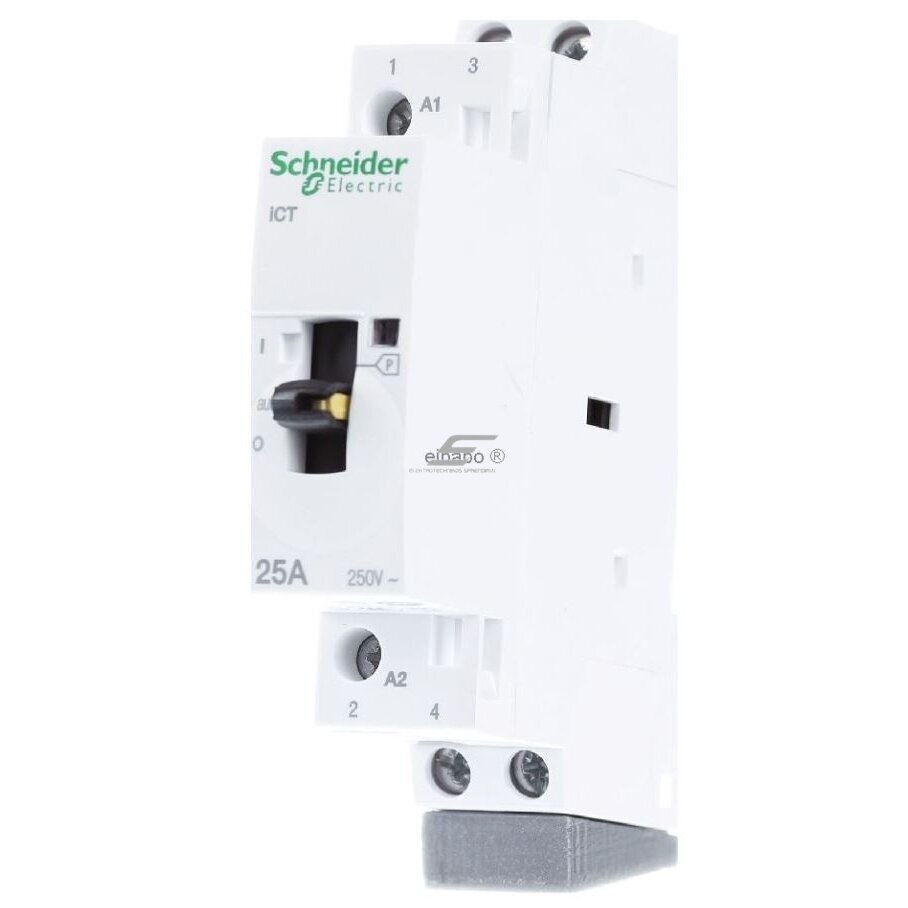

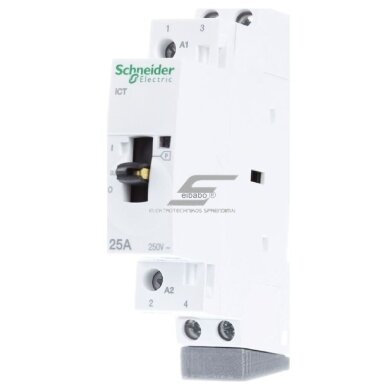

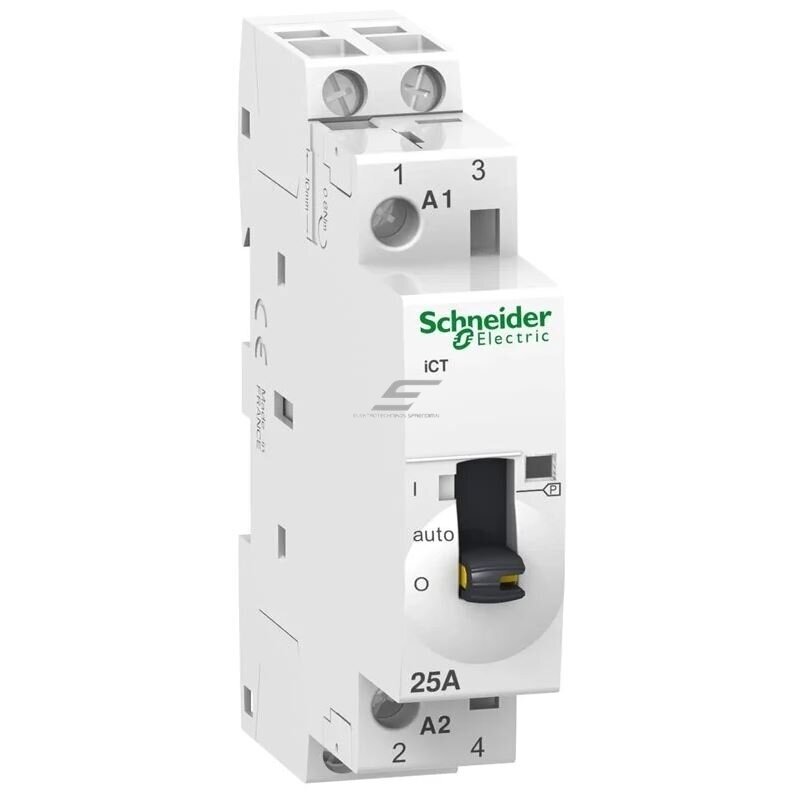

  • Modular contactor | 2P | 2NO | 25A | 230VAC | DIN | manual control | Schneider Electric | Acti9 iCT | A9C21732

    Code: A9C21732

    Schneider Electric Acti9 iCT A9C21732 – 2NO (two normally open contacts) modular contactor with manual override and a 230–240 V AC, 50 Hz coil. Rated current 25 A (AC-7a), for motors 8.5 A (AC-7b), width 2 mod. (36 mm). Designed to control single-phase loads.

  • Modular contactor | 2P | 2NO | 25A | 230VAC | DIN | manual control | Schneider Electric | Acti9 iCT | A9C21732

    Schneider Electric Acti9 iCT A9C21732 – 2NO (two normally open contacts) modular contactor with manual override. Designed for remote on/off switching of single-phase loads – a water heater, electric heating, a lighting group or ventilation, while the switch on the housing also allows manual control of the load. Coil 230–240 V AC, 50 Hz, rated current 25 A (AC-7a), for motors – 8.5 A (AC-7b).

    Key point:
    When a load has to be switched by time, temperature or a signal, a thermostat or time relay cannot carry it directly. The 2NO contactor takes over the power circuit: it disconnects both phase and neutral, leaving the control device to switch only the coil current.
    Current AC-7a (heating, lighting)
    25 A
    Current AC-7b (motors)
    8.5 A
    Coil voltage
    230–240 V AC, 50 Hz
    Width in the board
    2 mod. (36 mm)

    Operating principle

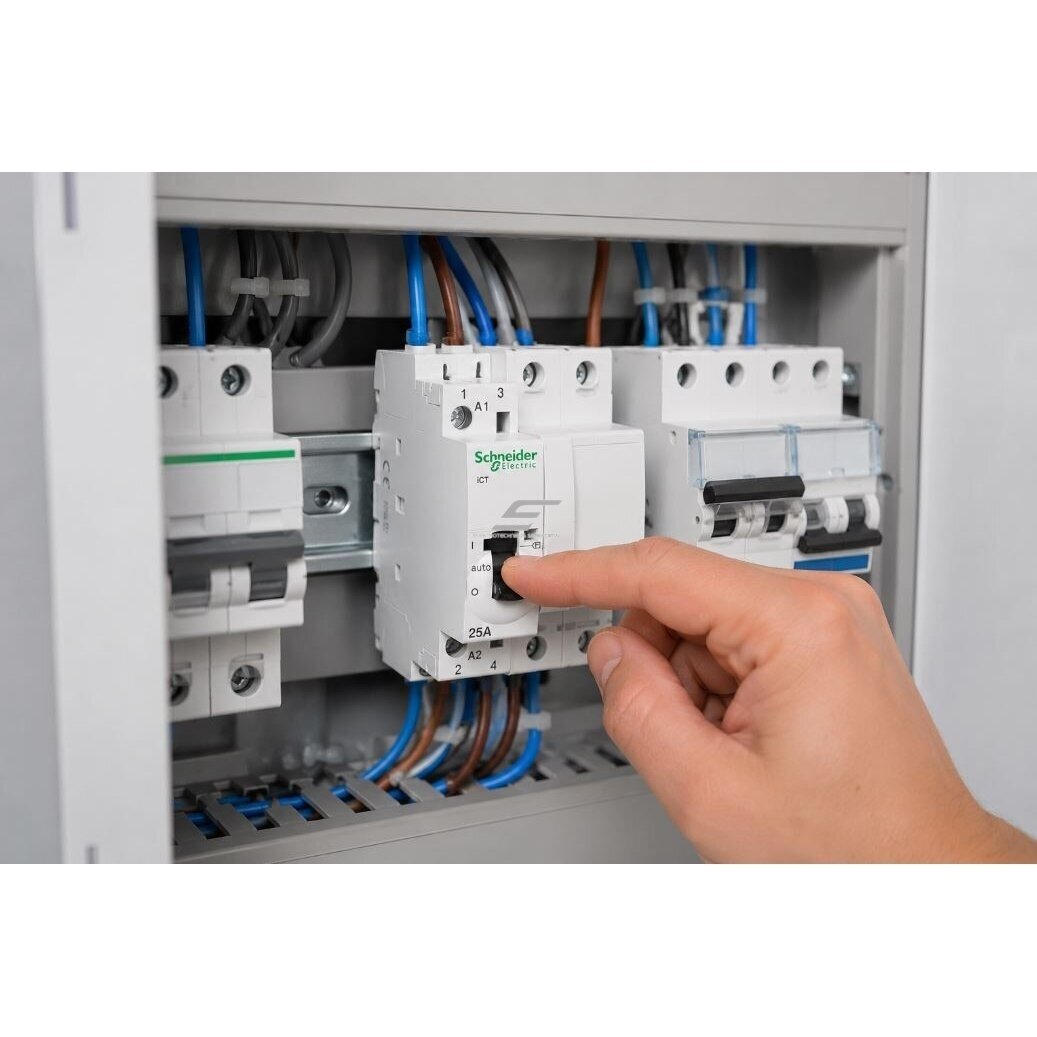

    The contactor is mounted on the DIN rail in the distribution board, next to the circuit breaker (MCB) protecting the load, and occupies 2 mod. (36 mm). The power circuit is connected to the contact terminals and the control device to coil terminals A1–A2.

    When voltage is applied to the coil, the contacts close; when it is removed, they open. The manual override switch allows the contactor to be switched on or off without a control signal, and a mechanical indicator shows the contact position.

    Rated operational voltage (Ue) is 250 V AC, so the contactor is intended for single-phase circuits.

    Why choose the Acti9 iCT?
    One module handles all switching of a single-phase load: the control device runs without load current, and the water heater or heating is disconnected on both poles.

    Technical specifications

    Product type Modular contactor (DIN rail mounting)
    Manufacturer Schneider Electric
    Series / model Acti9 iCT
    Code A9C21732
    Contacts 2NO
    Number of poles 2
    Rated current AC-7a / AC-1 25 A
    Rated current AC-7b (household motors) 8.5 A
    Rated operational voltage (Ue) 250 V AC
    Coil (control) voltage (Uc) 230–240 V AC, 50 Hz
    Insulation voltage (Ui) 500 V
    Impulse withstand voltage (Uimp) 4 kV
    Frequency 50 Hz
    Utilisation categories AC-1, AC-3, AC-7a, AC-7b
    Width 2 mod. (36 mm)
    Dimensions 36 × 81 × 60 mm
    Endurance electrical 100,000 cycles (AC-7a), 30,000 cycles (AC-7b) / mechanical 1,000,000 cycles
    Degree of protection IP20
    Operating temperature -5…+60 °C
    Storage temperature -40…+70 °C
    Mounting DIN rail TH35 (35 × 7.5 mm)
    Manual override yes – switch on the housing
    Contact position indicator mechanical
    Standards IEC/EN 61095, IEC/EN 60947-4-1

    Key functions

    • Remote load control – the load is switched by a time relay, thermostat, photo relay or controller via coil A1–A2.
    • Protects the control device from load current – the timer or thermostat contact switches only the coil current.
    • Compact installation – on the DIN rail in the distribution board, 2 mod. (36 mm).
    • Quiet operation – suitable for residential premises and offices.
    • Manual override and position indicator – the load can be switched on or off without a control signal, and the contact position is visible at a glance.

    Where is it used?

    • Water heater operation on the night tariff (via a time relay)
    • Electric underfloor heating and convectors (via a thermostat)
    • Outdoor and yard lighting groups (via a photo relay / twilight switch or timer)
    • Switching ventilation and heat recovery units
    • Lighting zones in commercial premises
    • Smart home controllers whose relay output is too weak for the load

    Use by customer need

    For homeowners.
    The water heater heats during cheaper tariff hours, and the timer and thermostat last longer because they do not switch the load directly.
    For electricians.
    One module in the board, clearly marked terminals A1–A2 and 1–2 / 3–4 – fast, neat installation.
    For smart system integrators.
    Turns the weak output of a controller or Wi-Fi module into reliable 25 A load switching.

    Practical application

    If the water heater should heat only on the night tariff, a time relay energises the contactor coil A1–A2 during the set hours, and the contactor switches the heater's phase and neutral via contacts 1–2 and 3–4. During the day both poles are open, so the water heater is completely de-energised.

    Pros

    • The control device does not switch the load current – longer service life
    • Mounted on the DIN rail alongside circuit breakers
    • Quiet operation
    • AC-7a and AC-7b currents clearly stated
    • Manual override and mechanical contact position indicator

    Cons / limitations

    • Does not protect against overload or short circuit – a circuit breaker is mandatory
    • IP20 – dry distribution boards only
    • Ue 250 V AC – single-phase circuits only; a three-phase load requires a 4-pole contactor

    Safety and installation notes

    • A circuit breaker upstream of the contactor is mandatory, selected for the cable and the load. The contactor does not protect the circuit.
    • For motors, check the AC-7b current, not the AC-7a current given in the name; additionally protect the motor with a motor protection circuit breaker or thermal overload relay.
    • The coil voltage (230–240 V AC, 50 Hz) must match the control voltage – a different voltage will burn out the coil or the contactor will not switch on.
    • When several contactors next to each other operate continuously (e.g. heating all night), leave a gap or fit a spacer – this reduces heating.
    • Installation and connection to the 230/400 V network must be carried out only by a qualified electrician with the power disconnected.

    Quick selection guide

    25 A AC-7a
    8.5 A AC-7b
    2NO
    230–240 V AC, 50 Hz
    2 mod. (36 mm)
    Suitable when you need to:
    • switch a single-phase load by time, temperature or signal
    • disconnect both phase and neutral
    • protect a thermostat or controller contact from load current
    Check before use:
    • the load type: for heating – AC-7a current, for motors – AC-7b current
    • the coil voltage and the control device output
    • space in the board and gaps between continuously operating contactors
    • the circuit breaker upstream of the contactor
    Important reminder: A contactor only switches the load on and off – it does not replace a circuit breaker, motor protection or a residual current device.

    FAQ

    Does the contactor protect against overload and short circuit?
    No – the circuit is protected by the circuit breaker installed upstream of the contactor.
    Can it control a pump or fan?
    Yes, if the motor operating current does not exceed 8.5 A (AC-7b); for larger motors choose a standard AC-3 contactor.
    Why choose 2NO rather than 1NO?
    2NO disconnects both phase and neutral, so the switched-off load is left completely de-energised.
    How much space does it take in the board?
    2 mod. (36 mm).
    What can control it?
    A time relay, thermostat, photo relay, smart module or controller whose output suits a 230–240 V AC, 50 Hz coil.
    Is it suitable for a three-phase load?
    No, the rated operational voltage is 250 V AC – this model is intended for single-phase circuits.

    Modular contactor | 2P | 2NO | 25A | 230VAC | DIN | manual control | Schneider Electric | Acti9 iCT | A9C21732

    Schneider Electric Acti9 iCT A9C21732 – 2NO (two normally open contacts) modular contactor for DIN rail: 25 A (AC-7a), 8.5 A for motors (AC-7b), coil 230–240 V AC, 50 Hz. Intended for remote control of single-phase loads – a water heater, electric heating, a lighting group or ventilation in a distribution board.

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
  • Alternative products

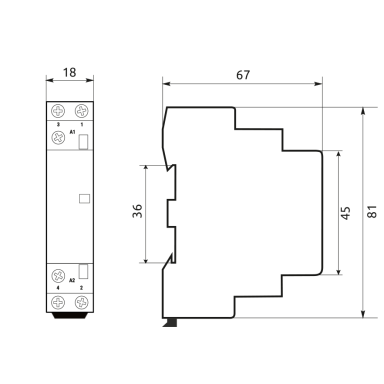

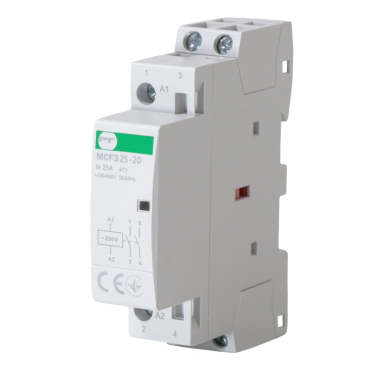

    Modular contactor | 2P | 2NO | 25A | 230VAC | DIN | MCF3 | Promfactor Baltic | MCF32520230 | 4779040154696
    Code: MCF32520230

    MCF3 25-20 – 2NO (two normally open contacts) modular contactor for DIN rail with a ~230 V AC coil. Rated current 25 A (AC-7a), for motors 8.5 A (AC-7b), width 1 mod. (18 mm). Designed to remotely switch single-phase loads – a water heater, electric heating, a lighting group or ventilation.

    Price 9.28 € VAT incl.
    ( 7.67 € VAT excl. )
    Modular contactor | 2P | 2NO | 25A | 24VAC | DIN | MCF3 | Promfactor Baltic | MCF32520024 | 4772151000241
    Code: MCF32520024

    MCF3 25-20 – 2NO (two normally open contacts) modular contactor for DIN rail with a ~24 V AC coil. Rated current 25 A (AC-7a), for motors 8.5 A (AC-7b), width 1 mod. (18 mm). Designed to remotely switch single-phase loads – a water heater, electric heating, a lighting group or ventilation.

    Price 9.27 € VAT incl.
    ( 7.66 € VAT excl. )

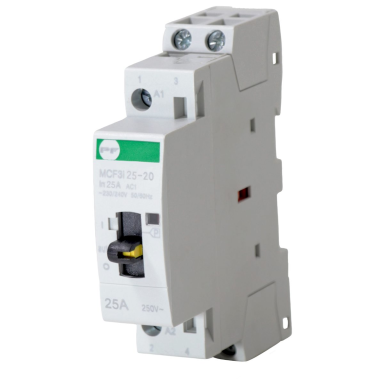

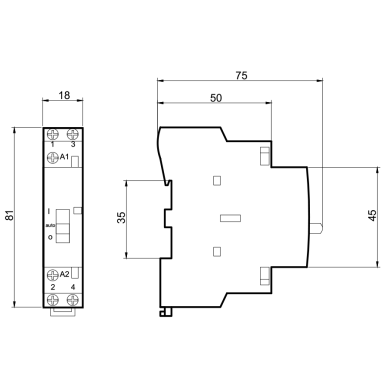

    Modular contactor | 2P | 2NO | 25A | 230VAC | DIN | manual control | MCF3i | Promfactor Baltic | MCF3i2520230 | 4772151002375
