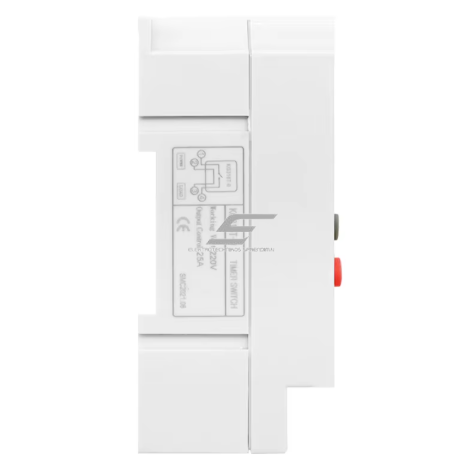

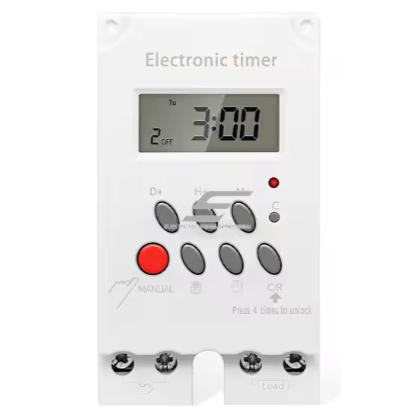

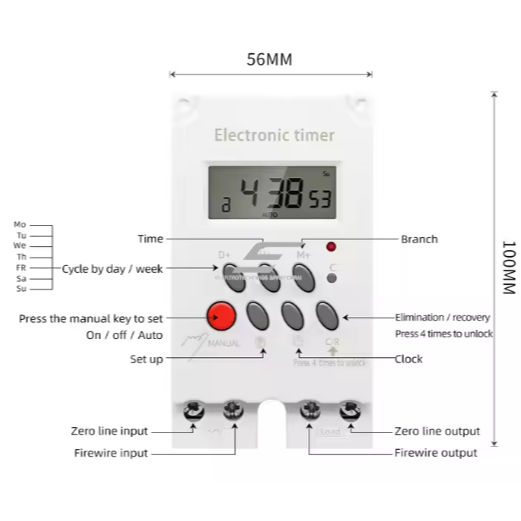

Modular | digital time relay (timer) | weekly | 10A | 230V | DIN

Technical Specifications:

Power supply voltage: AC 220V, 50Hz

Contact load: AC-15, 220V / 3A (Max: 10A)

Number of timer programs: up to 16 (daily/weekly cycles)

Display: LCD screen

Operating temperature: -20 °C ~ +70 °C

Power consumption: approximately 1.5 VA

Memory retention (without power): up to 180 days (built-in rechargeable battery)

Timekeeping accuracy: ±1 second per 24 hours (at 25°C)

Weight: 160 g

Mounting: DIN rail

Functions:

Programmable for up to 16 different on/off schedules per day or week

LCD screen displays settings and operating status

Automatic shutdown delay when gradual disconnection is needed

Built-in battery preserves settings during power outages

Precise control for a wide range of equipment

Applications:

Control of street, decorative, or facade lighting

Control of advertising boards, stage lights, neon lamps

Control of industrial equipment, pumps, humidifiers, ventilation

Automatic on/off control for heating systems

Control of household appliances (e.g., heaters, aquarium equipment)

For agricultural systems: irrigation, lighting, ventilation

Advantages:

Energy-saving – automatic shutdown

Reliable internal memory – retains settings even during power loss

Clear LCD screen – easy setup and monitoring

DIN rail mounting – easy integration into electrical panels

Flexible programming logic – supports both daily and weekly cycles

Disadvantages:

Requires accurate assessment of device power – not suitable for high-power loads

Improper configuration may lead to devices turning off at the wrong time

Digital Timer – a universal solution for both household and industrial applications. Easy to install, intuitive to use, and flexible in programming, it is suitable for everything from everyday home automation to professional equipment control.
