Modular | digital time relay (timer) | weekly | 30A | 230V | 1NO | DIN

Technical Specifications:
Mounting: DIN rail (standard 35 mm)

Power supply: 230V AC

Display: LCD, informative and easy to read

Contact: 1 normally open (NO)

Maximum load: 30A / 250VAC

Number of programs: 20 ON/OFF cycles per day

Minimum setting interval: 1 minute

Operating temperature: -20 °C to +50 °C

Hysteresis (deviation): ±2 seconds per day (at 25 °C)

Average accuracy: ±1 second per 24 hours

Backup battery: 3V lithium, lifespan up to 3 years

Working time limits: from 1 minute to 168 hours

Power consumption: max. 4.5 VA

Weight: 0.15 kg

Functions:
Precise timer with weekly programming

Up to 20 ON/OFF periods per day

Emergency operation with internal battery in case of power failure

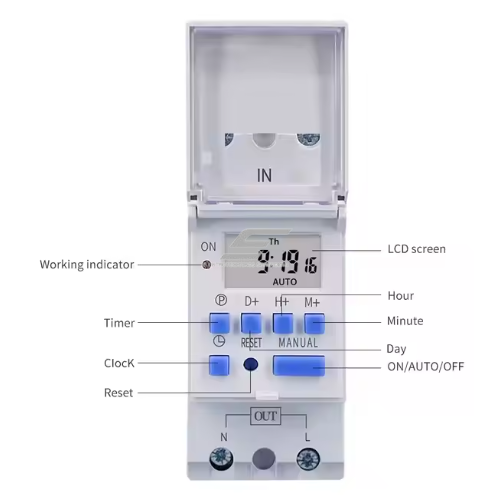

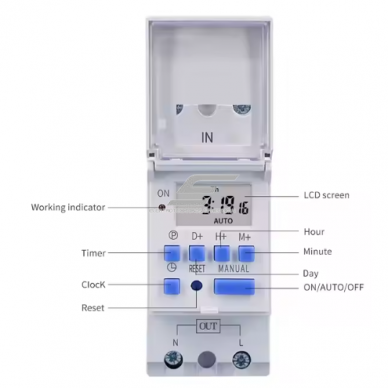

Easy control via LCD screen and buttons

Versatile application – from lighting to heating systems

Capable of handling high loads (up to 30A)

Applications:
Automatic control of outdoor or indoor lighting

Cyclical activation of heating or ventilation systems

Automation of water pumps, fountains, boilers

Suitable for use in home automation, offices, industrial or agricultural facilities

Compatible with LED lighting, incandescent bulbs, and inductive loads

Pros:
Accurate and reliable performance

Long-lasting internal battery

Weekly programming – adaptable to various usage scenarios

High-capacity contact – suitable for large loads

Easy to install and operate

Compact design – fits into standard electrical panels

Cons:
No Wi-Fi or Bluetooth – cannot be controlled remotely

Single contact – not suitable for controlling multiple circuits simultaneously

Requires basic electrical installation knowledge

This is an excellent choice for those looking for a reliable, versatile, and programmable time relay with clear control, high switching capacity, and a long-life battery. Suitable for both residential and industrial use, especially where precise weekly ON/OFF cycle control is needed.
