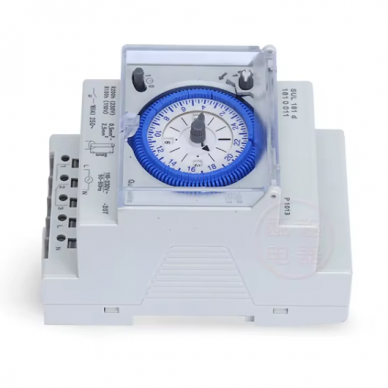

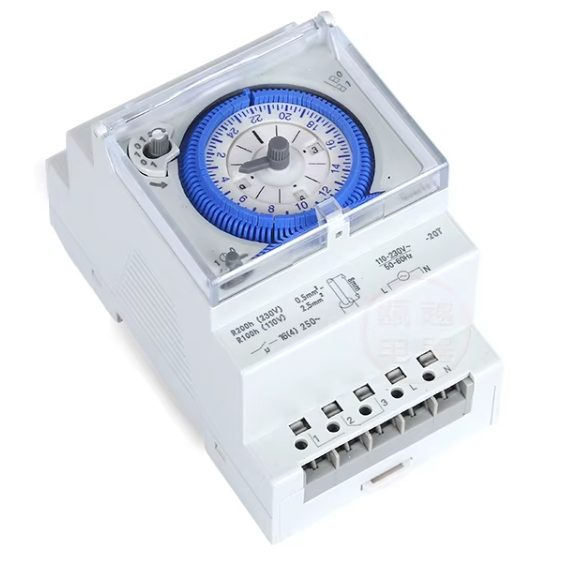

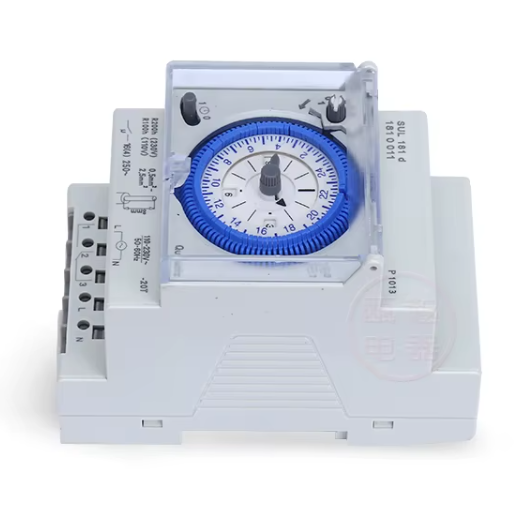

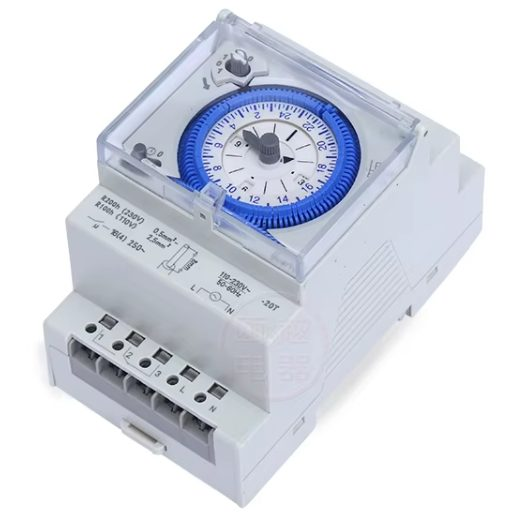

Modular time relay (timer) | 24h | programmable | mechanical | 16A | 230V | DIN

Technical Specifications:
Voltage: 110–230 V AC

Frequency: 50–60 Hz

Control channel: 1

Program: Daily (every 24 hours)

Power reserve: ~200 hours (approx. 100 hours at 110 V)

Switching capacity (cos φ = 1): 16 A

Switching capacity (cos φ = 0.6): 4 A

Minimum switching interval: 15 min

Number of segments: 96

Accuracy: ±1 s per day (quartz control)

Manual switching lever: ON / AUTO / OFF

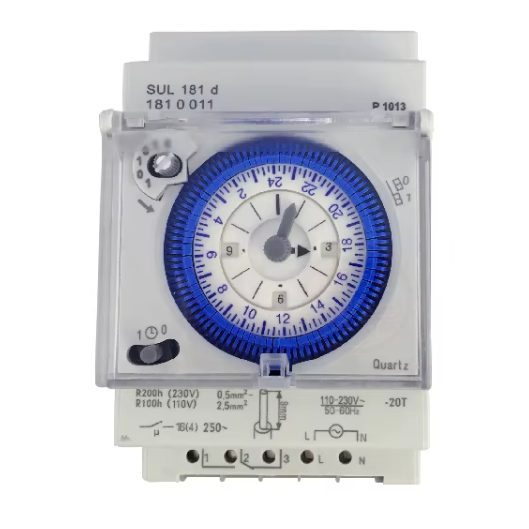

Display: Clock with hands and 12/24-hour indication

Summer / winter time switching: Simple

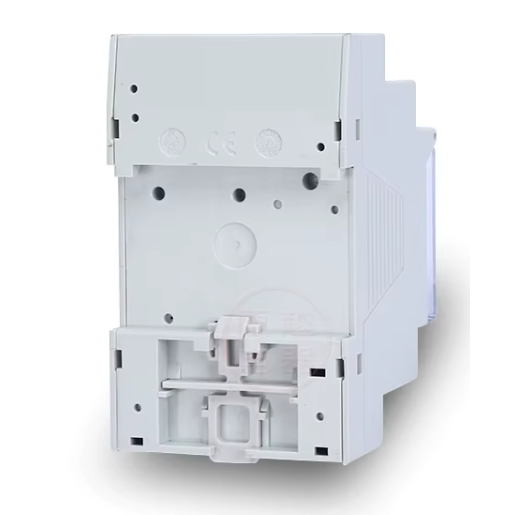

Mounting: DIN rail (3-module width)

Terminals: DuoFix spring-loaded, for 2 wires (0.5–2.5 mm²)

Standby power consumption: 0.5 W

Temperature range: -20 °C to +55 °C

IP rating: IP20

Insulation: Class II (according to EN 60 730-1)

Material: Heat-resistant, self-extinguishing thermoplastic

Certifications: VDE approved

Functions:
Time automation in 15-minute intervals

Manual control with 3 positions: continuous ON, automatic, continuous OFF

Time display with 12/24-hour recognition

Summer and winter time change function

Backup battery prevents data loss during power outage

Tool-free wiring with DuoFix terminals

Applications:
Lighting control indoors, outdoors, and in display cases

Automation for boilers, heaters, fans

Timer control for aquariums, fountains, pumps in households

ON/OFF scheduling of industrial equipment

Energy saving by avoiding unnecessary operation of devices

Advantages:
Easy DIN rail mounting

Highly accurate quartz operation

Backup battery – important in case of power failure

Clear time display and control without a digital screen

Suitable for both professionals and home users

Tool-free wire connection

Reliable and VDE-certified

Disadvantages:
No digital screen – requires manual/mechanical adjustment

Time setting is limited to 15-minute intervals (not suitable for very fine adjustments)

Not suitable for outdoor use (IP20 – indoor installation only)

Only one channel – limited for more complex systems

The 24-hour quartz mechanical timer is a reliable and cost-effective solution for automating electrical equipment. Its easy installation, precise quartz control, and long-lasting backup battery make it suitable for both residential and professional electrical installations.
