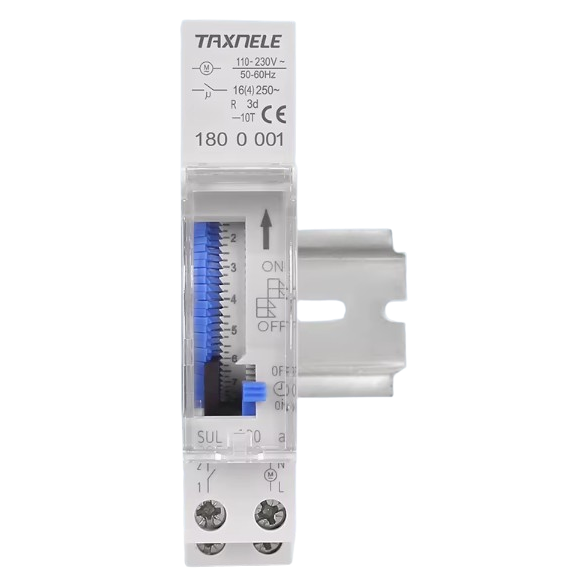

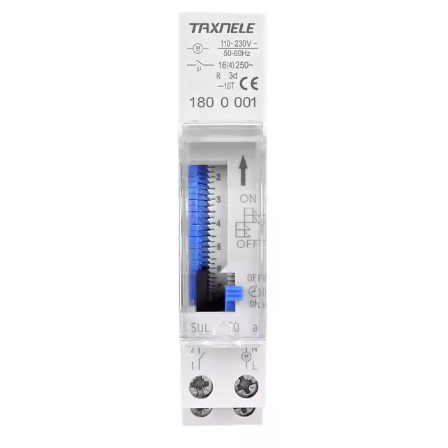

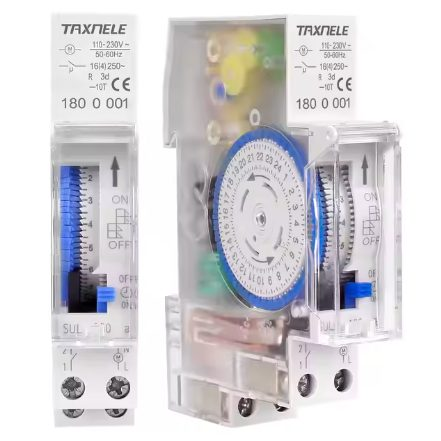

Modular time relay (timer) | 24h | programmable | mechanical | analog | 16A | 230V | DIN

Technical Specifications:

Power Supply: 110–230V AC, 50/60 Hz

Power Consumption: 1 W

Clock Mechanism: Quartz motor

Contact Load:

Resistor type: 16 A

Incandescent lamp: 10 A

Inductive load (cosφ=0.7): 12 A

Motor: 110 V – 750 W, 220 V – 1500 W

Minimum Setting Interval: 15 minutes

Number of Actions per Day: 96

Output: 1 contact (normally open)

Operating Cycle: 24 hours

Operation During Power Outage: Up to 72 hours (internal battery)

Ambient Temperature: -10°C ~ +50°C

Storage Temperature: -25°C ~ +55°C

Ambient Humidity: ≤ 85% (non-condensing)

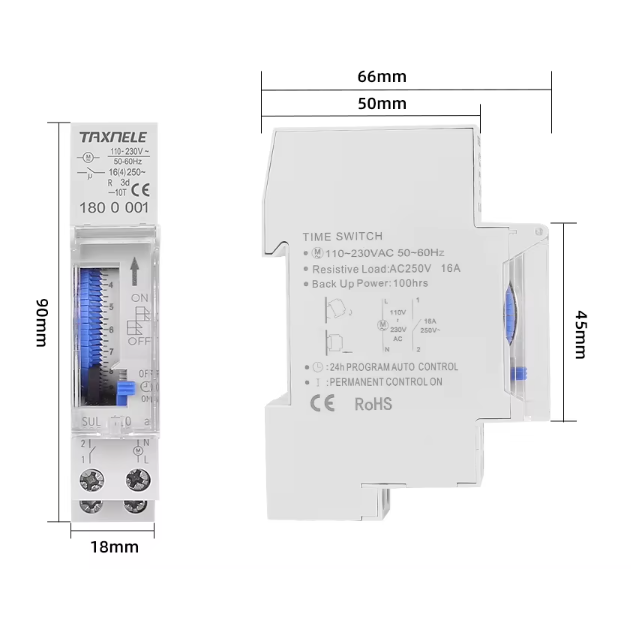

Mounting: DIN rail 35 mm

Housing Material: Durable plastic

Functions and Applications:

Precise control of electrical equipment operating time every 15 minutes

Cyclic switching on/off of a single device

Possibility to automate household and industrial processes

Protection against energy waste by optimizing working time

Timer operation remains even when power is lost – ideal for uninterrupted systems

Areas of Use:

Staircase, yard, advertising, showcase lighting

Aquariums, fountains, garden irrigation systems

Office automation equipment

Water heaters and heating systems

Fans and pumps

Industrial motors

Advertising boxes, LED signs

Ventilation and air conditioning control

Pros:

Easy to use – suitable even for non-professionals

15-minute step allows precise control

Durable housing and reliable internal construction

Compact design – easy integration into panels

Internal battery saves settings even when power is lost

Universal power voltage range (110–230V AC)

Suitable for both household and industrial use

Cons:

One circuit – not suitable for controlling multiple devices simultaneously

No digital display – all settings are manual

Fixed 24-hour cycle – cannot create more complex weekly schedules

Analog Timer – a reliable, convenient, and versatile tool designed to automate the operation of electrical devices in various fields.
