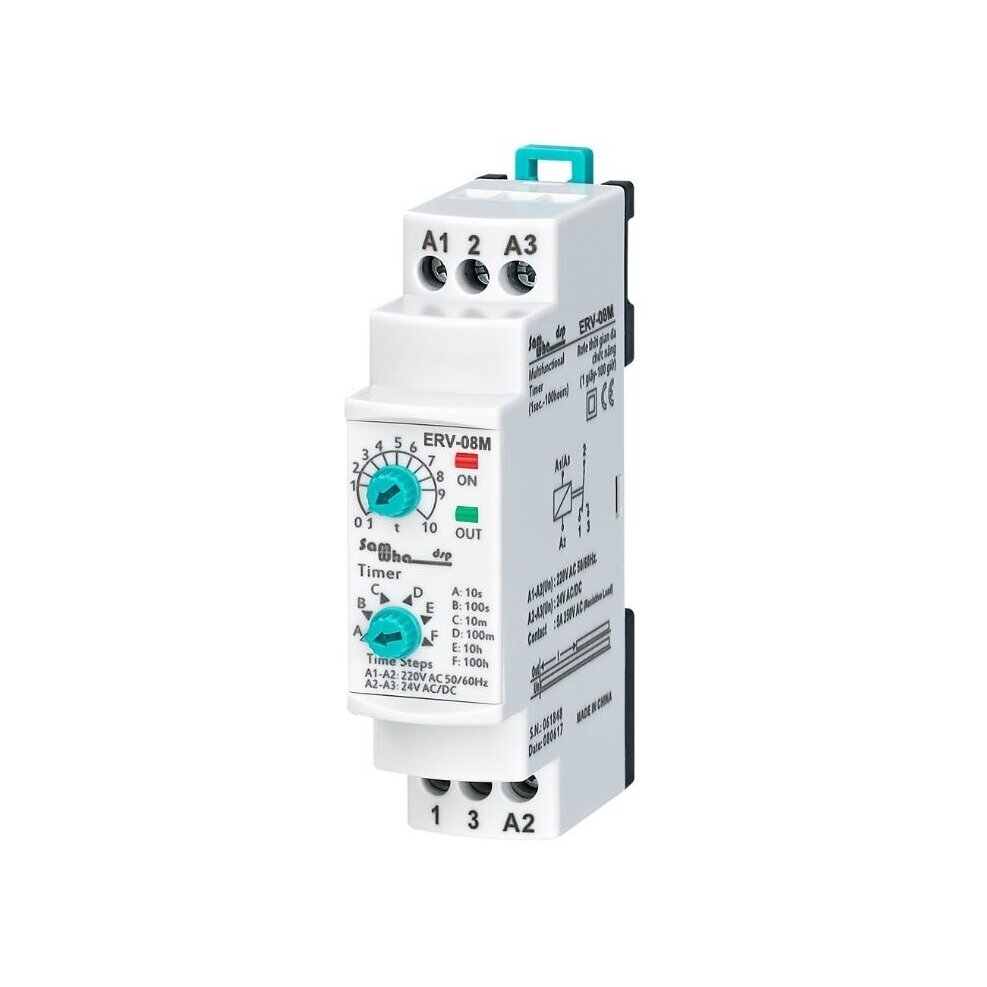

  • Modular Time Relay | Timer | ON Delay | 0.1s-100h | 5A | 150-260VAC / 24VAC/DC | DIN Rail

    Code: ES-ERV-08M
    Price 29.04 € VAT incl.
    ( 24.00 € VAT excl. )
    Buy more, pay less
    10+ pcs.  – 24.20 € for pcs. -16%
    Want another price? Suggest yours!

    The electronic ON-delay time relay is designed to switch on electrical equipment, contactors, alarm systems, lighting, ventilation, and other control processes after a preset delay from the moment the relay is powered.

    The relay features six selectable time ranges: 10 s, 100 s, 10 min, 100 min, 10 h, and 100 h. The exact delay time is adjusted using a separate control knob, providing an overall adjustment range from approximately 0.1 seconds to 100 hours.

  • Electronic ON-delay timer relay | 0.1 s–100 h | 230V AC / 24V AC/DC | 5A

    Electronic ON-delay timer relay is designed for electrical and automation control circuits where a load or control signal must be switched on only after a preset time has elapsed from the moment power is applied to the relay. It can be used for delayed starting of contactors, intermediate relays, alarm circuits, lighting, ventilation, pumps and other control circuits.

    The relay has six selectable time ranges: 10 s, 100 s, 10 min., 100 min., 10 h and 100 h. The final time value is set using a separate t adjustment knob, providing an overall adjustment range of approximately 0.1 seconds to 100 hours.

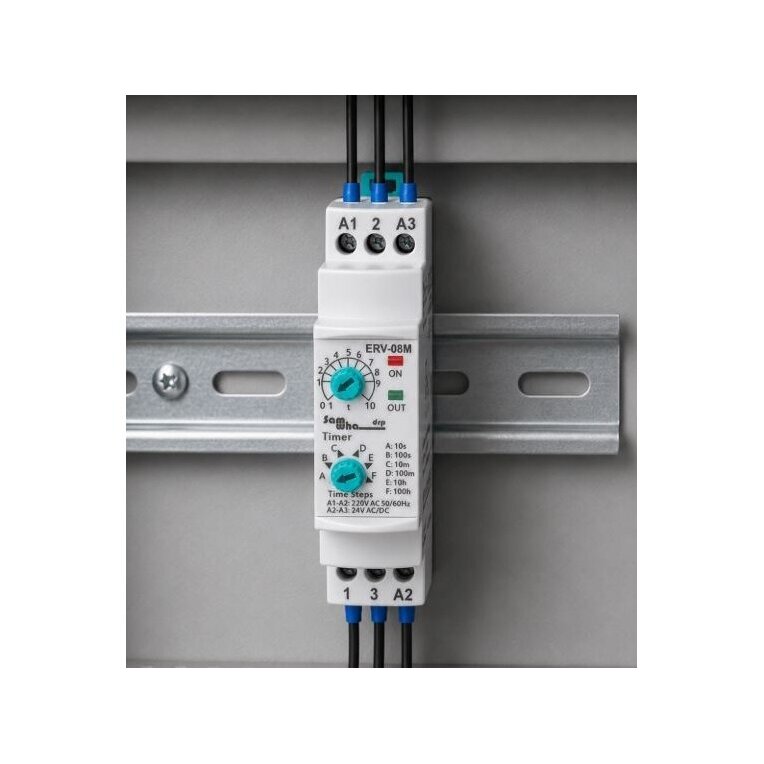

    230V AC or 24V AC/DC power supply

    The main relay supply is connected through A1–A2 terminals. The device is intended for a nominal 230V AC system, while the manufacturer specifies an allowable operating voltage range of 150–260V AC.

    Alternatively, the relay can be powered by 24V AC/DC via A2–A3 terminals. When AC power is used, the operating frequency is 50/60Hz.

    0.1 s–100 h
    Overall time range
    150–260V AC
    A1–A2 operating voltage
    24V AC/DC
    A2–A3 supply
    5A / 250V AC
    Contact rating

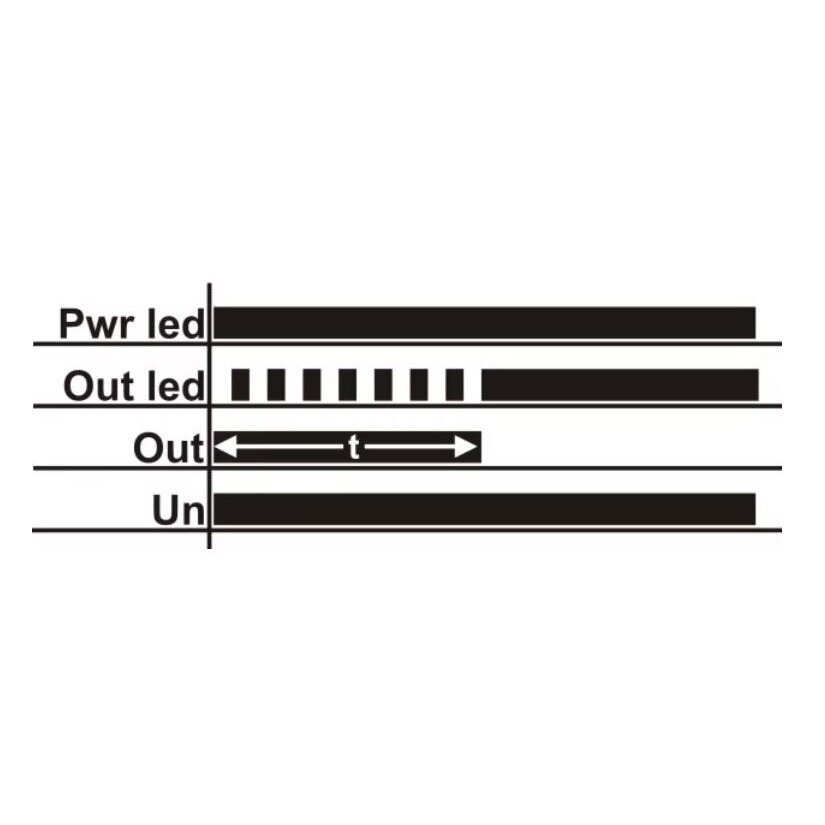

    Operating principle

    State Relay operation
    Power OFF The relay is in its initial state and timing is not active.
    Power is applied The preset time starts counting.
    Timing in progress The output contact remains in its initial NC state.
    Preset time expires The output relay switches from NC to NO.
    OUT active The NO contact remains active until power to the relay is disconnected.
    Power is disconnected The relay returns to its initial state and can start a new cycle the next time power is applied.

    ON-delay function

    According to the specified operating sequence, this relay works as an ON-delay timer relay. This means that the output does not switch immediately when power is applied. First, the preset time is counted, and only after it expires does the output contact switch.

    Typical operating sequence

    Power ON → timing → end of preset interval → output relay switches → NO contact active.

    ON-delay and OFF-delay are not the same

    If some supplier descriptions mention “Off Delay”, the actual operating diagram must be evaluated. According to the specified operating principle, this model delays switching ON after power is applied, therefore functionally it is described as an ON-delay relay.

    Supply voltage

    The relay has two power supply connection options. The main supply is intended for a nominal 230V AC system, but a wide allowable operating voltage range is specified. A separate 24V AC/DC supply input is also provided.

    Terminals Supply Note
    A1–A2 150–260V AC Nominal 230V AC system, 50/60Hz
    A2–A3 24V AC/DC Alternative low-voltage supply
    230V is the nominal system voltage

    230V AC does not mean that the device can operate only at exactly 230V. The manufacturer specifies a 150–260V AC operating voltage range for the A1–A2 terminals.

    Six time ranges

    The relay allows one of six basic time ranges to be selected. This makes it possible to control both short processes lasting only a few seconds and very long processes lasting several hours using the same device.

    Range Approximate adjustment interval
    10 s Approx. 0.1–10 s
    100 s Approx. 1–100 s
    10 min. Approx. 0.1–10 min.
    100 min. Approx. 1–100 min.
    10 h Approx. 0.1–10 h
    100 h Approx. 1–100 h

    Time setting with two controls

    The time is set using two controls. One is used to select the main time range, while the other is used to set the required value within the selected range.

    Time Steps
    • selects the main time range;
    • 10 s;
    • 100 s;
    • 10 min.;
    • 100 min.;
    • 10 h;
    • 100 h.
    t adjustment knob
    • sets the selected proportion of the range;
    • allows intermediate time values to be selected;
    • the final time depends on the Time Steps position;
    • the actual value should be verified with a test cycle.
    Analogue time setting

    The time is set using mechanical / analogue controls, therefore the actual switching moment may differ slightly from the value selected on the scale. If timing is important for the process, practical verification is recommended.

    Time setting example – 75 minutes

    1. Select the 100 min. range.
    2. Set the t adjustment knob to approximately 75% of the range.
    3. This gives approximately 75 min.
    4. Perform a test cycle and, if necessary, fine-tune the adjustment knob position.

    Setting long intervals

    Setting long intervals of several hours directly using a small analogue scale may be more difficult, so it can be useful to verify the adjustment position first using a shorter range.

    Example – 25 hours

    First, using the 10 s range, approximately 2.5 s can be set and the position of the adjustment knob checked with a stopwatch. Then, without changing the t adjustment knob position, switch the Time Steps selector to the 100 h range. The same proportion corresponds to approximately 25 hours.

    LED indication

    Indication Meaning
    ON Power / timing status indication.
    OUT Indicates that the preset time has expired and the output relay has switched.

    Output contacts

    The relay has a changeover relay output, allowing both NC and NO operating logic to be used. In the initial state the NC contact is active, and after the preset time expires the relay switches to the NO state.

    Contact ratings

    Rated current: 5A
    Rated voltage: 250V AC

    Contact current depends on the load type

    The 5A / 250V AC rating cannot automatically be applied to all types of loads. Motors, transformers, electromagnets, contactor coils and some electronic power supplies may have a higher starting current.

    For such loads, it is recommended to use the relay in the control circuit and switch the main power load through a correctly selected contactor.

    Technical specification

    Product type Electronic ON-delay timer relay
    Function ON-delay
    Nominal supply voltage A1–A2 230V AC
    Operating voltage range A1–A2 150–260V AC
    Alternative supply A2–A3 24V AC/DC
    Frequency 50/60Hz
    Power consumption <4VA
    Overall time range Approx. 0.1 s–100 h
    Selectable ranges 10 s, 100 s, 10 min., 100 min., 10 h, 100 h
    Time adjustment Time Steps + t adjustment knobs
    Output type Changeover relay contact NC / NO
    Rated contact current 5A
    Rated contact voltage 250V AC
    Indication ON and OUT LEDs

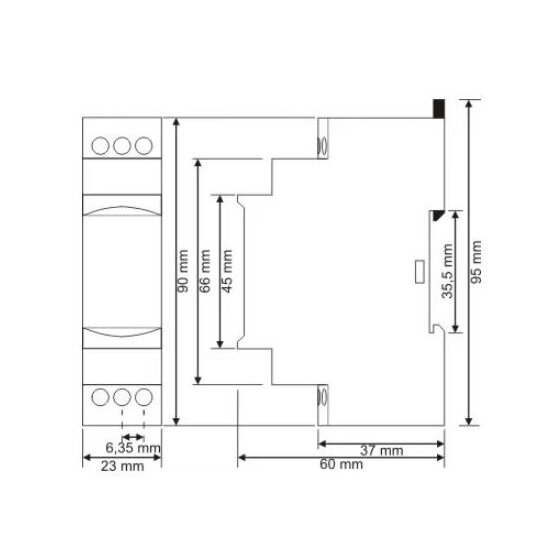

    Max. conductor cross-section Up to 2.5mm²
    Operating temperature −20°C...+55°C
    Mounting DIN rail or panel mounting plate
    Mounting position Vertical
    Maximum installation altitude Up to 2000m
    Weight Up to 120g

    Advantages

    • Wide 0.1 s–100 h time range.
    • Six selectable time ranges.
    • Simple two-control adjustment.
    • ON-delay switching function.
    • Changeover NC / NO relay output.
    • ON and OUT LED indication.
    • Wide 150–260V AC operating voltage range.
    • Alternative 24V AC/DC supply.
    • 5A / 250V AC contact rating.
    • Power consumption below 4VA.
    • DIN rail mounting.

    Disadvantages / limitations

    • ON-delay function only: this is not a multifunction programmable timer relay.
    • Analogue time setting: the actual value may differ slightly from the value selected on the scale.
    • Long intervals: it is recommended to verify the actual switching time.
    • 5A contacts: loads with high starting current may require a contactor.
    • Time accuracy is not specified: the device should not be treated as a laboratory-grade precision timing instrument.
    • Not intended for exposed outdoor installation.

    Suitable for

    • Contactor control circuits
    • Ventilation systems
    • Pump control
    • Lighting automation
    • Heating equipment
    • Alarm circuits
    • Production equipment start-up sequences
    • Industrial automation panels
    • Control circuits requiring a 0.1 s–100 h delay

    Not suitable for

    • Direct switching of high-power motors
    • Loads exceeding the relay contact ratings
    • Systems requiring OFF-delay operation
    • Systems requiring weekly or calendar programming
    • Processes requiring calibrated laboratory-grade timing accuracy
    • Exposed installation in damp environments

    Practical application example

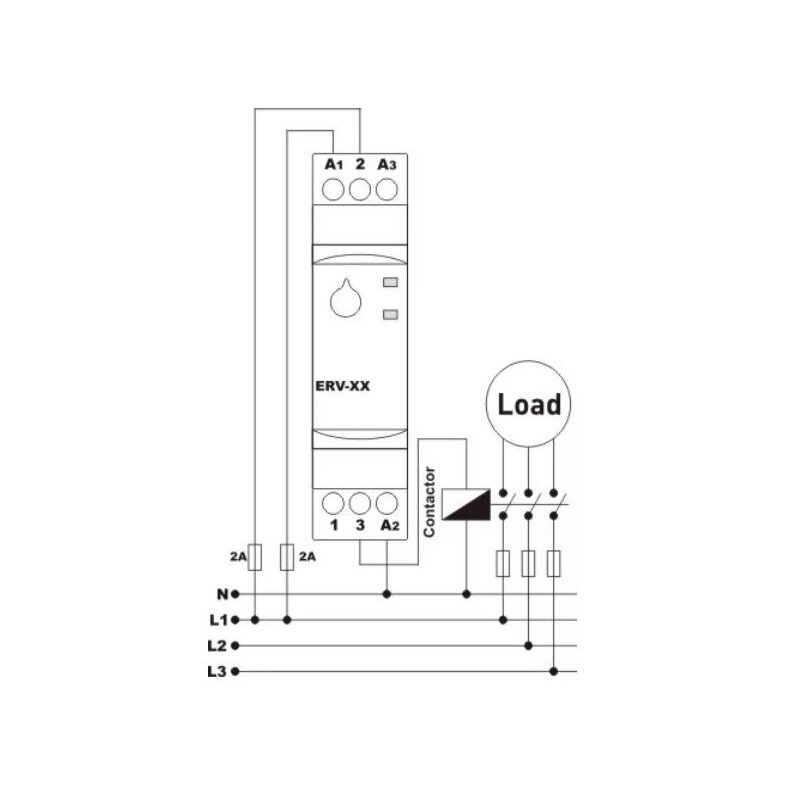

    In a ventilation system, the fan must switch on 30 seconds after the main system starts. The relay is powered via A1–A2 terminals from a 230V AC system. The appropriate seconds range is selected using the Time Steps control, and the t adjustment knob is used to set approximately 30 seconds. When power is applied, the relay starts timing. After the preset interval, the output switches and the NO contact activates the fan contactor coil.

    Frequently asked questions (FAQ)

    What is the nominal supply voltage of the relay?

    The nominal system voltage for terminals A1–A2 is 230V AC.

    What is the actual operating range of the 230V input?

    150–260V AC.

    Can the relay operate from 24V?

    Yes. Terminals A2–A3 are intended for 24V AC/DC supply.

    What is the operating frequency?

    50/60Hz when using AC supply.

    What is the maximum adjustable time?

    Approximately 100 hours.

    What is the minimum adjustable time?

    Approximately 0.1 second.

    Which time ranges can be selected?

    10 s, 100 s, 10 min., 100 min., 10 h and 100 h.

    Is this an ON-delay relay?

    Yes. According to the specified operating principle, the output switches only after the preset time has elapsed following application of power.

    What happens when the preset time expires?

    The output relay switches from its initial NC state to NO and the OUT indicator is activated.

    How is a new timing cycle started?

    By disconnecting and reconnecting power to the relay.

    What is the rated contact current?

    5A.

    What is the rated contact voltage?

    250V AC.

    Can the relay directly control a motor?

    It is recommended to control the motor power circuit using a contactor, while the contactor coil is controlled by the timer relay contact.

    Can it be mounted on a DIN rail?

    Yes. The relay is intended for installation in an electrical or automation panel.

    Is the time set digitally?

    No. The time is set using mechanical adjustment knobs by selecting the required range and the required proportion within that range.

    Should the preset time be verified?

    Yes. Especially for long intervals, it is recommended to perform a test cycle and verify the actual switching time.

    Important installation and electrical safety information

    The relay must be installed by a qualified electrical specialist. Before installation or servicing, all power sources must be disconnected. Terminals A1–A2 are intended for a nominal 230V AC system with an allowable operating range of 150–260V AC, while A2–A3 are intended for 24V AC/DC supply. Before connection, the terminal diagram of the specific product must be checked.

    Do not exceed the 5A / 250V AC contact rating. For motors, transformers and other loads with high starting current, the use of a contactor is recommended. The relay must be installed inside a protected electrical or automation panel.

    Electronic ON-delay timer relay – a DIN-mounted ON-delay control device designed to activate a load or control signal after a preset time has elapsed. Overall time range – approximately 0.1 seconds–100 hours. A1–A2 supply is intended for a nominal 230V AC system and operates within a 150–260V AC range, while A2–A3 terminals allow the use of 24V AC/DC supply. Contact rating – 5A / 250V AC, operating frequency – 50/60Hz.

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
