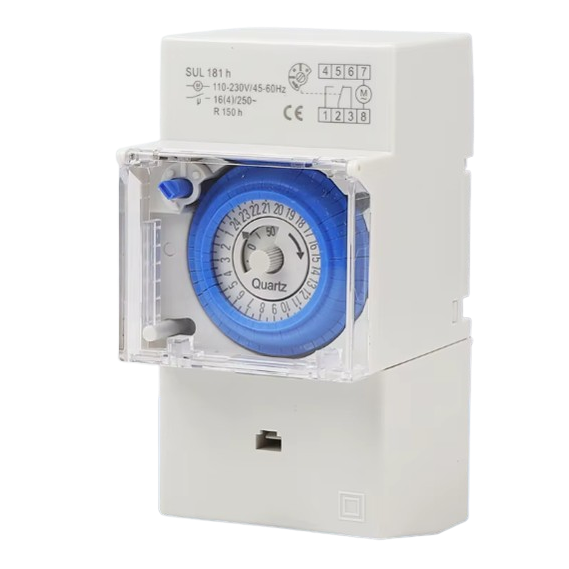

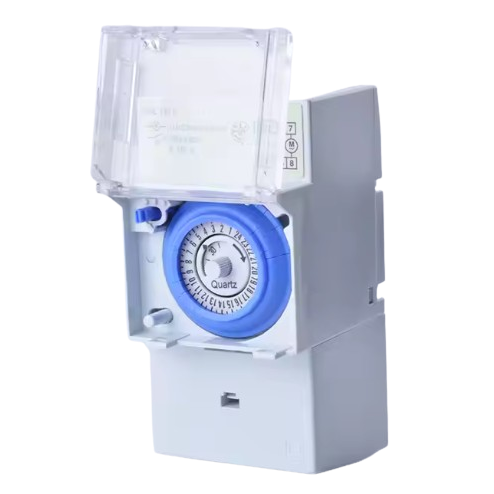

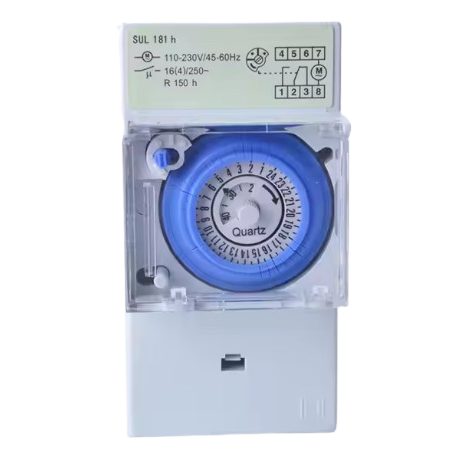

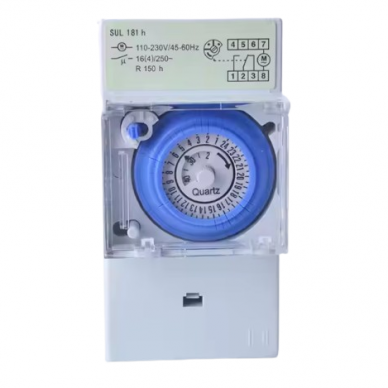

Modular time relay (timer) | programmable | mechanical | 16A | 230V | DIN

Technical Specifications:
Voltage: 230V, 50Hz

Operating voltage range: 85% – 110%

Maximum load: 16A (capacitive/resistive load)

Power consumption: < 5 VA

Time control range: 1 minute – 168 hours

Accuracy: ±2 seconds per day (at 25 °C ±1 °C)

Temperature range: -10 °C to +50 °C

Humidity: < 95% (non-condensing)

Dimensions: 120 × 72 × 50 mm

Weight: 210 g

Mounting: DIN rail mounting

Modes: Automatic / Manual switching

Settings: 8 ON/OFF timer cycles per 24 hours

Functions:
Precise automatic switching of devices according to the selected time

Manual override function – allows control of the device regardless of the set schedule

24-hour cycle – ability to set different time periods throughout the day

8 programmable cycles – flexible adjustment according to needs

Operates without additional programming – fully mechanical

Applications:
Staircase or street lighting

Irrigation systems (garden, greenhouse)

Circulation systems in aquariums, fountains, or pools

Water heaters, boilers

Automatic shutdown timing for office equipment

Lighting of advertising displays

Control of industrial equipment operating cycles

Pros:
Simple and intuitive setup – no programming knowledge required

Durable mechanical design that works without batteries

Suitable for both home and industrial environments

Helps save electricity – automatically switches off unnecessary devices

Sturdy DIN rail mounting – quick integration into the control panel

Cons:
No weekly scheduling – only a 24-hour cycle

No digital display

May produce slight operational noise (mechanical ticking)

Does not support backup of settings in case of power loss (no battery)

Description:
The mechanical timer is a practical and efficient solution for automating the operation of household or industrial electrical devices. It is a reliable device for those who value simplicity, functionality, and durability. Both professional electricians and everyday users can easily install this timer and benefit from an automated daily routine, more efficient energy use, and reduced operating costs.
