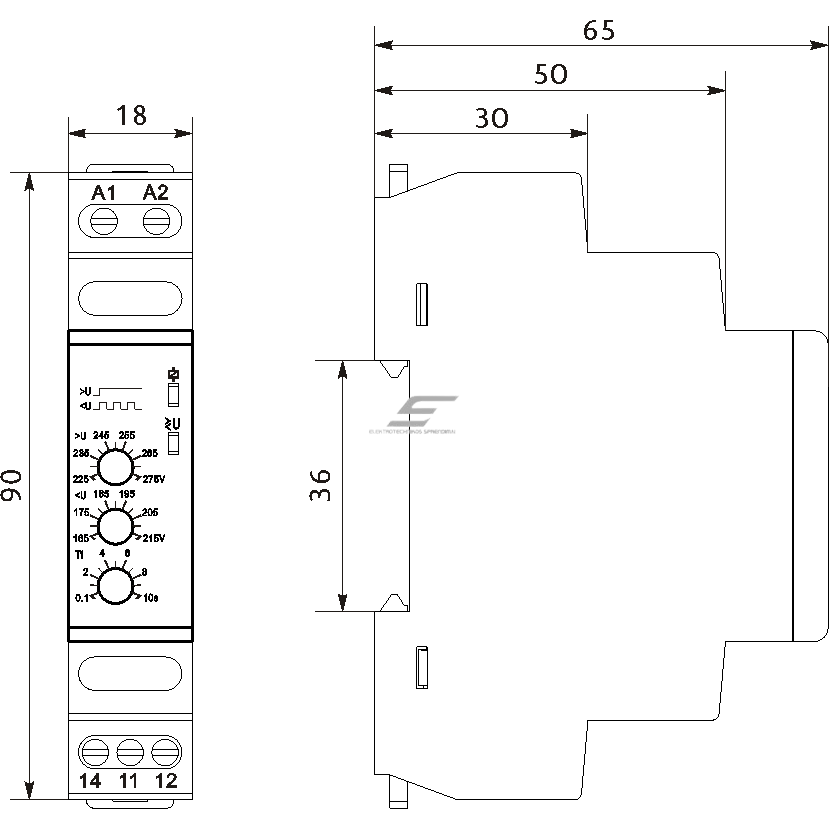

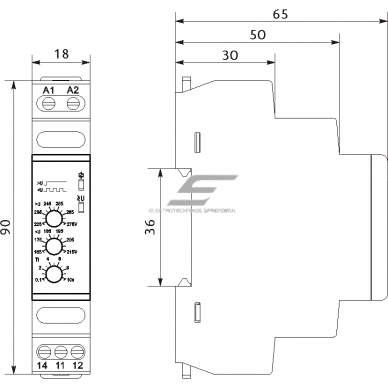

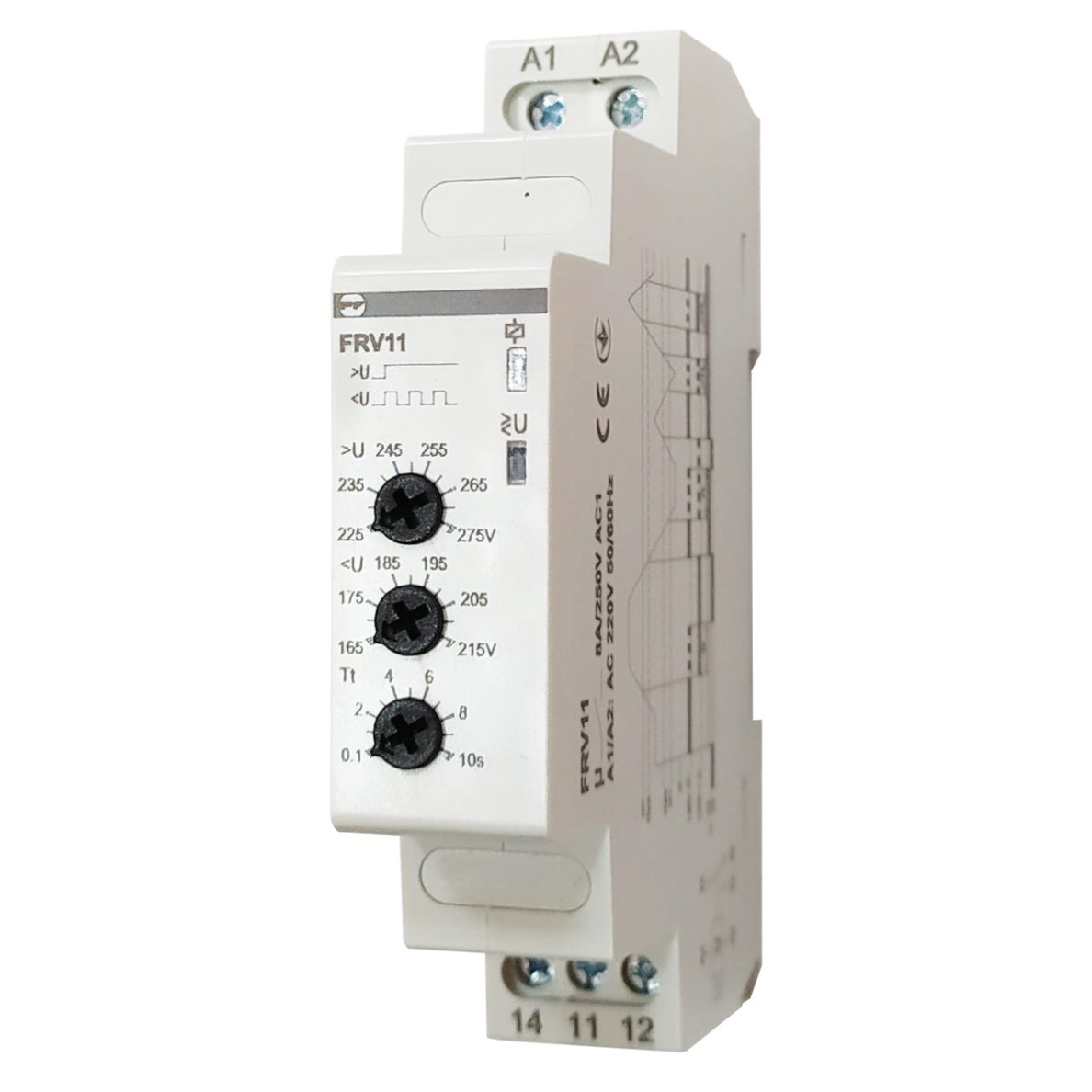

Single-phase voltage monitoring relay | 1F | U> 225–275 V | U< 165–215 V | 1 C/O 8 A | DIN | Promfactor Baltic | PF-FRV11
Code: PF-FRV11Price 20.52 € VAT incl.( 16.96 € VAT excl. )The Promfactor Baltic FRV11 is a voltage monitoring relay with an output contact: it does not carry the load itself but switches a contact that controls a contactor coil, a signal or an automation input.
-
Single-phase voltage monitoring relay | 1F | U> 225–275 V | U< 165–215 V | 1 C/O 8 A | DIN | Promfactor Baltic | PF-FRV11
The Promfactor Baltic FRV11 is a voltage monitoring relay with an output contact: it does not carry the load itself but switches a contact that controls a contactor coil, a signal or an automation input. When the monitored voltage leaves the set limits, the contact switches over and the controlled circuit is disconnected.
Key point:
A control relay is suitable where voltage must be monitored precisely and a contactor or alarm controlled – it disconnects high-power loads via a contactor.Contact
8 AVoltage limits
U> 225–275 V · U< 165–215 VNetwork / supply
A1–A2, 220 V AC, 50/60 HzFunctions
U> / U<, contactHow it works

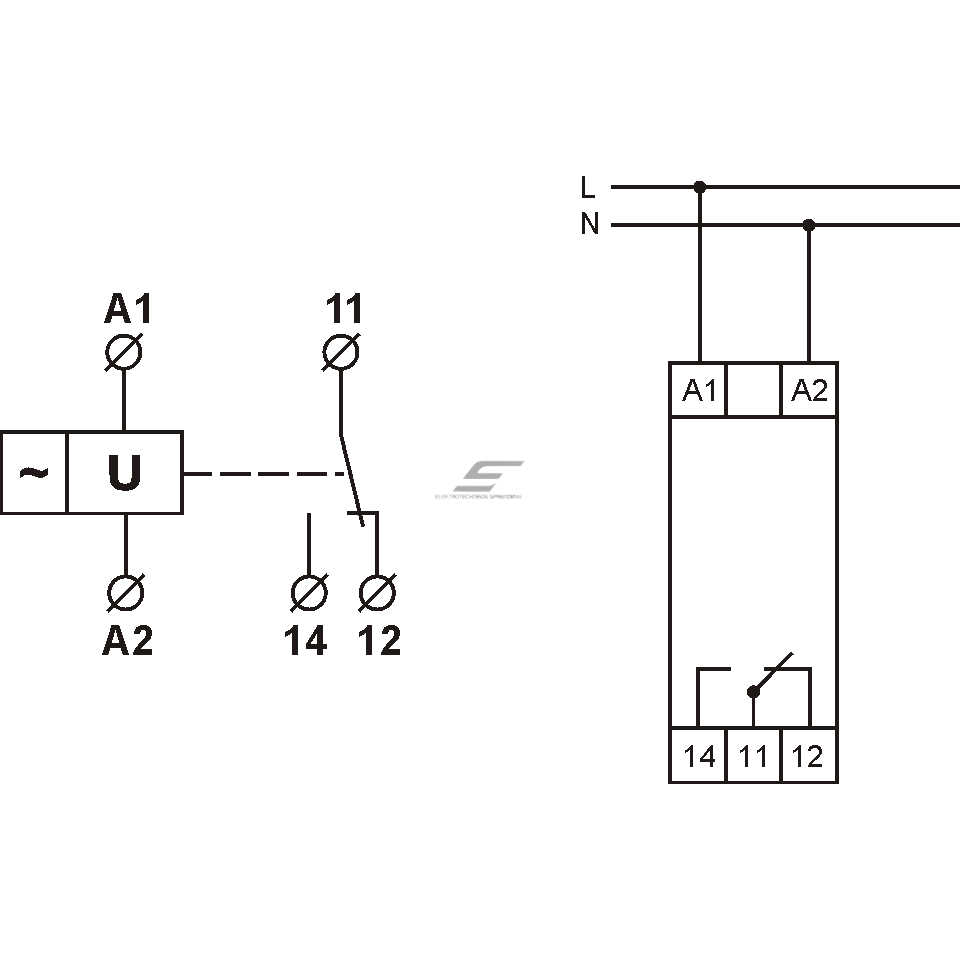

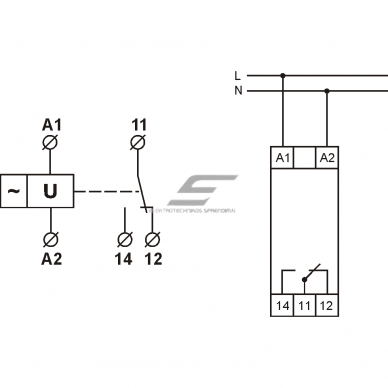

The relay is supplied from the monitored circuit (depending on the model via terminals A1–A2) and measures the voltage continuously.
When the voltage leaves the set limits and the delay expires, the output contact switches over – the contactor or alarm is disconnected.
When the voltage returns to normal, the contact switches back and the circuit is reconnected.
Why choose the Promfactor Baltic FRV11?
Precise voltage monitoring with a contact – suitable for automation, contactors and alarms when the load exceeds the relay contact.Technical specifications
Product type Single-phase voltage monitoring relay (control type – with contact) Manufacturer / code Promfactor Baltic / PF-FRV11 Supply A1–A2, 220 V AC, 50/60 Hz Operating voltage range 150–275 V AC Overvoltage limit U> (factory) 225–275 V Undervoltage limit U< (factory) 165–215 V Measuring accuracy ≤ 1 % Voltage trip delay 0.1–10 s (±5 % + 0.1 s) Hysteresis ±3 % Output contact 1 C/O Contact current AC1 8 A Contact current AC15 2 A Insulation voltage Ui 250 V Degree of protection IP20 Electrical / mechanical life (cycles) 100 000 / 1 000 000 Wire cross-section 0.5–2.5 mm² Terminal tightening torque 0.5 Nm Operating temperature −5…+40 °C Standards EN/IEC 60730-1, EN/IEC 60730-2-7 Mounting DIN 35 mm Main functions
- Output contact – controls a contactor, alarm or automation input.
Where is it used?
- Pump and fan control panels
- Contactor control circuits
- Automation and alarm panels
- Generator and backup supply panels
- Battery and DC system monitoring (AC/DC models)
Use by need
For the automation installer.
Precise voltage monitoring with a contact for the control circuit.For the electrician.
A compact relay to upgrade an existing board.For the equipment manufacturer.
A simple solution for machine and equipment protection.Practical use
In a pump panel the Promfactor Baltic FRV11 monitors the mains voltage and controls the contactor coil: at too low voltage the contactor disconnects the pump before the motor overheats.Pros
- Precise voltage monitoring
- Output contact for control
- Compact
- DIN mounting
Cons / limitations
- High-power loads must be connected via a contactor
- Does not protect against lightning surges
- Does not replace a circuit breaker
Safety and installation notes
- Install only after disconnecting the supply; work must be done by a qualified electrician.
- The contact current must not exceed the rated value – connect high-power loads via a contactor.
- Protect the control circuit with a fuse or circuit breaker.
- Check the supply voltage – a relay for another voltage will not work or will burn out.
Quick selection guide
1FU> 225–275 VU< 165–215 V1 C/O 8 ASuitable when you need:- to control a contactor according to voltage
- to monitor voltage in an automation panel
Check before use:- the supply voltage matches the relay
- contactor coil current ≤ contact current
Important reminder: the relay contact is intended for control, not for a high-power load.FAQ
Can the load be connected directly?
Only a small one – connect high-power loads via a contactor.What is the supply voltage?
See the technical table – a relay for another voltage will not work.Are the limits adjustable?
Yes – with knobs or buttons.Does it reset automatically?
Yes, when the voltage returns to normal.Does it protect against lightning?
No – an SPD is needed for that.Is it suitable for DC circuits?
Only AC/DC or DC models – see the supply voltage.Single-phase voltage monitoring relay | 1F | U> 225–275 V | U< 165–215 V | 1 C/O 8 A | DIN | Promfactor Baltic | PF-FRV11
Promfactor Baltic FRV11 – precise voltage monitoring with an output contact for automation and contactor control.
