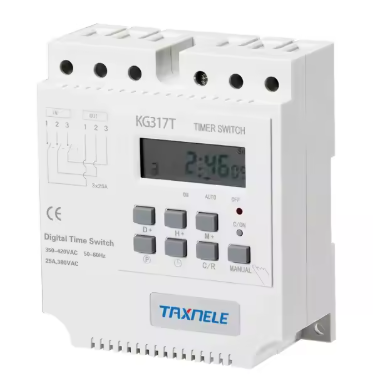

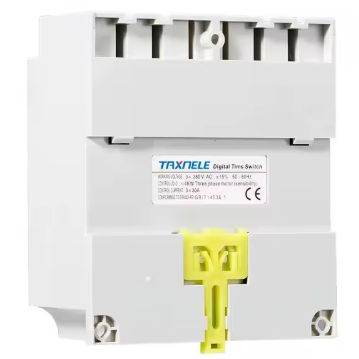

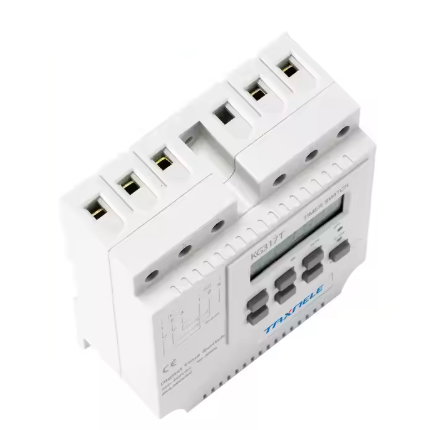

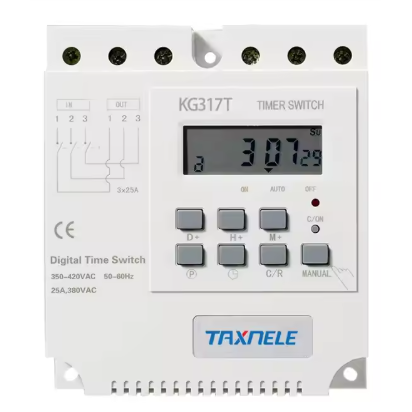

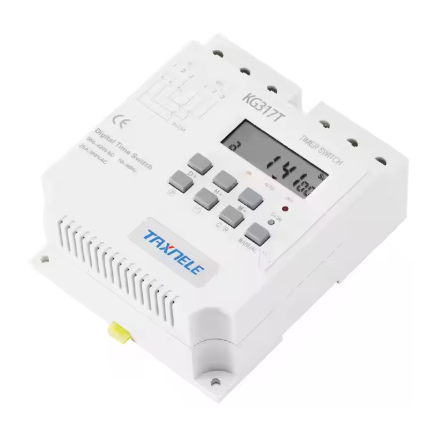

Modular/panel-mounted | digital time relay (timer) | weekly | programmable | three-phase | 16A | 380VAC | DIN

Technical Specifications:

Power supply voltage: 380V AC (3-phase)

Maximum load: 4 kW

Output current: 16A / 380V AC

Time settings: up to 17 different on/off times (day/week)

Time interval: from 1 minute to 168 hours

Accuracy: ±1 second per 24 hours

Display: Digital LCD display

Housing material: Durable plastic (color – white)

Internal battery: 1.2V DC, time retention up to 180 days without power

Energy consumption: about 2 VA

Operating temperature: -20°C ~ +55°C

Relative humidity: 45–85% RH

Dimensions: 120 x 105 x 52 mm

Mounting: DIN 35 mm rail or M3 screws

Functions:

Precise three-phase motor time control (up to 16 switches per day/week)

Automatic on/off according to timer

Clear LCD display with simple control

Integrated battery saves settings when power is lost

Compact and versatile mounting: DIN or screws

Suitable for periodic tasks (pumps, fans, heating systems, etc.)

Applications:

Three-phase motor control in industry

Time-controlled ventilation or heating systems

Automation of pumps, compressors, conveyors

Equipment for warehouses, workshops or technical rooms

Home automation solutions with three-phase input

Advantages:

Allows automating motor operation according to schedule – no human intervention required

Precise time control – up to 1 second per day

Energy-saving and economical – optimizes device operation

Easy installation – DIN rail or screws

Internal battery – no need to reset after power loss

Universal use – for both industry and home

Disadvantages:

Requires basic knowledge of electrical installation for mounting

No Wi-Fi or remote control function

A reliable, professional three-phase timer, perfectly suitable for engineers, installers, and home users who value advanced solutions. It helps save time and electricity, extends equipment service life, and ensures reliable automation of work cycles. Due to easy installation, clear control, and wide functionality, this timer is one of the best choices for automating three-phase systems.
