Outdoor Wireless LAN Bridge | for Reliable Network Connection | up to 3 km | 2.4/5 GHz | Wi-Fi 5 | 3xRJ45 with PoE | IP55 | Ruijie RG-EST330F-P

Technical Specifications

Type: Wireless LAN Bridge
Model: Ruijie Reyee RG-EST330F-P
Wi-Fi Standard: Wi-Fi 5 (802.11ac), compatible with a/b/g/n
Frequencies: 2.4 GHz (300 Mbps) + 5 GHz (867 Mbps)
Max. Throughput: up to 1166 Mbps
Antennas: 5 GHz – 13 dBi directional (2x2 MIMO), 2.4 GHz – 2 dBi
Recommended Distance: up to 3 km

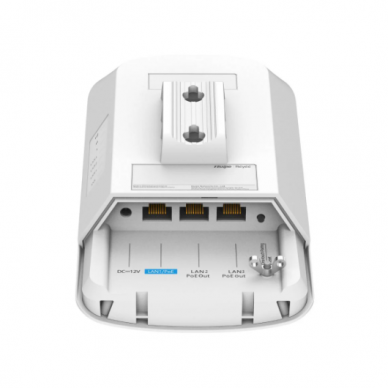

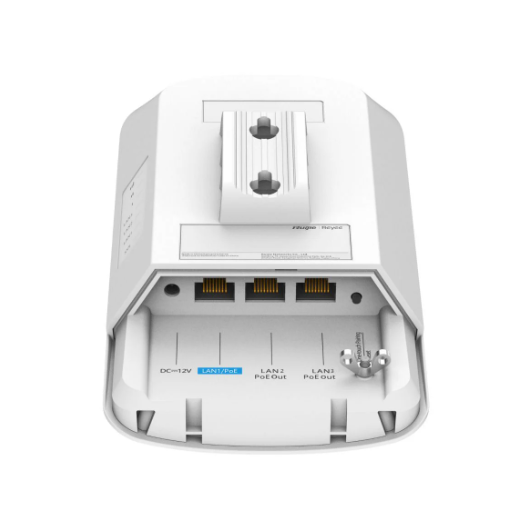

LAN Ports: 3 × 10/100 Mbps RJ45
1 × PoE In
2 × PoE Out (up to 15.4 W total power)
Power Supply: 12/24 V passive PoE, 802.3af/at or 24 V DC adapter
IP Rating: IP55 (dust and rain resistant)
Operating Temperature: −30 °C to +55 °C
Power Consumption: up to 24.4 W

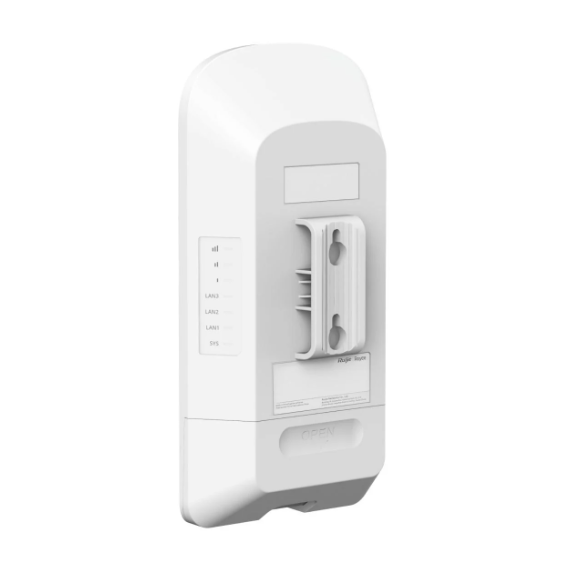

Mounting: wall or pole mounting

Functions

Up to 3 km wireless connection – stable building or area interconnection without cables
2x2 MU-MIMO technology – more efficient data transmission and reduced interference
PoE Out ports – allows direct powering of IP cameras or other devices
One-touch pairing – fast and easy deployment
TDMA technology – optimized communication for longer distances
Cloud management (Ruijie Cloud) – remote monitoring and diagnostics
IP55 protection – suitable for outdoor installation
Up to 16 PTMP connections – ability to connect multiple remote points

Usage

For CCTV installers: Connecting IP cameras between buildings, supports up to 18 cameras (3 Mbps) depending on distance
For companies and warehouses: Interconnection of administrative and industrial buildings, internet or LAN transmission across the territory
For network engineers: Reliable PTP/PTMP solution with VLAN, DHCP, RSSI analysis, cloud management and AI heatmap functions
For farms and remote locations: Connection between farms, warehouses or outbuildings, alternative to fiber optic cable

Advantages

Up to 3 km stable connection
Wi-Fi 5 (2.4 + 5 GHz)
Integrated PoE power supply for cameras
IP55 – resistant to outdoor conditions
Cloud management
Easy installation and pairing

Disadvantages

100 Mbps LAN ports (not Gigabit)
Optimal operation requires direct line of sight (LOS)
Package includes 1 unit (2 devices required for PTP connection)
