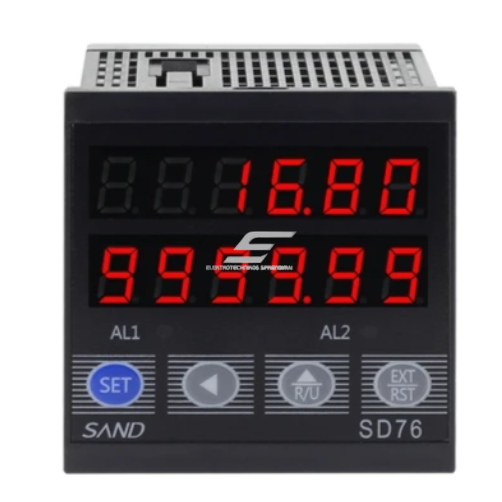

Panel | industrial | digital time relay (timer) | programmable | 5A | 250VAC/DC

Technical Specifications:
Power Supply: 220V ±10%, 50Hz

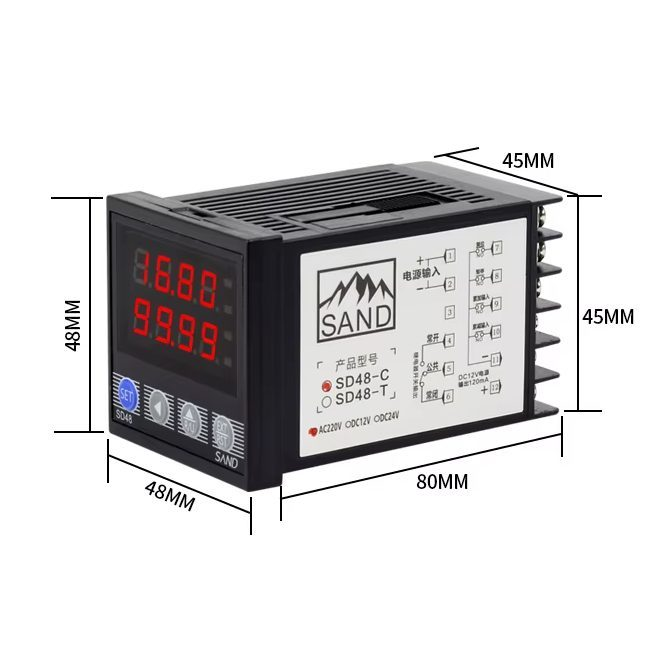

Installation: Designed for panel mounting in a control panel

Storage Ranges:

0.01–99.99 s
0.1–999.9 s
1–9999 s
1–99 min 59 s
0.01–99.99 min
0.1–999.9 min
Accuracy: ±0.1% ±0.05 s

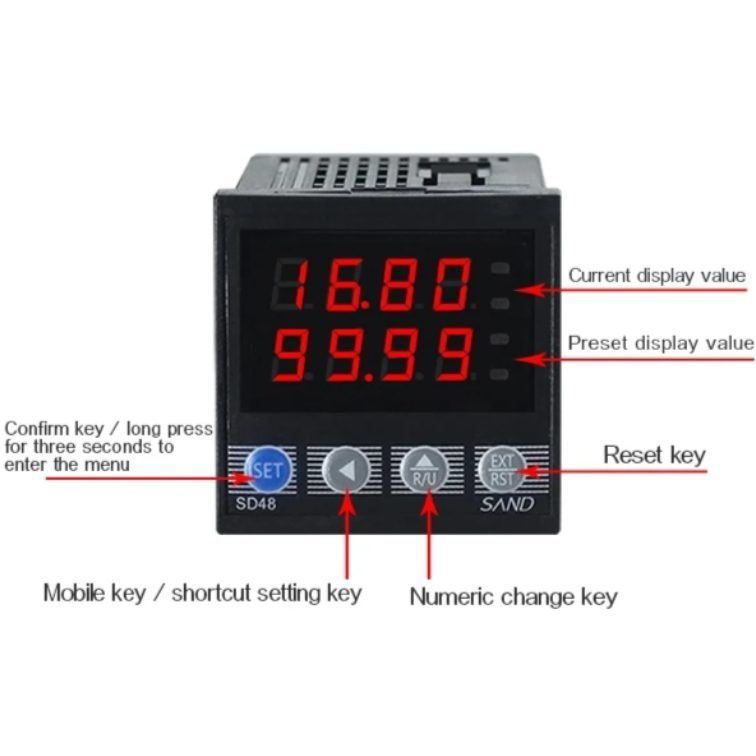

Reset Modes:

Front (button)
External signal
Automatic
Power-off
Output: 1 relay – AC/DC 250V, 5A (resistive load)

Operating Modes: Time counting after power-on or triggered by a signal

Interface Protection Against Interference:

Pulse interference: Level 3, 2000Vp-p
Voltage surges: Level 3, L-N ±2000V
Operating Conditions: 0–50 °C, ≤85% RH (without condensation)

Functions:

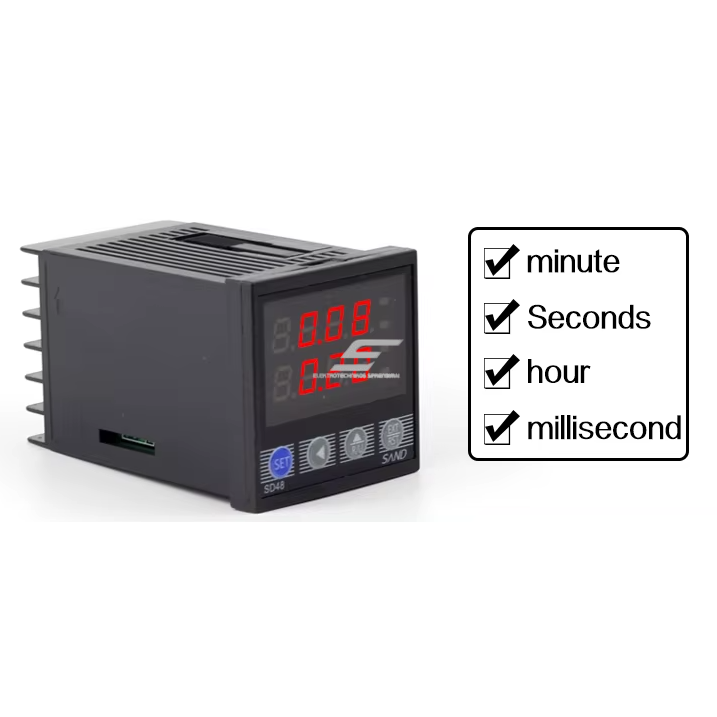

Accurate time measurement: milliseconds, seconds, minutes, hours
Hour accumulation (cumulative mode for recording device operating time)
Countdown timer with automatic shut-off capability
Two-stage control for more complex technological cycles
Various activation modes: automatic start or via input signal

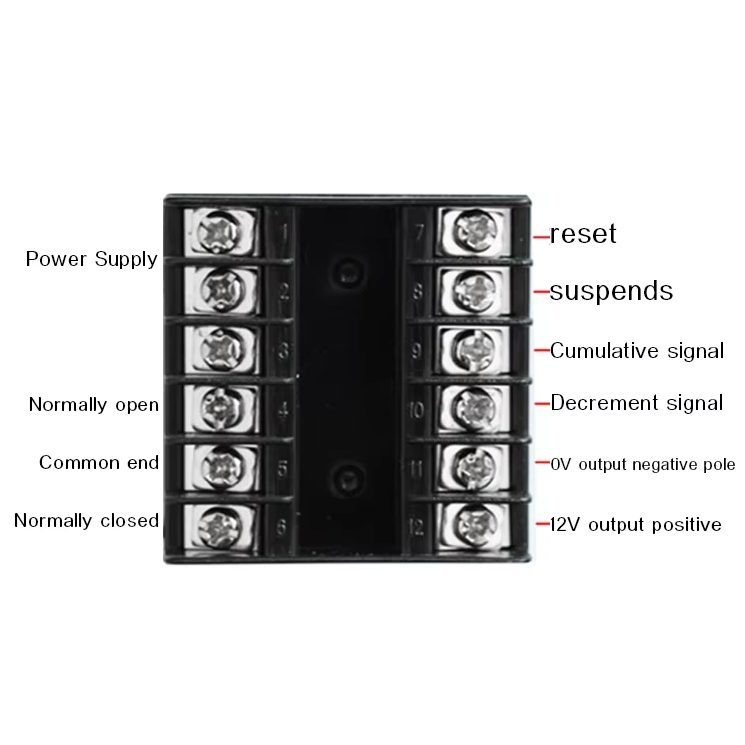

External signal input allows connecting buttons, sensors, and other signals
Control via output relay – can control electrical devices
Usage:

Industrial Automation: Equipment start/stop control based on time
Household / Workshops: Time limitation for devices such as air compressors or pumps
Machine Operating Cycles: Control of cutters, dispensers, heating devices
Maintenance: Hour counting for equipment operation maintenance and servicing
Automatic Sequences: Two-stage (e.g., heating → mixing → off)
Pros:

Multifunctional – suitable for almost all time management tasks
Very accurate time counting even in long sequences
Reliable operation even in industrial conditions
Compact and easy to install
Supports various configurations: counter, timer, switch
Resistance to interference and voltage surges – long-lasting and safe operation
Cons:

Requires precise initial configuration
Unprotected IP classification – must be installed in a panel
This is a professional timer and hour counter in one, perfectly suited for automation engineers, installers, and home users who need an accurate and reliable time control solution. Due to its flexible operating principle, wide storage range, multiple reset methods, and resistance to interference – it is an ideal choice in many fields: from ventilation to industrial processes.
