Panel-mounted | digital time relay (timer) | weekly | programmable | 16A | 230VAC

Technical Specifications:

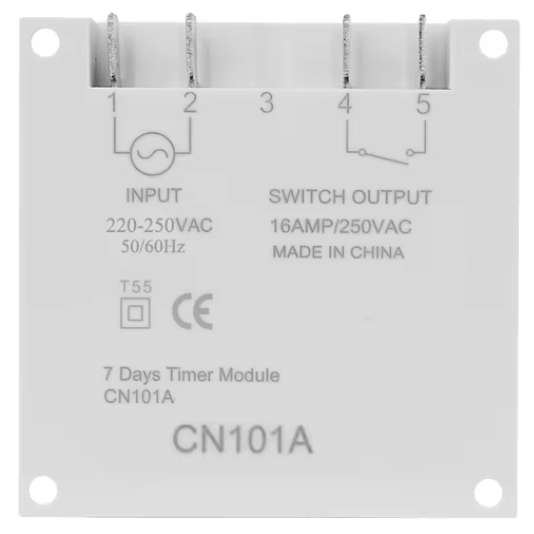

Operating Voltage: 220–240V AC, 50/60Hz

Maximum Load: 16A 250V AC

On/Off Cycles: 17 ON + 17 OFF per day/week

Timer Interval: from 1 minute to 168 hours

Installation: Flush mount (panel) + screw fixation

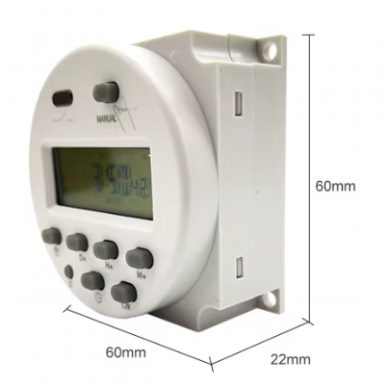

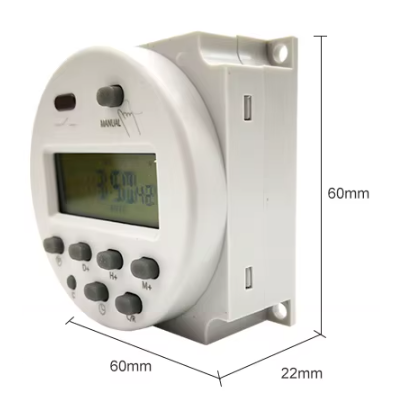

Dimensions: 60 x 60 x 32 mm

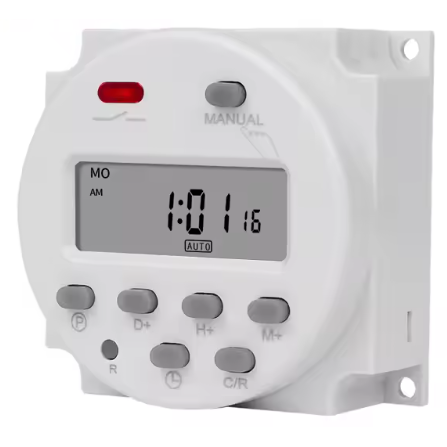

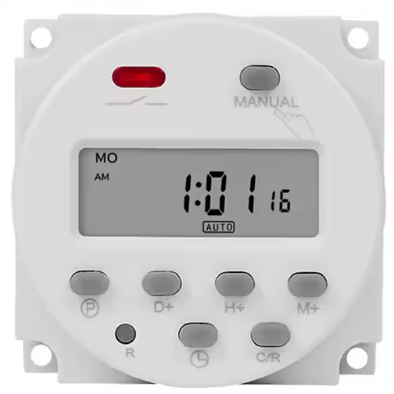

Display: LCD with clear control

Internal Battery: 1.2V 40mA (rechargeable), operates ≥60 days without power

Time Deviation: ≤1 s / 24 h at 25°C

Operating Temperature: -20°C to +55°C

Power Consumption: <1W

Functions:

Programmable up to 17 ON and 17 OFF cycles per week

Displays current time and cycle settings on LCD

Manual ON/OFF control

Weekly cycle renewal – suitable for recurring automation

Built-in battery preserves time and settings during power outages

Compatible with various household and industrial equipment

Usage:

The timer can be applied to various household and industrial needs:

LED lighting control (for showcases, advertising)

Electric heaters, boilers, fans

Charger control (for phones, batteries)

Garden irrigation system automation

Street or outdoor lighting activation at dusk

Pros:

Precise and stable operation with minimal time deviation

Easy installation – suitable for both professionals and amateurs

Weekly programming allows full device automation

Energy-saving – turns off devices when not needed

Unaffected by power outages – integrated battery preserves settings

Cons:

Requires precise knowledge to set time and cycles – may be confusing initially

No Wi-Fi or Bluetooth – operates only locally

Not recommended for use with high-power inductive motors without an additional relay

The programmable digital timer is a reliable, precise, and versatile solution for those seeking simple and effective automation both at home and in the workplace. The device helps save energy, reduces maintenance needs, and provides convenience in controlling various electrical appliances at precisely scheduled times. Suitable for both professional installers and home users.
