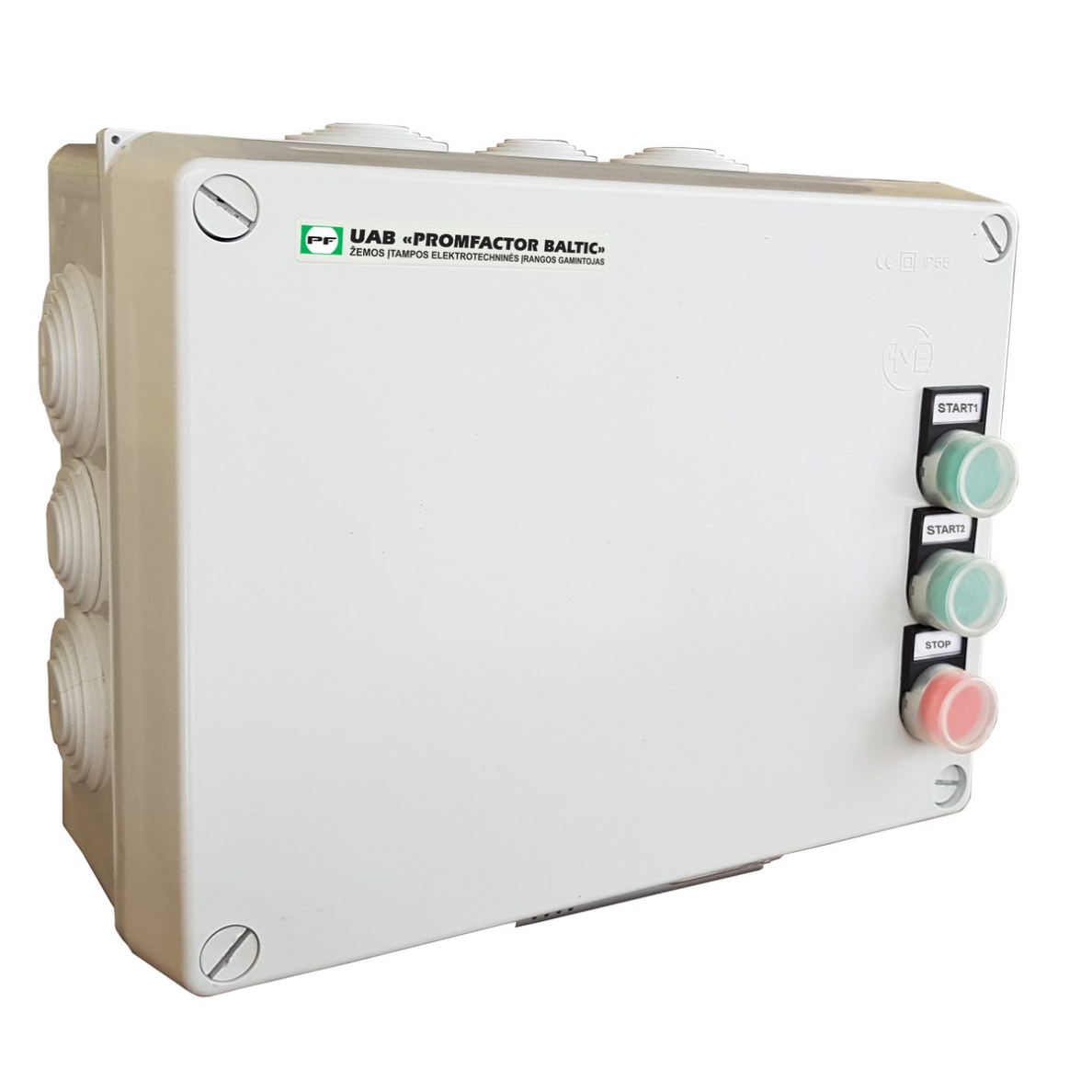

Reversing motor starter contactor with thermal relay and enclosure with control buttons | 0.75kW | 1,7-2,4A | IP56 | Promfactor Baltic SKM0075R
Code: SKM0075RPrice 92.19 € VAT incl.( 76.19 € VAT excl. )High-quality reversing motor starter contactor designed for controlling three-phase asynchronous motors. The integrated thermal relay ensures effective overload protection, while the IP56-rated enclosure safeguards the device from dust, moisture, and mechanical damage. This model comes with convenient control buttons, allowing easy switching of the motor rotation direction. With its robust construction and high-quality components, this device guarantees long-term operation even in demanding working conditions.
-
Technical Data
Motor power: 0.75 kW
Thermal protection adjustment range: 1.7 ... 2.4 A
Rated voltage (Un): ~380/400 V
Rated control circuit voltage: ~230 V
Rated frequency: 50/60 Hz
Utilization category: AC-3
Electrical durability: 10⁶ operations
Mechanical durability: 10⁷ operations
Protection degree: IP56
Ambient temperature range: -5...+40°C
Storage temperature range: -25...+55°C
Weight: 2.2 kg
Purpose
This reversing contactor is designed for industrial and commercial premises where reliable motor control is required, including:Factories and industrial workshops
Logistics and warehouse centers
Agricultural machinery control
Ventilation and pumping systems
ProsHigh reliability – long service life in both electrical and mechanical aspects
IP56 protection – resistant to dust and moisture, suitable for harsh conditions
Integrated thermal relay – protects the motor from overload
Convenient operation – integrated buttons ensure easy control
ConsFixed adjustment range may not be suitable for motors with different current values
This contactor is an ideal solution for reliable motor control in reversing mode with additional overload protection, ensuring efficiency and durability.Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.ManufacturerThis product is marked with the CE label, which confirms that it complies with all applicable European Union directives and regulations. CE marking is not just a formality – it is an important indicator of quality and safety, ensuring that the product has been properly assessed, tested, and can be safely used throughout the EU market.
CE certification means that the product has been evaluated according to the main criteria:
Safety requirements – ensures that the product does not pose a risk to the user or the environment
Electromagnetic compatibility (EMC) – the device does not interfere with other equipment and is resistant to external disturbances
Environmental standards – complies with current ecological and material usage requirements
Operational reliability – the product is suitable for long-term use according to its intended purposeCE marking allows this product to:
be legally supplied and used in all European Union countries
ensure a high level of quality and safety
be used in residential, commercial, and industrial environmentsThe CE mark is a declaration of the manufacturer’s responsibility, confirming that the product complies with all applicable standards and has been assessed according to EU legislation.
What does this mean for you as a buyer?
Safe use in everyday activities
Reliable performance and reduced risk of failure
Compliance with EU standards and requirements
Suitability for professional solutions
