  •   Reversing switch | control push button | FORWARD/STOP/REVERSE | 2.2kW | 6A | 380V

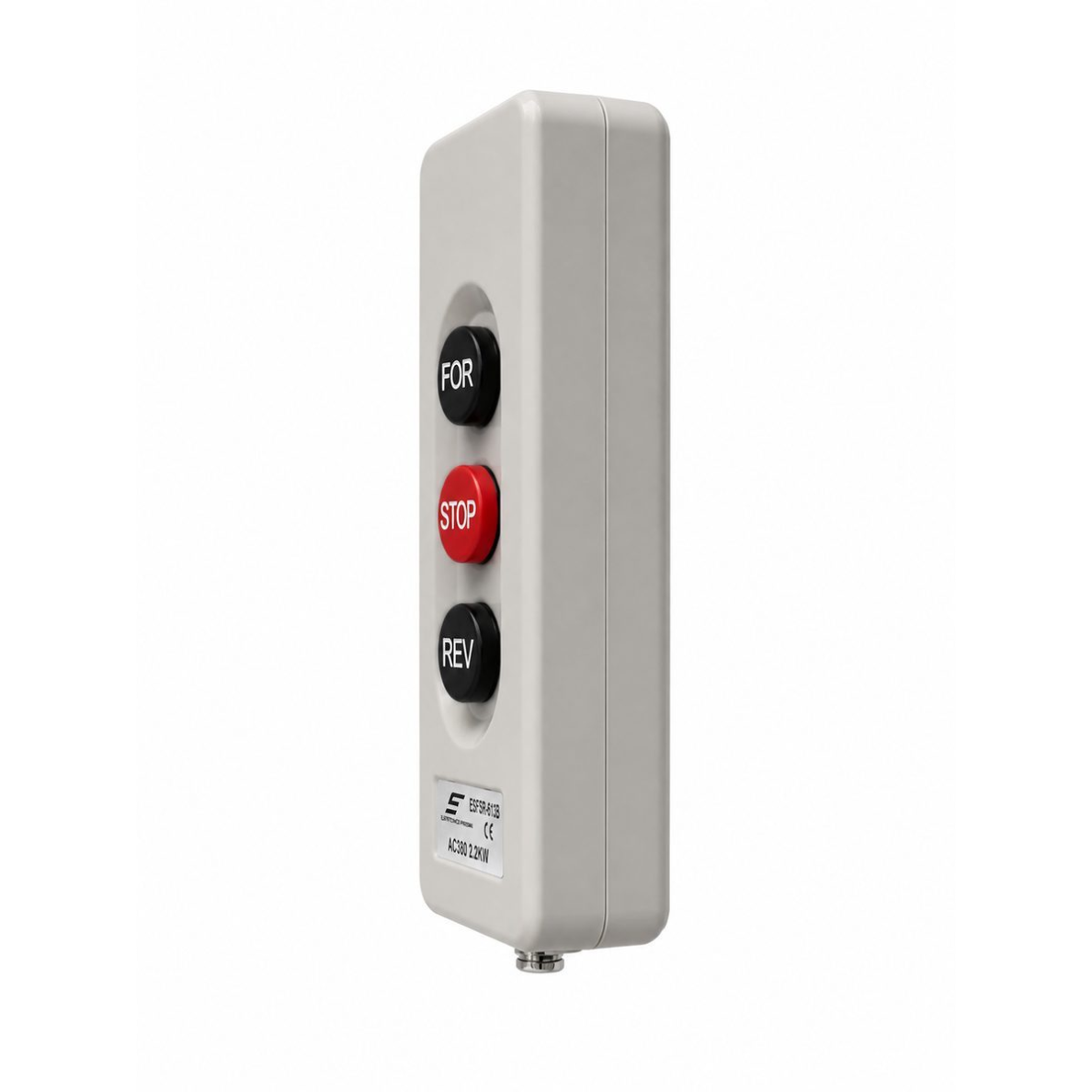

      Reversing switch | control push button | FORWARD/STOP/REVERSE | 2.2kW | 6A | 380V 1

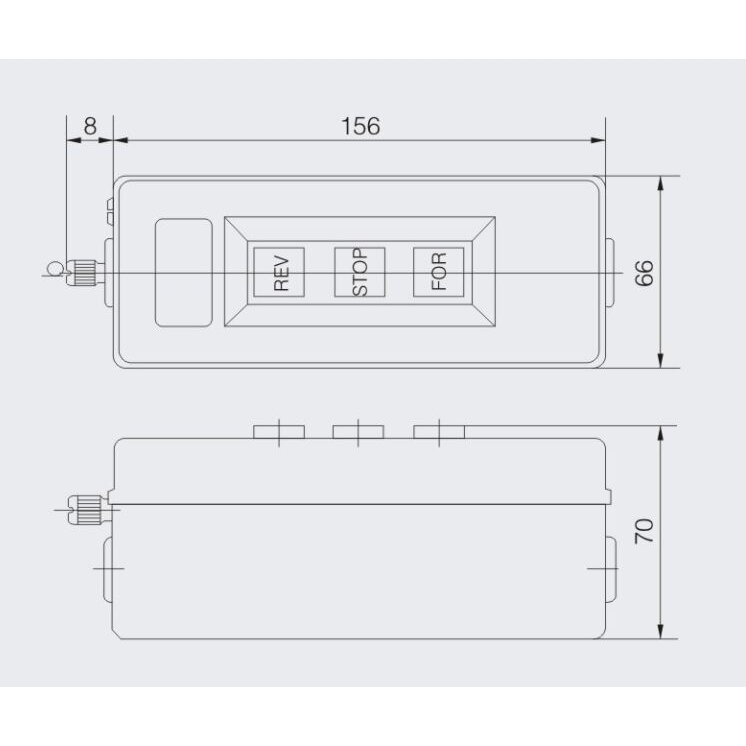

      Reversing switch | control push button | FORWARD/STOP/REVERSE | 2.2kW | 6A | 380V 2

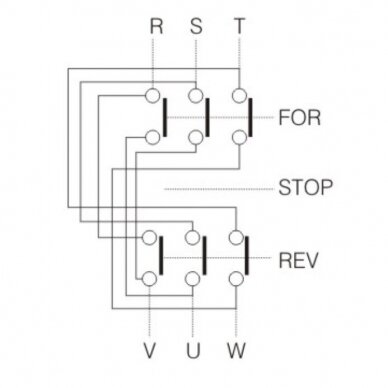

      Reversing switch | control push button | FORWARD/STOP/REVERSE | 2.2kW | 6A | 380V 3

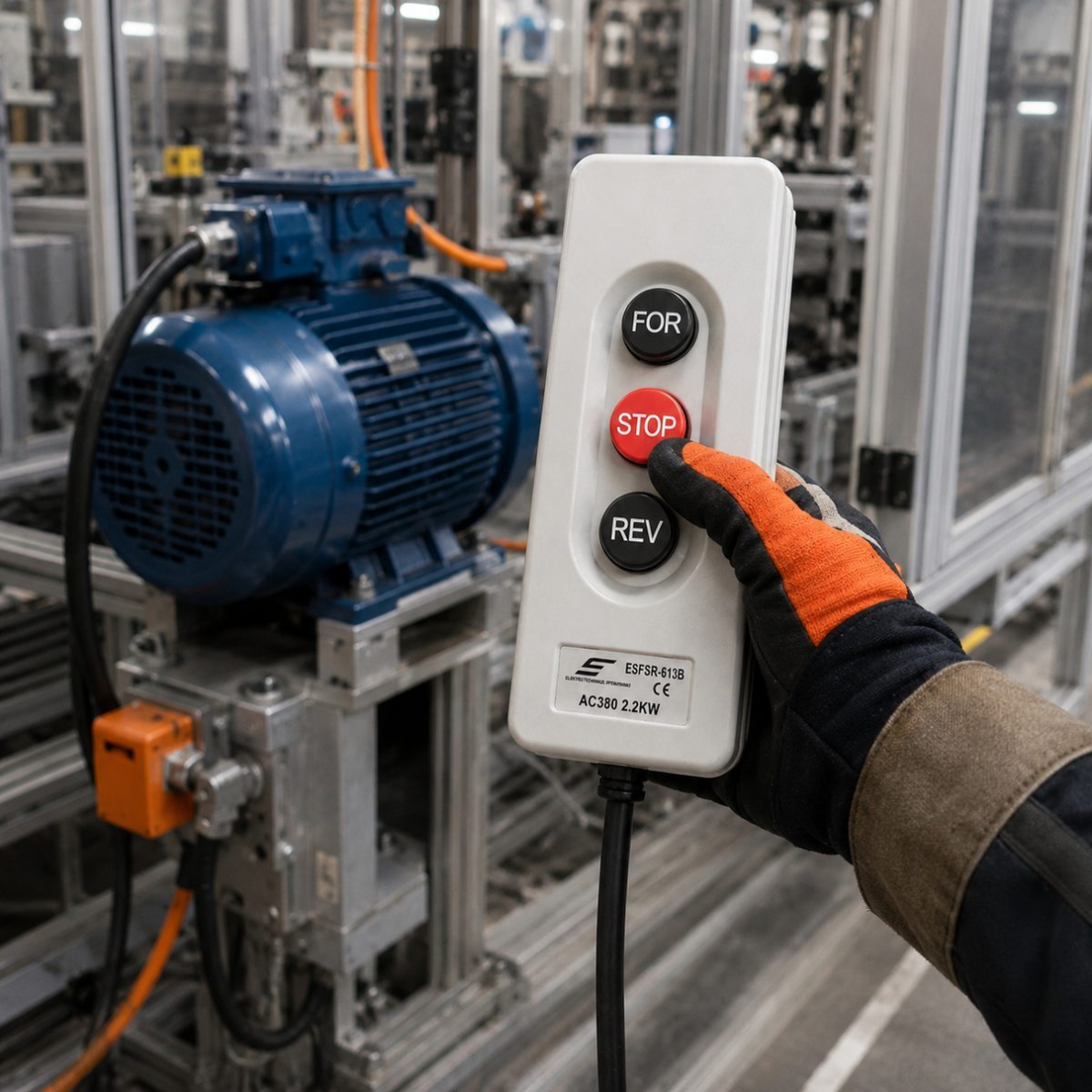

      Reversing switch | control push button | FORWARD/STOP/REVERSE | 2.2kW | 6A | 380V 4

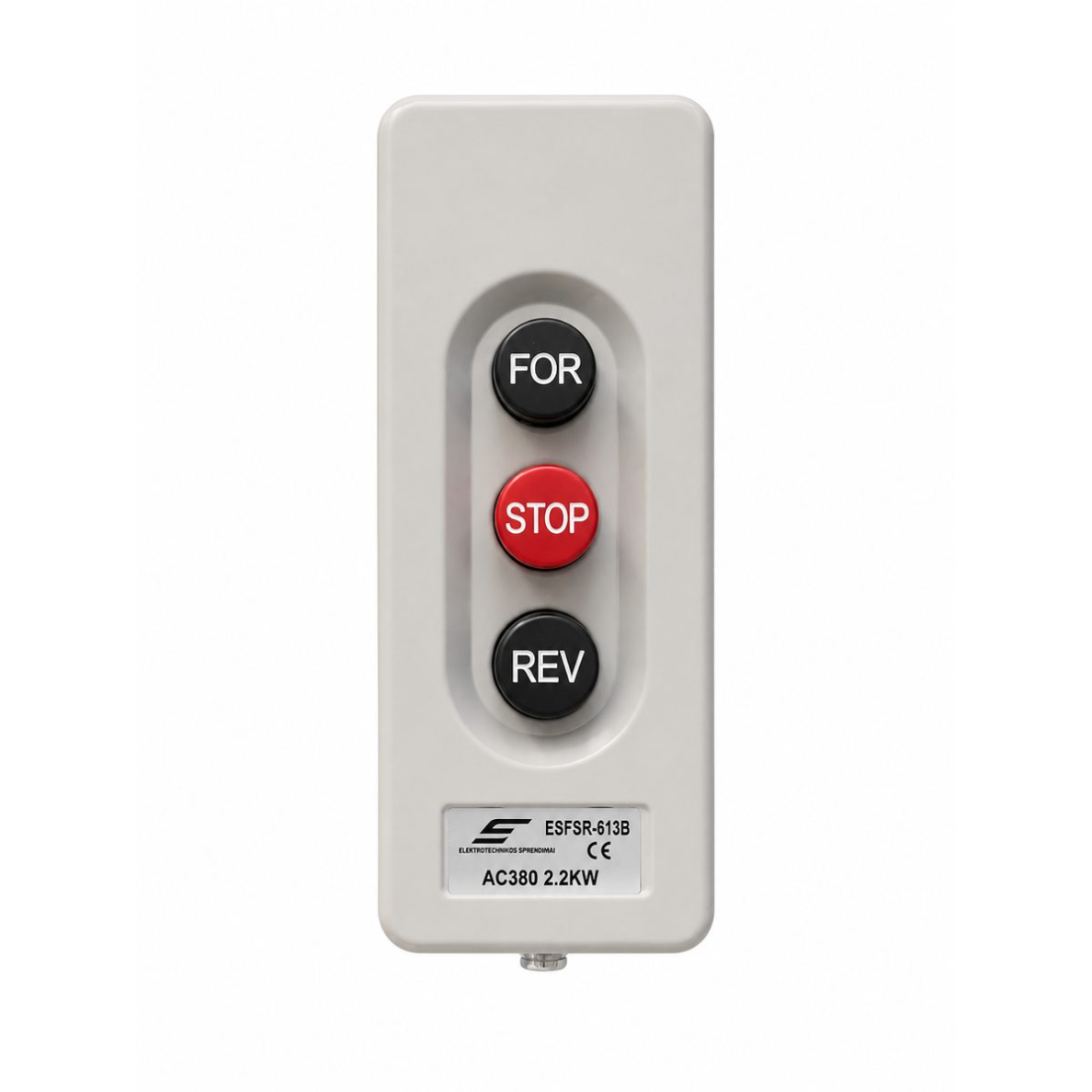

    Reversing switch | control push button | FORWARD/STOP/REVERSE | 2.2kW | 6A | 380V

    Code: ESFSR-513B
    Inquire about this item
    Price 18.39 € VAT incl.
    ( 15.20 € VAT excl. )
    Want another price? Suggest yours!

    Universal control push button designed for controlling electric motors and other equipment – forward (FOR), stop (STOP), reverse (REV) functions. The switch is suitable for use in industry, workshops, and even in households where simple, clear, and safe equipment control is required.

  • Product description

    Technical Specifications

    Product type: control push button / switch

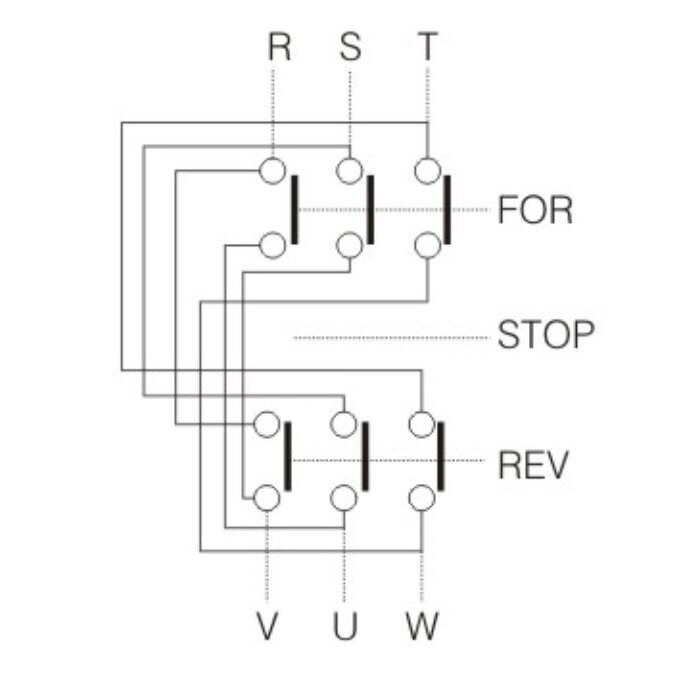

    Control functions: FORWARD (FOR) – forward; STOP – stop; REVERSE (REV) – reverse
    Rated operational voltage (Ue): AC 380V
    Rated insulation voltage (Ui): 500V
    Rated current (Ie): 6A
    Maximum controlled power: up to 2.2 kW
    Control type: mechanical push button
    Mounting: surface-mounted
    Construction: robust, designed for industrial use

    Functions

    Bidirectional motor control – allows easy change of rotation direction (FOR/REV)
    STOP function – for quick and safe stopping
    Universal application – suitable for various electrical devices
    Reliable operation – stable performance under high voltage
    Easy installation – simple integration into control systems

    Applications

    For household users: Suitable for smaller devices or workshops – e.g., fans, small mechanisms where direction control is required.

    For engineers / designers: A reliable solution for designing electrical panels or control systems with simple logic – FOR/STOP/REV.

    For electricians: Quick installation, clear wiring, and reliable operation – an ideal choice for everyday installation work.

    In industry: Used in machinery, conveyors, ventilation systems, pumps, and other motors up to 2.2 kW.

    Advantages

    Clear and simple control (FOR/STOP/REV)
    Suitable for 380V systems
    Reliable and durable
    Universal application
    Easy installation

    Disadvantages

    Limited power – up to 2.2 kW
    No additional smart features (e.g., remote control)
    Requires correct wiring (especially for direction control)

    Frequently Asked Questions

    1. What is the maximum device power?
    Up to 2.2 kW – suitable for small to medium-sized motors.

    2. Can it be used with a 380V network?
    Yes, the switch is designed for AC 380V operation.

    3. Can the motor rotation direction be changed?
    Yes, it includes FOR (forward) and REV (reverse) functions.

    4. Can this controller directly drive a motor?
    No, it is intended for the control circuit – it controls contactors or relay systems.

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
