  • New item   Shielded control cable | 7x0.34 LIYCY | stranded | grey | TRONIC-CY 7x0.34

    Shielded control cable | 7x0.34 LIYCY | stranded | grey | TRONIC-CY 7x0.34

    Code: LIYCY 7X0.34
    Inquire about this item
    Price 1.86 € VAT incl.
    ( 1.54 € VAT excl. )
    Want another price? Suggest yours!

    Shielded measuring and control cable for machines, equipment, conveyors, air conditioning and other systems in dry and damp rooms under light mechanical stress. Outdoors only with UV protection.

    Price is per 1 m.

  • Product description

    Shielded control cable | 7x0.34 LIYCY | stranded | grey | TRONIC-CY 7x0.34

    LIYCY 7x0.34 is a flexible stranded signal cable with PVC insulation and a copper braid shield. The shield protects measuring and control signals from electromagnetic interference caused by frequency drives, motors and power cables.

    Key idea:
    If sensor readings jump or a signal drops out near a drive, a shield is usually missing. The LIYCY shield only works when properly connected.
    Cores
    7x0.34 mm²
    Shield
    Copper braid
    Temperature
    −30…+80 °C fixed
    Colour
    Grey

    Technical specifications

    Product typeShielded control (signal) cable
    DesignationLIYCY (TRONIC-CY)
    Cores × cross-section7x0.34 mm²
    ConductorFlexible stranded copper
    InsulationPVC
    ShieldCopper braid
    SheathPVC, grey
    Operating temperature (fixed)−30…+80 °C
    Operating temperature (flexing)−5…+70 °C
    EnvironmentDry and damp rooms, light mechanical stress; outdoors only with UV protection
    Sales unit1 m

    Where is it used?

    • Analogue signals 4–20 mA / 0–10 V
    • Temperature, pressure and level sensors
    • Encoders and position sensors
    • RS485 and other data lines
    • Conveyors, machines, air conditioning systems

    Pros

    • Copper braid shield against interference
    • Flexible stranded cores
    • Suitable for dry and damp rooms
    • Sold by the metre

    Cons / limitations

    • For signals, not power circuits
    • Outdoors only with UV protection
    • The shield does not work unless connected

    Safety and installation notes

    • Earth the shield as instructed by the equipment manufacturer.
    • Lay the signal cable separately from power cables.
    • Crimp ferrules on stranded core ends.

    FAQ

    How do I connect the shield?
    As instructed by the equipment manufacturer – usually to earth at one or both ends.
    Can it supply a motor?
    No, LIYCY is intended for signals and control.
    Do you sell it by the metre?
    Yes, the price is per 1 m.

    How to choose the right cable – see the special purpose cable guide.

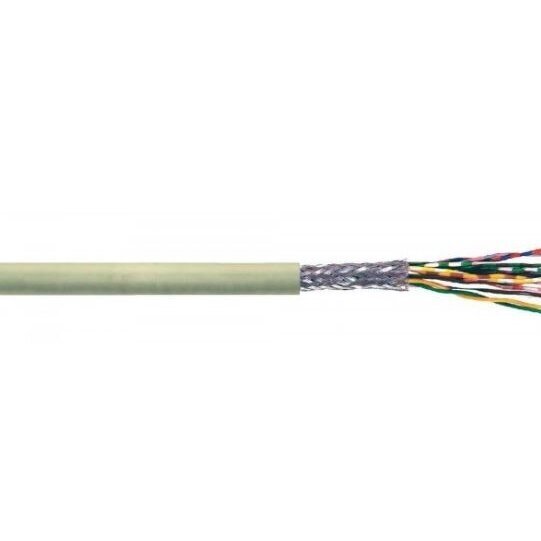

    Shielded control cable | 7x0.34 LIYCY | stranded | grey | TRONIC-CY 7x0.34

    Shielded cable LIYCY 7x0.34 – for sensors, analogue signals and data lines near interference sources.

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
