  • Smart roller shutter | blinds controller | Zigbee 3.0 | 1A | 100-240V AC | in-wall | SONOFF | MINI-ZBRBS

    Code: MiniZBRBS
    Barcode: 6920075743333

    Zigbee 3.0 roller shutter and blinds controller for a flush-mounted box: 100–240 V AC, AC motor up to 1 A, position in percent, works with an existing wall switch (S1/S2), Zigbee router. App control requires a Zigbee hub. Dimensions 39.5 × 33 × 16.8 mm.

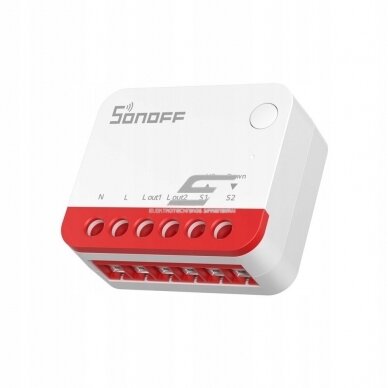

  • SONOFF MINI-ZBRBS – Zigbee 3.0 roller shutter and blinds controller for a flush box

    A small smart module (39.5 × 33 × 16.8 mm) that fits into a flush-mounted box behind your existing switch and controls an AC roller shutter, blinds or curtain motor up to 1 A. Control via the app over Zigbee 3.0, with timers, scenes or an ordinary wall switch.

    ⚠ Important before buying: this is a Zigbee device, not Wi-Fi

    MINI-ZBRBS does not connect directly to a Wi-Fi router. App control, timers and scenes require a Zigbee hub (gateway) – e.g. SONOFF NSPanel Pro, iHost or a Zigbee USB dongle with Home Assistant. Without a hub the module works only from the connected wall switch.

    Key point

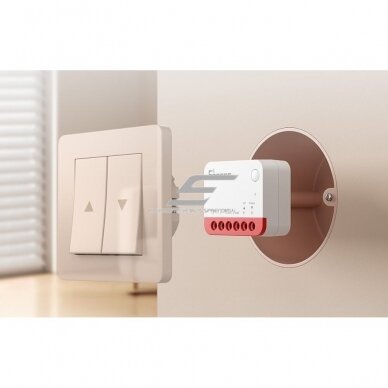

    Existing roller shutters can be made smart without replacing the motor or the wall switch: the module is installed in the box behind the switch, takes over the motor direction control and, after calibration, lets you set an exact position in percent. In a Zigbee network it also works as a router, strengthening the connection for other Zigbee devices.

    Zigbee 3.0
    connection via hub
    1 A
    max. motor current
    100–240 V AC
    50/60 Hz
    39.5 × 33 × 16.8 mm
    fits a flush box
    0–100 %
    position after calibration

    Technical data

    Model SONOFF MINI-ZBRBS
    Purpose Roller shutter, blinds and curtain motor controller
    Supply voltage 100–240 V AC, 50/60 Hz
    Maximum load 1 A (on 230 V mains – up to ~230 VA)
    Suitable motors 4- or 5-wire AC motors with built-in limit switches
    Wireless Zigbee 3.0 (2.4 GHz), works as a Zigbee router
    Microcontroller Silicon Labs EFR32MG21

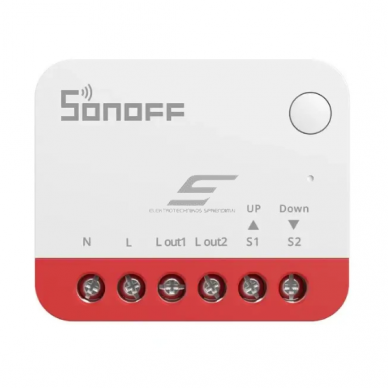

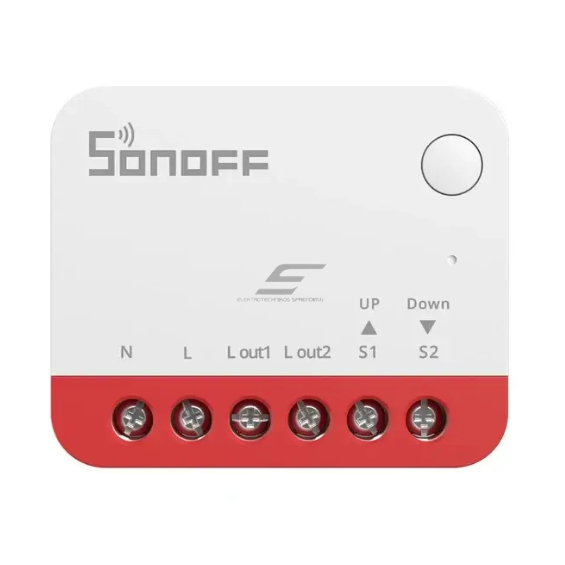

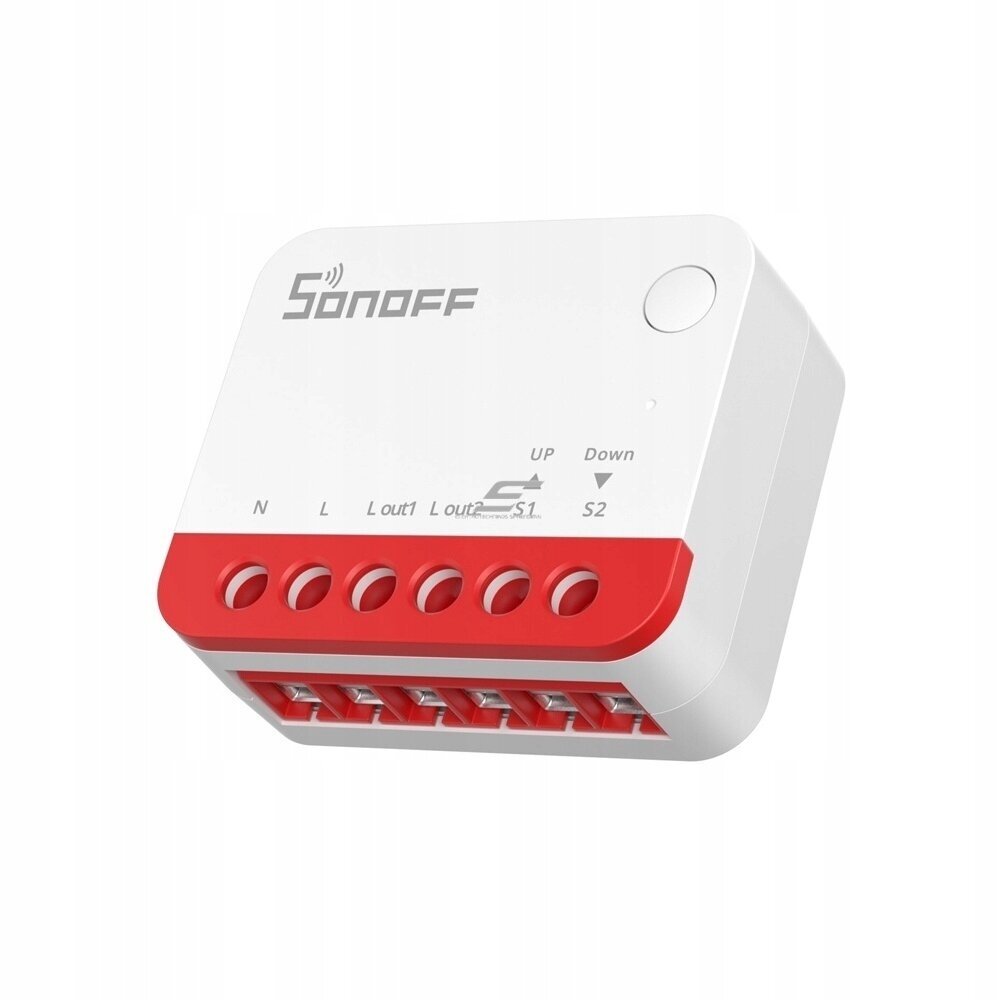

    Terminals N, L, L out1 (one motor direction), L out2 (other direction), S1, S2 (external switch)
    External switch Momentary (push button) or 3-position rocker; „Pulse“ and „Edge“ modes
    Wires 18–14 AWG (approx. 0.8–2.1 mm²), solid or stranded copper
    Run in one direction Max. 2 min – then the module stops the motor
    Operating temperature −10…+40 °C
    Relative humidity 5–95 % RH, non-condensing
    Place of use Indoor only
    Dimensions / weight 39.5 × 33 × 16.8 mm / 25.1 g
    Housing PC plastic, white
    Mounting 60 mm or 80 mm flush box, at least 60 mm deep
    Compliance CE, FCC, RoHS
    Apps and platforms eWeLink (also Alexa, Google Home via eWeLink cloud); Home Assistant (ZHA, Zigbee2MQTT); Apple Home via the ZBBridge-U Matter bridge

    Main functions

    • Open, close and stop from the app or a wall switch.
    • Exact position in percent (e.g. open to 30 %) – after travel calibration.
    • Automatic or manual travel calibration – in the app or with the module button.
    • Timers and schedules in the eWeLink app.
    • Scenes with other Zigbee devices; local scenes configured on the hub keep working during internet outages.
    • Works with an existing momentary or 3-position wall switch (S1/S2).
    • Zigbee router – extends the Zigbee network.
    • Overrun protection: the motor runs in one direction for no more than 2 min.
    • Integration with Home Assistant and, via the ZBBridge-U Matter bridge, with Apple Home.
    How it differs from similar solutions
    MINI-ZBRBS-E (wall switch) Same Zigbee control, but it is an 86 × 86 mm wall switch with buttons. MINI-ZBRBS is hidden in the box behind your existing switch.
    Wi-Fi shutter modules Connect directly to the router without a hub, but every device loads the Wi-Fi network. Zigbee modules form a separate network and strengthen each other.
    Ordinary shutter switch Manual control only – no app, timers, position in percent or scenes.
    Higher-power motor If the motor current exceeds 1 A, MINI-ZBRBS must not be connected directly – a different controller or interlocked intermediate relays are needed.
    Where it is used
    • Electric roller shutters in flats and houses.
    • Blinds and curtain tracks with a 100–240 V AC motor.
    • Offices and hotel rooms – scheduled dimming.
    • Smart home systems with Home Assistant, NSPanel Pro or iHost.
    • Renovation – when existing switches and wiring should stay.

    Wiring diagram

    Typical motor connection: phase via a 1 A circuit breaker to L, neutral to N, motor direction wires to L out1 and L out2. The motor N and PE wires connect to the installation N and PE.

    SONOFF MINI-ZBRBS wiring diagram – Elsprendimai.eu
    ☝ Click the diagram to open an enlarged version.
    ⚠ The diagram is for guidance only. Check the connection against the manufacturer's instructions. Installation must be carried out by a qualified electrician. UAB „Elektrotechnikos sprendimai“ accepts no responsibility for the connection or possible errors.
    Why:
    11 A circuit breaker
    The manufacturer specifies a 1 A circuit breaker or RCBO before the module – it protects the module against a short circuit in the motor circuit.
    2L out1 / L out2
    Both outputs are 100–240 V live lines, one for each direction. If the shutter moves the wrong way, switch off the power and swap these two wires.
    3Motor with limit switches
    End positions are set by the motor limit switches. Without them the motor would stop only after 2 min and could damage the mechanism.
    4External switch S1 / S2
    S1 controls one direction, S2 the other. Set the switch type in the app and check the switch wiring in the manufacturer's diagram.
    ✓ Advantages
    • Fits behind the existing switch – no change to the interior.
    • Exact position in percent after calibration.
    • Local scenes work without internet.
    • Strengthens the Zigbee network.
    • Wide compatibility: eWeLink, Home Assistant, Matter via bridge.
    ✗ Limitations
    • A Zigbee hub is required – without it only the wall switch works.
    • Motor current up to 1 A.
    • AC motors only – not for 12/24 V DC motors.
    • Indoor use only.
    • Philips (Hue) and AVM FRITZ!Box Zigbee gateways are not supported (according to the manufacturer).
    ⚡ Safety
    • Installation by a qualified electrician with the power switched off. Do not touch the terminals while energised.
    • Install a 1 A circuit breaker or RCBO before the module.
    • Check the motor current on its rating plate – it must be below 1 A.
    • Do not connect two controllers or switches in parallel to one motor – applying both directions at once can damage the motor.
    • Install only in a dry flush box indoors.

    How to choose

    Situation Choose
    You want to keep the existing wall switch MINI-ZBRBS – installed in the box behind it
    You want a new smart wall switch MINI-ZBRBS-E – wall switch, 86 × 86 mm
    There is no Zigbee hub at home yet Add NSPanel Pro, iHost or a Zigbee USB dongle for Home Assistant
    Motor current above 1 A or a DC motor This module is not suitable – write to us and we will find a solution
    Check before ordering:
    • the motor is supplied with 100–240 V AC and draws less than 1 A;
    • the motor is 4- or 5-wire with limit switches;
    • there is an N (neutral) wire in the flush box;
    • you have or will buy a Zigbee hub.
    ☝ Elsprendimai.eu recommends together with it:

    FAQ

    Does MINI-ZBRBS work over Wi-Fi?

    No. It is a Zigbee 3.0 device – it is controlled in the app via a Zigbee hub (e.g. NSPanel Pro, iHost, ZBBridge-P / ZBBridge-U). Without a hub it works only from the wall switch.

    Will it suit my shutter motor?

    Yes, if the motor is supplied with 100–240 V AC, has separate wires for each direction (4 or 5 wires), limit switches and draws less than 1 A. Not suitable for DC motors or higher current.

    Can I keep my existing switch?

    Yes. A momentary or 3-position switch is connected to S1 and S2, and its type is set in the app.

    How do I set the position in percent?

    After installation, run the travel calibration – automatically in the app or by holding the module button for more than 10 s. Then the shutters can be opened to the desired percentage.

    The shutter moves the wrong way – what should I do?

    Switch off the power and swap the L out1 and L out2 wires.

    Will it work if the internet goes down?

    Yes – the wall switch always works, and local scenes configured on the hub run without internet. Remote control from outside the home needs internet.

    Summary

    SONOFF MINI-ZBRBS is a compact Zigbee 3.0 controller that makes existing 100–240 V AC shutters or blinds smart when the motor draws up to 1 A. A Zigbee hub is required. Not sure about your motor or hub? Send us a photo of the motor rating plate – contact us.

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
