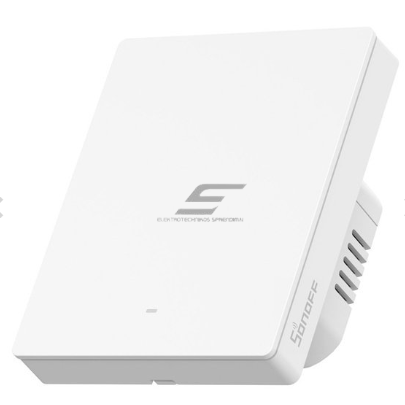

Smart wall switch | 10A | IP20 | Sonoff ZBM5-1C-80W

Smart wall switch | 10A | no neutral required | Zigbee 3.0 | voice control | IP20 | Sonoff ZBMINI-L2

Technical Specifications
Power supply: 100–240V AC, 50/60Hz
Maximum load: 10A (80W LED load)
Minimum load: 3W (no neutral wire required)
Neutral wire: Not required (phase-only connection)
Wireless protocol: Zigbee 3.0
Housing material: PC + CRS (heat and impact resistant)
Color: White
Operating temperature: -10°C to +40°C
Dimensions: 120 × 74 × 39.4 mm
Protection rating: IP20 (indoor use only)
Installation: Standard EU 86 mm box
Control: Physical button + smart app (eWeLink)
Compatibility: Sonoff Zigbee Hub, Home Assistant, Tuya, Zigbee2MQTT, SmartThings
Voice control: Google Assistant, Amazon Alexa
Backup power: CR2477 battery
Extra features: Timers, automation scenes, conditional commands

Functions and Operation

Remote control via eWeLink app – switch lights on/off from anywhere.

Automation and schedules: set time, sunrise/sunset, or condition-based triggers.

Voice control via Google Assistant or Alexa.

Integration with sensors: pair with motion, temperature, or humidity sensors for full automation.

Manual operation possible even without internet.

Modern minimalist design suitable for any interior.

Use cases

Home lighting: bedrooms, kitchens, corridors, living rooms.

Bathrooms/stairs: automatic lighting with motion sensors.

Offices/workspaces: centralized light control for energy efficiency.

Smart homes: ideal retrofit for older houses without neutral wiring.

Pros
✔ Works without neutral wire – perfect for older installations.
✔ Stable Zigbee 3.0 connection – faster and more reliable than Wi-Fi.
✔ Wide compatibility with major smart ecosystems.
✔ Voice control and automation.
✔ Timers, overload and thermal protection.
✔ Elegant, compact design.

Cons
✖ Requires a Zigbee gateway for app control.
✖ Some LED lamps may need a bypass capacitor for stability.
✖ Not suitable for high-power appliances (>10A).
