Smart | Wireless | SOS Emergency Call System | for Disabled | Button and signal receiver | 433.92MHz | red | IP55

Wireless SOS Assistance Call System | pull cord | audible and visual alarm | red receiver

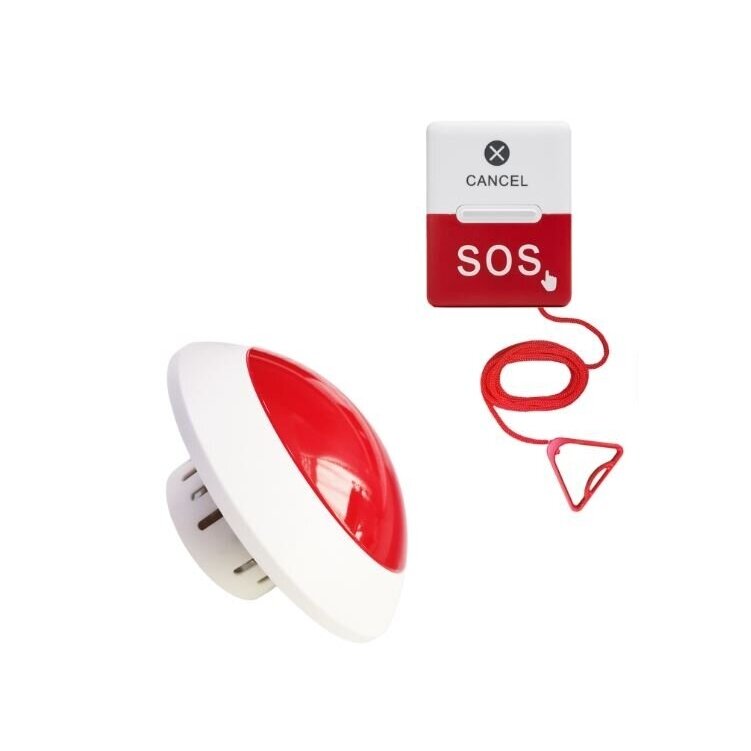

Wireless SOS assistance call system designed for quickly calling a nurse, caregiver or other assistance. The set includes a wall-mounted button with a 1.5 m emergency pull cord and an audible-visual receiver with a red cover. The assistance signal can be activated by pulling the cord or pressing the SOS button, and once assistance has been provided, the call can be cancelled using the “CANCEL” button.

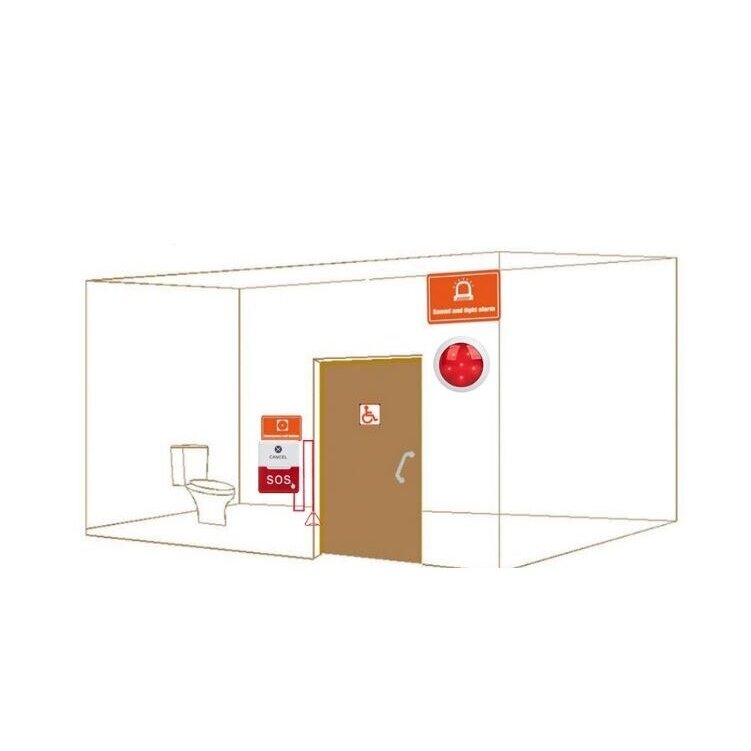

The system is intended for people who may need to call for help quickly and easily. The SOS transmitter can be installed near a bed, in a bathroom, toilet, hospital room or another easily accessible location, while the receiver is installed where the supervising person can notice the signal.

No wired connection between the button and receiver is required to transmit the assistance signal. The pull cord is convenient in situations where the user finds it difficult to precisely reach a small button, while the audible and visual alarm helps attract the attention of the supervising person.

• 1 × SOS call button.
• 1 × 1.5 m emergency pull cord.
• 1 × audible-visual receiver with red cover.
• 1 × power cable.
• 1 × user manual with QR code linking to an operation video.

• 5 different audible signals / melodies.
• 4 volume levels.
• The audible alert can be switched on or off.
• Red light signal.

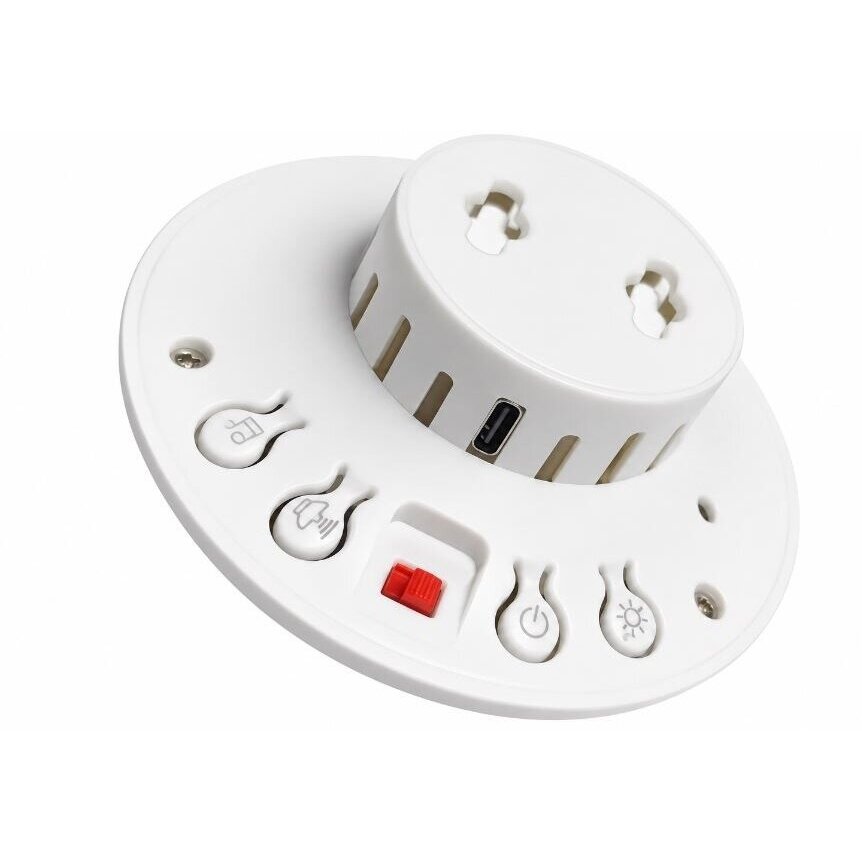

• The receiver alarm duration can be set.

The transmitter has a wireless signal range of approximately 100–200 m in open space and around 30–50 m with obstacles. The actual operating range depends on walls, doors, partitions and other obstacles affecting the radio signal.

• Toilets.
• Bathrooms.
• Beside the bed.
• Hospital wards.
• Nursing homes.
• Residential premises.
• Kitchens.
• Corridors.
• Nurses’ stations.
• Garages.
• Yards.
• Other locations where a quick assistance call is required.

The SOS button is installed in a location that is easily accessible to the user. When assistance is required, the red cord can be pulled or the SOS button can be pressed. The receiver receives the wireless signal and activates the red light and audible alarm. Once assistance arrives, the call is cancelled by pressing “CANCEL”.

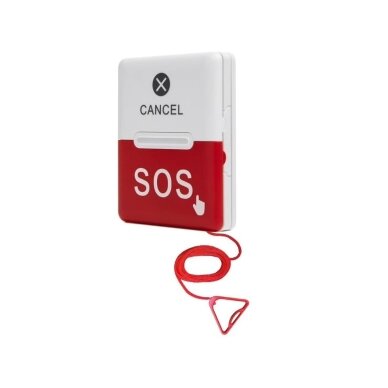

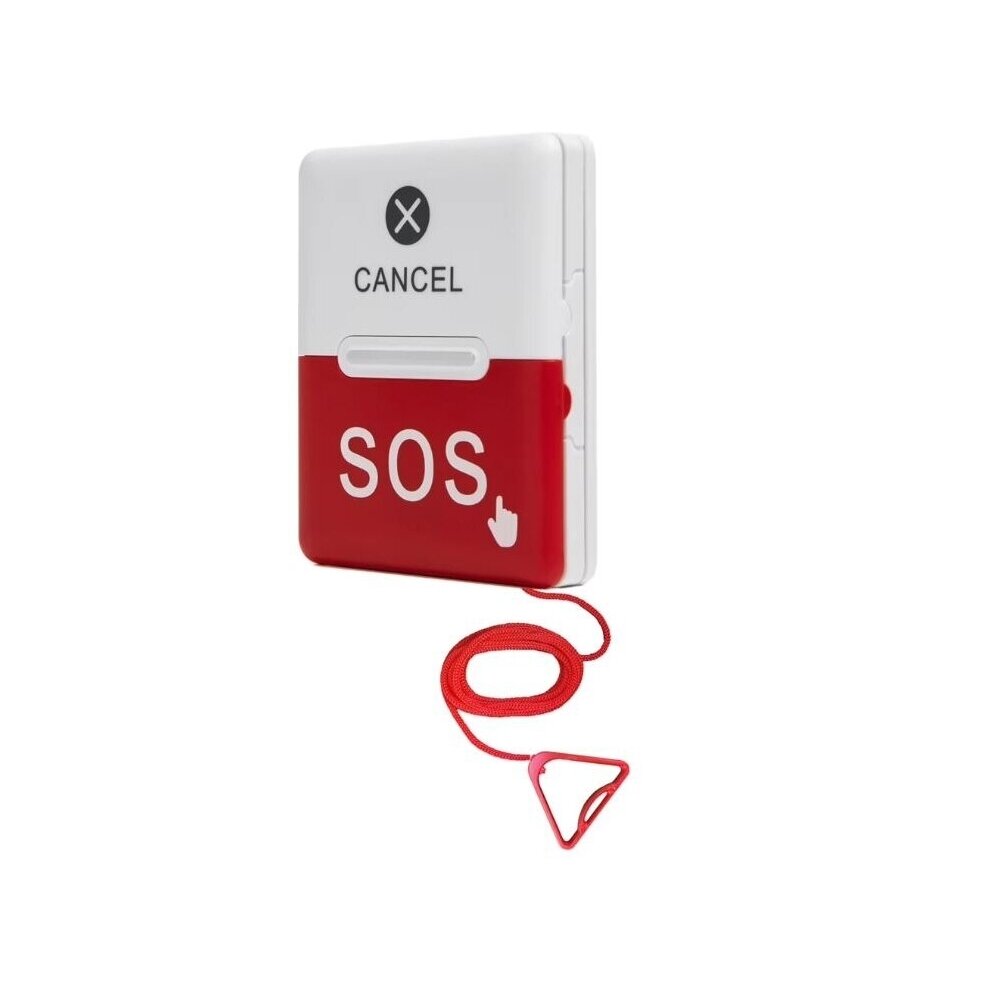

• The SOS button is wall-mounted.
• It can be installed near a bed, in a toilet, bathroom, hospital room or another convenient location.
• Double-sided adhesive tape for installation is included in the set.
• The receiver can be installed in a corridor, near a room door, in a kitchen, at a nurses’ station or another location where the signal needs to be noticed.
• No signal cable is required between the button and the receiver.

• Before use, check that the SOS button and receiver are paired and that the signal is transmitted correctly.
• Install the SOS button in a location where the user can easily reach the button or pull cord.
• Check wireless operation at the actual installation location.
• Regularly check the condition of the 23A 12 V battery in the SOS button.
• Power the receiver with DC 5 V.
• After installation, test the SOS, pull-cord and CANCEL functions.

Wireless SOS Assistance Call System | red | 433.92 MHz

Wireless assistance call set with an SOS button, 1.5 m pull-type emergency cord and audible-visual receiver with a red cover. The signal can be activated using the cord or SOS button and cancelled using the “CANCEL” function. The system is designed for calling assistance in homes, care facilities, hospital wards, toilets, bathrooms and other locations where a simple wireless alert is required.
