  • New item   Switch | 1-gang | 10A | flush-mounted | IP20 | white | Sedna Design | Schneider Electric | SDD111101

    Switch | 1-gang | 10A | flush-mounted | IP20 | white | Sedna Design | Schneider Electric | SDD111101

    Code: SDD111101
    Inquire about this item
    Price 4.30 € VAT incl.
    ( 3.55 € VAT excl. )
    Want another price? Suggest yours!

    Schneider Electric Sedna Design SDD111101 is a white flush-mounted 1-gang switch for lighting control in residential and commercial premises. One rocker switches one lighting circuit on and off.

  • Product description

    Switch | 1-gang | 10A | flush-mounted | IP20 | white | Sedna Design | Schneider Electric | SDD111101

    Schneider Electric Sedna Design SDD111101 is a white flush-mounted 1-gang switch for lighting control in residential and commercial premises. One rocker switches one lighting circuit on and off.

    Key point:
    One rocker – one circuit. 10 AX rating, screwless terminals and the standard 73×73 mm mechanism make installation fast, and the Sedna Design range lets you match switches, sockets and frames across the whole project.
    Rating
    10 AX, 250 V AC
    Circuits
    1 (1 rocker)
    Terminals
    Screwless
    Colour
    White RAL 9003

    How it works

    The mechanism with fixing frame is installed in a standard flush box and secured with claws or screws.

    The phase (L) goes to the common terminal and the lamp wire to the output terminal. Pressing the rocker opens or closes the circuit.

    Result: a neat, firmly fixed switch, ready for the Sedna Design cover frame of your choice.

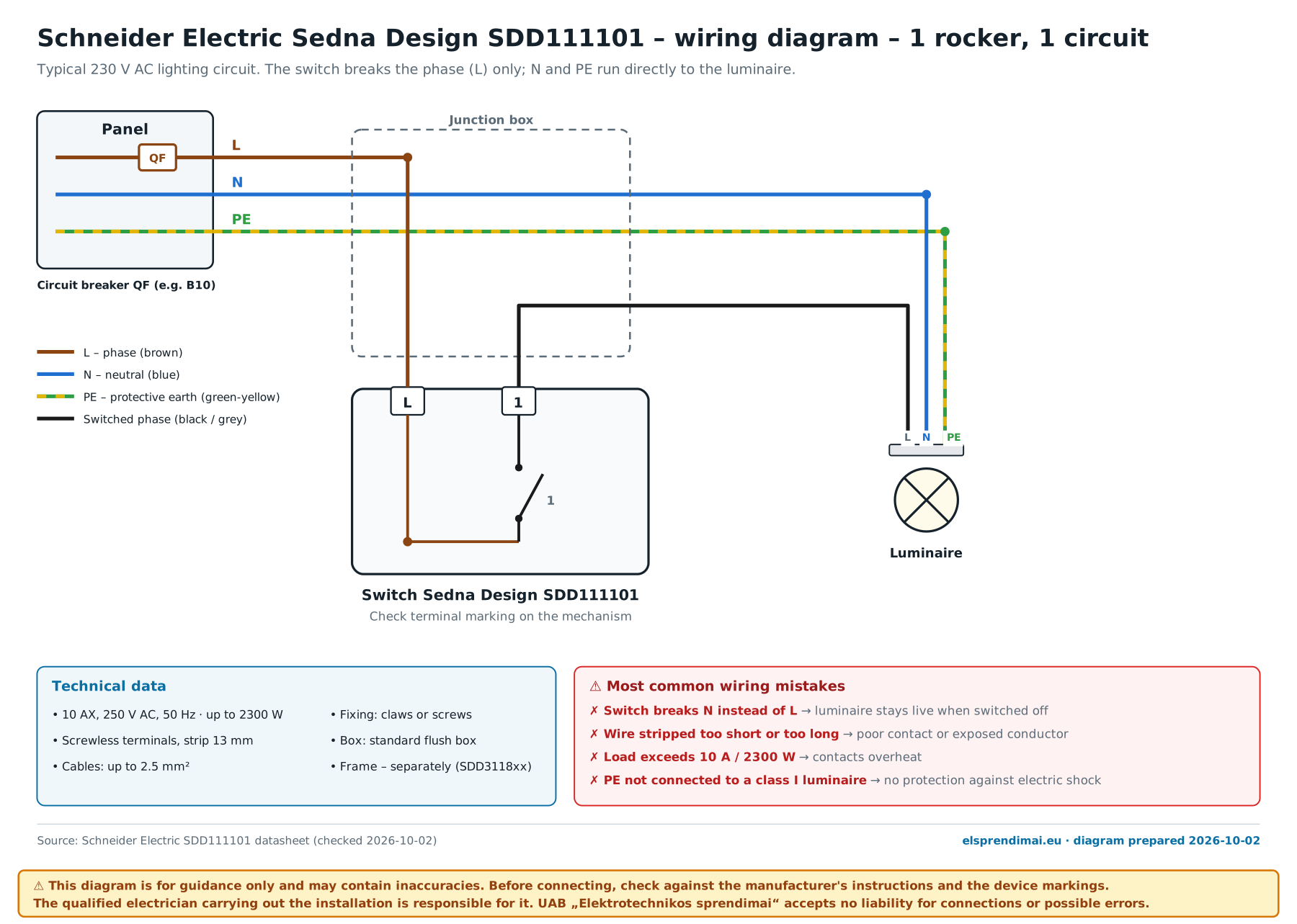

    Wiring diagram

    Schneider Electric Sedna Design SDD111101 wiring diagram

    ☝ Click the diagram to open an enlarged version.

    ⚠ This diagram is for guidance only and may contain inaccuracies.
    Before connecting, check against the manufacturer's instructions and the device markings. The qualified electrician carrying out the installation is responsible for it. UAB „Elektrotechnikos sprendimai“ accepts no liability for connections or possible errors.
    ☝ Elsprendimai.eu recommends: with SDD111101 choose the SDD311801 frame. If a socket (e.g. SDD111021) goes next to it, choose the 2-gang frame SDD311802.
    Why choose SDD111101?
    It is the basic, most frequently installed switch for rooms, corridors and storerooms. The AX marking means it is tested with inductive and capacitive loads (LED drivers, fluorescent lamps).

    Technical specifications

    Product type Flush-mounted switch – mechanism with rocker and fixing frame
    Manufacturer / range Schneider Electric, Sedna Design & Elements
    Code SDD111101
    Rockers / circuits 1 / 1
    Rated current and voltage 10 AX, 250 V AC, 50 Hz
    Max. power 2300 W
    Terminals Screwless, stripping length 13 mm
    Cable cross-section up to 2.5 mm²
    Fixing Claws or screws
    Dimensions (H×W×D) 73 × 73 × 37 mm, projecting depth 24 mm
    Colour / finish White RAL 9003, glossy
    Material Thermoplastic ABS, UV-stabilised
    Protection degree IP20
    Standard IEC 60669-1, CE
    Weight 61 g
    Frame Not included – Sedna Design frames SDD311801–SDD311804

    Main functions

    • Single-circuit control – switches one lighting line
    • 10 AX – suitable for LED and inductive loads up to 2300 W
    • Screwless terminals – wires are inserted without a screwdriver, the contact does not loosen
    • Claws or screws – fits both old and new flush boxes
    • Modular design – matches all Sedna Design frames

    Where is it used?

    • Living rooms and bedrooms
    • Corridors and hallways
    • Storerooms, basements, garages (dry rooms)
    • Offices
    • Hotel rooms
    • Apartment renovations with full replacement of wiring accessories

    Use by need

    For the installer.
    Screwless terminals and standard fixing cut installation time – especially on projects with dozens of points.
    For apartment renovation.
    One style for all switches, sockets and frames – easy to put the order together.
    For home buyers.
    A simple, clean white switch that suits most interiors.

    Practical use

    If you renovate an apartment and replace all switches, combine this model with a Sedna Design frame of the right size: SDD311801 for a single switch, SDD311802 for a switch with a socket.

    Pros

    • 10 AX rating – headroom for LED and inductive loads
    • Screwless terminals – fast and reliable connection
    • Fixing with claws or screws
    • IEC 60669-1 standard, CE marking
    • Same design in cream and anthracite (SDD112101 / SDD114101)

    Cons / limitations

    • Frame not included – sold separately (SDD3118xx)
    • IP20 – dry rooms only; for damp locations choose sealed models
    • Controls one circuit only – for two circuits choose SDD111105

    Safety and installation notes

    • Disconnect power and verify absence of voltage before installation
    • The switch must break the phase (L), not the neutral (N)
    • Strip wires 13 mm and insert them fully
    • Do not exceed 10 A and 2300 W
    • Installation must be carried out by a qualified electrician

    Quick selection guide

    10 AX / 250 V
    1 rocker
    IP20
    RAL 9003
    Suitable when you need:
    • to control one lighting circuit
    • a white switch from the Sedna Design range
    • fast installation with screwless terminals
    Check before use:
    • load does not exceed 10 A / 2300 W
    • the right frame size is selected
    • the room is dry (IP20)
    Important reminder: The switch does not protect the circuit against overload – that is the job of the circuit breaker in the panel.

    FAQ

    Is the frame included?
    No, the frame is sold separately – Sedna Design SDD311801–SDD311804 fit.
    What does 10 AX mean?
    10 A rated current, tested with inductive and capacitive loads such as LED drivers.
    Which cable sizes can be connected?
    The manufacturer specifies up to 2.5 mm²; strip length 13 mm.
    Is it suitable for bathrooms?
    Only outside the wet zones – protection degree is IP20.
    Are other colours available?
    Yes – cream and anthracite: SDD112101 / SDD114101.

    Switch | 1-gang | 10A | flush-mounted | IP20 | white | Sedna Design | Schneider Electric | SDD111101

    White flush-mounted 1-gang switch Schneider Electric Sedna Design SDD111101: 10 AX, 250 V, screwless terminals, IP20. Matches Sedna Design cover frames.

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
