  •   Switch | control push button with capacitor | ON/OFF | with rotary emergency stop button | 2-5A | 250-500V
      Switch | control push button with capacitor | ON/OFF | with rotary emergency stop button | 2-5A | 250-500V 1
      Switch | control push button with capacitor | ON/OFF | with rotary emergency stop button | 2-5A | 250-500V 2
      Switch | control push button with capacitor | ON/OFF | with rotary emergency stop button | 2-5A | 250-500V 3
      Switch | control push button with capacitor | ON/OFF | with rotary emergency stop button | 2-5A | 250-500V 4

    Switch | control push button with capacitor | ON/OFF | with rotary emergency stop button | 2-5A | 250-500V

    Code: ESYS102-16DKR
    Inquire about this item
    Price 21.20 € VAT incl.
    ( 17.52 € VAT excl. )
    Want another price? Suggest yours!

    Control push button with two ON functions – a reliable solution for controlling industrial equipment where a clear and safe switching mechanism is required. The integrated capacitor ensures more stable operation, reduces interference, and extends the component’s service life.

    It features high electrical load capacity, durability, and safety, making it suitable for both professional systems and individual projects.

  • Product description

    Technical Specifications

    Operating type: Push + rotate
    Integrated component: Capacitor
    Rated insulation voltage (Ui): 500V
    Thermal current (Ith): 10A
    Operational category: AC-15
    Load characteristics: 500V ~ 2A; 250V ~ 5A

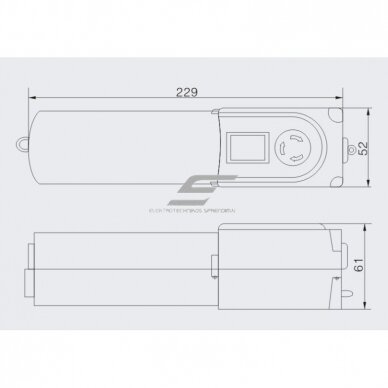

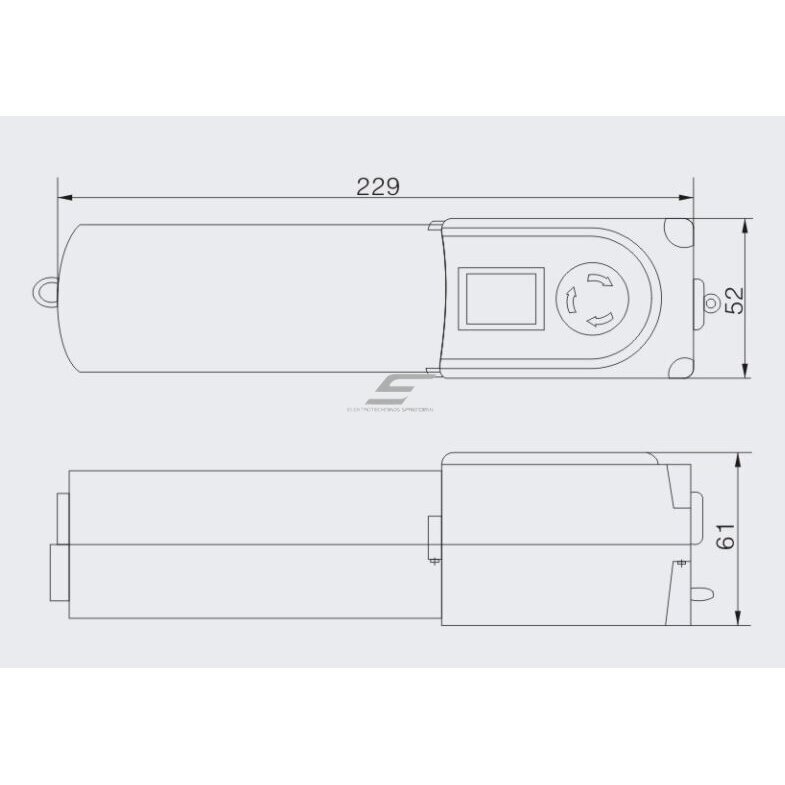

    Length: 229 mm
    Height: 61 mm
    Width: 52 mm
    Construction: Robust, designed for industrial use

    Functions

    Locking mechanism – prevents accidental activation
    Rotary control – clear and intuitive operation
    Integrated capacitor – reduces electrical interference
    Dual ON function – more flexible control scenarios
    Stable operation across various voltages
    Reliable performance in AC-15 circuits

    Applications

    For home users:
    Control of workshop equipment
    Electrical circuits for DIY projects
    Switching simple automation systems on/off

    For engineers:
    Control panel design
    Automation system control
    Industrial process control solutions

    For electricians:
    Installation of electrical panels and control systems
    Start/stop circuits for equipment
    Modernization and upgrade projects

    In industry:
    Control of production equipment
    Control points in automated lines
    Integration of safety functions

    Advantages

    Locking function – increased safety
    Integrated capacitor – more stable operation
    High voltage and current rating (up to 500V / 10A)
    Reliable in AC-15 applications
    Universal use in industrial environments
    Long service life

    Disadvantages

    May be too complex for simple systems
    Requires proper installation (professional use recommended)

    Frequently Asked Questions (FAQ)

    1. What is the maximum voltage of this push button?
    Answer: The rated insulation voltage is up to 500V.

    2. Does this button have protection against accidental activation?
    Answer: Yes, it features a push-lock mechanism that prevents unintended operation.

    3. What is the purpose of the integrated capacitor?
    Answer: The capacitor reduces electrical interference, stabilizes the signal, and improves reliability.

    4. Where is this type of switch most commonly used?
    Answer: It is most commonly used in industrial equipment, control panels, and automation systems.

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
