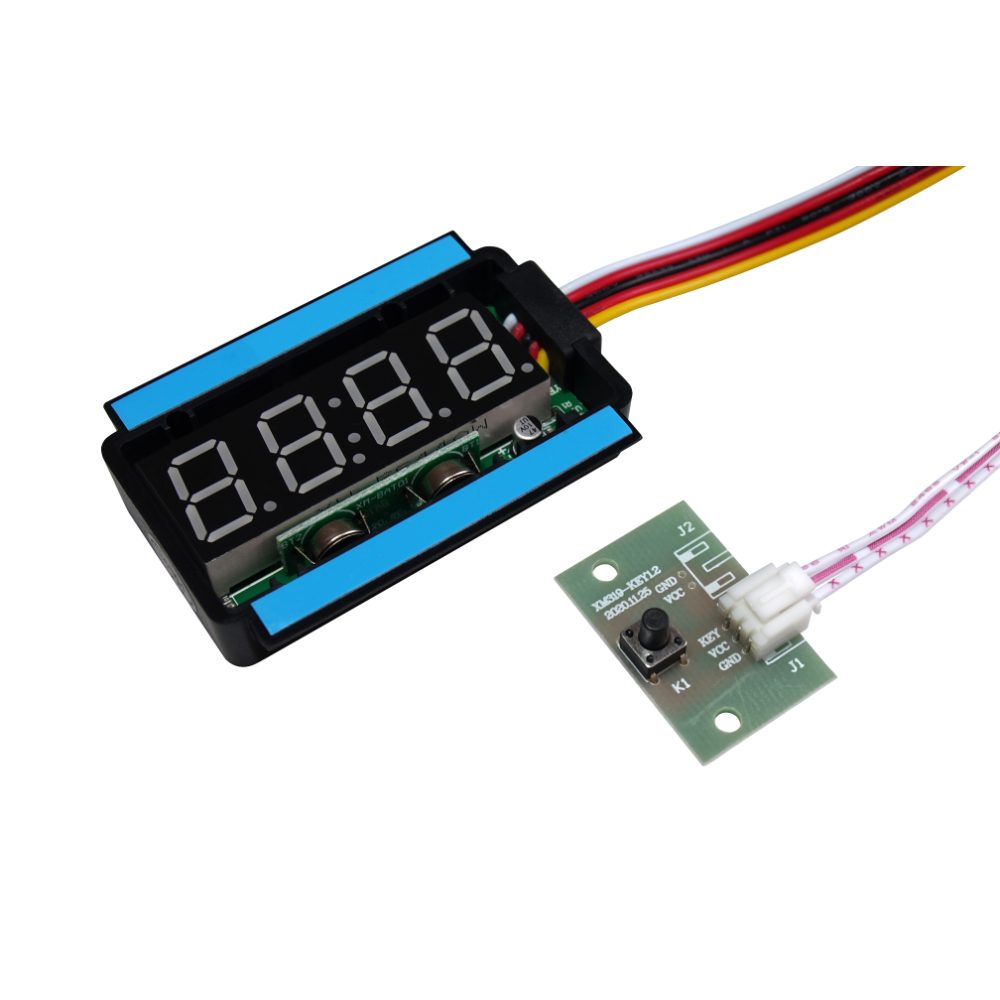

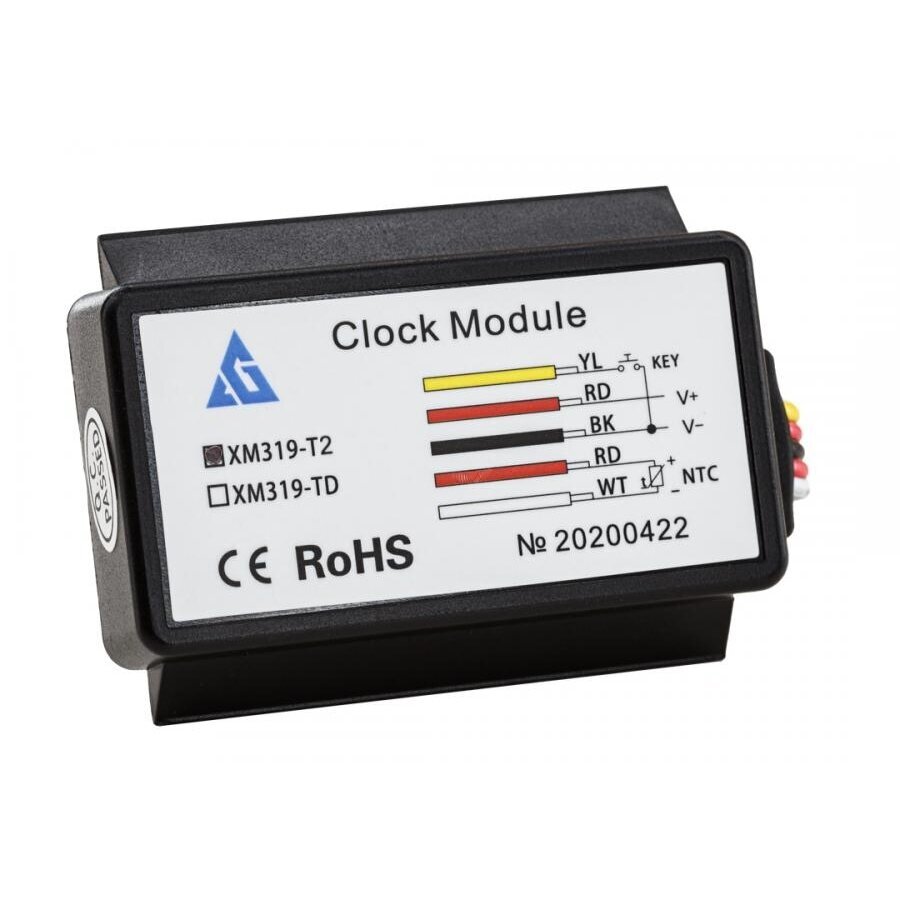

Time and temperature display for mirror with switch | 12/24VDC | 5A | IP54

Technical Specifications:
Power supply: 12V DC / 24V DC
Operating current: up to 5A
Standby current: ≤10 mA
Rated power: ~50 mA
Protection class: IP54
Operating temperature: -25°C to +60°C
Operating humidity: 10–90% RH
Clock: integrated digital clock
Temperature sensor: built-in, real-time display
Switch: adjustment/toggle switch
Cable length: 150 mm

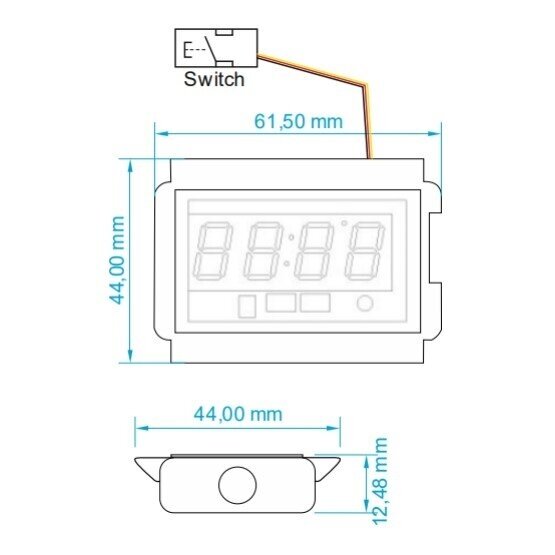

Dimensions: 61.5 x 44 x 12.5 mm
Mounting: With 3M sticker – for initial positioning only. Additional adhesive (e.g., silicone 703/704, mirror glue) is required.
Standards compliance: EN55032, EN55035, EN61000-3-2, EN61000-3-3

Functions:

Displays time and temperature in one module

Suitable for mounting behind mirror glass – remains visually discreet

Adjustment switch allows parameter customization

Moisture and temperature resistant – ideal for bathrooms

Low power consumption – cost-effective for long-term use

Compact design – easy to integrate into various design solutions

Applications:

LED mirror production

Bathroom or interior mirrors

Decorative glass installations

Smart home mirror projects

Mirrors in hotels, spas, or beauty salons

Pros:

Dual voltage – compatible with both 12V and 24V systems

Aesthetic behind-mirror installation – invisible integration

Moisture-resistant – suitable for bathroom environments

Low energy consumption

Compact dimensions fit a wide range of projects

Accurate temperature reading and clock in one

Cons:

3M adhesive suitable for initial placement only – additional bonding required

Only clock and temperature – lacks smart features (e.g., WiFi or Bluetooth)

No separate screen lighting or color indication
