Touch LED dimmer controller behind the mirror | ON/OFF, brighter, dimmer | memory | 12/24 V DC | 4 A | 48/96 W | TD012B
Code: TD012BPrice 11.47 € VAT incl.( 9.48 € VAT excl. )The touch LED dimmer controller TD012B is mounted behind the mirror: switches the light on and off and adjusts brightness. 12/24 V DC, 48 W (12 V) / 96 W (24 V), controlled by touch through the mirror glass.
-
Touch LED dimmer controller behind the mirror | ON/OFF, brighter, dimmer | memory | 12/24 V DC | 4 A | 48/96 W | TD012B

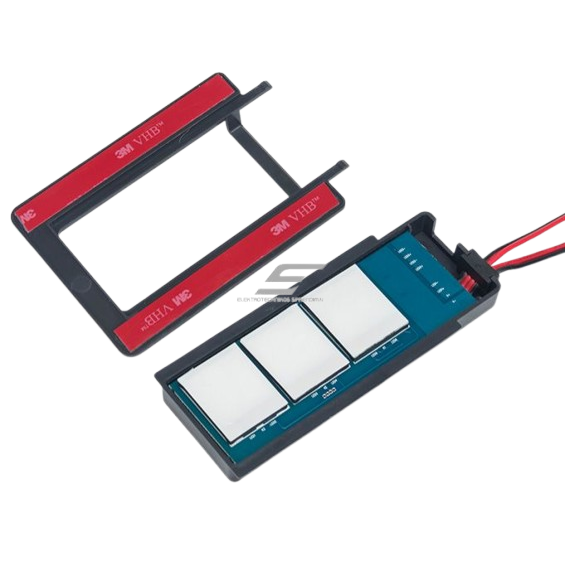

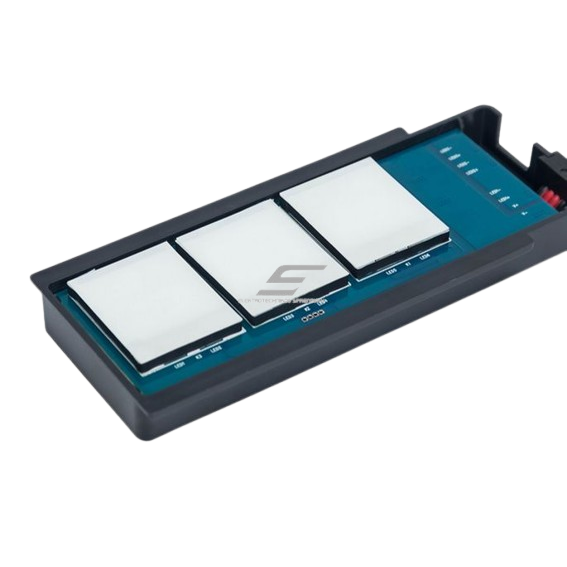

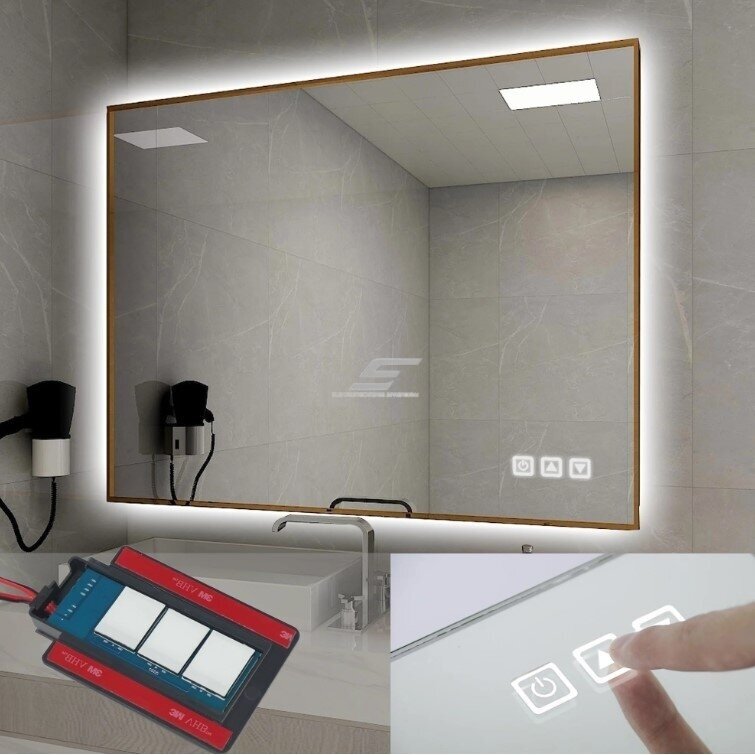

The touch LED dimmer controller TD012B is mounted behind a mirror or furniture surface and connected between the LED power supply and the LED strip. It switches the light on and off and adjusts brightness and is controlled by touch through the mirror glass. Designed for 12 V and 24 V DC systems, load – 4 A · 48 W (12 V) / 96 W (24 V).
Key point:
Three separate touch buttons – on, brighter, dimmer – make brightness easy to set precisely. The controller remembers the last brightness level even after the power is switched off.Voltage
12/24 V DCLoad
48 W (12 V) / 96 W (24 V)Control
3 touch buttonsSensing
by touch through the mirror glassOperating principle

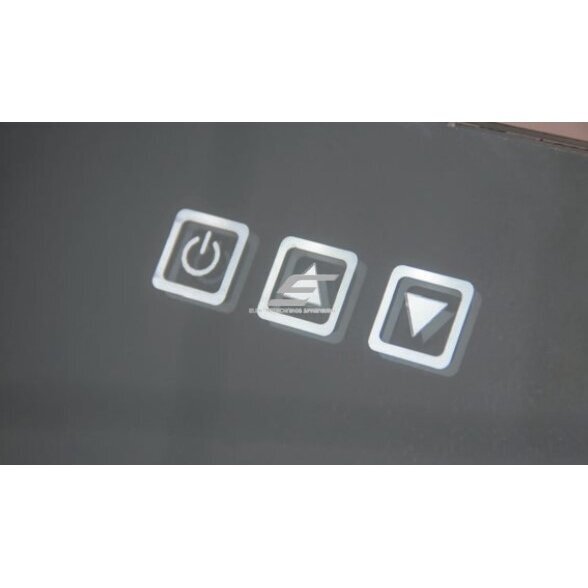

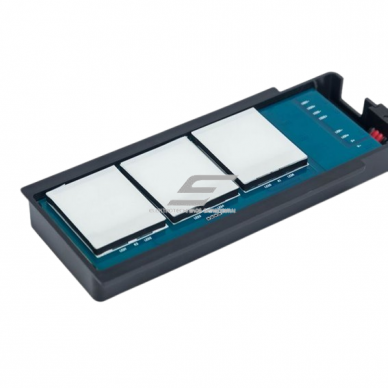

The controller has three touch zones: a short touch on the power button switches the light on or off, a long touch on the up arrow increases and on the down arrow decreases brightness. Button backlight shows the state.

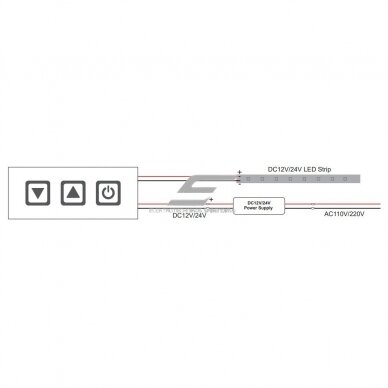

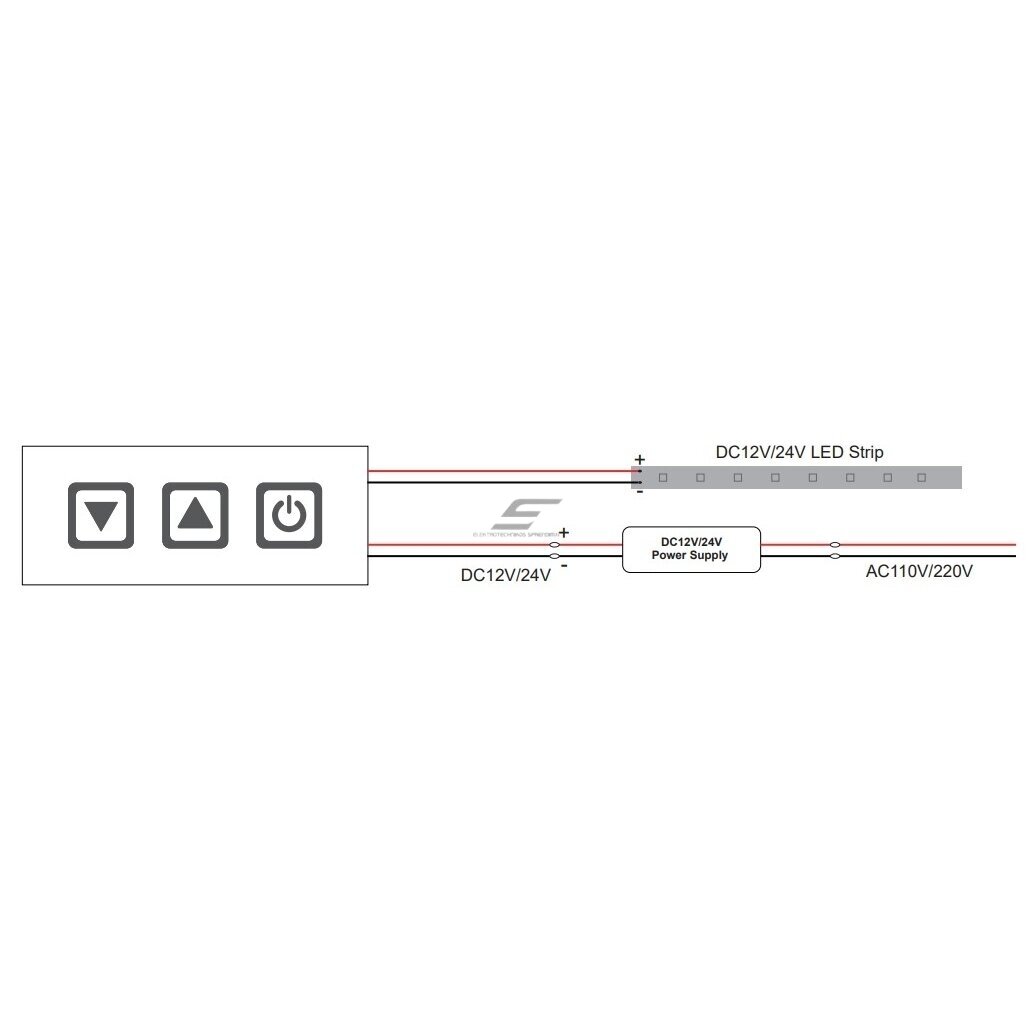

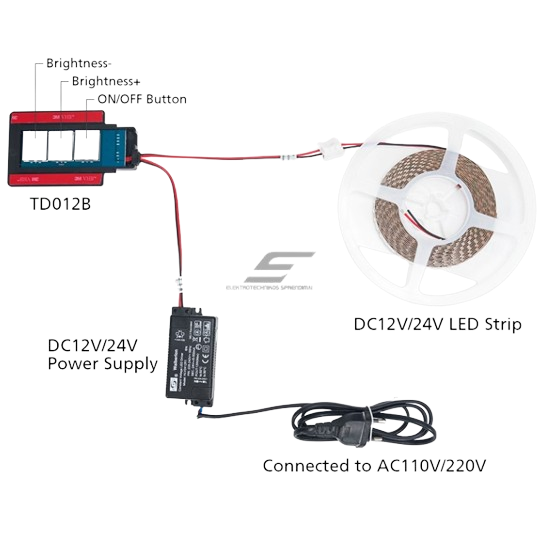

The input (IN) is connected to the 12/24 V DC LED power supply, the output (OUT) to the LED strip. 230 V is never connected to the switch – it always works on the low-voltage side.
Why choose the TD012B?
Precise brightness control with separate buttons and brightness memory.Technical specifications

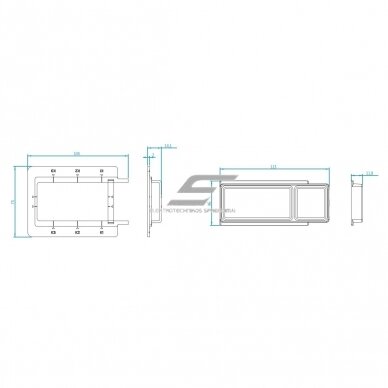

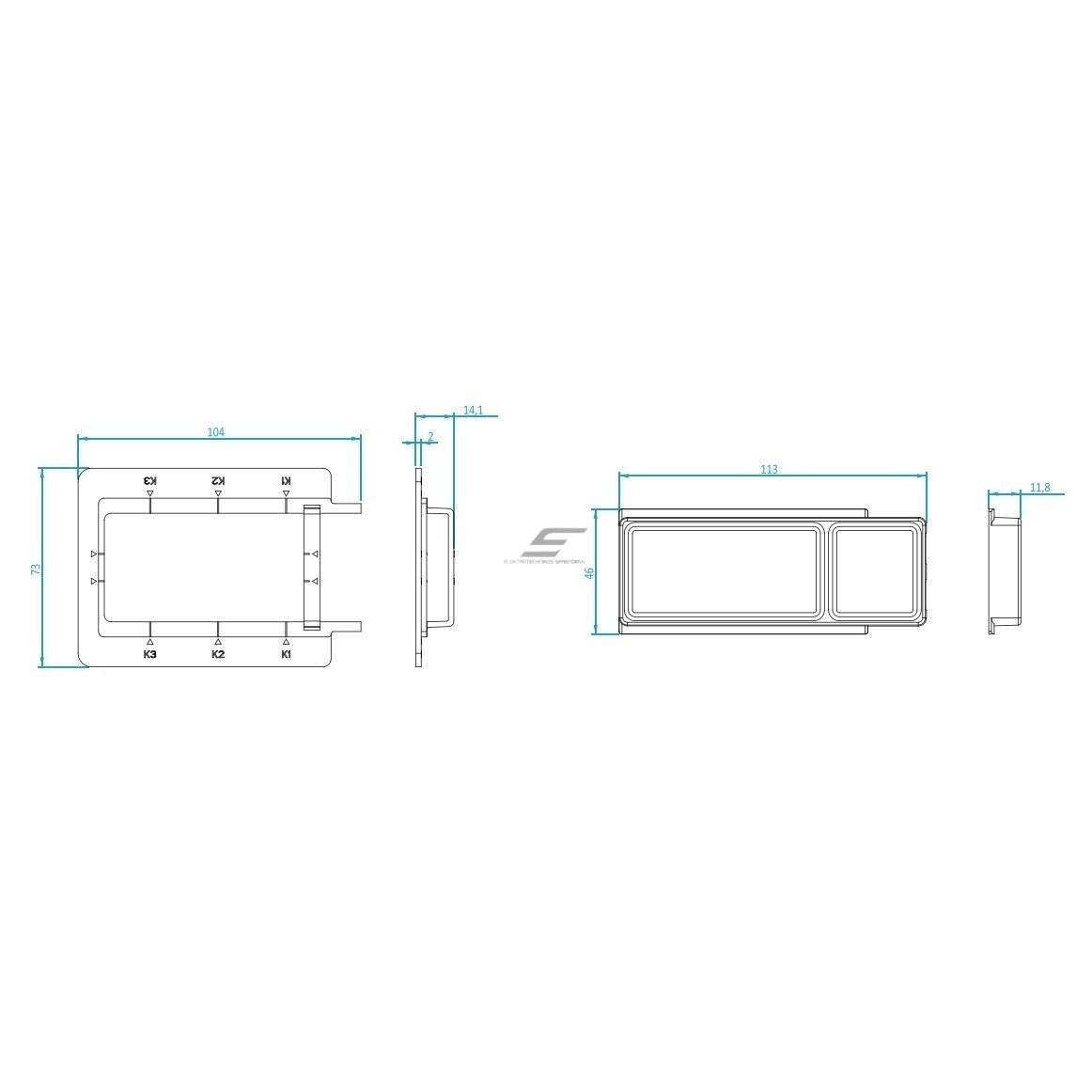

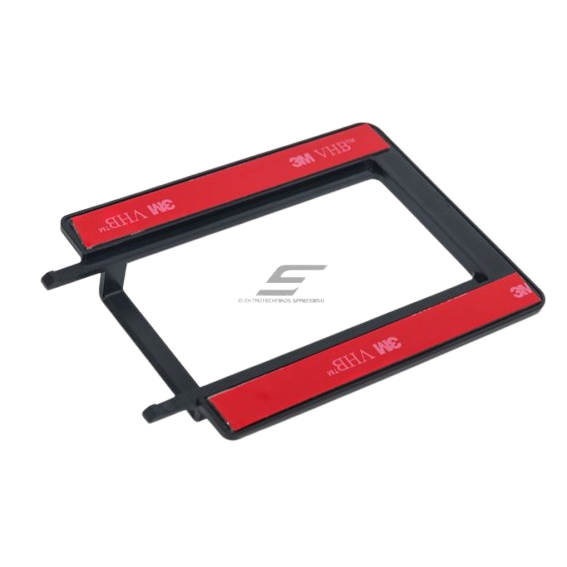

Product type Touch LED dimmer controller for LED lighting, mounted behind the mirror Product code TD012B Supply voltage 12/24 V DC Maximum current 4 A Maximum load 48 W (12 V) / 96 W (24 V) Control 3 touch buttons Dimming yes CCT (colour temperature) no Memory remembers the last state Backlight blue when off, white when on Dimensions 113 × 46 × 11.8 mm; holder 104 × 73 × 14.1 mm Lead length 20 cm Key functions
- Hidden installation – the switch is invisible, no button needed in the mirror.
- Dimming – brightness is adjusted smoothly.
- Memory – saves the last state.
- Backlight – easy to find the control point in the dark.
- Low voltage – 12/24 V DC – for 12 V and 24 V DC systems.
Where is it used?
- LED bathroom mirrors
- Mirror bathroom cabinets
- Hotel and apartment bathrooms
- Cosmetic and make-up mirrors
Use by need
For mirror manufacturers.
The same hidden control for the whole series, no holes in the glass.For installers.
Simple wiring between the power supply and the strip, compact housing.For home renovation.
An existing LED mirror can be upgraded with modern control.Practical example
A mirror with 4 m of 12 V LED strip at 9.6 W/m (38.4 W, about 3.2 A). At 12 V the TD012B works at about 80 % of its 48 W limit. The same power in a 24 V system is only 1.6 A. Power supply – at least 50 W (load + 20 %).What else does the mirror kit need?
Most often used together with:
LED strip
LED strips – of the same voltage.Advantages
- Hidden installation
- No mechanical parts to wear out
- Suitable for 12 V and 24 V systems
- Dimming
- State memory
Disadvantages / limitations
- Does not change colour temperature (CCT)
- DC only – never connect to 230 V
Safety and installation notes
- Connect only with the power off; the 230 V part is connected by a qualified electrician.
- The voltage of the switch, LED strip and power supply must match.
- Do not exceed the 48 W (12 V) / 96 W (24 V) load – leave ~20 % reserve.
- Bathroom circuit – with a 30 mA RCD (HD 60364-7-701).
Quick selection guide
12/24 V DC48 W (12 V) / 96 W (24 V)3 touch buttonsDimmerSuitable when you need to:- control LED mirror lighting by touch through the mirror glass;
- adjust light brightness;
Check before use:- system voltage: the model is designed for 12 V and 24 V DC systems;
- total LED strip power (limit 48 W (12 V) / 96 W (24 V));
Important reminder: The switch is connected only on the low-voltage (DC) side, between the power supply and the LED strip.Frequently asked questions
Will it work through my mirror?
The touch sensor works through glass without a window. This model senses by touch through the mirror glass; test thicker or double glass before mounting.How many metres of LED strip can be connected?
At 12 V – about 4 m of 9.6 W/m strip with reserve (38.4 W). At 24 V – about twice as much.Can the light tint be changed?
This model does not control CCT. For warm–cool light choose a CCT model, e.g. ELSP-XM319-IR1, or a CCT controller.Touch LED dimmer controller behind the mirror | ON/OFF, brighter, dimmer | memory | 12/24 V DC | 4 A | 48/96 W | TD012B
