  • Touch switch behind the mirror | ON/OFF | through non-metal surface up to 30 mm | 12/24 V DC | 5 A | ELSP-MZ00DG

    Code: ELSP-MZ00DG

    The touch switch ELSP-MZ00DG is mounted behind the mirror: switches the light on and off. 12/24 V DC, 60 W (12 V) / 120 W (24 V), controlled through a surface up to 30 mm thick.

  • Touch switch behind the mirror | ON/OFF | through non-metal surface up to 30 mm | 12/24 V DC | 5 A | ELSP-MZ00DG

    The touch switch ELSP-MZ00DG is mounted behind a mirror or furniture surface and connected between the LED power supply and the LED strip. It switches the light on and off and is controlled through a surface up to 30 mm thick. Designed for 12 V and 24 V DC systems, load – 5 A · 60 W (12 V) / 120 W (24 V).

    Key point:
    The simplest way to give an LED mirror or piece of furniture invisible control: touch the surface and the light turns on, touch again and it turns off. No holes in the glass, no mechanical buttons.
    Voltage
    12/24 V DC
    Load
    60 W (12 V) / 120 W (24 V)
    Control
    touch
    Sensing
    through a surface up to 30 mm thick

    Operating principle

    A capacitive sensor detects the finger through a non-conductive material. The sensor is glued to the back of the mirror or furniture, and touching that spot alternately switches the LED lighting on and off.

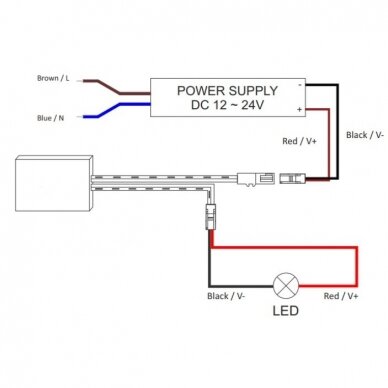

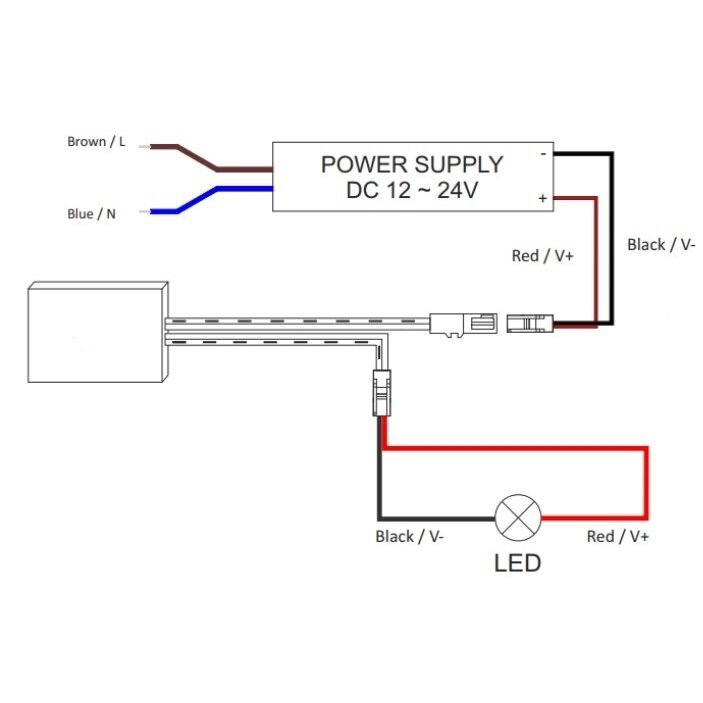

    The input (IN) is connected to the 12/24 V DC LED power supply, the output (OUT) to the LED strip. 230 V is never connected to the switch – it always works on the low-voltage side.

    Why choose the ELSP-MZ00DG?
    Invisible ON/OFF control with no holes or mechanical parts – suitable for mirrors and furniture.

    Technical specifications

    Product type Touch switch for LED lighting, mounted behind the mirror
    Product code ELSP-MZ00DG
    Supply voltage 12/24 V DC
    Maximum current 5 A
    Maximum load 60 W (12 V) / 120 W (24 V)
    Control touch
    Sensing distance (glass thickness) up to 30 mm
    Dimming no
    CCT (colour temperature) no
    Standby current ≤ 50 mA
    EMC compliance EN 55015, EN 61547

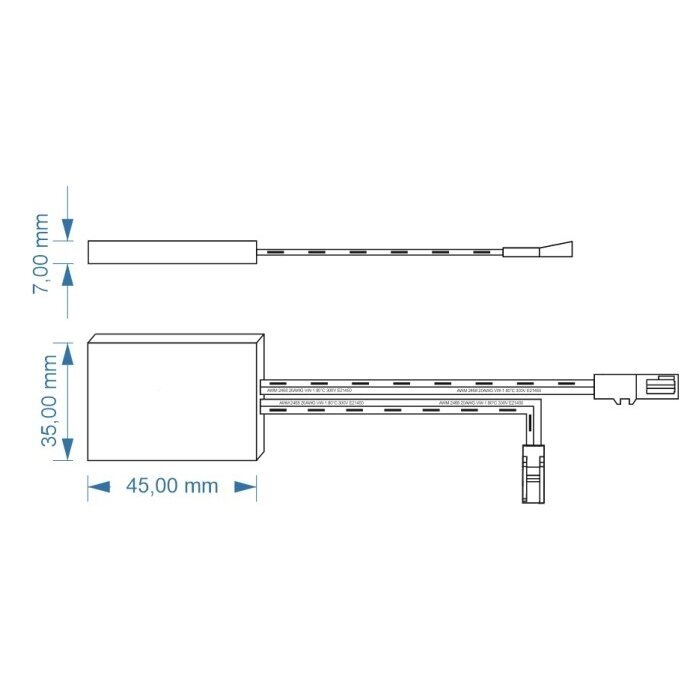

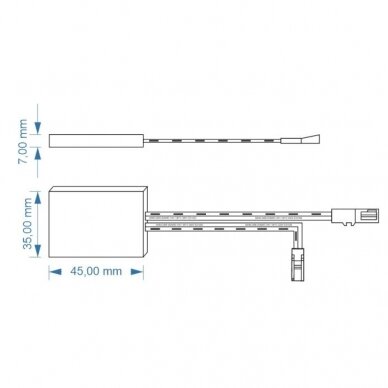

    Dimensions 45 × 35 × 7 mm

    Key functions

    • Hidden installation – the switch is invisible, no button needed in the mirror.
    • Low voltage – 12/24 V DC – for 12 V and 24 V DC systems.

    Where is it used?

    • LED bathroom mirrors
    • Mirror bathroom cabinets
    • Hotel and apartment bathrooms
    • Furniture, kitchen cabinet and niche lighting

    Use by need

    For mirror manufacturers.
    The same hidden control for the whole series, no holes in the glass.
    For installers.
    Simple wiring between the power supply and the strip, compact housing.
    For home renovation.
    An existing LED mirror can be upgraded with modern control.

    Practical example

    A mirror with 5 m of 12 V LED strip at 9.6 W/m (48 W, about 4 A). At 12 V the ELSP-MZ00DG works at about 80 % of its 60 W limit. The same power in a 24 V system is only 2 A. Power supply – at least 60 W (load + 20 %).

    What else does the mirror kit need?

    Most often used together with:

    LED power supply
    12 V or 24 V – with ~20 % power reserve.
    LED strip
    LED strips – of the same voltage.
    Warm–cool light
    CCT controller or a CCT model, e.g. ELSP-XM319-IR1.

    Advantages

    • Hidden installation
    • No mechanical parts to wear out
    • Suitable for 12 V and 24 V systems

    Disadvantages / limitations

    • No dimming – ON/OFF only
    • Does not change colour temperature (CCT)
    • Does not work through metal; sensitivity depends on surface thickness
    • DC only – never connect to 230 V

    Safety and installation notes

    • Connect only with the power off; the 230 V part is connected by a qualified electrician.
    • The voltage of the switch, LED strip and power supply must match.
    • Do not exceed the 60 W (12 V) / 120 W (24 V) load – leave ~20 % reserve.
    • Bathroom circuit – with a 30 mA RCD (HD 60364-7-701).

    Quick selection guide

    12/24 V DC
    60 W (12 V) / 120 W (24 V)
    touch
    ON/OFF
    Suitable when you need to:
    • control LED mirror lighting through a surface up to 30 mm thick;
    Check before use:
    • system voltage: the model is designed for 12 V and 24 V DC systems;
    • total LED strip power (limit 60 W (12 V) / 120 W (24 V));
    • surface thickness and material (not metal);
    Important reminder: The switch is connected only on the low-voltage (DC) side, between the power supply and the LED strip.

    Frequently asked questions

    Will it work through my mirror?
    The touch sensor works through glass without a window. This model senses through a surface up to 30 mm thick; test thicker or double glass before mounting.
    How many metres of LED strip can be connected?
    At 12 V – about 5 m of 9.6 W/m strip with reserve (48 W). At 24 V – about twice as much.
    Can the light tint be changed?
    This model does not control CCT. For warm–cool light choose a CCT model, e.g. ELSP-XM319-IR1, or a CCT controller.

    Touch switch behind the mirror | ON/OFF | through non-metal surface up to 30 mm | 12/24 V DC | 5 A | ELSP-MZ00DG

    ELSP-MZ00DG – touch switch for LED mirrors and furniture: switches the light on and off, 12/24 V DC, 60 W (12 V) / 120 W (24 V). Mounted behind the mirror, connected between the power supply and the LED strip.

    Published: 2026-11-12 · Data verified against the supplier specification: 2026-11-12

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
