Universal Infrared (IR) Remote Control | IR1 IMOU

General Features:
Infrared Frequency: 38 kHz
Infrared Direction: Multi-directional IR signal
Operating Range: ≤ 8 m
Standby Power Consumption: ≤ 0.4 W
Operating Voltage: DC 5V, 1A (Micro USB)
Operating Temperature: -10°C ~ +50°C
Operating Humidity: ≤ 85% RH

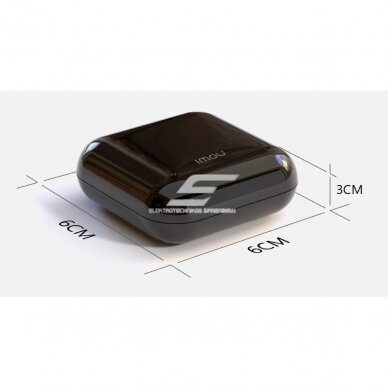

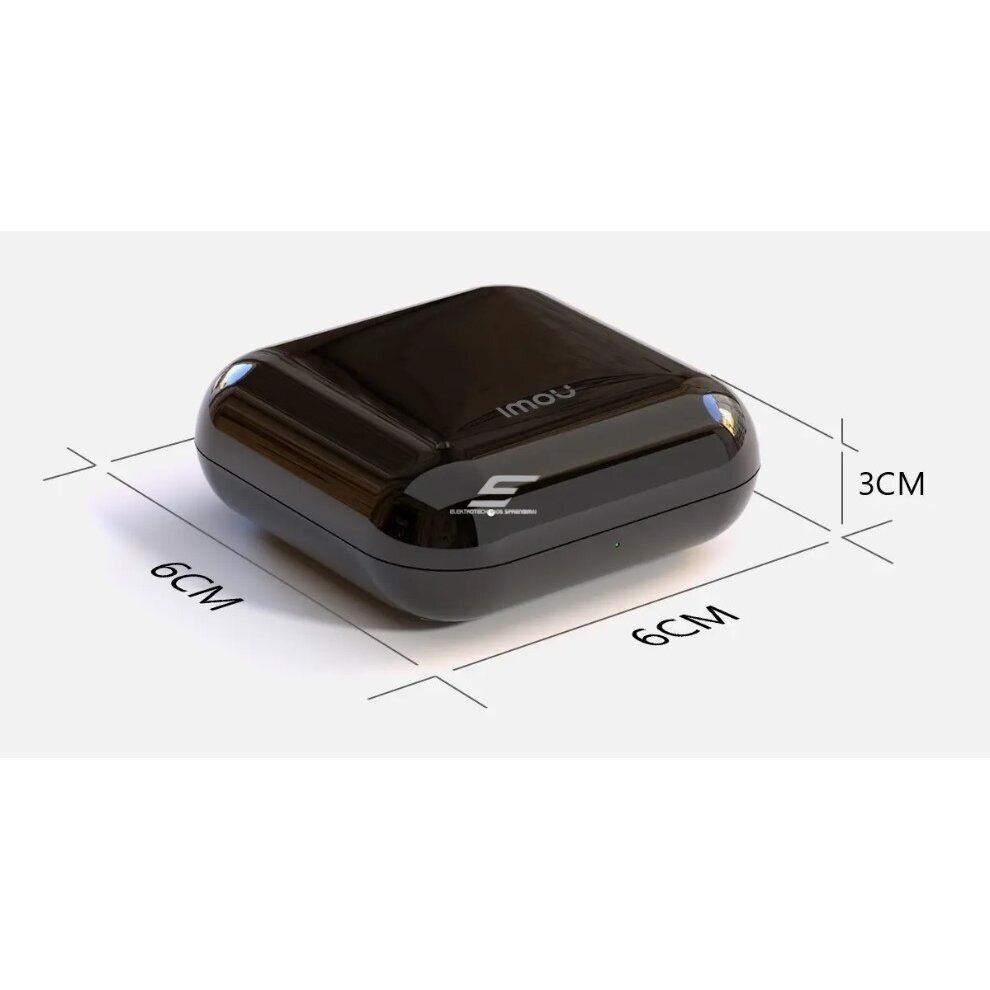

Dimensions: 67.7 mm × 67.7 mm × 34 mm
Network Connectivity:
Wireless Protocol: Wi-Fi 802.11 b/g/n, BLE 5.0
Transmission Frequency: 2.4 GHz
Features & Functions:

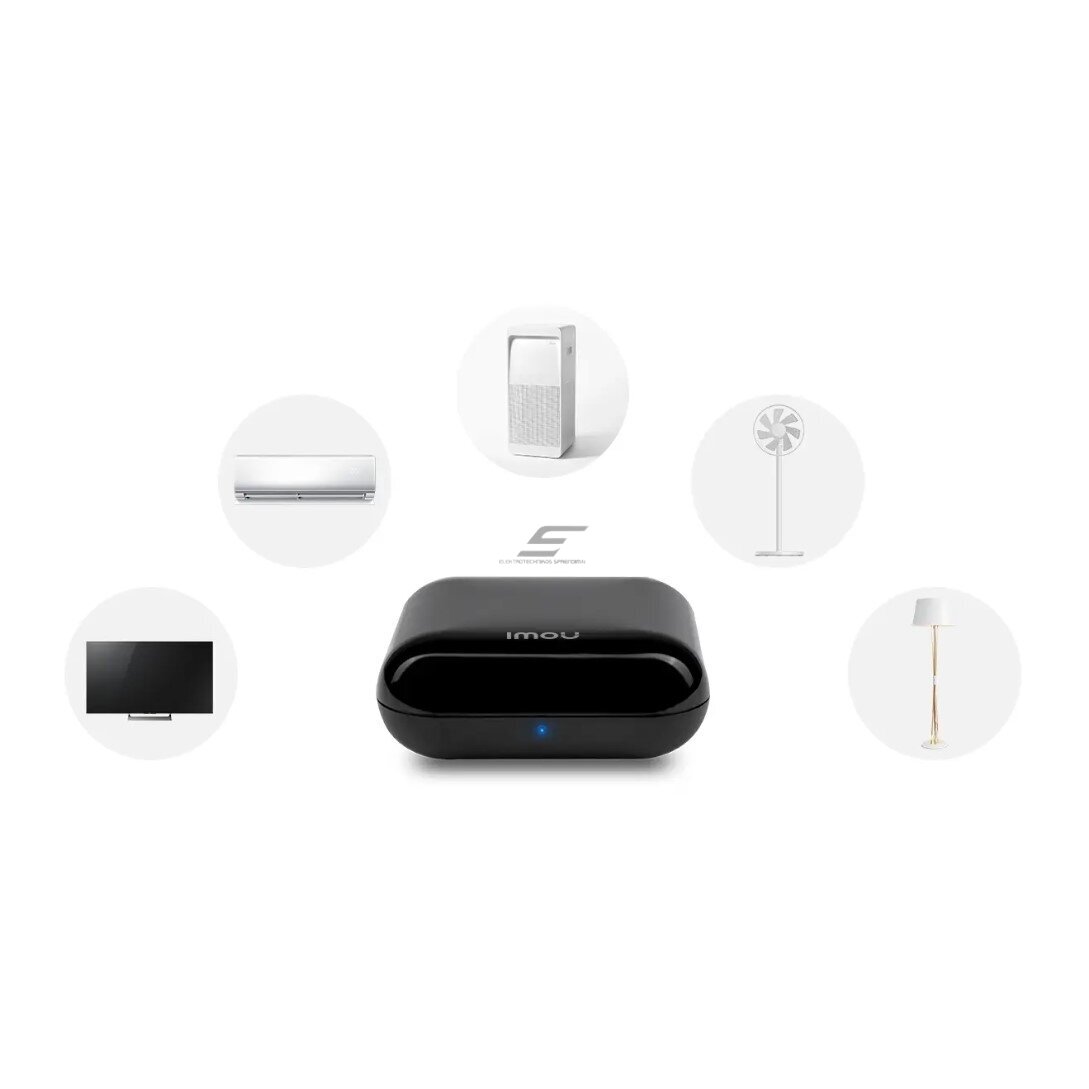

Universal Device Control: Supports over 50,000 IR-controlled devices, including TVs, audio systems, fans, air conditioners, DVD players, video recorders, and more.
Voice Assistant Compatibility: Seamless integration with Google Assistant and Amazon Alexa for hands-free voice control.
Remote Control from Anywhere: Use the "IMOU Life" app to manage home devices from any location, even when away from home.
Automation Setup: Create smart scenarios, such as automatically turning off the TV or switching on the air conditioner at a specific time.
Signal Learning: If a device is not included in the standard code database, the controller can learn and store its IR signals, increasing compatibility.

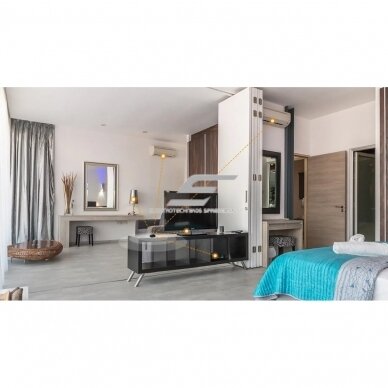

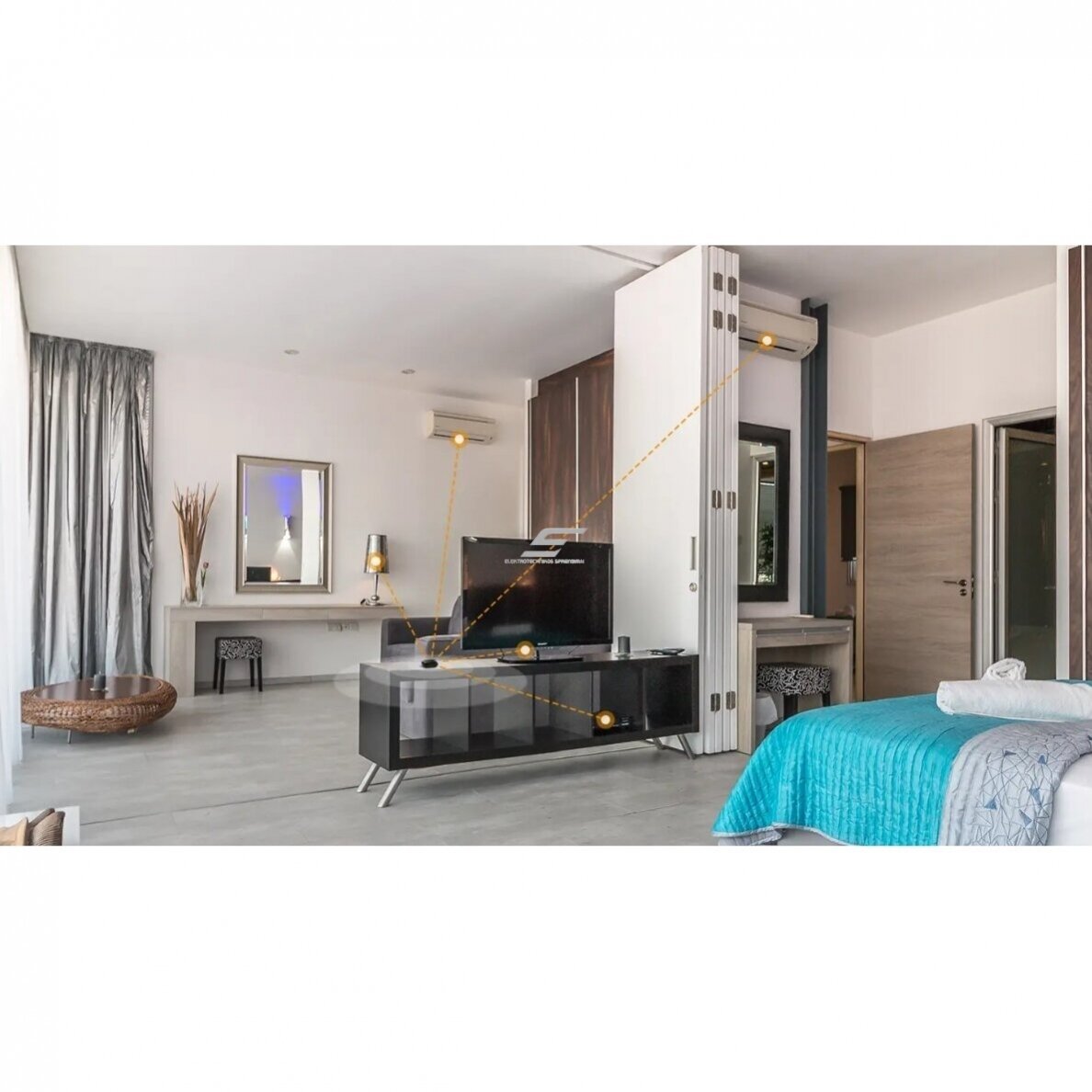

Multi-Directional IR Signal: Strong and wide infrared signal ensures effective device control, even when placed in different corners of the room.
Low Power Consumption: Consumes less than 0.4 W in standby mode, making it energy-efficient.
Usage:
IMOU IR1 is ideal for those who want to simplify home control:

Homeowners who want to manage TVs, air conditioners, and audio systems from one app.
Renters who cannot modify the home's electrical wiring but want a smart home control system.
Elderly users who prefer voice-controlled devices for convenience.
Offices where centralized control of multiple devices is needed.
Pros:
Supports a wide range of IR devices – over 50,000 models.
Integrates with Google Assistant and Alexa – hands-free voice control.
Remote control via an app from anywhere.
Quick and easy setup via Wi-Fi.
Learning function allows control of non-standard devices.
Wide IR signal coverage – effective across different room angles.
Low power consumption.

Cons:
Not compatible with Bluetooth or RF (radio frequency) devices – works only with IR-controlled devices.
Supports only 2.4 GHz Wi-Fi – does not work with 5 GHz networks.
Maximum range is 8 meters – signal strength may weaken if the device is too far.
Requires constant USB power – no battery operation.

IMOU IR1 is a universal, convenient, and easy-to-use infrared remote controller that allows centralized control of all IR-compatible devices in your home or office. With Wi-Fi connectivity, voice command support, and smart app functions, this device is an excellent solution for those seeking a smarter and more comfortable living experience.
