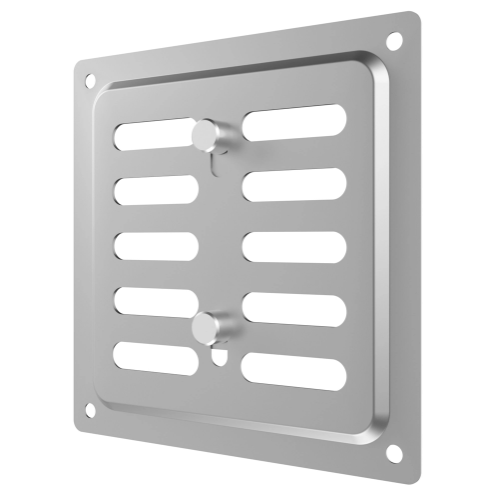

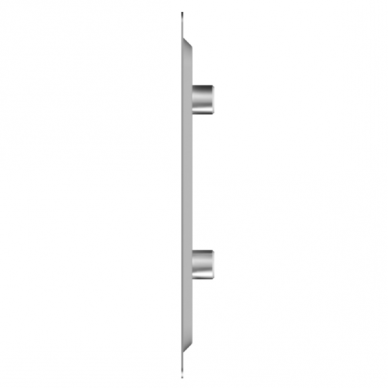

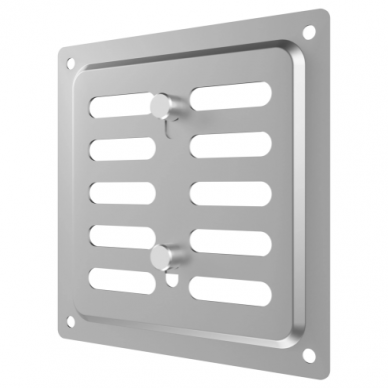

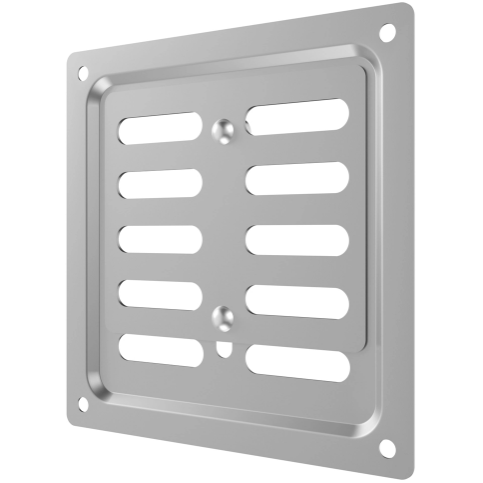

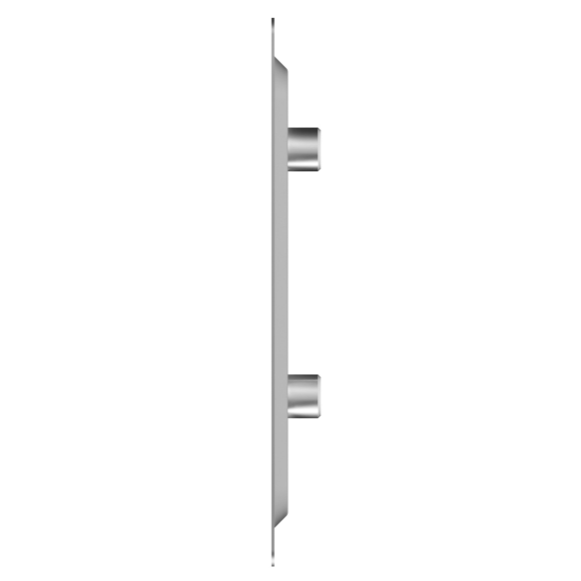

  • Ventilation grille | for ventilation systems | 100×100 mm | silver color | galvanized steel

    Code: 021231

    Ventilation grilles designed for various spaces where an efficient air extraction system is required. Made of galvanized steel, these grilles stand out with corrosion resistance, durable construction, and a minimalist finish. Thanks to universal installation on walls or floors, they are suitable for both residential and commercial environments.

    Ideal for use in bathrooms, utility rooms, storage areas, kitchens, garages, or any place where continuous air extraction is needed.

  • Technical Specifications

    Material: Galvanized steel
    Color: Silver
    Installation: Wall or floor
    Mounting method: Screws
    Airflow adjustment: Yes
    Ventilation type: Extraction
    Construction: Non-removable
    Dimensions: 100 x 100 x 3 mm
    Mounting height: 88 mm
    Mounting width: 88 mm
    Mounting opening: 88 x 88 mm
    Frame thickness: 3 mm
    Net weight: 0.05 kg
    Gross weight: 0.052 kg
    Warranty: 2 years

    Functions

    • Adjustable airflow – allows manual control of extraction intensity.
    • Corrosion resistance – galvanized steel ensures durability even in wet environments.
    • Compact size – suitable for small and medium ventilation openings.
    • Universal installation – suitable for both wall and floor mounting.
    • Aesthetic finish – silver surface fits modern interiors.

    Usage

    For home users: Suitable for bathrooms, kitchens, laundry rooms; improves air circulation, reduces humidity buildup; easy to install and maintain.
    For engineers/designers: Stable characteristics make integration into ventilation projects easy; precise dimensions simplify planning; suitable for new constructions and renovations.
    For electricians/ventilation installers: Easy to integrate into standard duct openings; robust non-removable construction ensures fast installation; quality material prevents deformation during mounting.

    Advantages

    ✔ Durable galvanized steel construction
    ✔ Adjustable airflow
    ✔ Corrosion-resistant and long-lasting
    ✔ Universal installation (wall & floor)
    ✔ Compatible with most ventilation systems
    ✔ Easy maintenance

    Disadvantages

    ✖ Non-removable construction – internal elements cannot be fully removed for cleaning
    ✖ Designed only for extraction systems (not for air supply)

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
