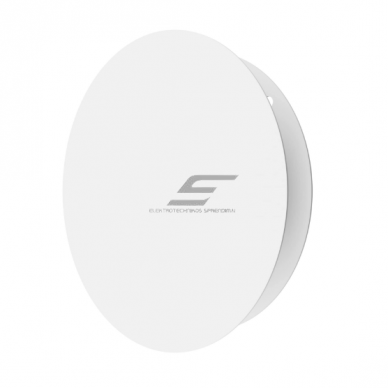

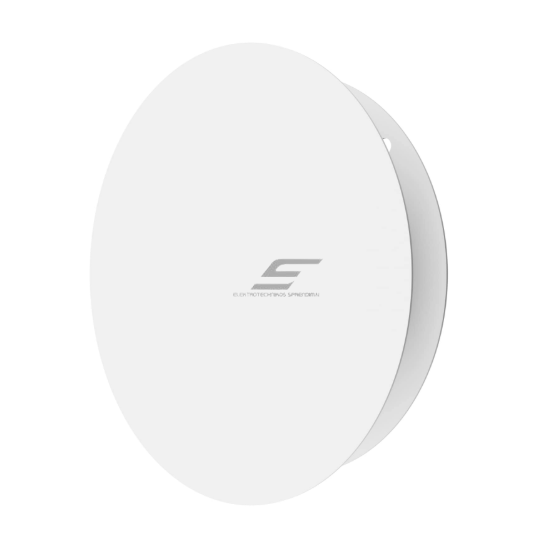

Ventilation grille | for ventilation systems | with mesh | round | 200x200 | removable | white color | painted steel

Technical Specifications

Installation: Wall / floor
Material: Painted steel
Color: White
Dimensions: 200 x 200 x 26 mm
Mounting opening height: 123 mm
Mounting opening width: 123 mm
Construction: Detachable (magnetic mechanism)
Fixing method: Screws or adhesive
Ventilation type: Supply and exhaust
Insect mesh: Yes
Gross weight: 0.36 kg
Net weight: 0.3 kg

Functions

• Dual-purpose: suitable for both air supply and air extraction.

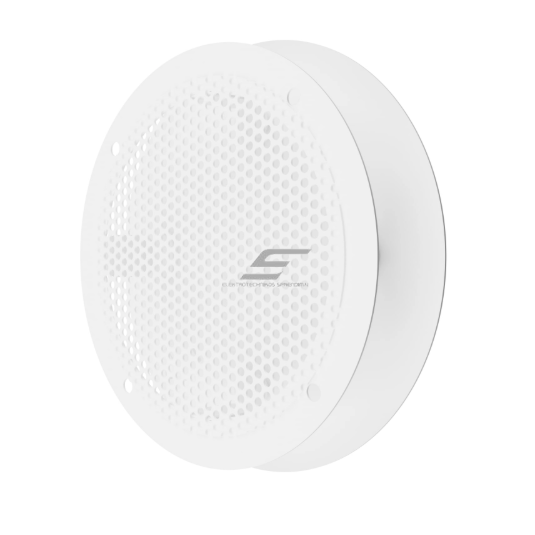

• Integrated insect mesh prevents insects and dust from entering indoor spaces.

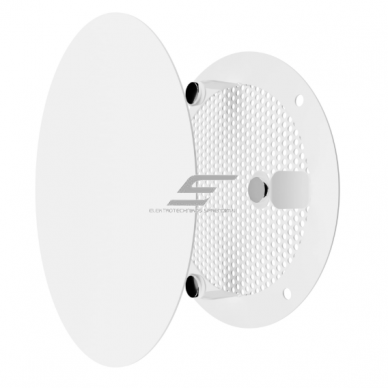

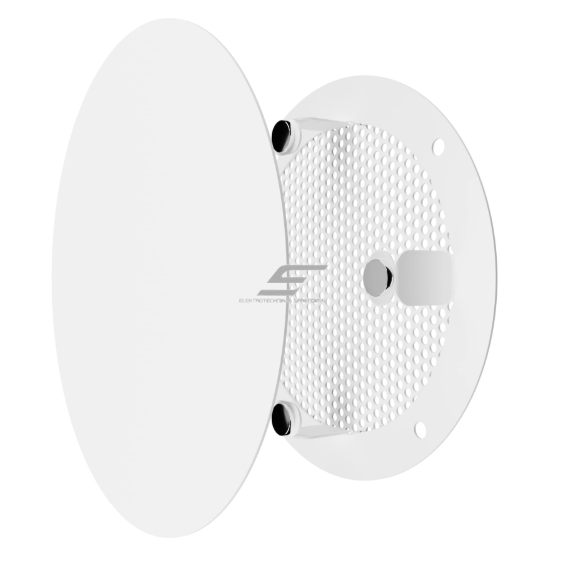

• Magnetic cover allows easy removal for cleaning or inspection.
• Durable steel construction ensures resistance to deformation, impact, and long-term use.
• Versatile installation options: can be mounted with screws or adhesive, suitable for various wall and floor structures.

Applications

• For home users: Ideal for houses, apartments, cottages; protects against insects during summer and improves air circulation. The magnetic cover enables tool-free removal for quick cleaning.
• For engineers/designers: Reliable, stable construction ensures proper airflow in ventilation systems. Wall or floor installation allows flexibility in system design. Suitable for both natural and mechanical ventilation.
• For electricians/installers: Easy installation with screws or adhesive. Fast access to ventilation ducts for maintenance; detachable construction simplifies inspection and cleaning.

Advantages

• Strong and durable steel construction
• Magnetic cover – quick removal and easy cleaning
• Integrated insect mesh
• Suitable for both wall and floor mounting
• Works for both air supply and exhaust

Disadvantages

• Steel is more durable but heavier than plastic
• Requires a correctly sized mounting opening
• Magnetic mechanism may attract dust – periodic cleaning required
