  • Window fan for glass or panel 3–7 mm | D178 | 280 m³/h | 15W | 230V | IPX4 | pull-cord switch | white | Elsp Group HPS 15

    Code: 39864

    Elsp Group HPS 15 – window fan for a Ø178 mm hole in 3–7 mm glass: 280 m³/h, 38 dB(A), 15 W, back-draught shutter with pull-cord switch, IPX4. Simple extraction for a kitchen, bathroom or summer house without ducting.

  • Window fan for glass or panel 3–7 mm | D178 | 280 m³/h | 15W | 230V | IPX4 | pull-cord switch | white | Elsp Group HPS 15

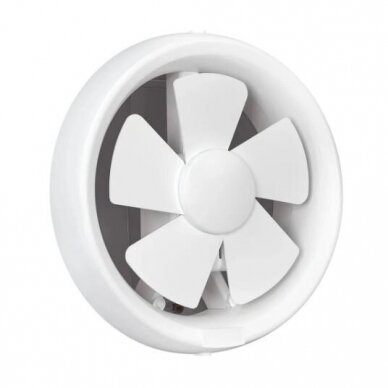

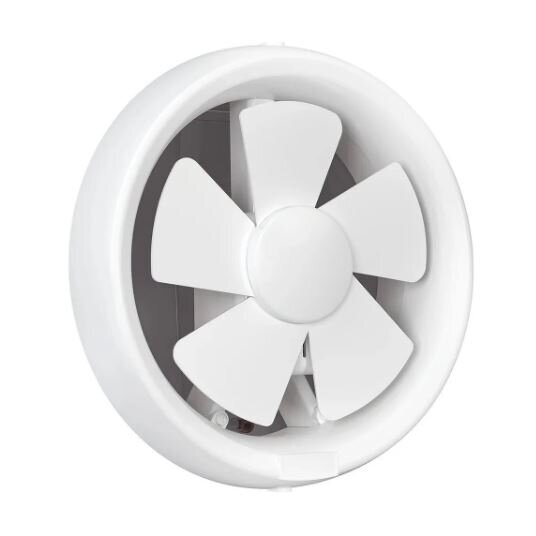

    Elsp Group HPS 15 is an axial exhaust fan mounted directly into window glass or another 3–7 mm panel. It is intended for rooms without a ventilation duct or where drilling the wall is not an option: air is extracted straight outside through a Ø178 mm opening.

    Key idea:
    It is the simplest way to install forced extraction in a kitchen, bathroom or utility room without ducting. The built-in back-draught shutter and pull-cord switch start the fan and open the shutter in one move, and close the opening against draughts when switched off.
    Mounting hole
    Ø178 mm in glass
    Airflow
    280 m³/h
    Noise
    38 dB(A)
    Power
    15 W, 230 V

    Operating principle

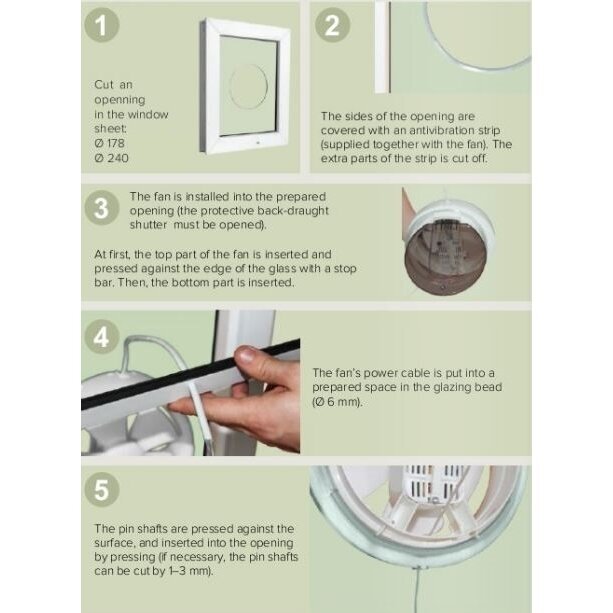

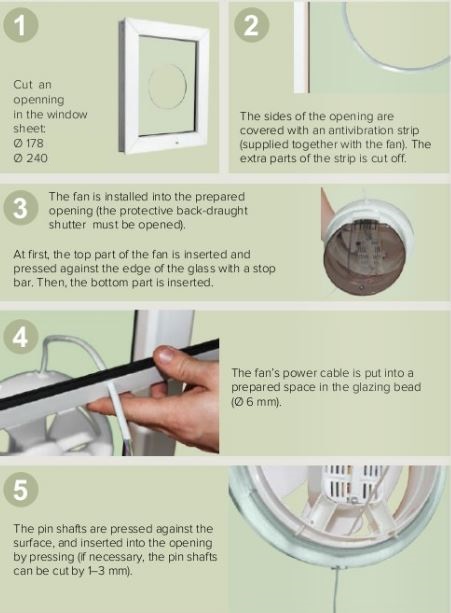

    A Ø178 mm hole is cut in the glass, the fan parts are inserted from both sides and clamped together – suitable for 3–7 mm glass or panels.

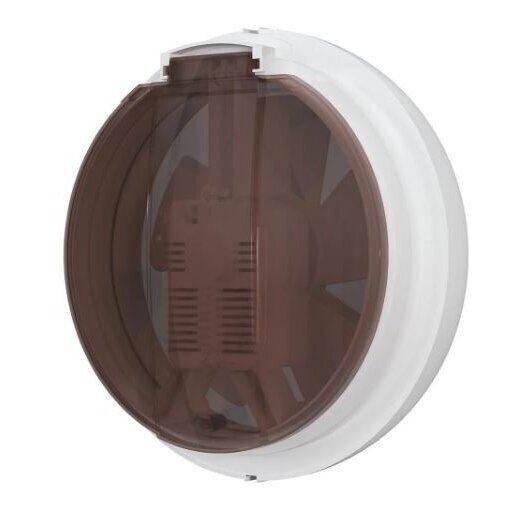

    The axial impeller extracts room air straight outside. Pulling the cord mechanically opens the back-draught shutter with plastic blades and starts the motor.

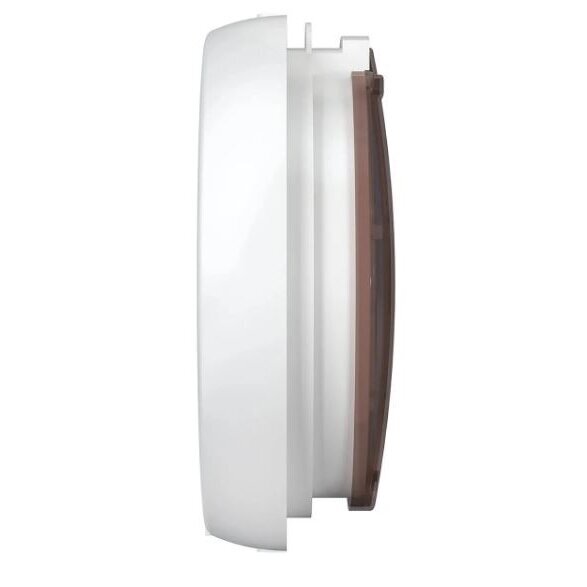

    When the fan is switched off, the shutter closes and blocks back-draught, cold air and insects. The motor has overheating protection.

    Why choose Elsp Group HPS 15?
    It solves extraction where there is no duct: no ducting, wall drilling or complex controls – just a hole in the glass and a 230 V supply.

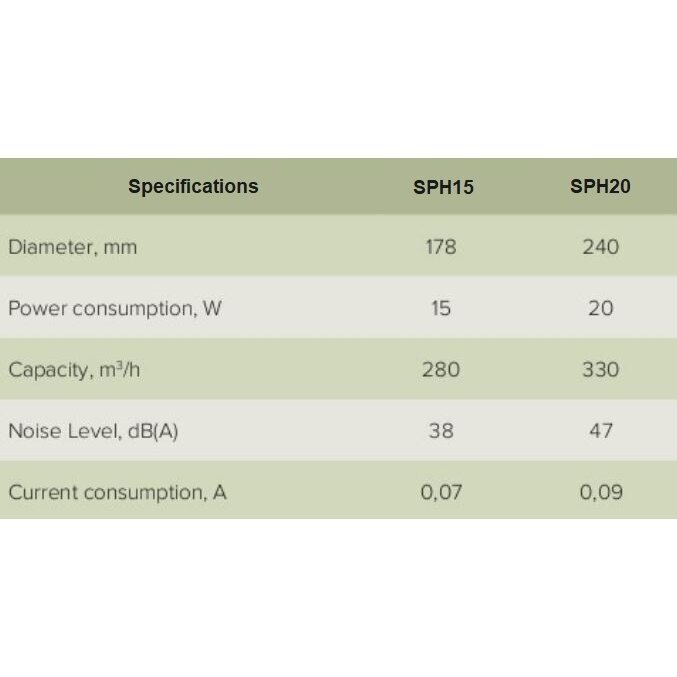

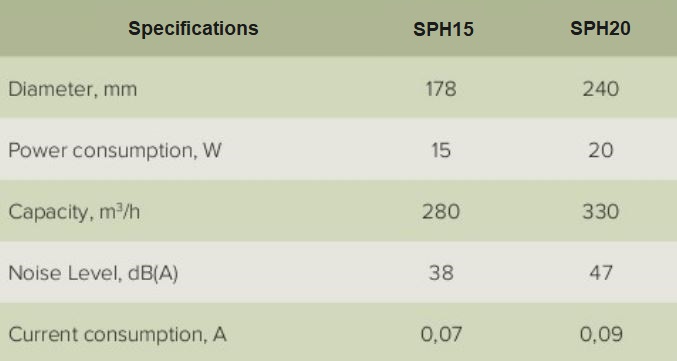

    Technical specifications

    Product type Axial exhaust window fan
    Manufacturer / model Elsp Group HPS 15
    Mounting Into window: glass or panel 3–7 mm

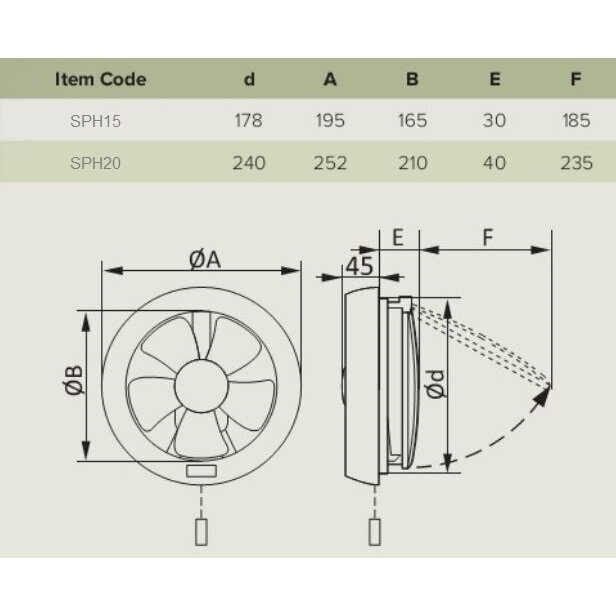

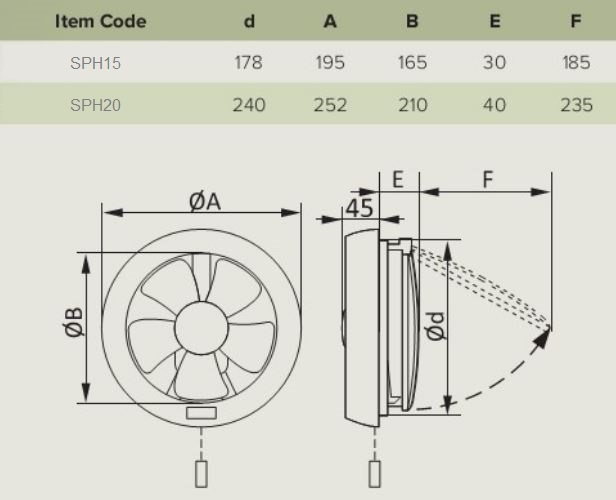

    Mounting hole / outer diameter Ø178 mm / Ø178 mm
    Dimensions (H × W × D) 195 × 195 × 260 mm
    Airflow 280 m³/h
    Pressure 110 Pa
    Noise level 38 dB(A)
    Power 15 W
    Supply voltage 230 V
    Ingress protection IPX4 (protection against water splashed from all directions)
    Motor bearings Sleeve
    Control Mechanical – pull-cord switch (fan and shutter)
    Back-draught shutter Plastic blades
    Protection Overheating protection
    Housing ABS plastic, white
    Net weight 0.5 kg
    Ventilation mode Extraction

    Key features

    • Glass mounting – no duct or wall opening needed.
    • Back-draught shutter – the opening closes when the fan is off, no draughts.
    • Pull-cord switch – starts the motor and opens the shutter in one move.
    • 280 m³/h airflow – quickly removes odours and moisture.
    • Overheating protection – the motor is protected during long operation.
    • IPX4 – splash-proof, suitable for damp rooms.

    Where is it used?

    • Kitchens without a hood duct
    • Bathrooms and shower rooms with a window
    • Summer houses, cottages, cabins
    • Garages and workshops with a glazed opening
    • Storage rooms, basements, laundries
    • Kiosks, small shops and offices
    • Greenhouses and outbuildings with glass or polycarbonate panels

    Use by need

    Home or flat owner.
    Extraction in a kitchen or bathroom without renovation or wall drilling.
    Electrician and installer.
    Simple 230 V connection, controlled by a mechanical pull-cord switch – no electronics or programming.
    Glazier.
    A clear mounting dimension – Ø178 mm hole in 3–7 mm glass.

    Practical use

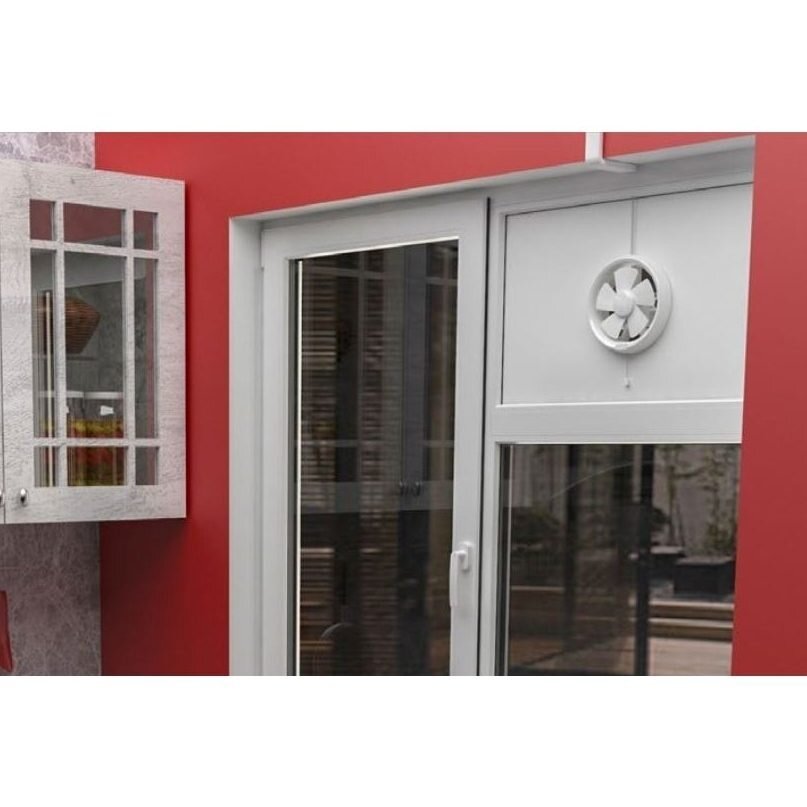

    If a summer-house kitchen has no ventilation duct and you do not want to drill the wall, a glazier cuts a Ø178 mm hole in the window pane, Elsp Group HPS 15 is fitted – cooking odours and steam go straight outside, and the shutter closes the opening when the fan is off.

    Pros

    • Mounted in a window, no ducting
    • Back-draught shutter with pull-cord control
    • 280 m³/h airflow
    • Overheating protection
    • IPX4 – suitable for damp rooms
    • Light ABS housing – 0.5 kg

    Cons / limitations

    • Only for 3–7 mm glass or panels – not for double-glazed units
    • Extraction only, not reversible
    • Mechanical control – no timer or humidity sensor
    • Sleeve bearings – shorter service life than ball bearings
    • Not for connection to duct systems

    Safety and installation notes

    • The hole in the glass must be cut by a glazier; tempered glass cannot be cut.
    • Switch off the power before installation; connection must be made by a qualified electrician.
    • Fit the fan so that the cord hangs freely and the shutter closes fully.
    • Do not install above an open flame or directly in a hot air stream.
    • Clean the impeller and shutter only with the power disconnected.

    Quick selection guide

    Ø178 mm hole
    280 m³/h
    38 dB(A)
    15 W | 230 V
    IPX4
    Glass 3–7 mm
    Suitable when you need:
    • Extraction through a window without a duct
    • Simple mechanical control
    • An opening that closes when the fan is off
    Check before use:
    • Glass thickness 3–7 mm and the glass is not tempered
    • Whether a Ø178 mm hole fits – for a smaller hole choose Elsp Group HPS 20 (Ø240 mm)
    • Whether the cord will be easy to reach from the room
    Important reminder: A window fan does not replace a designed ventilation system with supply air – extraction requires air to flow into the room.

    FAQ

    What size hole is needed?
    A Ø178 mm hole in 3–7 mm glass or panel.
    Is it suitable for double glazing?
    No, the manufacturer specifies mounting only into 3–7 mm thick surfaces.
    How is it switched on?
    By pulling the cord – it opens the shutter and starts the motor.
    Does it need a duct?
    No, air is extracted straight outside through the hole in the glass.
    Is it suitable for a bathroom?
    Yes, IPX4 suits damp rooms, provided zone requirements are respected.
    Can the speed be controlled?
    The manufacturer does not specify speed control, so we do not recommend a speed controller.

    Window fan for glass or panel 3–7 mm | D178 | 280 m³/h | 15W | 230V | IPX4 | pull-cord switch | white | Elsp Group HPS 15

    Elsp Group HPS 15 – window fan for a Ø178 mm hole in 3–7 mm glass: 280 m³/h, 38 dB(A), 15 W, back-draught shutter with pull-cord switch, IPX4. Simple extraction for a kitchen, bathroom or summer house without ducting.

    Published: 2026-11-19 · Data verified against the manufacturer's datasheet: 2026-11-19
