Wireless crane remote control | joystick, belly-box transmitter | 315 MHz | ~100 m | IP66 | ES-Q5000

Joystick crane radio remote with belly-box transmitter – 315 MHz, IP66

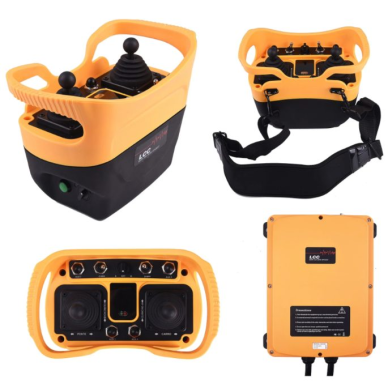

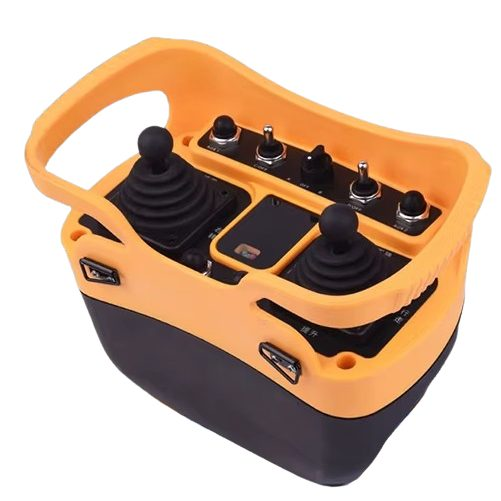

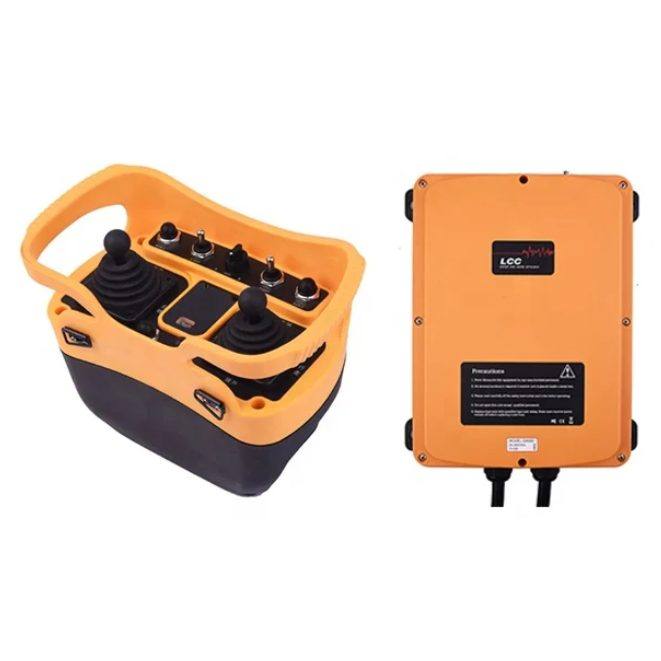

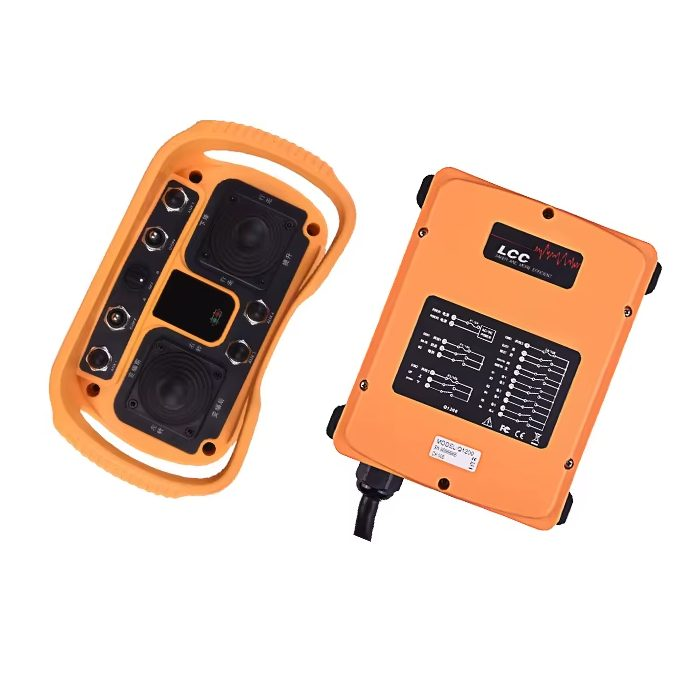

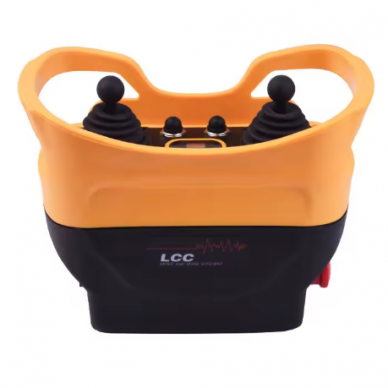

ES-Q5000 is a crane radio control set with a belly-box transmitter worn on a belt or harness. The operator sends commands with the joysticks, the receiver relays energise contactor coils, and the contactors run the crane motors. It is intended for cranes where several motions are controlled at the same time.

• Joystick control – several motions at once, smooth load handling
• Belly-box transmitter – both hands free for the joysticks, less fatigue over a shift
• 80 radio channels – switch channel if another crane works nearby
• Receiver sensitivity −116 dBm – a steadier link in halls with steel structures
• IP66 – transmitter and receiver suit dusty areas and outdoor use
• 250 V, 5 A relays – for contactor coils in standard control circuits

• EL-F24-60 – 2 five-speed joysticks, 315/433 MHz, receiver 12–440 V AC/DC, up to 100 m
• ES-D1 – 4 proportional levers, receiver 12/24 V DC, up to 500 m – for mobile machinery
• ES-CRC687 – joystick remote at 433 MHz – within the EU SRD band

• Overhead cranes in metalworking and production halls
• Gantry and semi-gantry cranes outdoors
• Loading yards and warehouses with several cranes
• Handling long loads (profiles, pipes)
• Cranes where the operator works a full shift

• The receiver relays (250 V, 5 A) switch only contactor coils or inverter control inputs – never pass motor current through them.
• The receiver supply voltage must match the control circuit and coil voltage.
• Emergency stop and loss of the link must drop the main contactor KM0 (EN 60204-32).
• Limit switches (SQ) and NC interlocking of opposite directions stay in the circuit.
• Multiple speeds – only with a two-speed motor or a frequency inverter.
• Before installation or repair – LOTO on the main isolator.

Quick selection guide

Check before ordering:

• Does the contactor coil voltage match the receiver supply version you order?
• 315 MHz: check whether the frequency is permitted in your country.
• How many motions and speeds you need – confirm the number of joystick steps and whether the crane has frequency inverters.

ES-Q5000 – joystick control for heavier cranes

Belly-box joystick remote, 315 MHz with 80 channels, IP66, 250 V 5 A relays for contactor coils. Before ordering, check the frequency permit and the receiver supply version.
