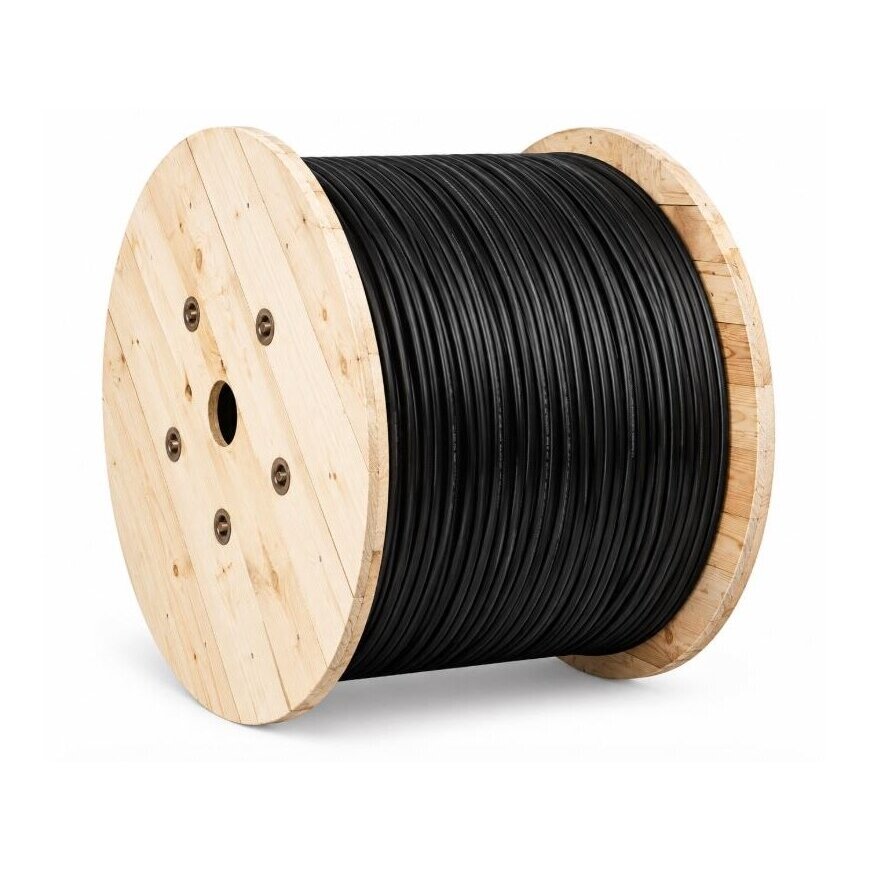

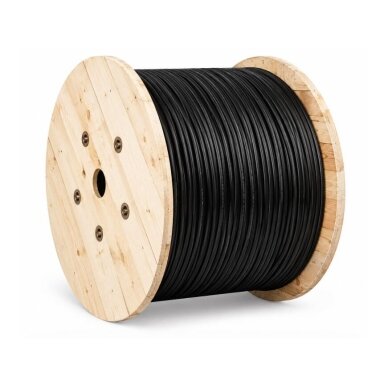

Aluminium power cable | 4x25mm² | AXMK | Class 2 | 2000m | black

Four 25mm² aluminium conductors are designed for electrical energy transmission and distribution in fixed systems. XLPE insulation is rated for a maximum operating temperature of up to 90°C, while the black PVC sheath allows the cable to be used in various indoor and outdoor installation conditions.

The black outer PVC sheath is resistant to UV radiation, therefore the cable can be used in outdoor electrical installations when appropriate cable installation conditions are observed.

XLPE is used for the core insulation, therefore the specified maximum operating temperature of the cable is 90°C. This insulation is used in fixed power cables due to its good electrical and thermal properties.

• 4x25mm² aluminium conductors are designed for fixed electrical energy transmission and distribution.
• 0.6/1kV rated voltage is suitable for low-voltage power systems.
• XLPE core insulation is rated for operating temperatures up to 90°C.
• UV-resistant sheath allows the cable to be used in outdoor installations.

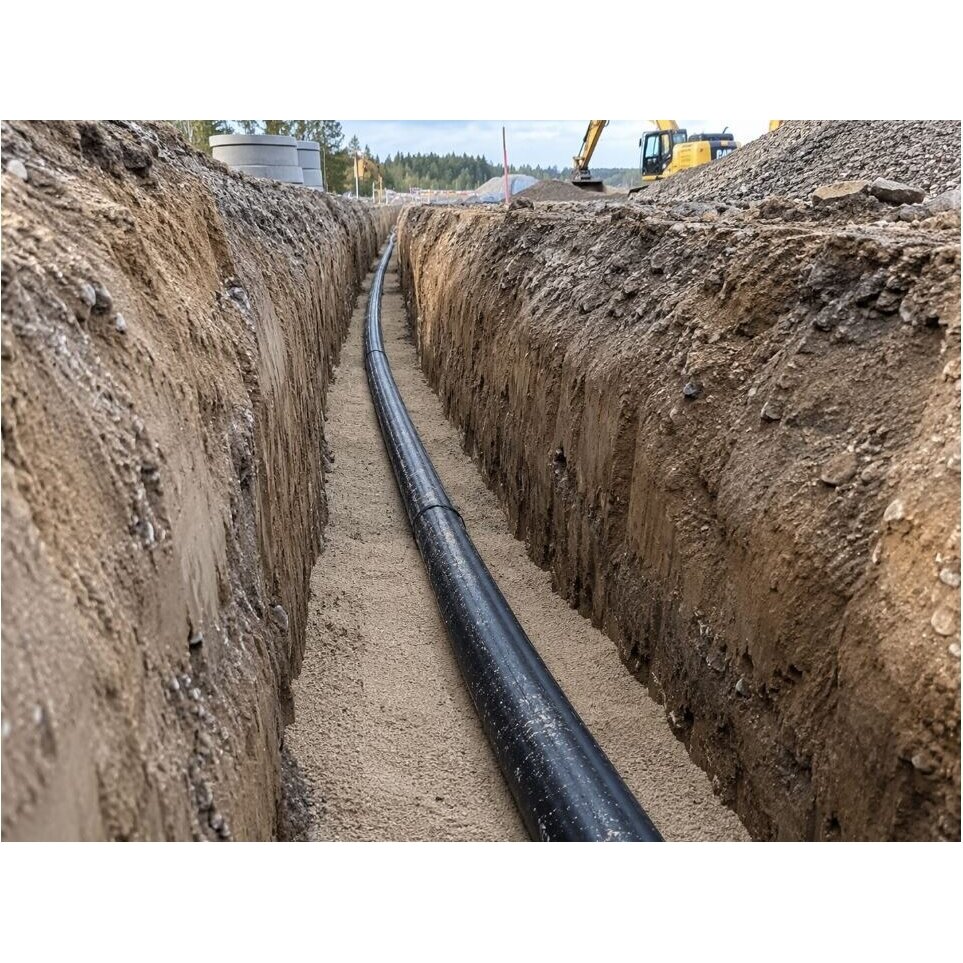

• Wide range of installation methods – suitable for installation underground, in concrete, ducts, pipes and various indoor environments.
• Aluminium conductor is suitable for fixed electrical energy distribution lines.
• Class 2 conductor is designed for fixed installation.

• Aluminium conductor: terminals, lugs and suitable installation methods intended for aluminium or Al/Cu connections must be used.
• Class 2 conductor: the cable is intended for fixed installation and not for continuous flexing or supplying moving equipment.
• 25mm² cross-section: appropriate tools and correctly sized connection components must be used for cable end preparation and connection.
• 0.6/1kV class: the cable must not be used in systems whose rated voltage exceeds the cable's specified voltage class.

A fixed electrical power supply line needs to be installed from the main distribution board to a separate building or additional electrical panel. Part of the cable route may run inside the building, while another part may run outdoors or underground. An AXMK 4x25mm² cable may be used for such an installation if its cross-section, voltage class and other parameters meet the requirements of the specific electrical design. The cable ends must be terminated using lugs and connection components suitable for aluminium conductors.

The cable has 4 cores, each with a cross-section of 25mm².

The cable conductors are made of aluminium and are Class 2.

The rated voltage of the cable is 600/1000V, or 0.6/1kV.

Yes. According to the provided product information, the cable can be installed underground.

Yes. The cable's outer sheath is resistant to UV radiation, therefore the cable is suitable for outdoor installations.

Yes. According to the provided specification, the cable can be installed directly in concrete.

The core insulation is XLPE, while the outer cable sheath is PVC.

The specified maximum operating temperature of the cable is 90°C.

The terminals must be explicitly suitable for aluminium conductors or Al/Cu connections. The connection method and cable lugs must be selected according to the requirements of the equipment manufacturer.

The cable cross-section must be selected according to the electrical design, load, line length, installation method, environmental conditions, permissible voltage drop and applicable electrical installation requirements. For aluminium conductor connections, use only terminals, lugs and installation methods suitable for aluminium or Al/Cu connections. Electrical installation work must be carried out by a qualified specialist.
