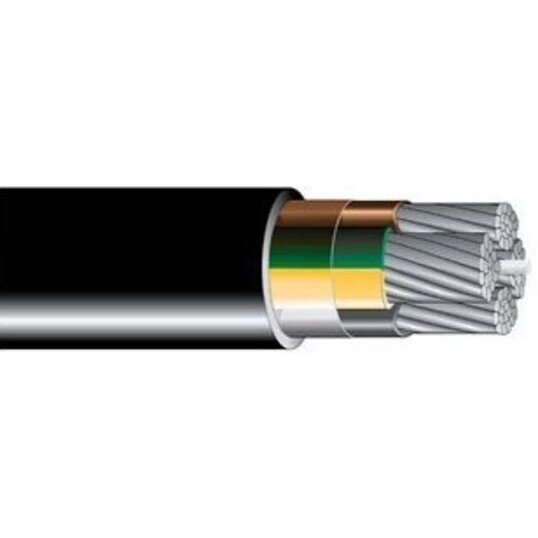

Aluminium power cable | 4x35mm² | AXMK | Class 2 | 1m | black

Four 35mm² aluminium conductors are designed for electrical energy transmission and distribution in fixed systems. The XLPE insulation is rated for a maximum operating temperature of up to 90°C, while the black PVC sheath allows the cable to be used in various indoor and outdoor installation conditions.

The black outer PVC sheath is resistant to UV radiation, therefore the cable can also be used in outdoor electrical installations when appropriate cable installation conditions are observed.

XLPE is used for the core insulation, therefore the specified maximum operating temperature of the cable is 90°C. This insulation is widely used in fixed power cables due to its good electrical and thermal properties.

• 4x35mm² aluminium conductors are designed for fixed electrical energy transmission and distribution.
• 0.6/1kV rated voltage is suitable for standard low-voltage power systems.
• XLPE core insulation is rated for operating temperatures up to 90°C.
• UV-resistant sheath allows the cable to be used in outdoor installations.
• Wide range of installation methods – suitable for installation underground, in concrete, ducts, conduits and various indoor environments.
• Aluminium conductor allows large cross-section power lines to be constructed using aluminium cable systems.
• Class 2 conductor is suitable for fixed cable installation.

• Aluminium conductor: terminals, lugs and suitable installation methods intended for aluminium or Al/Cu connections must be used.
• Class 2 conductor: the cable is intended for fixed installation and not for continuous flexing or supplying moving equipment.
• Large cable cross-section: appropriate cable tools and correctly sized connection components are required for installation and termination.
• 0.6/1kV class: the cable must not be used in systems whose rated voltage exceeds the cable's specified voltage class.

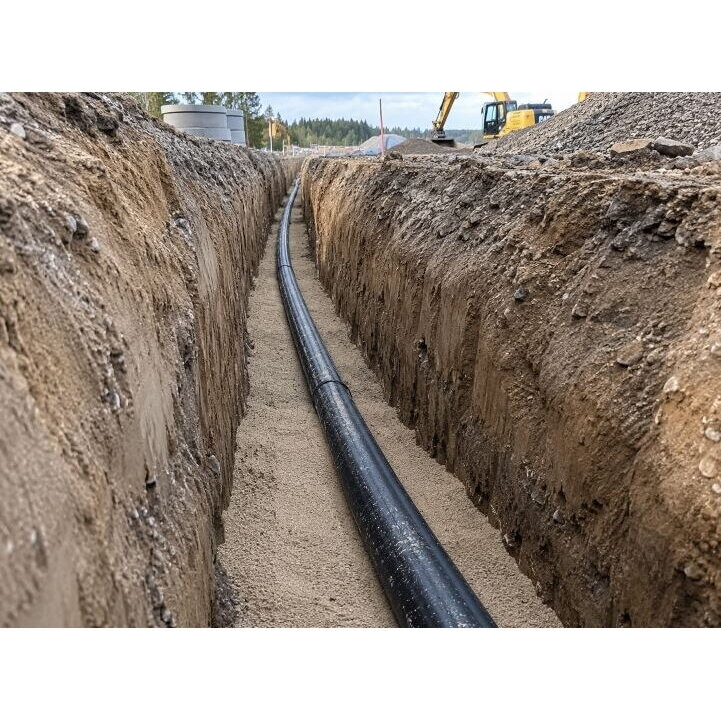

A fixed electrical power supply line needs to be installed from the main distribution board to another electrical panel at a separate location. Part of the cable route runs inside the building, while another part runs outdoors and underground. An AXMK 4x35mm² cable may be used for such an installation if its cross-section, voltage class and other parameters meet the requirements of the specific electrical design. The cable ends must be terminated using lugs and connection components suitable for aluminium conductors.

The cable has 4 cores, each with a cross-section of 35mm².

The cable conductors are made of aluminium and are Class 2.

The rated voltage of the cable is 600/1000V, or 0.6/1kV.

Yes. According to the provided product information, the cable can be installed underground.

Yes. The cable's outer sheath is resistant to UV radiation, therefore the cable is suitable for outdoor installations.

Yes. According to the provided specification, the cable can be installed directly in concrete.

The core insulation is XLPE, while the outer cable sheath is PVC.

The specified maximum operating temperature of the cable is 90°C.

The terminals must be explicitly suitable for aluminium conductors or Al/Cu connections. The connection method and cable lugs must be selected according to the requirements of the equipment manufacturer.

The cable cross-section must be selected according to the electrical design, load, line length, installation method, environmental conditions, permissible voltage drop and applicable electrical installation requirements. For aluminium conductor connections, use only terminals, lugs and installation methods suitable for aluminium or Al/Cu connections. Electrical installation work must be carried out by a qualified specialist.
