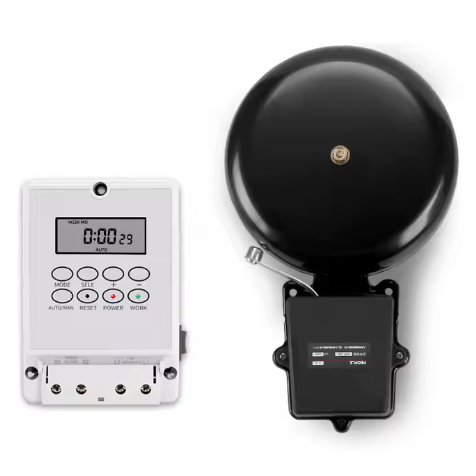

  •   Automatic school bell with timer | 25A | 230V | Ø30.48cm | 2000 m²

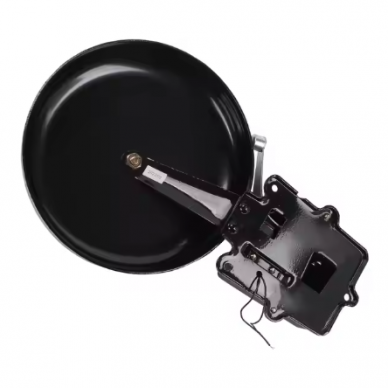

      Automatic school bell with timer | 25A | 230V | Ø30.48cm | 2000 m² 1
      Automatic school bell with timer | 25A | 230V | Ø30.48cm | 2000 m² 2
      Automatic school bell with timer | 25A | 230V | Ø30.48cm | 2000 m² 3

    Automatic school bell with timer | 25A | 230V | Ø30.48cm | 2000 m²

    Code: ES1ZYT08
    Inquire about this item
    Price 134.00 € VAT incl.
    ( 110.74 € VAT excl. )
    Want another price? Suggest yours!

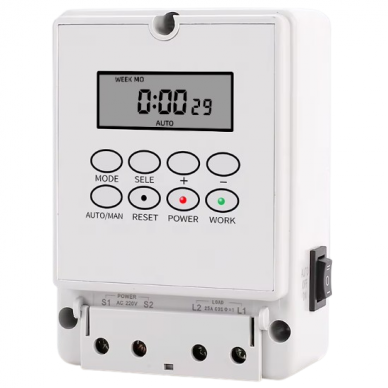

    An automatic bell with a timer is a modern, high-quality solution for schools, factories, and other public or industrial spaces where a reliable and automated sound signal is required on a schedule. The integrated high-grade microcomputer chip allows scheduling up to 80 rings per day, ensuring an accurate, regularly recurring signal throughout the day.

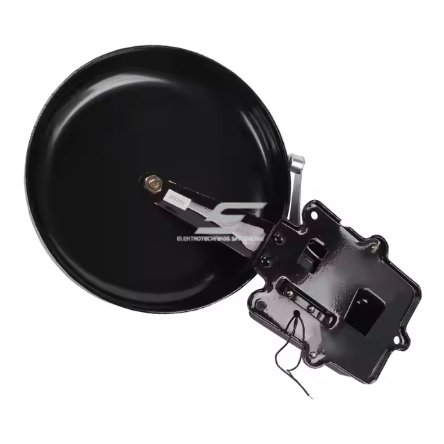

    The device operates with a 30.48 cm diameter bell, covering an area of up to 2000 m² – ideal for classrooms, workshops, or shared spaces. With CE certification and a wide voltage tolerance, this timer meets EU safety standards, making it safe for use in various environments.

  • Product description

    Technical Specifications:

    Operating voltage: AC 220–240V

    Voltage tolerance: 85%–110%

    Accuracy: ±0.5 seconds per day

    Maximum load: 25A (resistive load)

    Bell diameter: 12 inches (~240 mm)

    Coverage area: up to 2000 m²

    Max time interval: from 1 second to 23 h 59 min 59 sec

    Dimensions: 126 × 88 × 51 mm

    Power consumption: less than 4 W

    Operating temperature: from -10 °C to +50 °C

    Relative humidity: up to 95%

    CE certification: Yes

    Max number of activations per day: up to 80

    Functions:

    Up to 80 automatic activations per day

    Powerful bell covering up to 2000 m²

    Time interval adjustment from 1 second to nearly 24 hours

    Memory retention during power outages

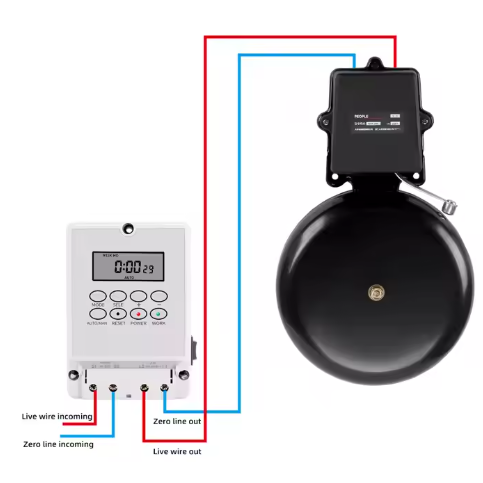

    Connects directly to standard power supply

    Controlled by microcomputer processor – high precision

    Complies with European safety standards

    Applications:

    Schools – for signaling the beginning and end of lessons

    Manufacturing – to signal breaks and shift changes

    Warehouses/logistics – for alerting personnel

    Public or administrative institutions – for temporary alerts

    Pros:

    Extremely accurate and reliable time control

    Rings automatically – no manual activation needed

    Loud and powerful – covers up to 2000 m²

    Flexible time settings – up to nearly 24 hours

    CE certified – meets EU standards

    Cons:

    No remote control or smart device programming

    Setup may be complex for non-technical users

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.

  • Alternative products

    Modular circuit breaker 1P | 32A | C | 6kA | DIN | MCB Vecas
    Modular circuit breaker 1P | 32A | C | 6kA | DIN | MCB Vecas
    Code: SGPS132
    Price 1.20 € VAT incl.
    ( 0.99 € VAT excl. )
    Add to cart

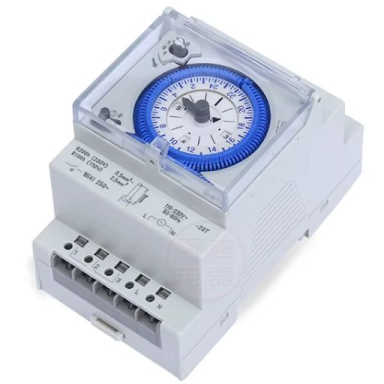

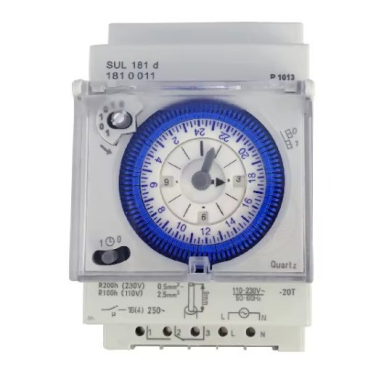

    Modular time relay (timer) | 24h | programmable | mechanical | 16A | 230V | DIN Modular time relay (timer) | 24h | programmable | mechanical | 16A | 230V | DIN
