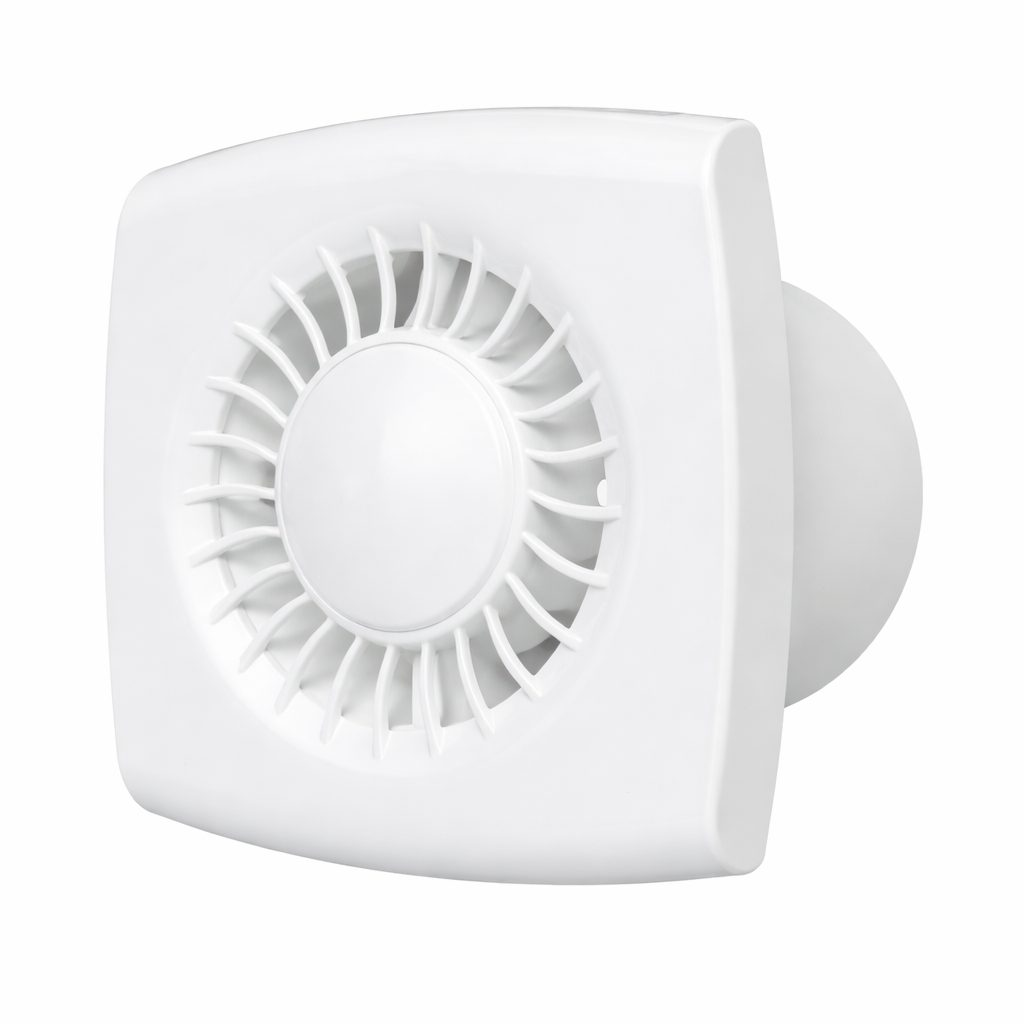

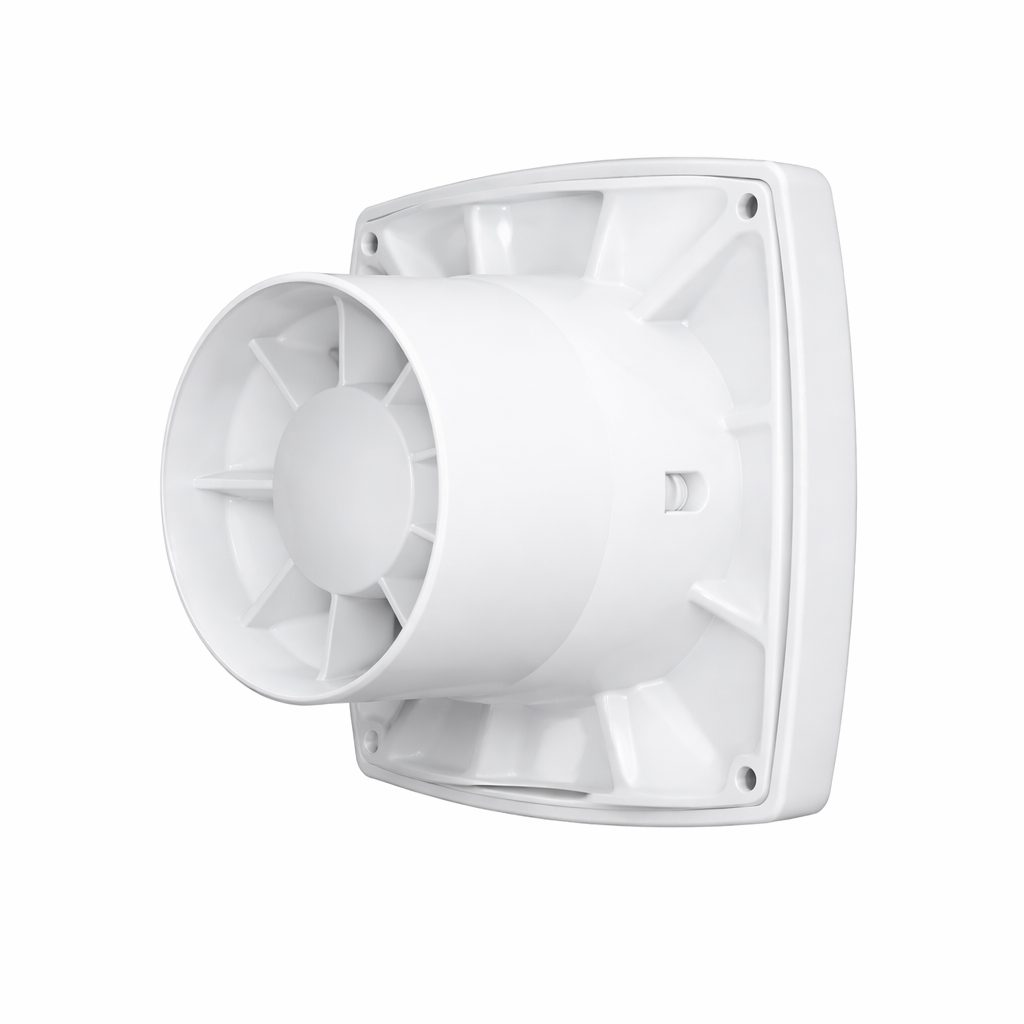

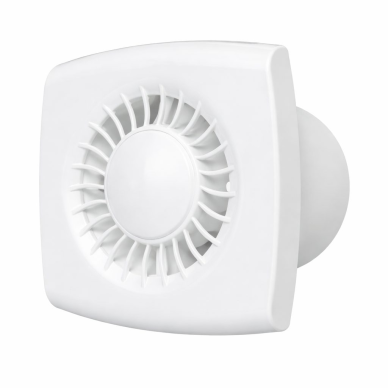

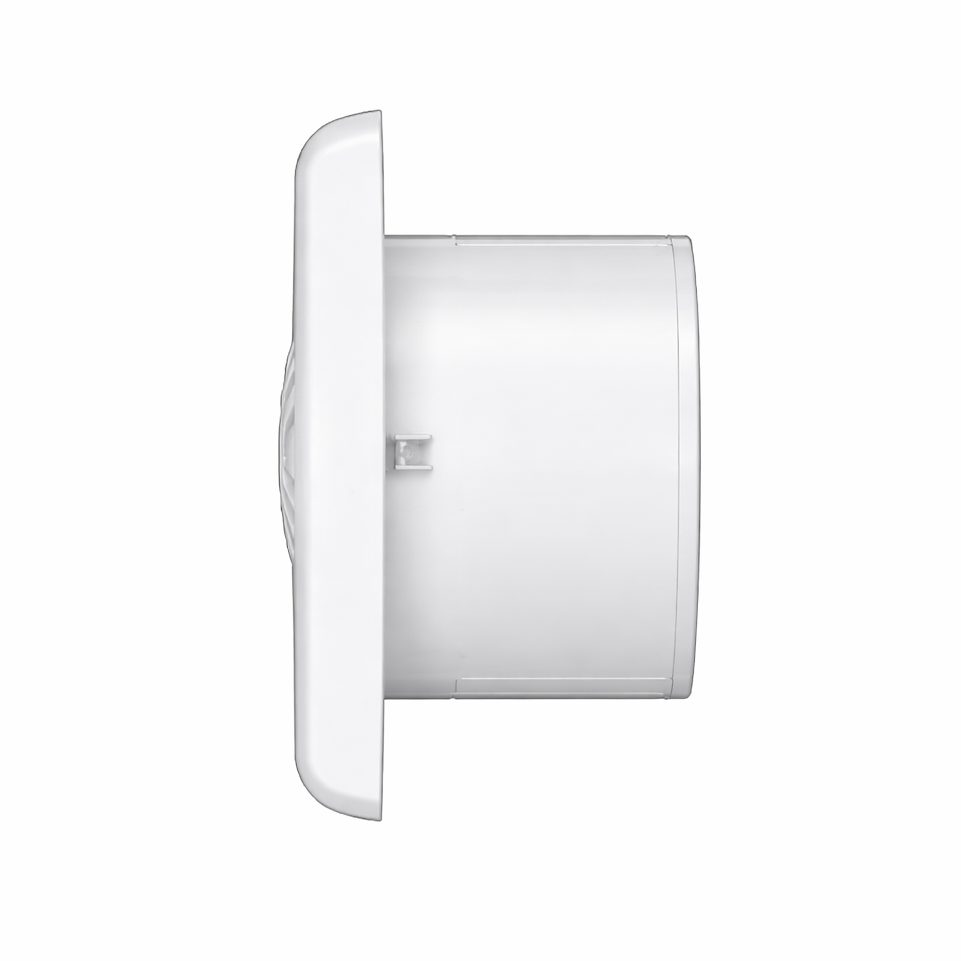

  • Axial exhaust fan | D100 | 100 m³/h | 220V | 151x110x70 mm | plastic | white | IP24

    Code: ESLP18919

    Axial exhaust fan, Ø100 mm: 100 m³/h, 32 Pa, 25 dB(A), 14 W, IP24. Wall or ceiling mounting. Wall or ceiling mounting.

  • Axial exhaust fan | D100 | 100 m³/h | 220V | 151x110x70 mm | plastic | white | IP24

    Axial exhaust fan for a Ø100 mm duct or wall opening – for removing moisture, odours and stale air from a bathroom, toilet, kitchen or storeroom. Compact 151×110×70 mm housing, IP24 protection, wall or ceiling mounting.

    Key point:
    Rated capacity 100 m³/h, static pressure 32 Pa, noise 25 dB(A), power 14 W. This is a simple fan without additional electronics – suitable when it is to be switched together with the lighting or by a separate switch.
    Mounting diameter
    Ø100 mm
    Capacity
    100 m³/h
    Noise
    25 dB(A)
    Feature
    basic model

    How it works

    The fan is inserted into a Ø100 mm duct or wall opening and mounted on a wall or ceiling. Supply: 220–240 V, 50 Hz. The fan is switched by an external switch – a separate one or together with the lighting.

    When switched on, the impeller extracts air into the ventilation duct: rated capacity 100 m³/h, static pressure 32 Pa, power 14 W, current 0.06 A.

    The result is a room that dries faster and a lower risk of condensation and mould.

    Why choose ESLP18919?
    A simple, compact fan for everyday ventilation: standard Ø100 mm diameter, 25 dB(A) noise and 14 W power.

    Technical specifications

    Product type Axial exhaust fan
    Product code ESLP18919
    Duct diameter Ø100 mm
    Air flow 100 m³/h
    Static pressure 32 Pa
    Noise level 25 dB(A)
    Power 14 W
    Current consumption 0.06 A
    Supply 220–240 V / 50 Hz
    Protection rating IP24
    Dimensions 151×110×70 mm
    Housing plastic, white
    Control by an external switch
    Mounting wall or ceiling

    Main functions

    • 100 m³/h capacity – sufficient for air exchange in a bathroom, toilet or storeroom.
    • IP24 protection – protection against solid objects larger than 12.5 mm and against water splashes from any direction.
    • Wall or ceiling mounting – flexible fit to the room.
    • 14 W power – low running costs.
    • Compact housing – 151×110×70 mm, looks neat on a wall or ceiling.

    How the models in this series differ

    • ESLP18919 – basic model · 100 m³/h – this model
    • ESLP18920 – ball-bearing motor · 100 m³/h
    • ESLP18921 – pull-cord switch · 100 m³/h
    • ESLP18695 – backdraft damper · 100 m³/h
    • ESLP18922 – damper + timer · 100 m³/h
    • ESLP18923 – damper + timer + humidity sensor · 100 m³/h
    • ESLP18924 – damper + pull-cord switch · 100 m³/h

    Where is it used?

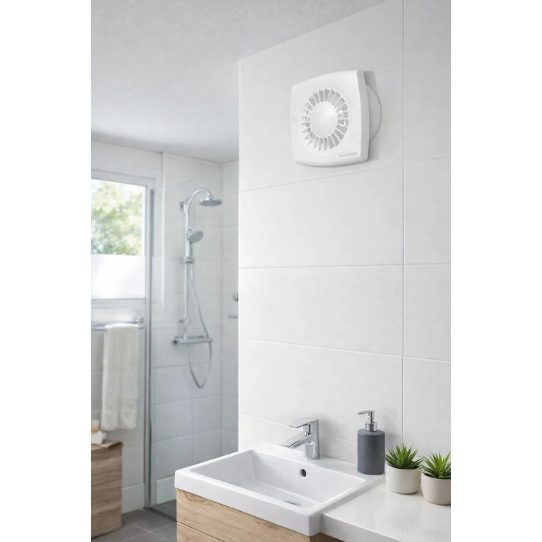

    • Bathrooms and showers
    • Toilets
    • Kitchens
    • Storerooms and walk-in wardrobes
    • Basements and utility rooms
    • Sanitary rooms in offices and small commercial premises
    • Laundry and drying rooms

    Use by need

    For apartment owners.
    Replaces an old Ø100 mm fan – switched together with the lighting or by a separate switch.
    For electricians.
    Standard Ø100 mm diameter, 220–240 V connection, wall or ceiling mounting.
    For designers.
    Suitable for exhaust ventilation of sanitary, auxiliary and utility rooms – 100 m³/h, 32 Pa.

    Practical use

    If a bathroom measures 2.0 × 2.5 m with a 2.5 m ceiling (about 12.5 m³), the rated flow of 100 m³/h would theoretically change the air about 8 times per hour; in practice the flow will be lower due to duct length, bends and grilles. If the duct joins a shared shaft and back-draught is noticeable, choose the model of this series with a backdraft damper (ESLP18695).

    Pros

    • Noise 25 dB(A)
    • Low consumption – 14 W
    • Wall or ceiling mounting
    • IP24 splash protection

    Cons / limitations

    • No backdraft damper – if there is back-draught, choose ESLP18695
    • No timer or humidity sensor – switch-controlled; with timer: ESLP18922
    • IP24 – splash protection, not protection against water jets or immersion
    • The rated 100 m³/h flow is given without duct resistance; in a long duct it is lower
    • No heat recovery – room air is exhausted

    Safety and installation notes

    • Disconnect the power before installation and make sure the circuit is de-energised.
    • Protect the bathroom circuit with a 30 mA residual current device (RCD).
    • IP24 means splash protection: under HD 60364-7-701, at least IPX4 is required in zones 1 and 2, and installation in zone 0 (inside a bath or shower tray) is not allowed.
    • Mains installation must be carried out by a qualified electrician.

    Quick selection guide

    Ø100 mm
    100 m³/h
    25 dB(A)
    14 W
    IP24
    basic model
    Suitable when you need:
    • To extract moisture and odours from a bathroom or toilet
    • A simple fan switched together with the lighting
    • A compact 151×110×70 mm housing
    Check before use:
    • Whether the duct or opening diameter is Ø100 mm
    • Whether there is room for the 151×110×70 mm housing
    • Whether a 220–240 V supply is available at the opening
    • Whether the room has an air inlet path (gap under the door or a grille)
    Important reminder: The fan does not replace continuous mechanical ventilation or a heat recovery unit – it extracts air only while running.

    FAQ

    How is the fan switched on?
    By an external switch – a separate one or together with the lighting.
    Does the fan have a backdraft damper?
    No, this model has no damper – the version with a damper is ESLP18695.
    What duct diameter does ESLP18919 fit?
    A Ø100 mm duct or wall opening.
    Can it be mounted in the ceiling?
    Yes, the fan is mounted on a wall or ceiling.
    Is it suitable for a bathroom?
    Yes, the housing is IP24, but do not install it in zone 0 and protect the circuit with a 30 mA RCD.
    How much power does the fan use?
    Power 14 W, current 0.06 A, supply 220–240 V / 50 Hz.

    Axial exhaust fan | D100 | 100 m³/h | 220V | 151x110x70 mm | plastic | white | IP24

    ESLP18919 is a Ø100 mm axial exhaust fan: 100 m³/h, 32 Pa, 25 dB(A), 14 W, IP24. A compact solution for bathrooms, toilets and auxiliary rooms.

    Published: 2026-11-13 · Data verified against the supplier specification: 2026-11-13

    Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.
