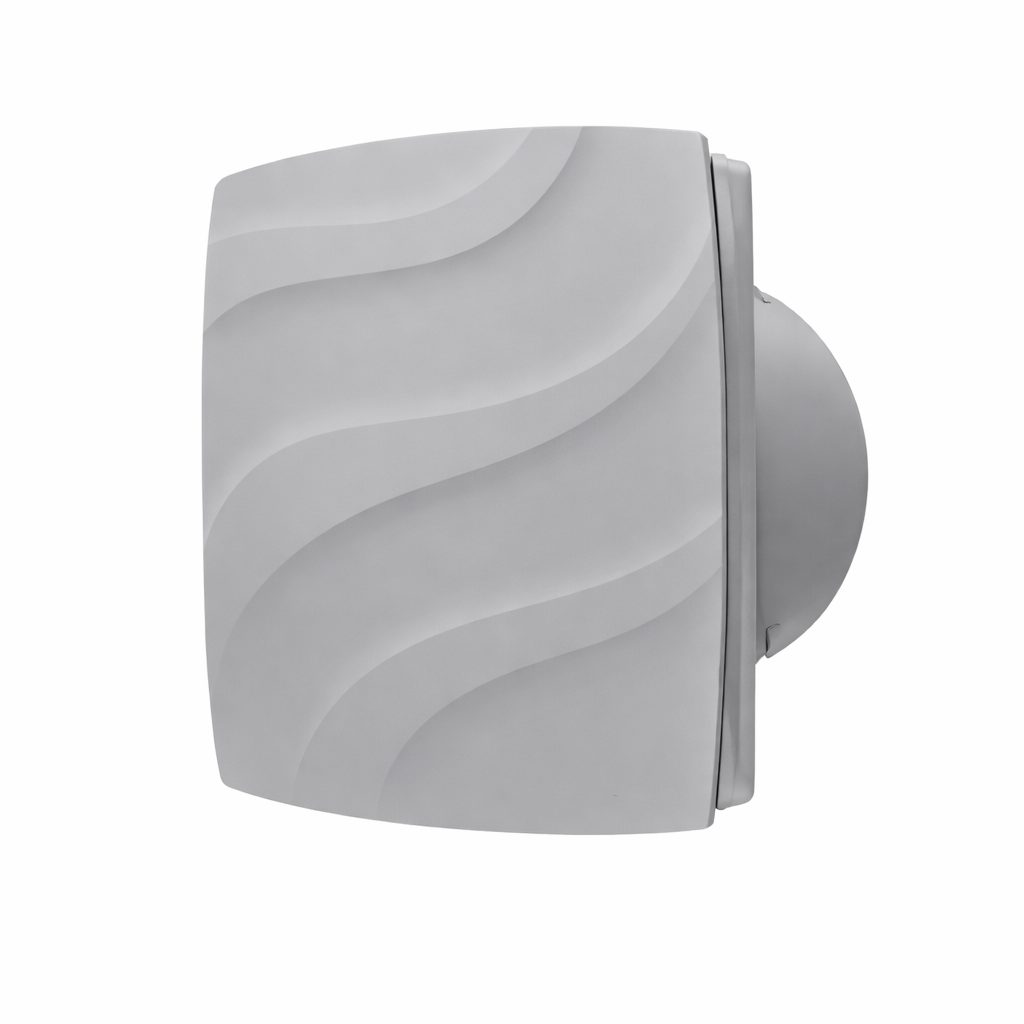

Axial exhaust fan | D120 | 220V | 181x130x69mm | plastic | grey color | IP24

Technical specifications

Fan type: axial exhaust fan
Duct diameter: Ø120 mm
Airflow: 140 m³/h
Dimensions: 181 x 130 x 69 mm
Power: 16 W
Current consumption: 0.07 A
Static pressure: 32 Pa
Noise level: 30 dB(A)
Power supply: 220–240 V / 50 Hz
Protection class: IP24
Color: grey
Housing material: ABS plastic
Installation: wall or ceiling

Functions

Removable front panel – the fan has a detachable front panel, making it easy to clean and maintain without complex disassembly
Unique design – the construction allows the use of a solid decorative panel that does not restrict airflow and maintains high ventilation efficiency
Efficient air extraction – the fan ensures airflow that effectively removes moisture and odors
Easy installation – integrated mounting legs allow easy and stable installation of the fan
Universal application – designed for installation into ventilation shafts and connection to duct systems
Quiet operation – ensures comfortable use in residential premises

Usage

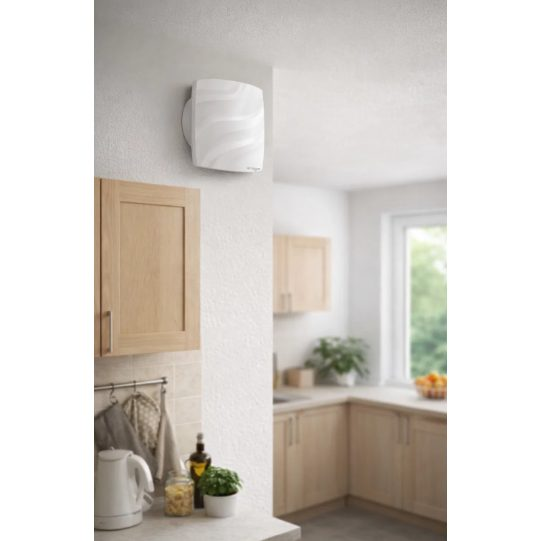

For home users: An excellent choice for bathrooms, WC rooms, kitchens, storage rooms, basements. Especially suitable where aesthetics and integration into the wall surface are important.
For electricians: Standard duct, simple connection to 230 V network, integrated mounting legs, possibility to install into shafts or ducts
For engineers and designers: Suitable solution for renovation projects, objects with limited installation depth, ventilation of residential and commercial premises, sanitary rooms with complex finishing

Advantages

removable front panel
modern and aesthetic design
solid panel does not obstruct airflow
quiet operation
easy installation with mounting legs
suitable for installation into ducts and shafts
compact size

Disadvantages

no backdraft damper
no timer or humidity sensor
IP24 – limited protection for very humid areas
standard airflow – not suitable for large spaces
