  • Axial exhaust fan with backdraft damper (Turbo motor) | D125 | 220 m³/h | 220V | 179x151x82 mm | plastic | white | IP45

    Code: ESLP18568

    Axial exhaust fan with backdraft damper (Turbo motor), Ø125 mm: 220 m³/h, 38 dB(A), 20 W, IP45, 179×151×82 mm. The Turbo motor delivers a higher air flow in the same housing.

  • Axial exhaust fan with backdraft damper (Turbo motor) | D125 | 220 m³/h | 220V | 179x151x82 mm | plastic | white | IP45

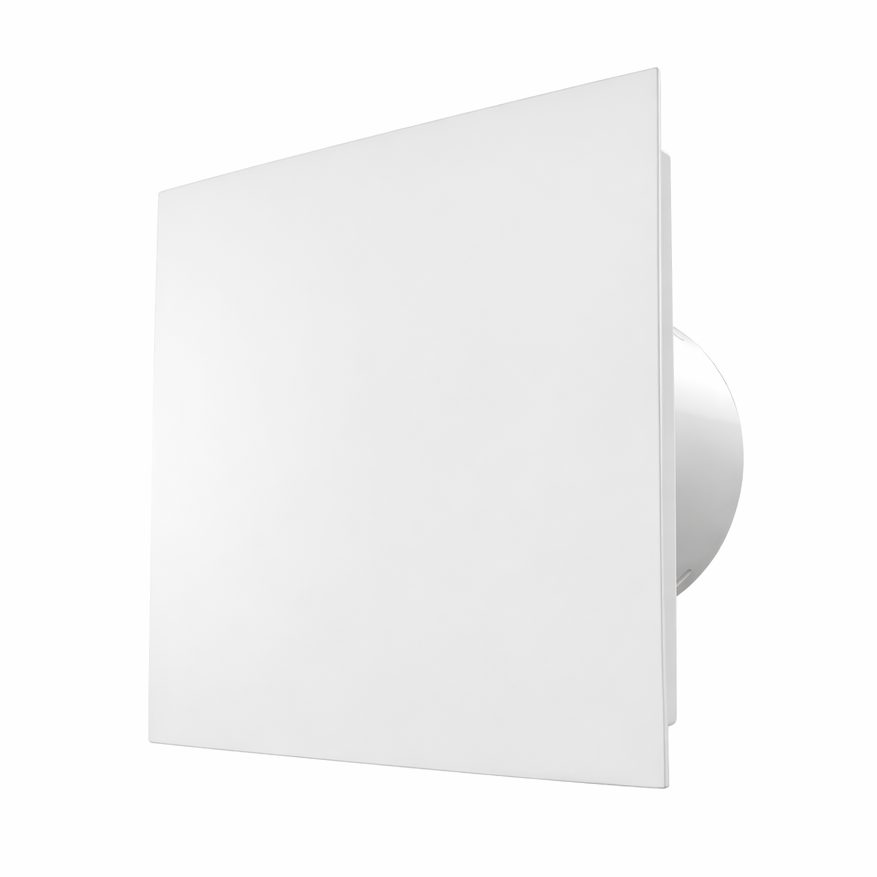

    Axial exhaust fan for a Ø125 mm duct with a Turbo motor and automatic backdraft damper. Designed for rooms that need more extraction than the standard model of the same series. ABS plastic housing with an easily removable front panel, protection rating IP45.

    Key point:
    The Turbo motor raises the air flow to 220 m³/h (standard ESLP18564 – 180 m³/h), making this model suitable for a longer duct or a poorly ventilated room. The price of the extra extraction is higher power (20 W) and noise (38 dB(A)).
    Mounting diameter
    Ø125 mm
    Capacity
    220 m³/h
    Noise
    38 dB(A)
    Power
    20 W

    How it works

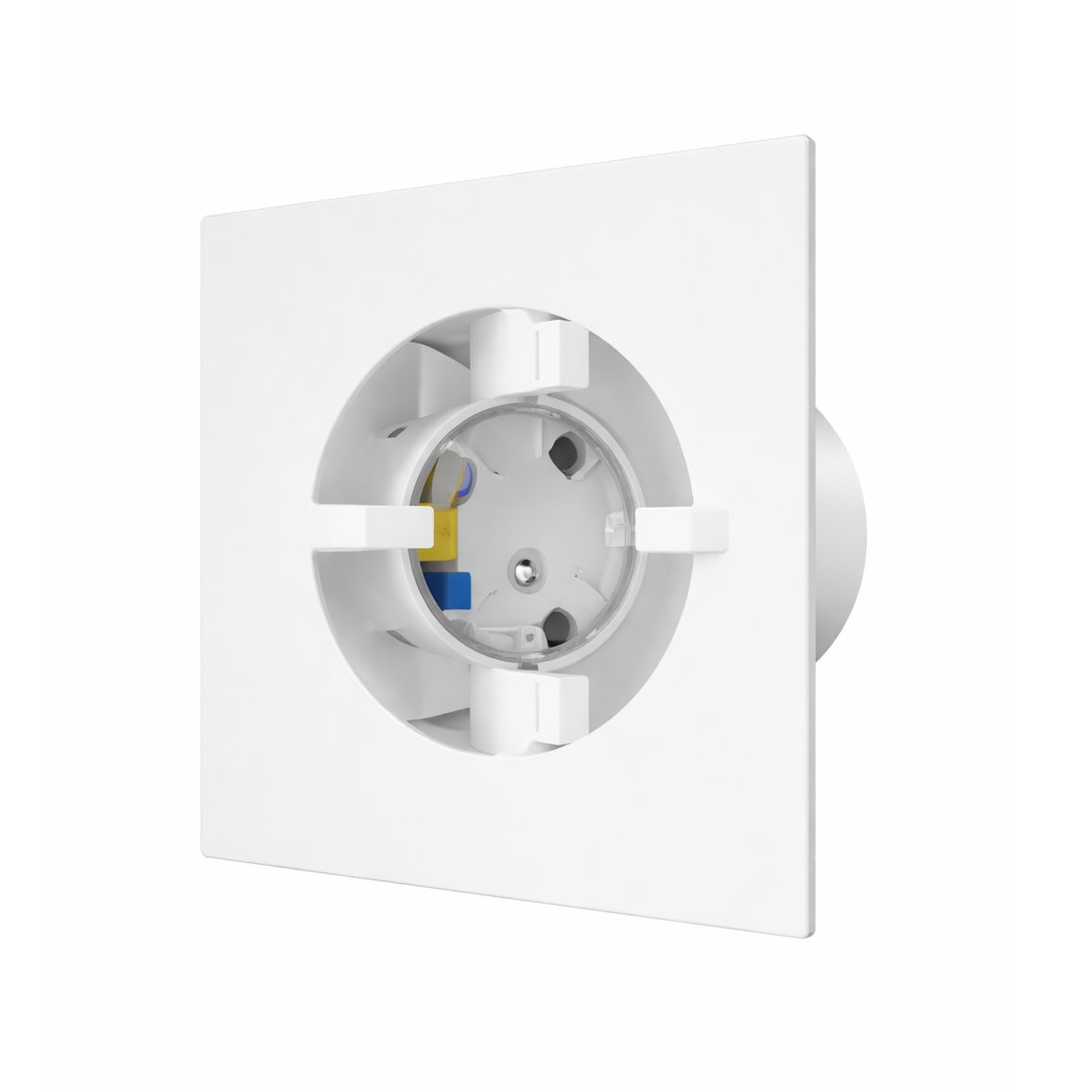

    The fan is inserted into a Ø125 mm duct or opening in a wall or ceiling. Supply is 220 V AC; the front panel is removable, giving easy access to the impeller. It is switched on by an external switch.

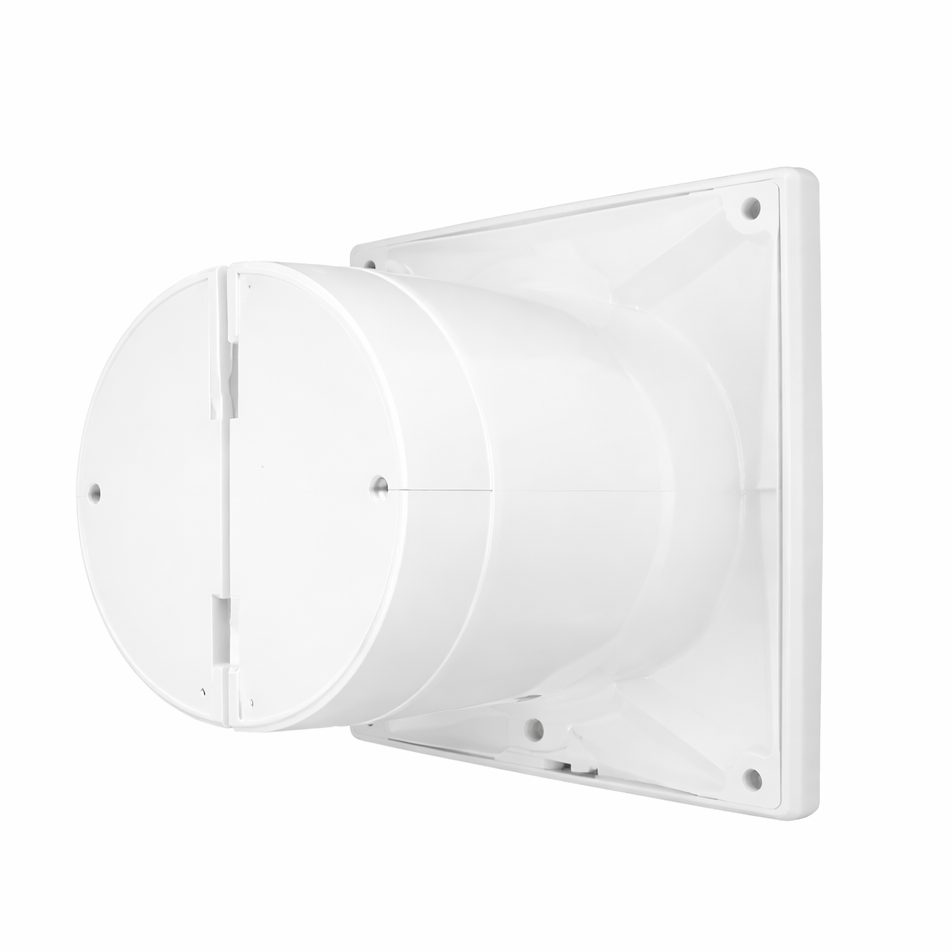

    When switched on, the impeller extracts air into the ventilation duct – up to 220 m³/h in free-air conditions, max. pressure 70 Pa. The air flow opens the backdraft damper; when the fan stops, the damper closes and blocks back-draught.

    The result is a room that dries faster and a lower risk of condensation and mould.

    Why choose ESLP18568?
    Higher air flow than the standard model in the same 179×151×82 mm housing. Suitable when the extraction of the standard fan is not enough.

    Technical specifications

    Product type Axial exhaust fan with backdraft damper (Turbo motor)
    Product code ESLP18568
    Mounting (duct) diameter Ø125 mm
    Supply voltage 220 V AC
    Power 20 W
    Air flow (capacity) 220 m³/h
    Maximum pressure 70 Pa
    Noise level 38 dB(A)
    Dimensions 179×151×82 mm
    Protection rating IP45
    Control external switch
    Backdraft damper built-in, closes automatically when the fan stops
    Motor Turbo – increased air flow
    Front panel easily removable
    Housing ABS plastic, white
    Mounting wall or ceiling

    Main functions

    • Turbo motor – 220 m³/h in the same housing, compared with 180 m³/h for the standard model.
    • Automatic backdraft damper – the duct stays closed while the fan is idle.
    • Removable front panel – easy to dust and to inspect the impeller.
    • 220 m³/h capacity – rated air flow for air exchange in a small or medium-sized room.
    • 38 dB(A) noise level – as stated in the supplier specification, suitable for domestic rooms.
    • IP45 housing – protected against solid objects larger than 1 mm and water jets.
    • Versatile mounting – in a wall or ceiling.

    How the models in this series differ

    • ESLP18563 · D100 with backdraft damper – 100 m³/h · 35 Pa · 25 dB(A) · 8.4 W · 179×131×76 mm
    • ESLP18565 · D100 with damper, humidity sensor and timer – 100 m³/h · 35 Pa · 25 dB(A) · 8.4 W · 179×131×76 mm
    • ESLP18567 · D100 Turbo with damper – 115 m³/h · 40 Pa · 32 dB(A) · 19 W · 179×131×76 mm
    • ESLP18564 · D125 with backdraft damper – 180 m³/h · 58 Pa · 30 dB(A) · 10 W · 179×151×82 mm
    • ESLP18566 · D125 with damper, humidity sensor and timer – 180 m³/h · 58 Pa · 30 dB(A) · 10 W · 179×151×82 mm
    • ESLP18568 · D125 Turbo with damper – 220 m³/h · 70 Pa · 38 dB(A) · 20 W · 179×151×82 mm – this model

    Where is it used?

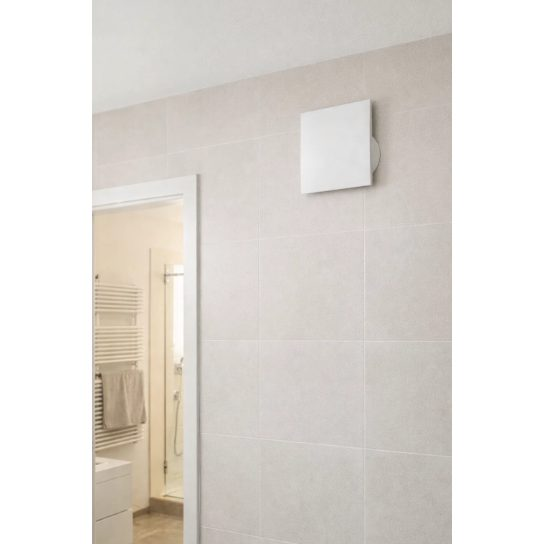

    • Bathrooms and showers
    • Toilets
    • Kitchens and utility rooms
    • Storerooms and walk-in wardrobes
    • Basements and service rooms
    • Laundry rooms
    • Small sanitary rooms in offices

    Use by need

    For house owners.
    For a longer or winding duct where the standard air flow is not enough.
    For electricians.
    Same mounting diameter and housing as the standard model – replaced without altering the opening.
    For small office administrators.
    Stronger extraction for a frequently used sanitary room.

    Practical use

    If a bathroom measures 2.0 × 2.5 m with a 2.5 m ceiling (about 12.5 m³), the rated flow of 220 m³/h would theoretically change the air about 18 times per hour. In practice the flow will be lower due to duct length, bends and grilles, so for a long or winding duct a higher-capacity model is worth choosing. The standard ESLP18564 would theoretically give about 14 air changes per hour in the same room.

    Pros

    • Higher air flow – 220 m³/h in the same housing
    • Automatic backdraft damper
    • Easily removable front panel
    • Wall or ceiling mounting
    • IP45 protection
    • Power – 20 W

    Cons / limitations

    • Higher power and noise (20 W, 38 dB(A)) than the standard ESLP18564 (10 W, 30 dB(A))
    • The rated 220 m³/h flow is given without duct resistance; in a long duct it is lower
    • No heat recovery – room air is exhausted

    Safety and installation notes

    • Disconnect the power before installation and make sure the circuit is de-energised.
    • Protect the bathroom circuit with a 30 mA residual current device (RCD).
    • IP45 means protection against water jets, but not immersion: do not install in zone 0 and follow the zone requirements of HD 60364-7-701.
    • Make sure the backdraft damper opens and closes freely – the duct or sealant must not press on it.
    • Mains installation must be carried out by a qualified electrician.

    Quick selection guide

    Ø125 mm
    220 m³/h
    38 dB(A)
    20 W
    IP45
    Turbo motor
    Suitable when you need:
    • Stronger extraction in a longer duct
    • To replace a standard model without changing the opening
    • An IP45 housing for a damp room
    Check before use:
    • Whether the duct or opening diameter is Ø125 mm
    • Whether there is room for the 179×151×82 mm housing
    • Whether a 220 V supply is available at the opening
    • Whether the room has an air inlet path (gap under the door or a grille)
    Important reminder: The fan does not replace continuous mechanical ventilation or a heat recovery unit – it extracts air only while running.

    FAQ

    How does the Turbo version differ from the standard one?
    Higher air flow (220 vs 180 m³/h), but also higher power and noise.
    What duct diameter does ESLP18568 fit?
    A Ø125 mm duct or opening.
    Can it be mounted in the ceiling?
    Yes, the fan can be mounted in a wall or ceiling.
    Does it have a backdraft damper?
    Yes, the built-in damper closes when the fan is idle.
    Can the front panel be removed?
    Yes, the front panel is easily removable for cleaning and maintenance.
    Is it suitable for a bathroom?
    Yes, the housing is IP45, but install it outside zone 0 and protect the circuit with a 30 mA RCD.

    Axial exhaust fan with backdraft damper (Turbo motor) | D125 | 220 m³/h | 220V | 179x151x82 mm | plastic | white | IP45

    ESLP18568 – axial exhaust fan with backdraft damper (Turbo motor) Ø125 mm: 220 m³/h, 38 dB(A), 20 W, IP45. The Turbo motor delivers a higher air flow in the same housing.

    Published: 2026-11-13 · Data verified against the supplier specification: 2026-11-13
