Axial exhaust fan with backdraft damper and pull cord switch | D125 | 220V | 170x151x52mm | short flange | plastic | white color | IPX4

Technical Specifications

Fan type: axial exhaust fan
Duct diameter: Ø125 mm
Air flow rate: 180 m³/h
Dimensions: 170 x 151 x 52 mm
Power: 14 W
Current consumption: 0.07 A
Static pressure: 50 Pa
Noise level: 36 dB(A)
Power supply: 220–240 V / 50 Hz
Flange length: 52 mm (short)
Housing construction: reinforced with ribs
Functions: backdraft damper and pull cord switch
Installation: wall or ceiling

Functions

Pull cord switch – the fan is turned on and off easily by pulling the cord, eliminating the need for an additional wall switch or complex installation

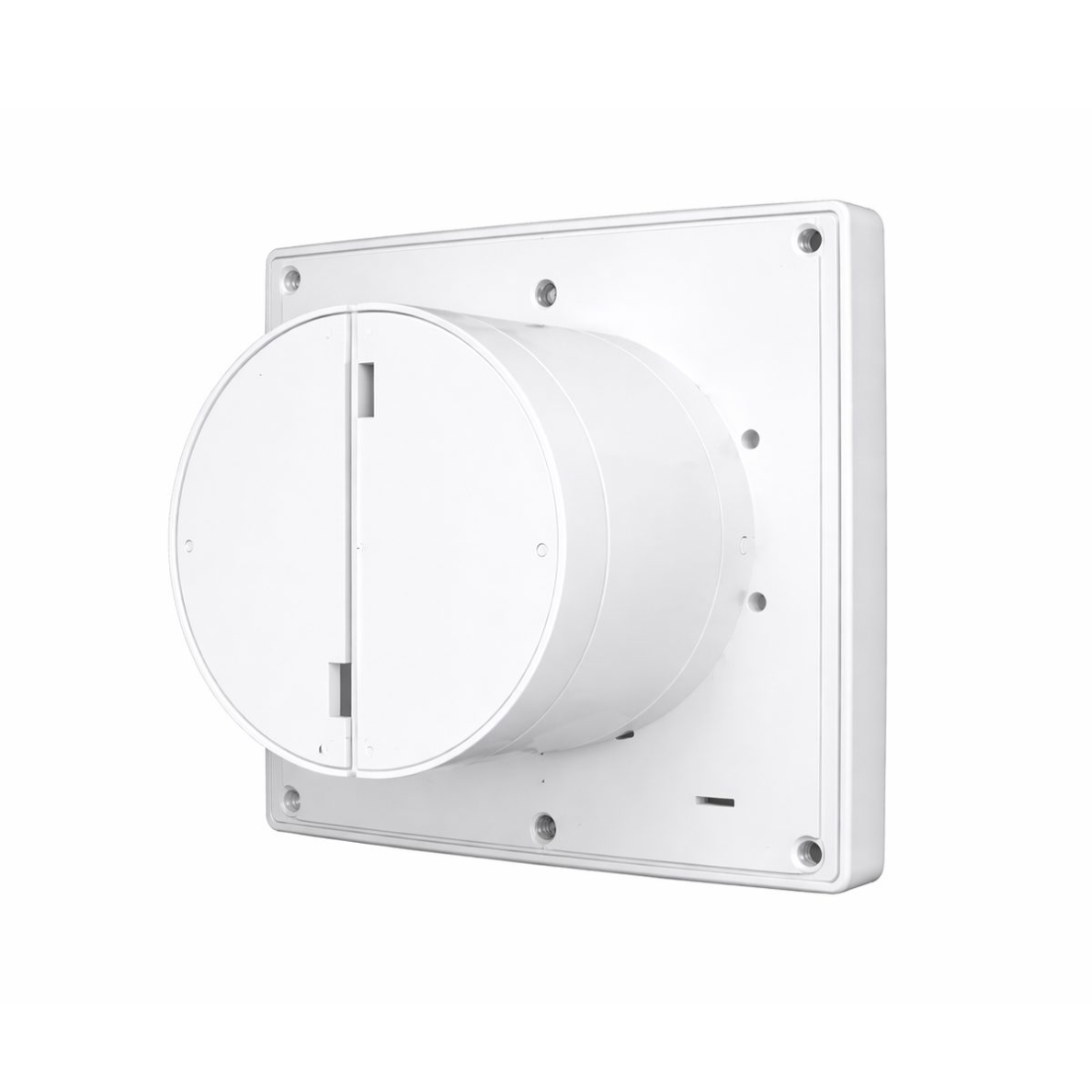

Backdraft damper – an automatically closing damper prevents cold air, odors, or dust from entering the room
Short flange – ideal for shallow installation – allows installation in places with limited depth

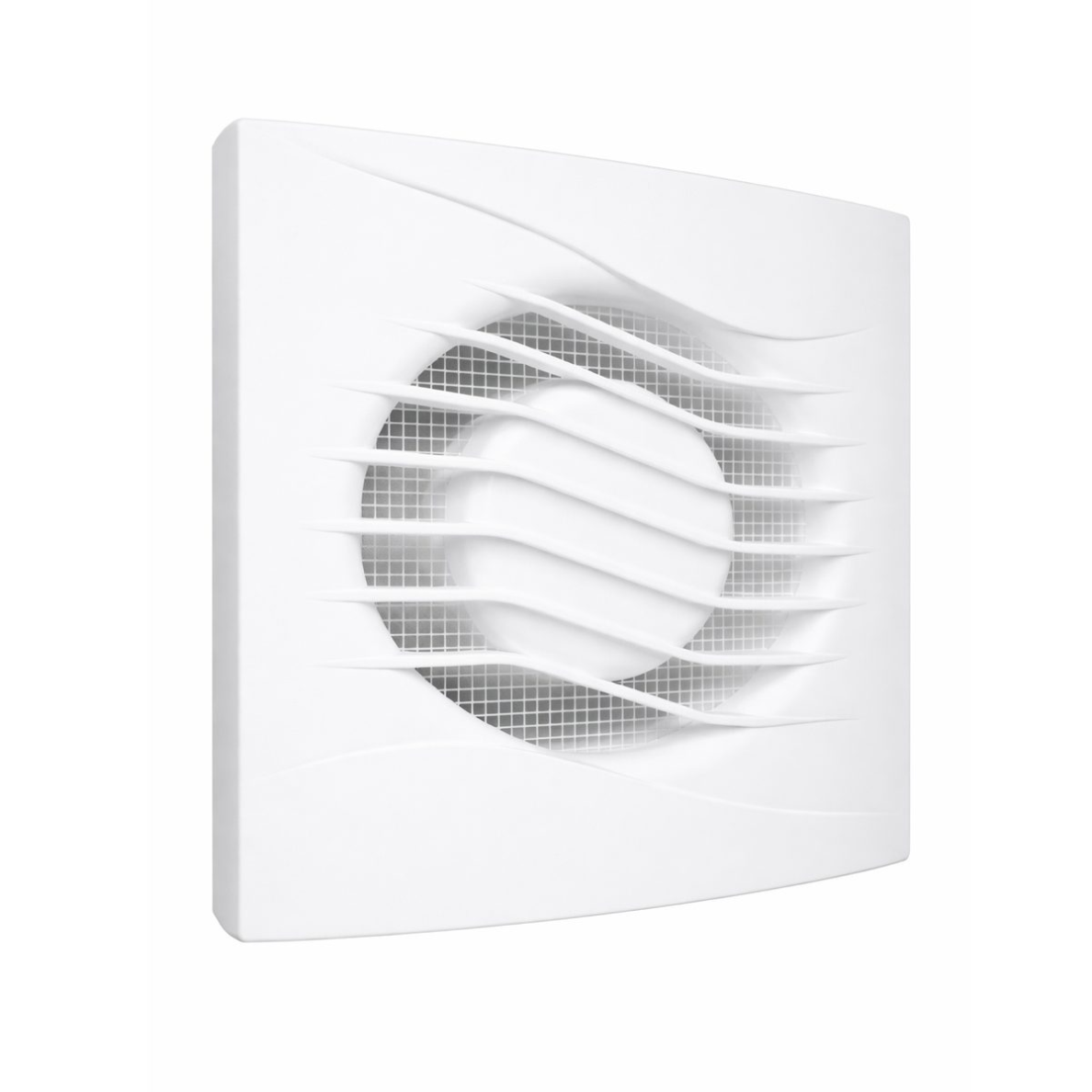

Modern wave panel – unique design that is both aesthetic and functional – the panel can be removed without screws, making cleaning and maintenance very easy
Efficient airflow – effectively removes moisture, odors, and polluted air from rooms
Reinforced construction – rib-reinforced housing ensures durability and allows installation on uneven surfaces (e.g., textured tiles)
Reliable operation – stable performance and simple construction ensure long service life and low failure probability

Usage

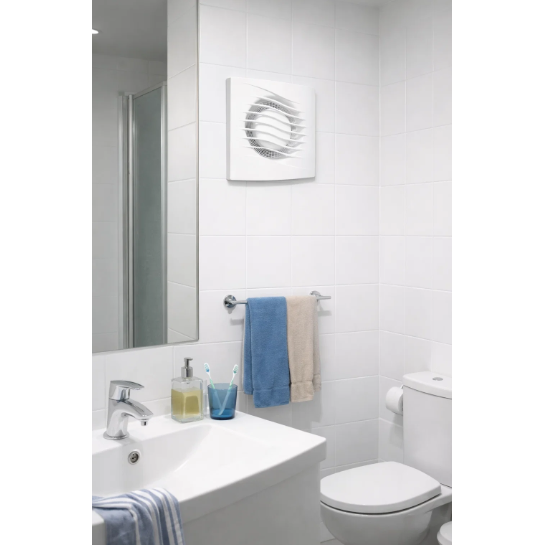

For household users: A perfect choice for bathrooms, WC rooms, kitchens, storage rooms, basements. Especially suitable where aesthetics and integration into the wall surface are important.
For electricians: Short flange – easier installation in difficult locations, no need for additional wall recessing, easy maintenance due to removable panel
For engineers and designers: Suitable solution for renovation projects, objects with limited installation depth, ventilation of residential and commercial premises, sanitary rooms with complex finishing

Advantages

integrated pull cord switch
backdraft damper
short flange suitable for shallow installation
modern wave design
panel removable without screws
durable, reinforced housing
efficient airflow
easy installation
suitable for uneven surfaces
reliable and long-lasting

Disadvantages

slightly higher noise level compared to premium models
no additional functions (timer, sensors)
