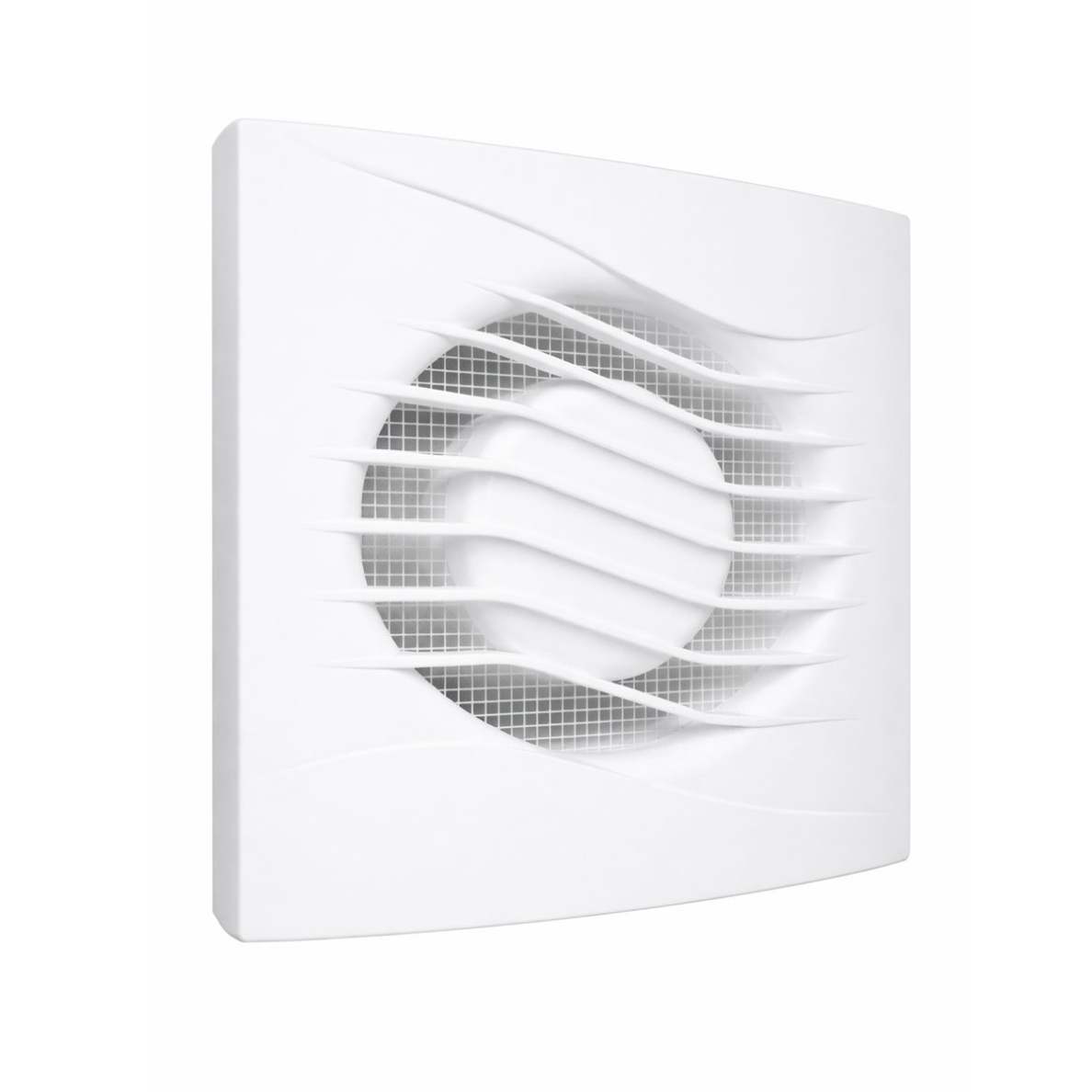

Axial exhaust fan with backdraft damper and timer | D125 | 220V | 170x151x52mm | short flange | plastic | white color | IPX4

Technical specifications

Fan type: axial exhaust fan
Duct diameter: Ø125 mm
Air flow: 180 m³/h
Dimensions: 170 x 151 x 52 mm
Power: 14 W
Current consumption: 0.07 A
Static pressure: 50 Pa
Noise level: 36 dB(A)
Power supply: 220–240 V / 50 Hz
Flange length: 52 mm (short)
Housing construction: reinforced with ribs
Functions: backdraft damper and timer
Installation: wall or ceiling

Functions

Timer – after switching off the light or power, the fan continues operating for a set time (e.g., 2–30 min.) to ensure full ventilation of the room

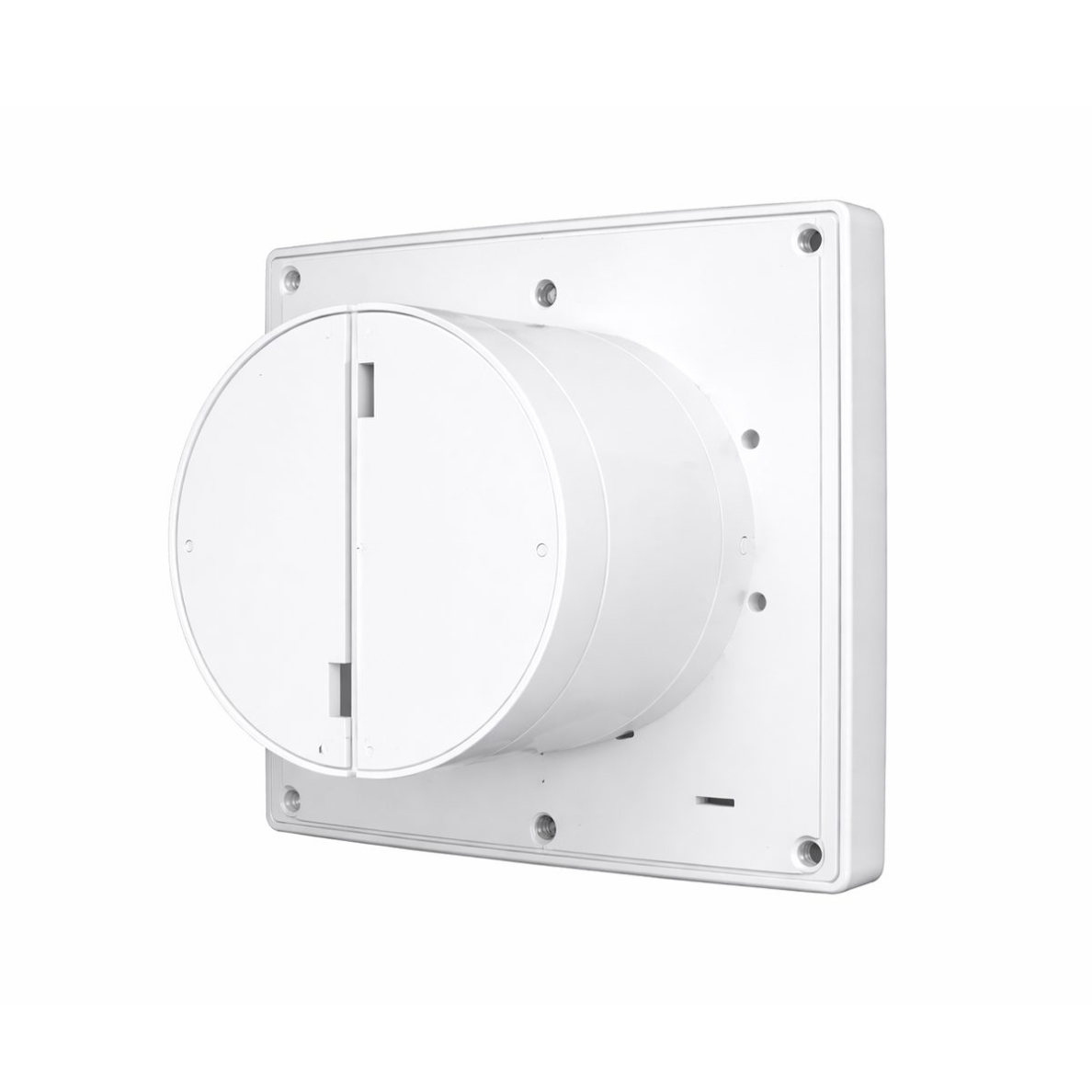

Backdraft damper – an automatically closing damper prevents cold air, odors, or dust from entering back into the room
Short flange – ideal for shallow installation – allows installation in places with limited depth
Modern wave-pattern panel – unique design that is not only aesthetic but also functional – the panel can be removed without screws, making cleaning and maintenance very easy
Efficient airflow – effectively removes moisture, odors, and polluted air from the room
Reinforced construction – rib-reinforced housing ensures durability and allows installation on uneven surfaces (e.g., textured tiles)
Reliable operation – stable performance and simple design ensure long service life and low failure probability

Usage

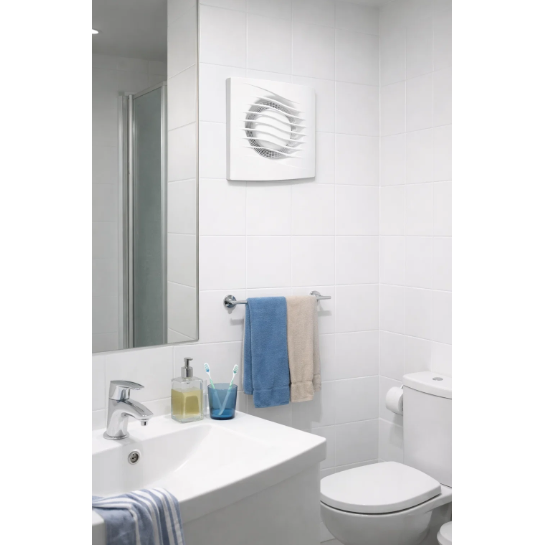

For household users: A perfect choice for bathrooms, WC rooms, kitchens, storage rooms, and basements. Especially suitable where aesthetics and integration into the wall surface are important.
For electricians: Short flange – easier installation in difficult locations, no need for additional wall recessing, easy maintenance thanks to removable panel
For engineers and designers: Suitable for renovation projects, objects with limited installation depth, ventilation of residential and commercial premises, sanitary rooms with complex finishing

Advantages

integrated timer
backdraft damper
short flange suitable for shallow installation
modern wave design
panel removable without screws
durable reinforced housing
efficient airflow
easy installation
suitable for uneven surfaces
reliable and long-lasting

Disadvantages

slightly higher noise level compared to premium models
no humidity sensor
