Axial exhaust fan with backdraft damper | D100 | 100 m³/h | 220V | 145x130x49 mm | short flange | plastic | white | IPX4
Code: ESLP24389Price 9.73 € VAT incl.( 8.04 € VAT excl. )Axial exhaust fan with backdraft damper, Ø100 mm: 100 m³/h, 40 Pa, 35 dB(A), 14 W, IPX4. Backdraft damper blocks back-draught. Wall or ceiling mounting. Short 49 mm flange and removable wave panel.
-
Axial exhaust fan with backdraft damper | D100 | 100 m³/h | 220V | 145x130x49 mm | short flange | plastic | white | IPX4

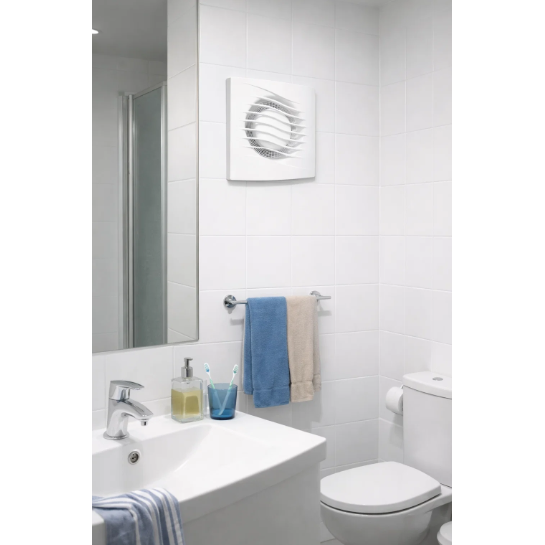

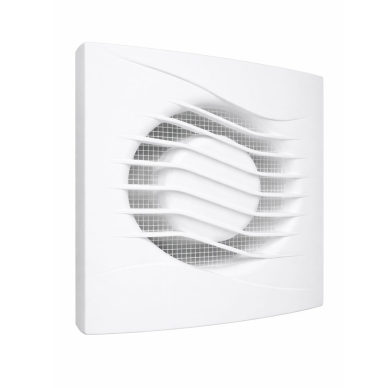

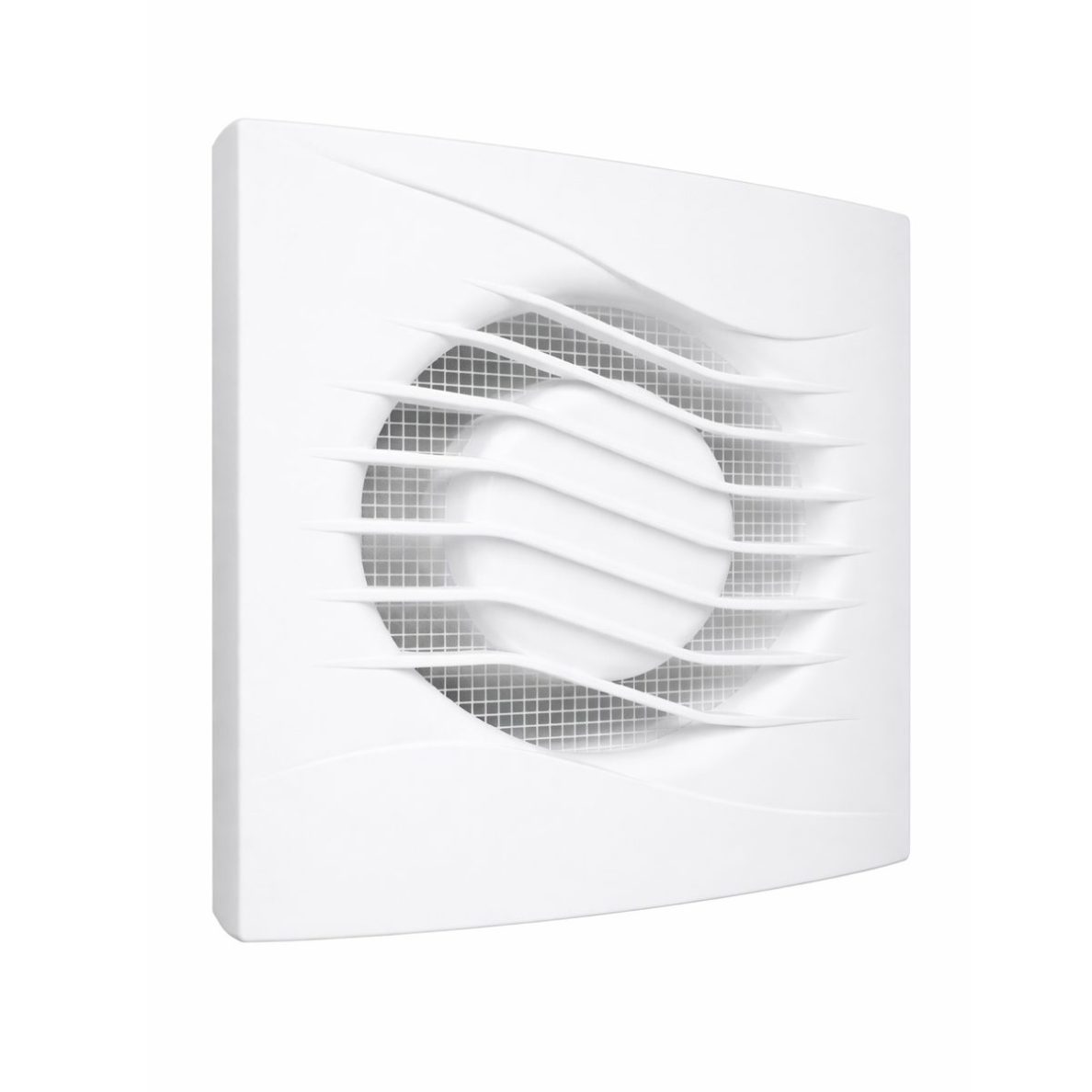

Axial exhaust fan with backdraft damper for a Ø100 mm duct or wall opening – for removing moisture, odours and stale air from a bathroom, toilet, kitchen or storeroom. The short 49 mm flange allows installation in a shallow opening, and the wave-design front panel can be removed without screws.
Key point:
Rated capacity 100 m³/h, static pressure 40 Pa, noise 35 dB(A), power 14 W. The backdraft damper closes the duct when the fan stops, so cold air and odours do not come back from the shaft. The short flange solves the problem when wall or duct depth is limited.Mounting diameter
Ø100 mmCapacity
100 m³/hNoise
35 dB(A)Feature
backdraft damperHow it works
The fan is inserted into a Ø100 mm duct or wall opening and mounted on a wall or ceiling. Supply: 220–240 V, 50 Hz. The short 49 mm flange allows installation in a shallow opening without deepening the wall, and the rib-reinforced housing also suits uneven surfaces such as relief tiles. The fan is switched by an external switch – a separate one or together with the lighting.

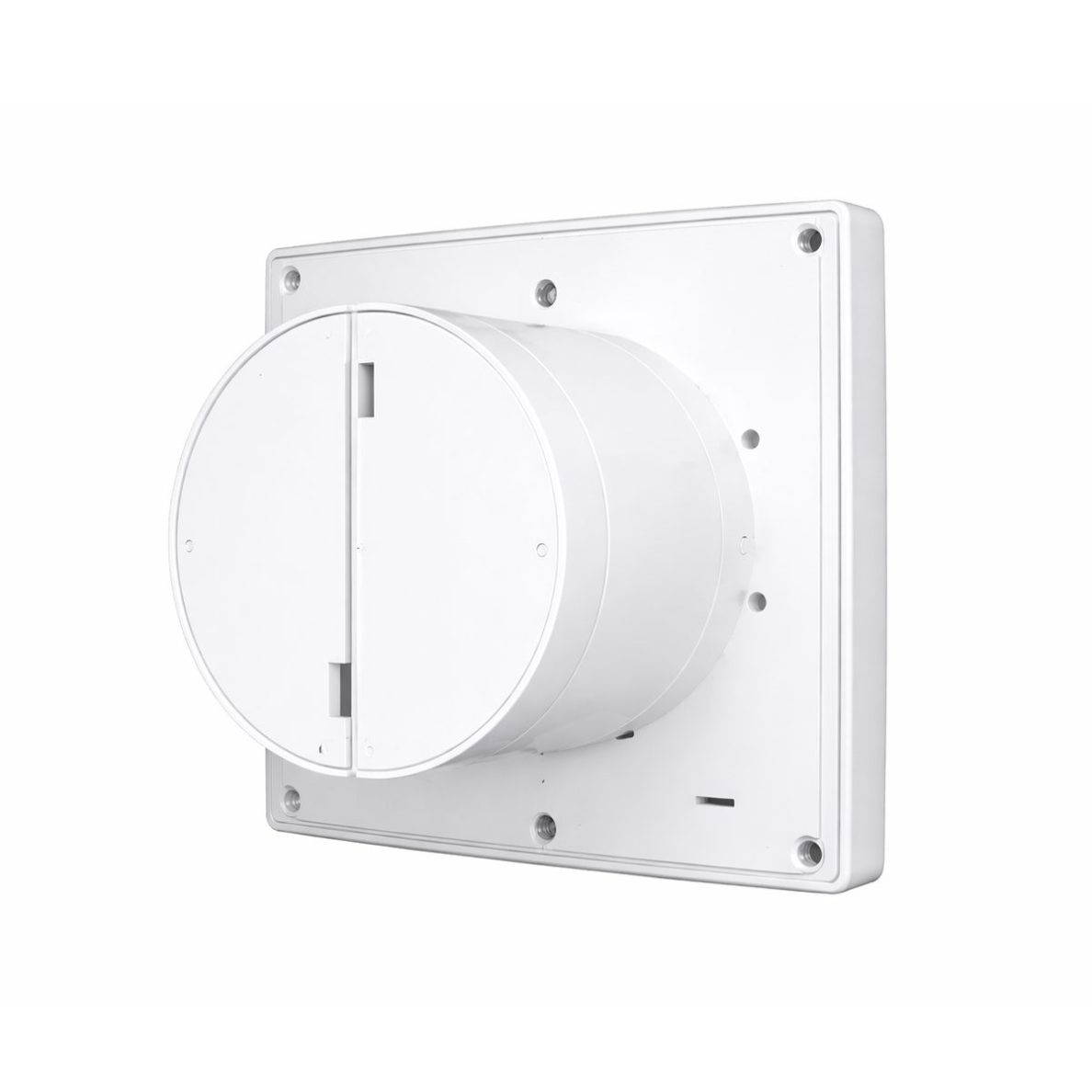

When switched on, the impeller extracts air into the ventilation duct: rated capacity 100 m³/h, static pressure 40 Pa, power 14 W, current 0.06 A. The backdraft damper closes automatically when the fan is off and keeps cold air, odours and dust from coming back into the room.
The result is a room that dries faster, a lower risk of condensation and mould, and a duct that stays closed while the fan is off.
Why choose ESLP24389?
The backdraft damper blocks back-draught from the duct – relevant in apartment blocks with a shared shaft and in the cold season. The wave panel can be removed without screws, so cleaning is easy.Technical specifications
Product type Axial exhaust fan with backdraft damper Product code ESLP24389 Duct diameter Ø100 mm Air flow 100 m³/h Static pressure 40 Pa Noise level 35 dB(A) Power 14 W Current consumption 0.06 A Supply 220–240 V / 50 Hz Protection rating IPX4 Dimensions 145×130×49 mm Flange length 49 mm (short) Housing plastic, white Housing design rib-reinforced Front panel wave design, removable without screws Control by an external switch Backdraft damper built-in, closes when the fan stops Mounting wall or ceiling Main functions
- Backdraft damper – closes when the fan stops, so cold air, odours and dust do not come back into the room.
- Short 49 mm flange – installs where the opening depth is limited.
- Wave panel without screws – removed for cleaning without tools.
- 100 m³/h capacity – sufficient for air exchange in a bathroom, toilet or storeroom.
- IPX4 protection – protection against water splashes from any direction (protection against solids not specified).
- Wall or ceiling mounting – flexible fit to the room.
- 14 W power – low running costs.
How the models in this series differ
- ESLP24388 – basic model · 100 m³/h
- ESLP24389 – backdraft damper · 100 m³/h – this model
- ESLP24390 – damper + pull-cord switch · 100 m³/h
- ESLP24391 – damper + timer · 100 m³/h
- ESLP24392 – damper + timer + humidity sensor · 100 m³/h
Where is it used?
- Bathrooms and showers
- Toilets
- Kitchens
- Storerooms and walk-in wardrobes
- Basements and utility rooms
- Sanitary rooms in offices and small commercial premises
- Renovated homes with shallow ventilation openings
Use by need
For apartment block residents.
The backdraft damper keeps odours and cold air from the shared shaft out.For electricians.
Short 49 mm flange – no need to deepen the wall opening, and the housing also fits on relief tiles.For designers.
For renovation projects with limited mounting depth and textured finishes – 100 m³/h, 40 Pa.Practical use
If a bathroom measures 2.0 × 2.5 m with a 2.5 m ceiling (about 12.5 m³), the rated flow of 100 m³/h would theoretically change the air about 8 times per hour; in practice the flow will be lower due to duct length, bends and grilles. In an apartment block the backdraft damper will keep the neighbours' odours from the shared shaft out while the fan is off.Pros
- Built-in backdraft damper
- Short 49 mm flange for shallow openings
- Panel removable without screws
- Rib-reinforced housing
- Noise 35 dB(A)
- Low consumption – 14 W
- Wall or ceiling mounting
Cons / limitations
- No timer or humidity sensor – switch-controlled; with timer: ESLP24391
- 35 dB(A) – more audible than the 25–30 dB(A) compact ESLP189xx series models
- IPX4 – splash protection, not protection against water jets or immersion
- The rated 100 m³/h flow is given without duct resistance; in a long duct it is lower
- No heat recovery – room air is exhausted
Safety and installation notes
- Disconnect the power before installation and make sure the circuit is de-energised.
- Protect the bathroom circuit with a 30 mA residual current device (RCD).
- IPX4 means splash protection: under HD 60364-7-701, at least IPX4 is required in zones 1 and 2, and installation in zone 0 (inside a bath or shower tray) is not allowed.
- Make sure the backdraft damper opens and closes freely – the duct or sealant must not press on it.
- Mains installation must be carried out by a qualified electrician.
Quick selection guide
Ø100 mm100 m³/h35 dB(A)14 WIPX4backdraft damperFlange 49 mmSuitable when you need:- To extract moisture and odours from a bathroom or toilet
- To stop cold air and odours coming back from the duct
- To install in a shallow opening (49 mm flange)
Check before use:- Whether the duct or opening diameter is Ø100 mm
- Whether there is room for the 145×130×49 mm housing
- Whether the opening is deep enough for the 49 mm flange
- Whether a 220–240 V supply is available at the opening
- Whether the room has an air inlet path (gap under the door or a grille)
Important reminder: The fan does not replace continuous mechanical ventilation or a heat recovery unit – it extracts air only while running.FAQ
How is the fan switched on?
By an external switch – a separate one or together with the lighting.Does the fan have a backdraft damper?
Yes, the built-in damper closes when the fan stops.What duct diameter does ESLP24389 fit?
A Ø100 mm duct or wall opening.Can it be mounted in the ceiling?
Yes, the fan is mounted on a wall or ceiling.Is it suitable for a bathroom?
Yes, the housing is IPX4, but do not install it in zone 0 and protect the circuit with a 30 mA RCD.What is the short flange for?
The 49 mm flange allows the fan to be installed where the opening or duct depth is limited.Axial exhaust fan with backdraft damper | D100 | 100 m³/h | 220V | 145x130x49 mm | short flange | plastic | white | IPX4
ESLP24389 is a Ø100 mm axial exhaust fan with backdraft damper: 100 m³/h, 40 Pa, 35 dB(A), 14 W, IPX4. Short 49 mm flange and removable wave panel – for shallow mounting openings.
Published: 2026-11-13 · Data verified against the supplier specification: 2026-11-13
Illustrative image may have been created using AI. The appearance of the product may differ slightly from the image shown. Please refer to the technical specification.This product is marked with the CE label, which confirms that it complies with all applicable European Union directives and regulations. CE marking is not just a formality – it is an important indicator of quality and safety, ensuring that the product has been properly assessed, tested, and can be safely used throughout the EU market.
CE certification means that the product has been evaluated according to the main criteria:
Safety requirements – ensures that the product does not pose a risk to the user or the environment
Electromagnetic compatibility (EMC) – the device does not interfere with other equipment and is resistant to external disturbances
Environmental standards – complies with current ecological and material usage requirements
Operational reliability – the product is suitable for long-term use according to its intended purposeCE marking allows this product to:
be legally supplied and used in all European Union countries
ensure a high level of quality and safety
be used in residential, commercial, and industrial environmentsThe CE mark is a declaration of the manufacturer’s responsibility, confirming that the product complies with all applicable standards and has been assessed according to EU legislation.
What does this mean for you as a buyer?
Safe use in everyday activities
Reliable performance and reduced risk of failure
Compliance with EU standards and requirements
Suitability for professional solutions
