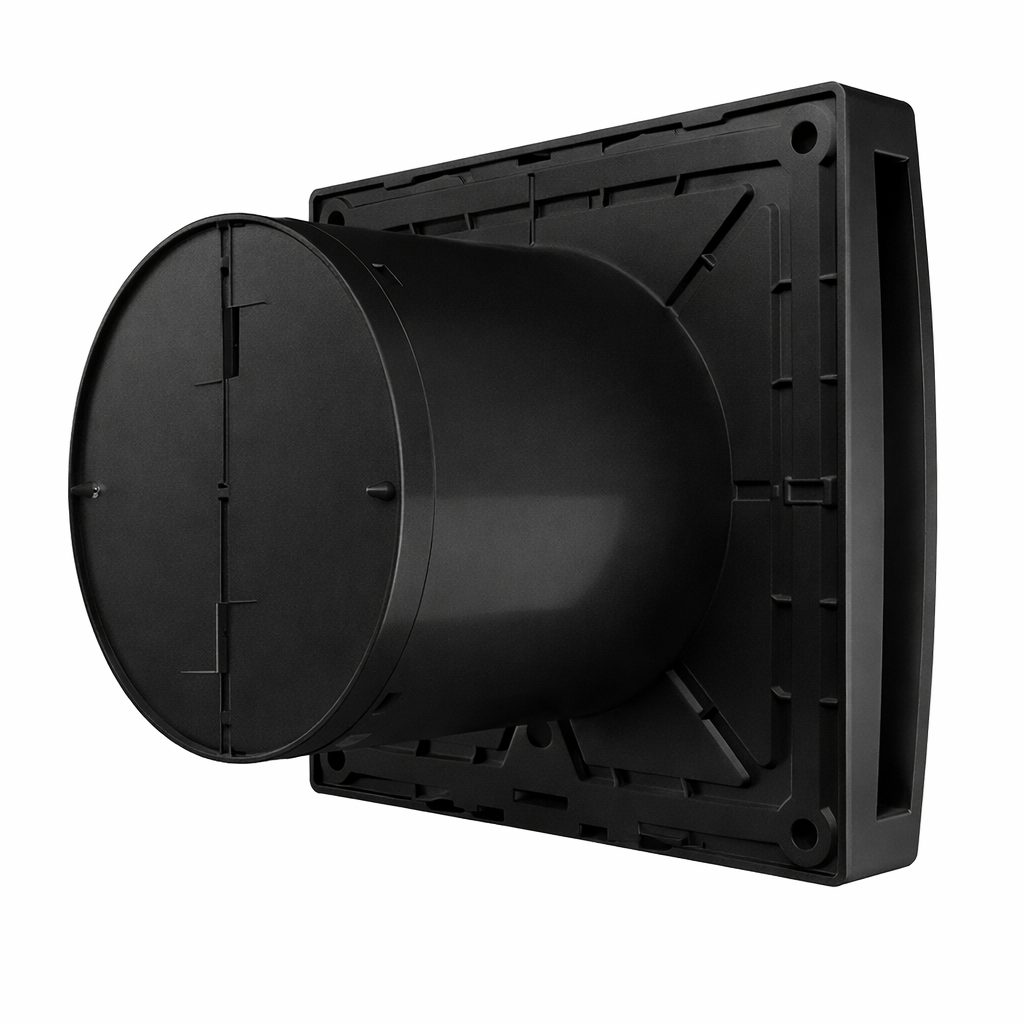

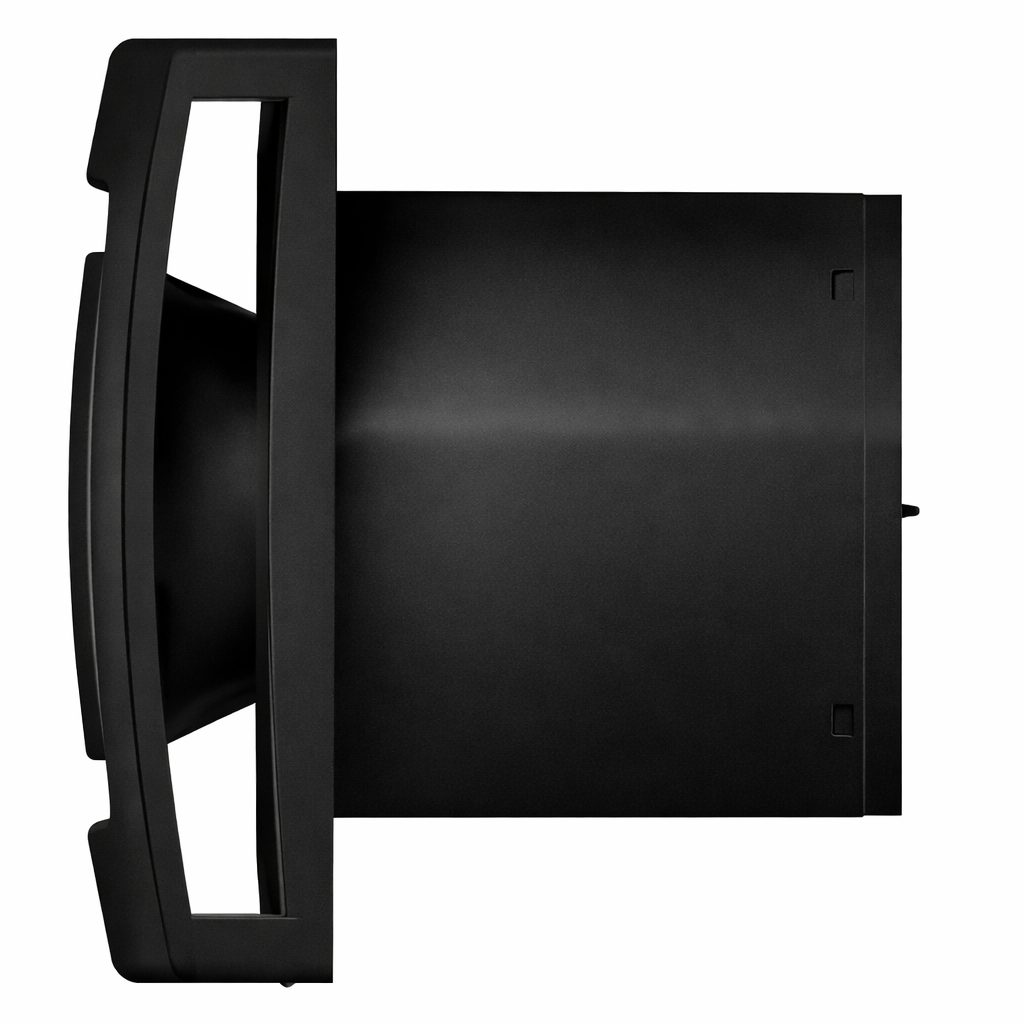

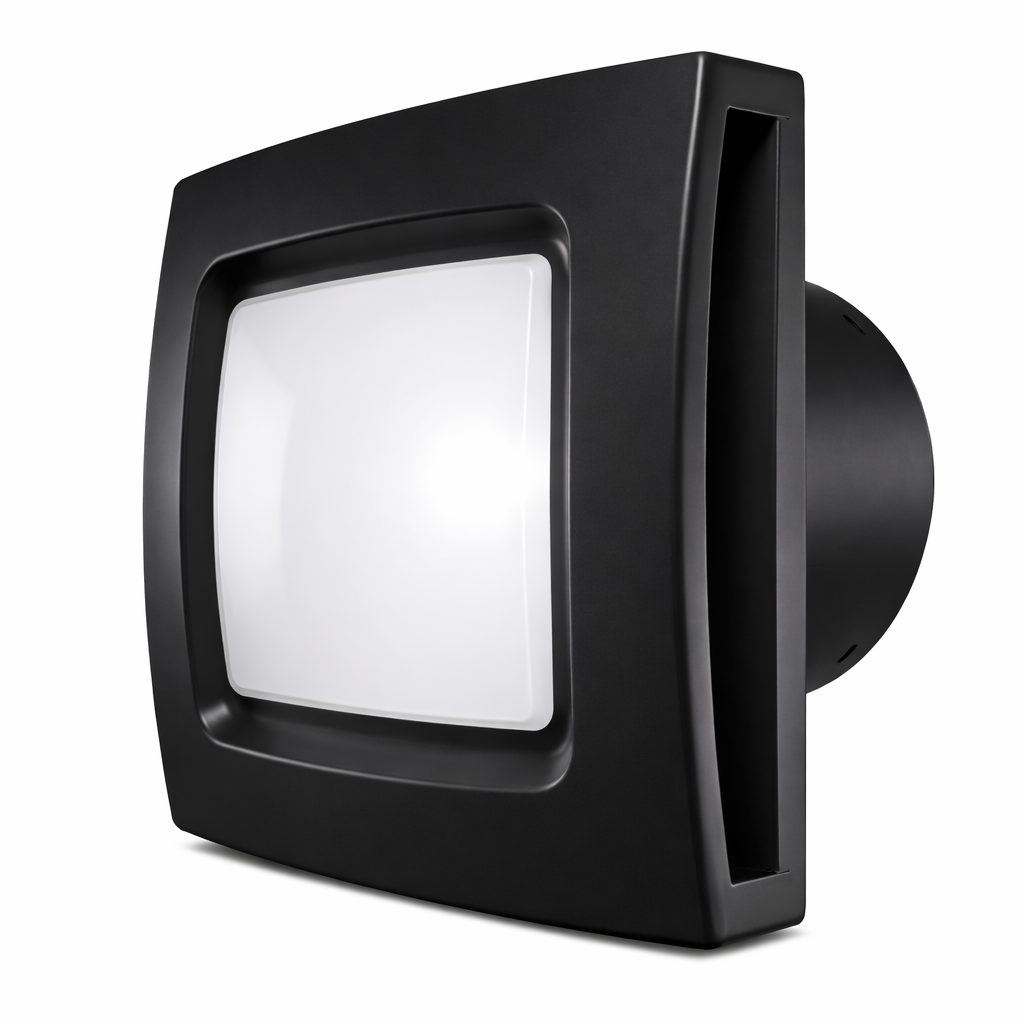

Axial fan with light and back-draught shutter | D100 | 220V | 150×150×125 mm | plastic | matt black color | IP24

Technical Specifications

Type: axial exhaust fan
Mounting diameter: Ø100 mm
Dimensions: 150 x 150 x 125 mm
Capacity (air flow): 100 m³/h
Noise level: 25 dB(A)
Static pressure: 30 Pa
Supply voltage: 220 V AC
Power: 9 W
Ventilation type: exhaust
Housing material: moisture-resistant plastic
Color: matt black
Mounting type: wall or ventilation duct
Additional function: automatic backdraft damper

Functions

Efficient air extraction – the fan quickly removes humid, polluted or odor-filled air from rooms, improving indoor air quality.
Automatic back-draught shutter – the integrated shutter prevents air, odors or cold air from flowing back into the room when the fan is switched off.
Compact and universal installation – the standard ventilation duct size allows easy integration into most ventilation systems.
Energy-efficient operation – low power consumption allows frequent or continuous operation without high energy costs.
Reliable and quiet operation – optimized fan blades and construction ensure stable performance and relatively low noise levels.

Applications

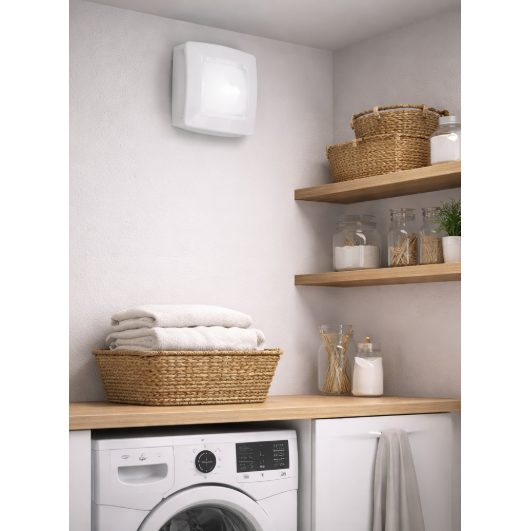

For home users: Suitable for bathrooms, toilets, kitchens, basements and storage rooms. Helps remove humidity and odors, reducing the risk of mold formation.

For electricians: Convenient due to the standard installation diameter, quick electrical connection and simple wall mounting. A commonly used solution for apartments, houses and small commercial ventilation systems.

For engineers and designers: Can be used in residential ventilation projects, technical room ventilation and small mechanical ventilation systems.

For commercial premises: Suitable for workshops, offices, warehouses, server rooms and technical rooms.

Advantages

Integrated back-draught shutter
Standard mounting diameter
Compact and aesthetic design
Easy installation
Low energy consumption
Efficient air extraction
Suitable for residential and professional use

Possible disadvantages

Designed for small and medium-sized rooms
Requires electrical connection
Not suitable for high-capacity industrial ventilation systems
