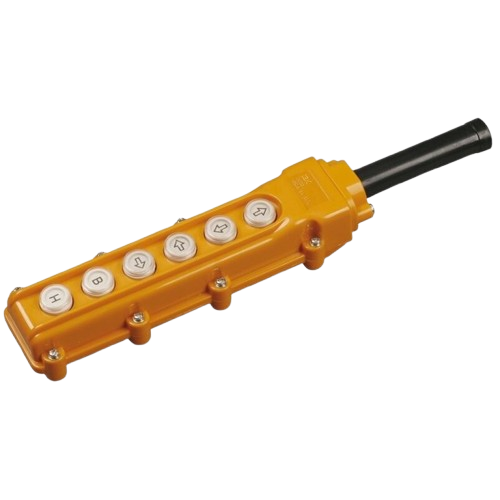

Crane control panel | with 6 buttons | 5A | 120–400V | IP54

Specification:

Number of control elements: 6

Number of speeds: 1

Type of motion performed: Other

Housing material: ABS plastic

Width: 68 mm

Height: 50 mm

Depth: 366 mm

Rated voltage: 400 V

Frequency: 50 Hz

Operating temperature: -25 ... +45 °C

Control button functions: Start forward, backward, right, left, up-B, down-H

Conventional thermal current: 5 A

Rated voltage: 120/230/400 V

Rated operating current, AC-15 120 V: 6.0 A

Rated insulation voltage Ui: 500 V

Rated impulse withstand voltage: 4 kV

Rated conditional short-circuit current Icn: 1000 A

Short-circuit current protection at Ie 3A fuse qG: 5.0 A

Short-circuit current protection at Ie 1.5A fuse qG: 3.0 A

Model or execution: Push-on self-reset

Locking: Mechanical

Control force: 30 N

Wear resistance of the shell: 30,000 cycles

Protection degree - IP: IP54

Connected conductor cross-section: ≤ 1.5 mm²

Environmental usage: B

Internal cable size: 16 mm

Length: 253 mm

Service life, years: Not less than 15 years

Warranty period: 3 years

Functions:

Control in 6 directions with 1 speed

Ergonomic button layout – quick and precise control

Self-reset mechanism – ensures safety

Mechanical button locking to prevent accidental pressing

Protection against dust and moisture (IP54)

Hermetic cable entry for environmental protection

Usage:

Cranes

Lifting platforms

Hoists (trolleys)

Production equipment with lifting functions

Storage, loading, and unloading equipment

Industrial facilities, logistics centers

Advantages:

Clear and simple control even with gloves

Resistant to environmental influences – IP54, seal, sealing gasket

Durable ABS plastic housing, non-flammable

Certified (CE) and complies with industrial safety standards

Suitable for both indoor and outdoor conditions

Disadvantages:

Single-speed mode – not suitable for systems requiring two-speed control

No light or sound indicator

Requires professional installation​
