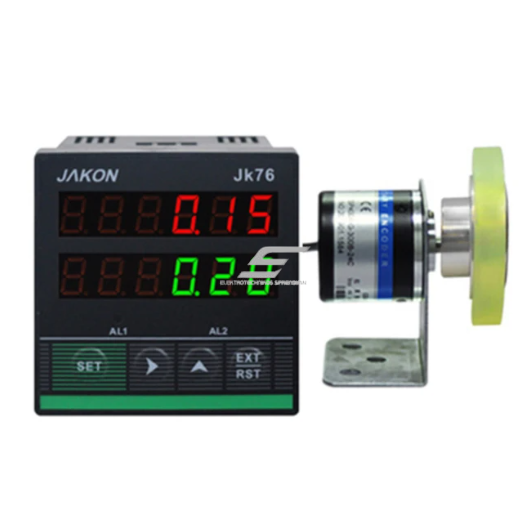

Panel-mounted | digital pulse | meter | counter | calibrator | electronic ruler | for conveyor system | 12V | 10mm wheel

Technical Specifications:

Display type: Two-line digital LED display

Panel size: 72 x 72 mm

Mounting (cutout) size: 68 x 68 mm

Power supply: 12 V DC

Relay outputs: 2 (AL1 and AL2)

Wheel width: 10 mm

Housing material: Plastic, resistant to environmental influences

Counting range: User-adjustable

Auto reset: Automatic or manual reset to 0

Modes: Simple counting / batch mode / relay control

Functions:

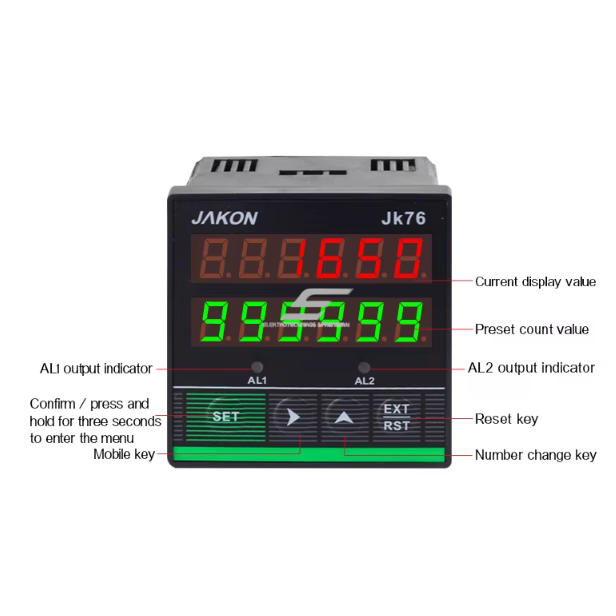

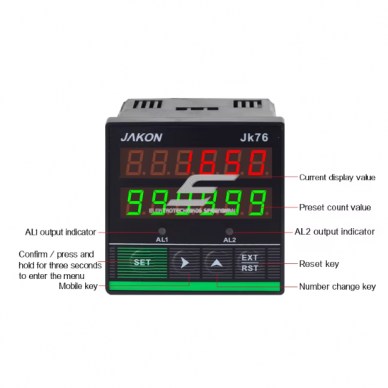

Real-time counting: Upper line displays current value – e.g., product units or flow pulses

Preset value: Lower line displays the target or batch – when reached, relay output is activated

Dual relay (AL1, AL2): Two separate output thresholds can be set – e.g., AL1 = 90, AL2 = 100

Auto or manual reset: Reset to 0 upon reaching target or manually

Batch mode: Repeated counting – e.g., when upper line reaches 100, resets to 0 and lower line increments by 1

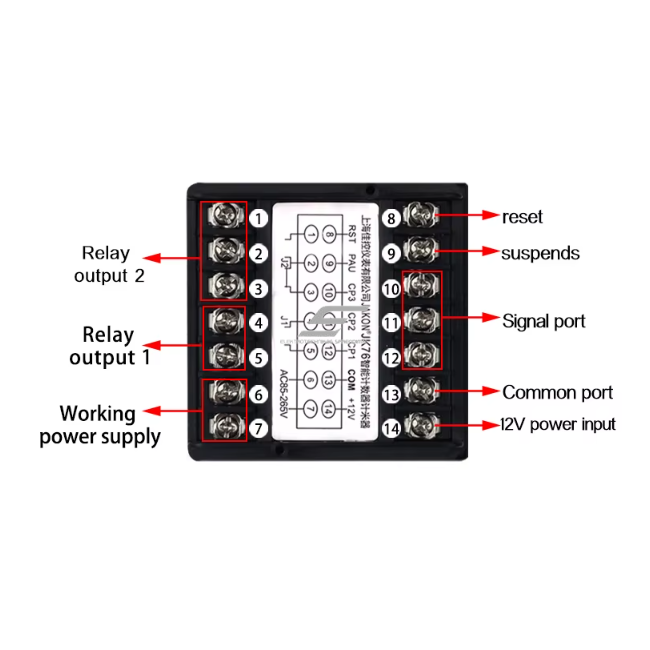

Relay output: For alarms, motor start, or process control

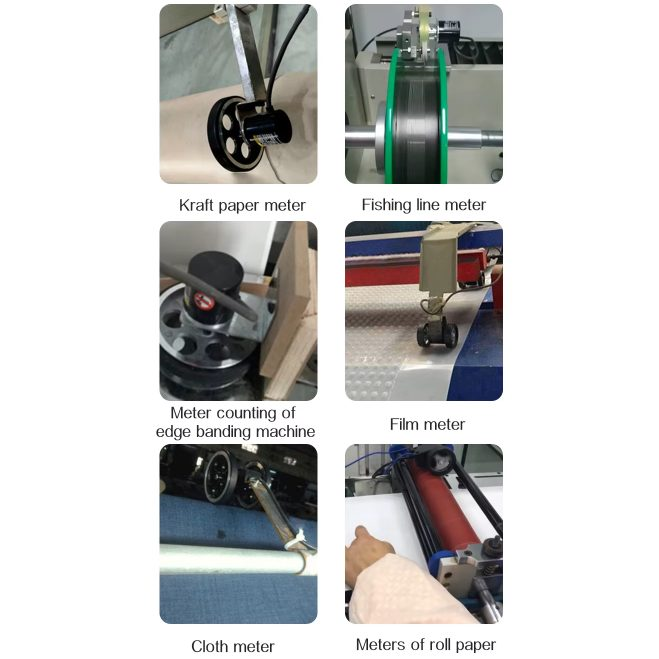

Applications:

Industrial counting, sorting, dosing, or packaging

Automated production lines

Flow counting (liquids, granules, pulses)

Batch control (how many times a set value was reached)

Home workshops – for hobbies or small projects

Equipment runtime or cycle counting

Pros:

Easy to integrate – standard panel size

Clear dual display: count + target value

Dual relay output – suitable for advanced control

Suitable for industrial and domestic use

Compact yet functional

Compatible with encoders and flow sensors

Cons:

12 V DC only – requires a separate power supply

One-way counting only – not for bidirectional pulses

Limited encoder holder – suitable only for wheels up to 10 mm wide

Digital flow meter and controller with narrow wheel encoder holder – a reliable and versatile solution for those seeking a compact yet powerful unit/pulse/batch counter. The clear display, flexible settings, and relay outputs make it adaptable for various automation tasks – from professional production lines to home DIY setups.
